Beskrivelse

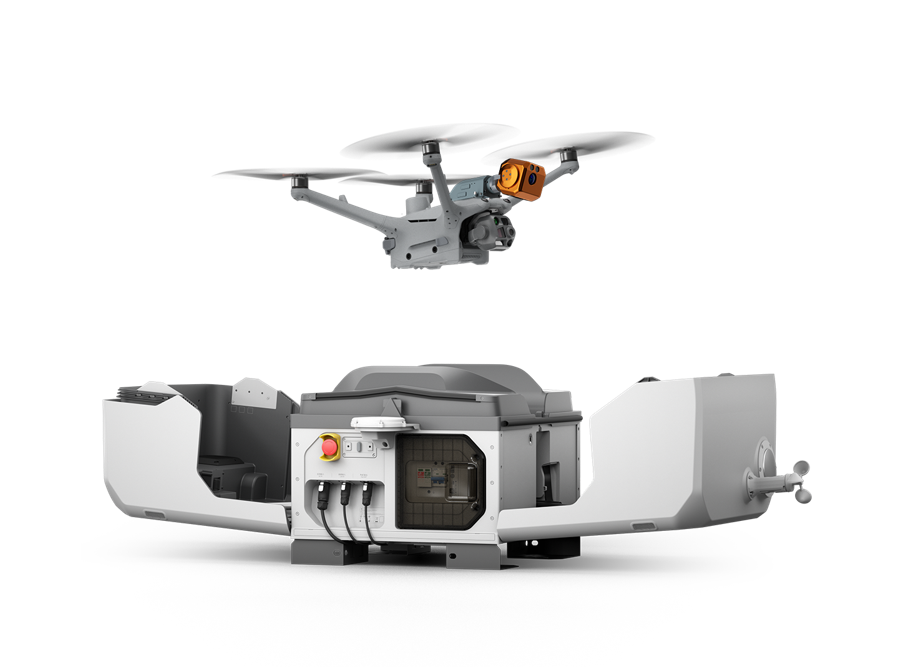

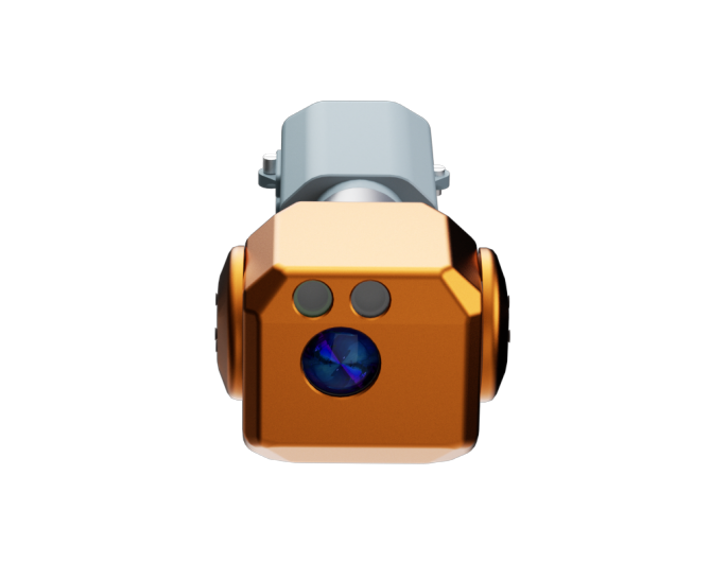

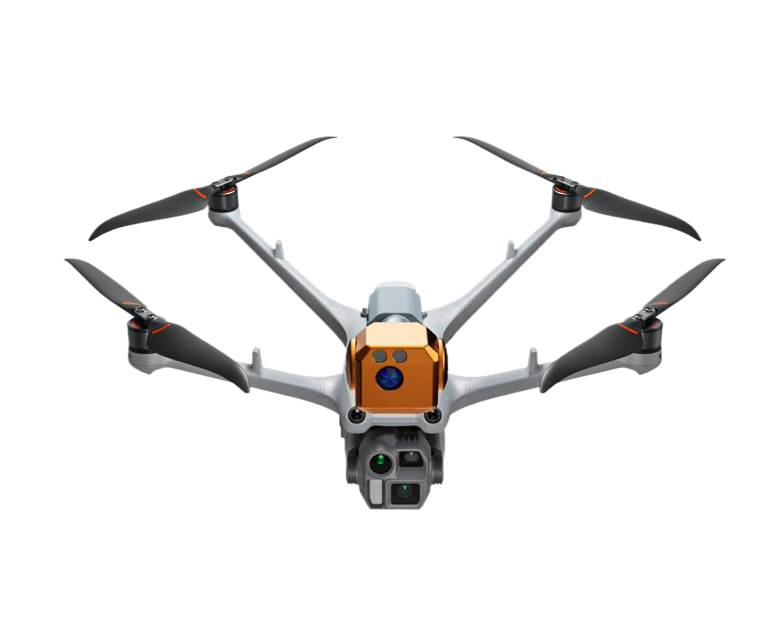

The BL-CH4 MINI 3 Pro UAV-based methane detection sensor is an advanced system designed to detect and map methane (CH4) concentrations with high precision and accuracy based on TDLAS Technology. Seamlessly integrated with DJl Dock 3,it is highly compatible to Matrice 4D/4TD, the system significantly reduces the cost and boosts the efficiency for unmanned inspections on industrial sites and pipeline leakages, opening up infinite possibilities.
Key Performance
Equipped with a professional surveying and mapping lens, BL-CH4 MINI 3 Pro has extraordinary performance during flight mission.
Regulatory Alignment
Designed to support methane monitoring, emissions management,
and secure data workflows aligned with internationally recognized regulations and industry frameworks.
EU Methane Regulation
Regulation (EU) 2024/1787
Supports methane inspection workflows, LDAR documentation, and inspection record management.
OGMP 2.0
Oil & Gas Methane Partnership
Supports methane detection, emissions data collection, and reporting workflows.
GDPR
General Data Protection Regulation
Supports secure data management, role-based access control, and data governance workflows.
Specification:
- Working Principle：TDLAS
- Target Gas(es): CH₄
- Compatible Platforms: DJI Dock2/Dock 3 and DJI M4D/M4TD

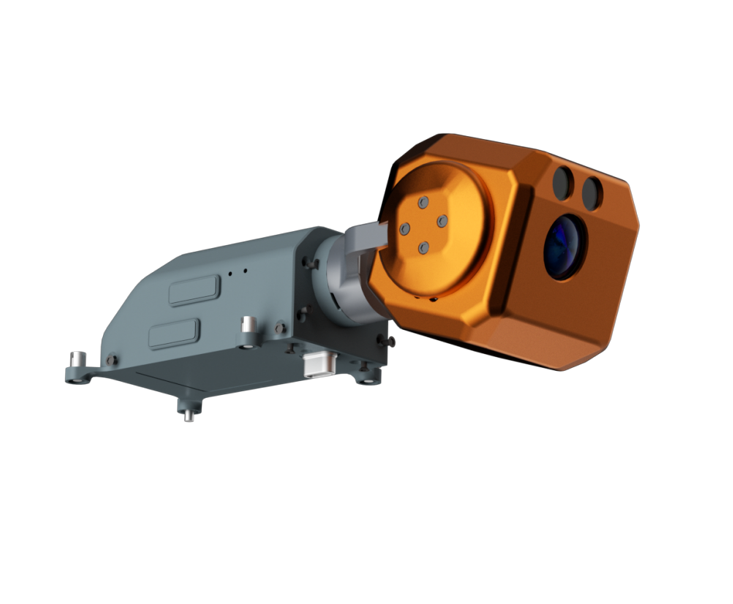

- Interface：E-Port Gimbal: 2-axis stability enhancement (Pitch, Roll)
- Rotation Range: Pitch (+20°to-90°), Roll (±25°)
- Response Speed: 20ms Sensitivity: 5ppm·m
- Concentration Range: 0~99999 ppm·m
- Accuracy: ±10% (100~50000 ppm·m)
- Detection Range: 80m (Test Conditions: 30% diffuse reflectivity target, 10,000 ppm·m CH₄ concentration, static level detection)
- Infrared Detection Laser: Class 1 (Eye Safety)
- Green Indication Laser: Class 3R (Avoid direct eye exposure)
- IP Rating: IP55
- Power Consumption: 3W
- Weight: 240g (with gimbal)

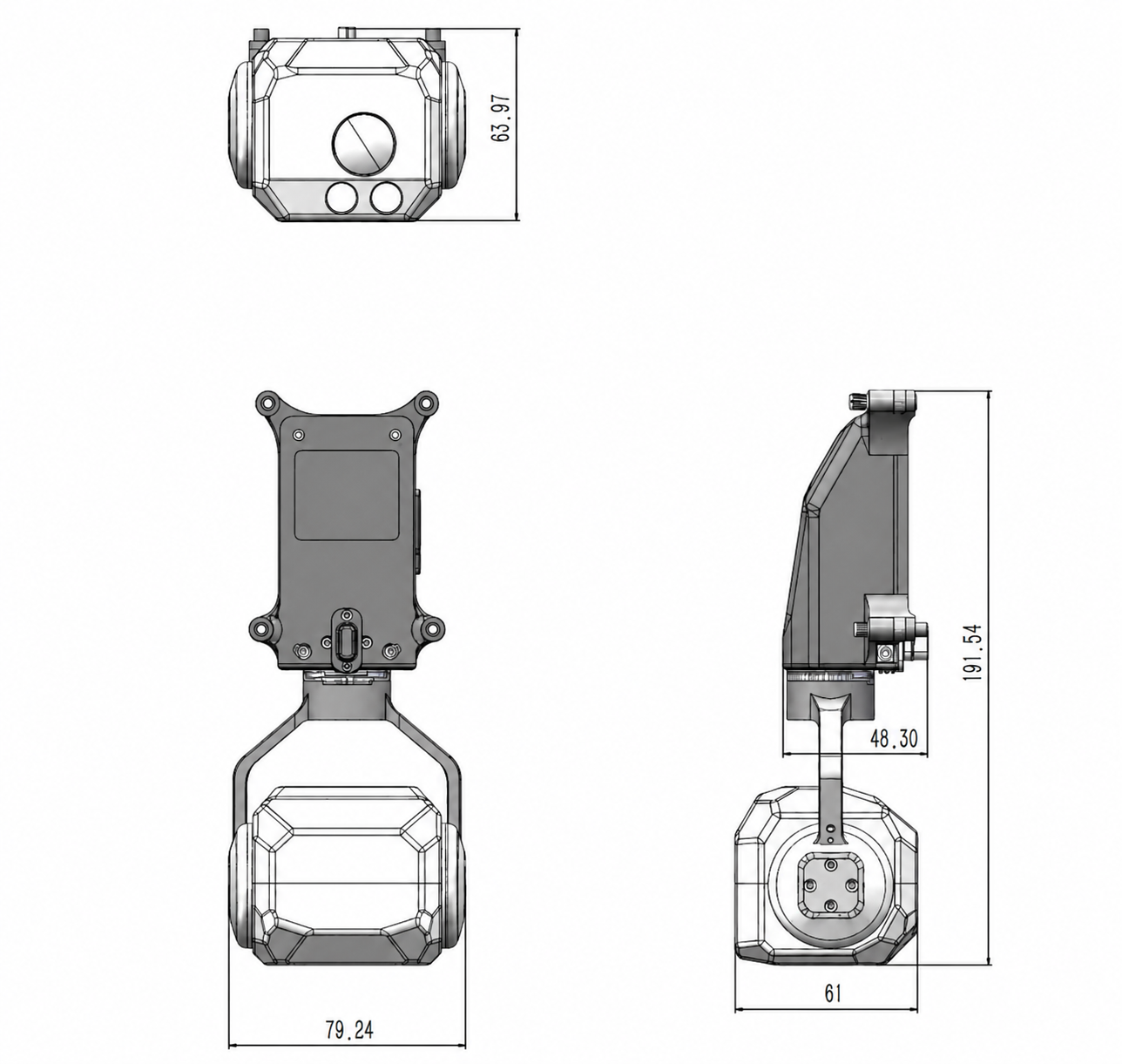

- Size(L*W*H)：191.54mm*79.24mm*63.97mm (with gimbal)
- Working Temperature: -25℃ to 60℃
- Working Humidity: ＜ 95%RH (+25℃)
