Beskrivelse

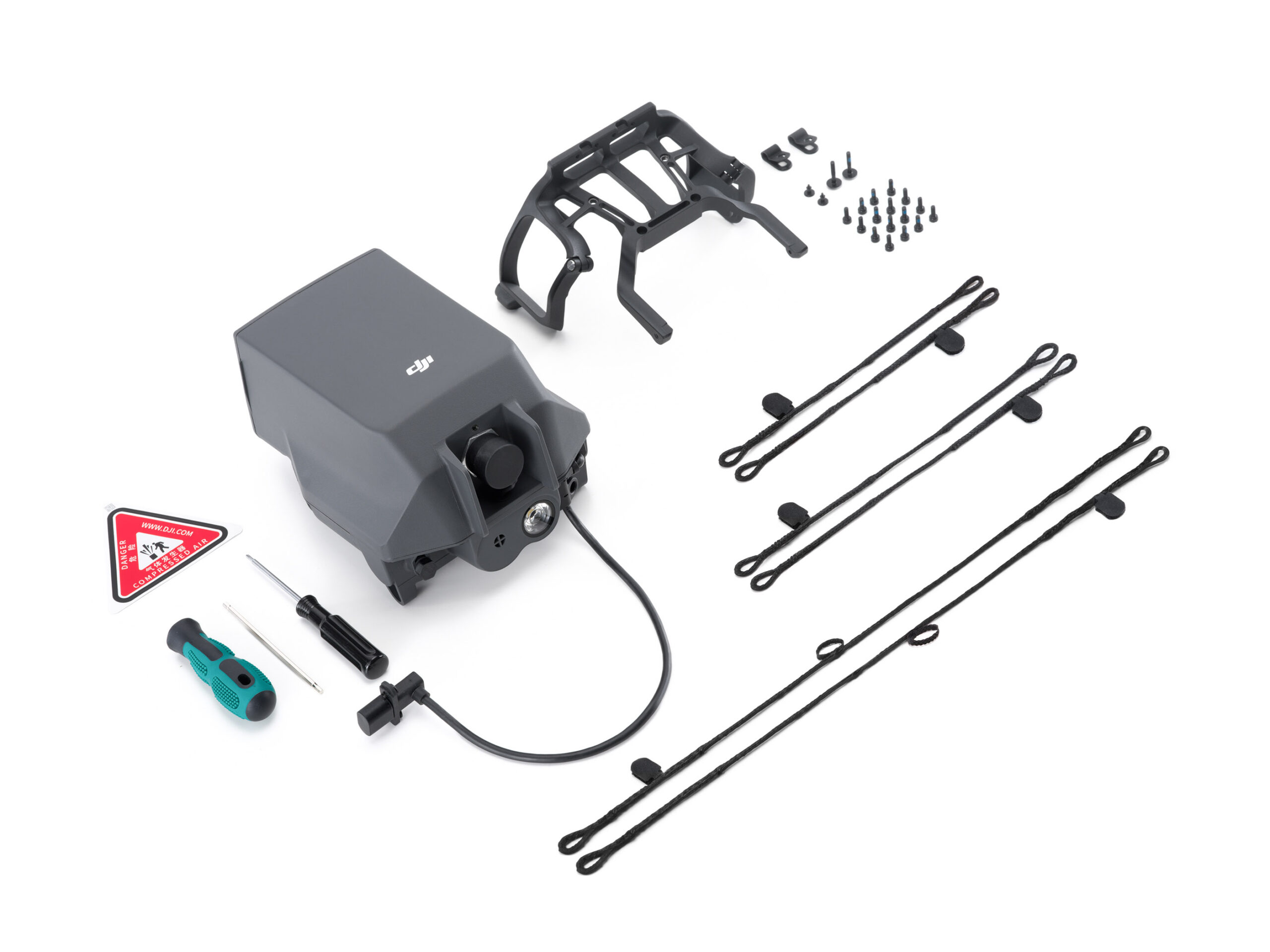

In The Box

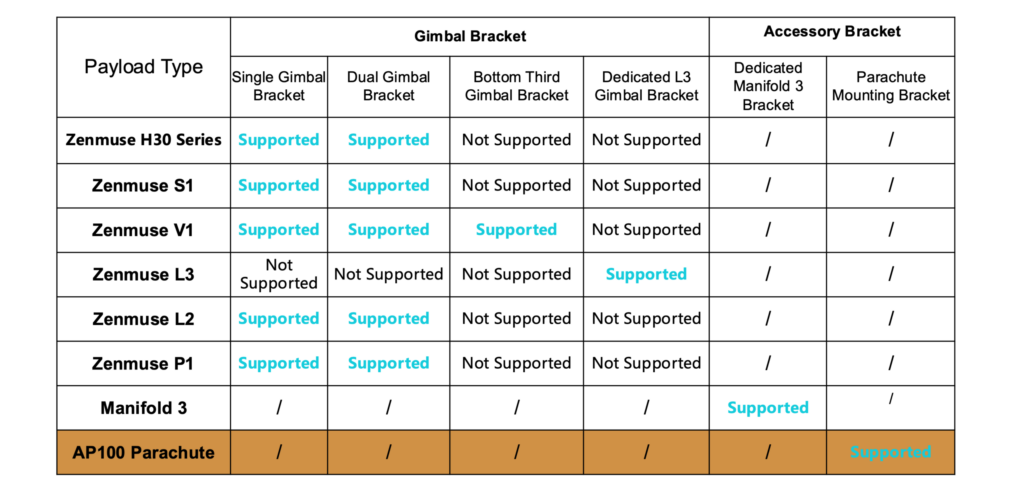

M400 Gimbal Bracket and Payload Mounting Reference

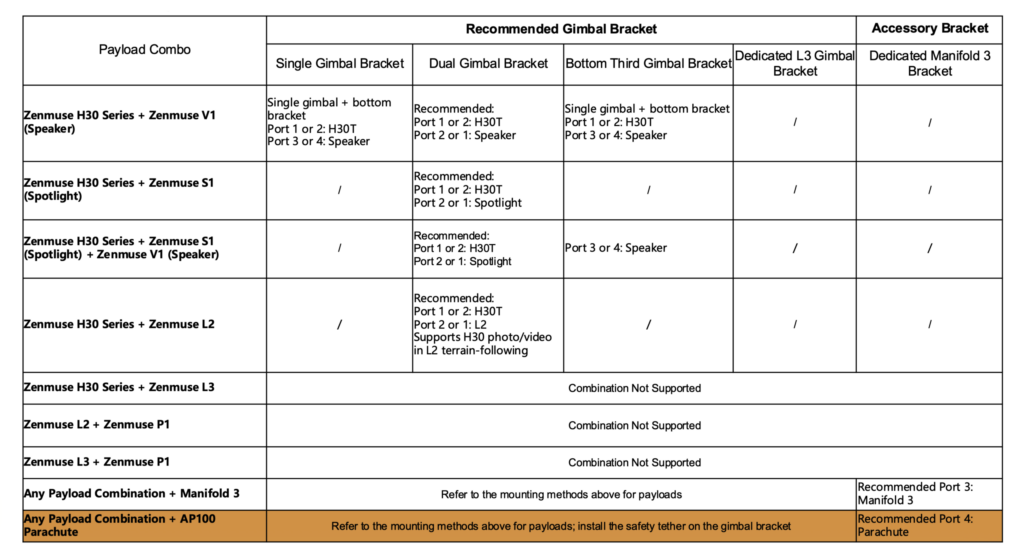

M400 Payload Combo Mounting
Specifications:
|
Dimensions |
182×171×157 mm (L×W×H) (with bracket) |
|
Weight |
Approx. 935 g (with bracket) |
|
Max Supported Takeoff Weight |
15.8 kg |
|
Operating Temperature |
-20° to 50° C (-4° to 122° F) |
|
Operating Altitude |
0 to 4500 m |
|
Ingress Protection Rating |
IP55 |
|
Stabilized Descent Speed |
≤ 5 m/s |
|
Effective Deployment Altitude |
≥ 30 m |
|
Automatic Deployment Response Time |
≤ 600 ms |
|
Canopy Material |
Nylon |
|
Manual Deployment |
Supports Manual Deployment via App and FTS Deployment* |
|
Automatic Deployment |
Supports Automatic Deployment triggered by flight anomalies* or Geocaging** |
|
Audible and Visual Alarms |
Alarms last for approx. 1 hour after deployment* and can be turned off via the physical button on the parachute. |
|
Backup Power Duration |
Approx. 1 hour |
|
Self-Check |
Continuously monitors the status of the gas generator and communication links, displaying alerts via the DJI Pilot 2 Health Management System (HMS) interface. |
|
Independent FTS |
Independent control and rotor stop links |
