Beskrivelse

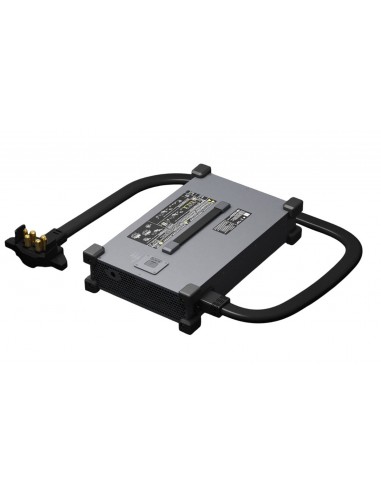

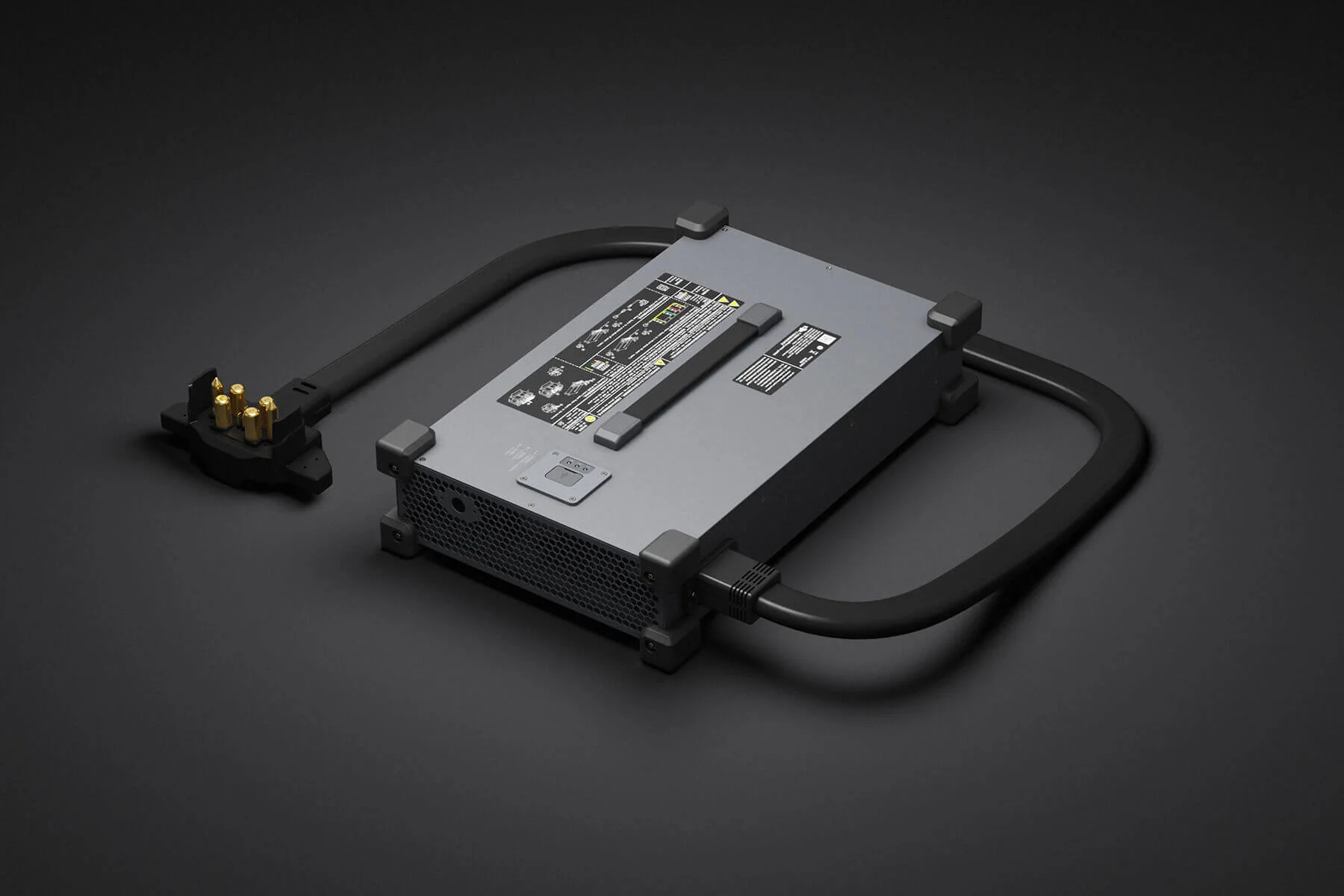

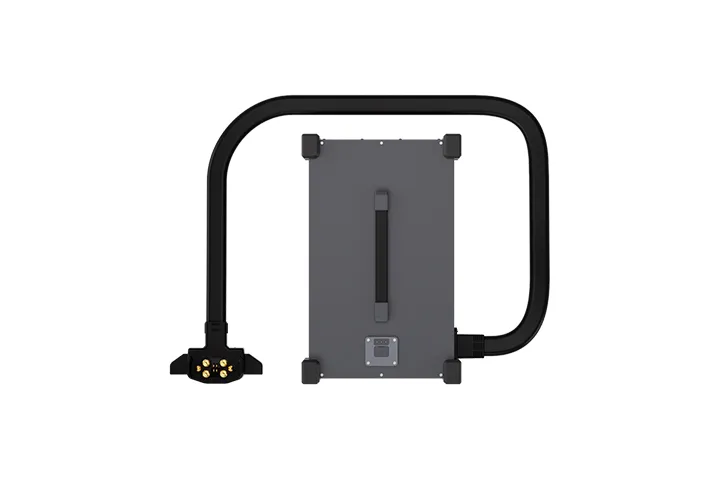

DJI C12000 Intelligent Power Supply
Engineered for demanding agricultural operations, the DJI C12000 Intelligent Power Supply provides a powerful and intelligent charging solution for DJI AGRAS series batteries. With up to 12,000 watts of output power and smart load distribution, it enables rapid dual-channel charging, allowing continuous operation in large-scale spraying and spreading missions. Built with advanced cooling, multiple safety protections, and rugged portability, the C12000 is the ultimate power system for professional drone operators who demand efficiency, reliability, and performance in every field mission.
Key Features:
- 3-Phase input
- High Power Output: Delivers up to 12,000W for ultra-fast battery charging and minimal downtime.
- Smart Charging Management: Intelligent power regulation ensures balanced, safe, and efficient charging.
- Enhanced Cooling System: Advanced thermal management maintains optimal performance in hot environments.
- Robust Field Design: Rugged, weather-resistant casing built for intensive agricultural use.
Specifications:
- Charger Model: CSX901-12000
- Dimensions: 456 mm x 291 mm x 107 mm
- Weight: 13.13 kg
- Input Voltage: Three- phase AC input: 175- 520 V
- Single-phase AC input: 200 – 264 V
- Output Voltage: 62 V
- Rated output current: 194 A
- Rated Power: 12000 W (three- phase 380 V input) 3000 W (single-phase 220 input)
- Recharge Time: 8-9 minutes (DB2160 Intelligent Flight Battery, 30% – 95% charge)
- Protection functions: Over-temperature, over- voltage, short circuit, fan stall and other protection functions
- Operating Temperature: 0 -40 ℃
- Output Channels: 1
- Compatible with Intelligent Flight Battery: DB1580 / DB2160 Intelligent Flight Battery
