Universal ground penetrating radar system for terrestrial and airborne surveys with real-time sampling (RTS) technology and advanced built-in digital signal processing to provide high quality data with an exceptional signal-to-noise ratio.



Contact us for more information and prices

Kategori: Stikkord: , , ,


Beskrivelse



Universal ground penetrating radar system for terrestrial and airborne surveys with real-time sampling (RTS) technology and advanced built-in digital signal processing to provide high quality data with an exceptional signal-to-noise ratio.

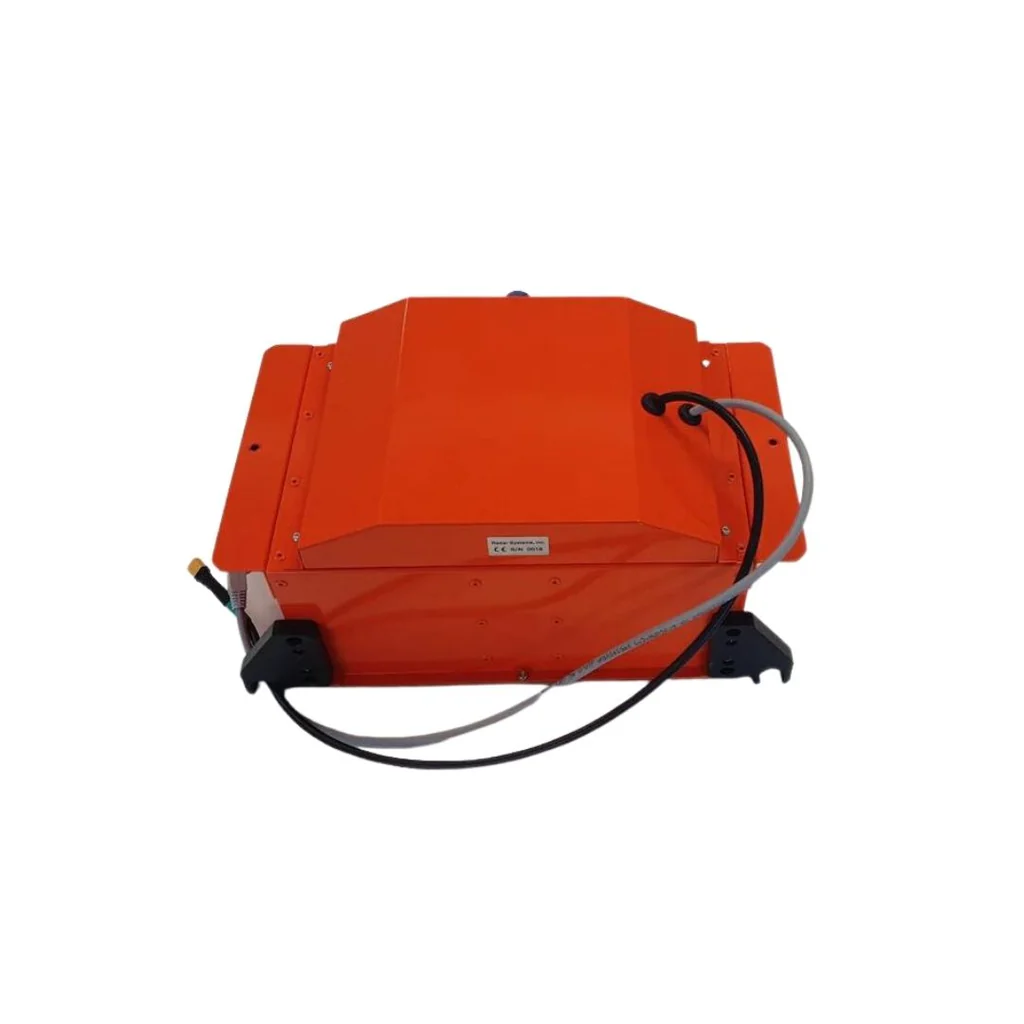

The Zond Aero 1000 NG is a truly versatile system that can be used in the most appropriate way for specific survey conditions:

  • on a cart – the most standard method for scanning on the streets or in confined spaces
  • dragged with a tow rope if the load-bearing capacity of the ground surface is not suitable for a wheeled cart

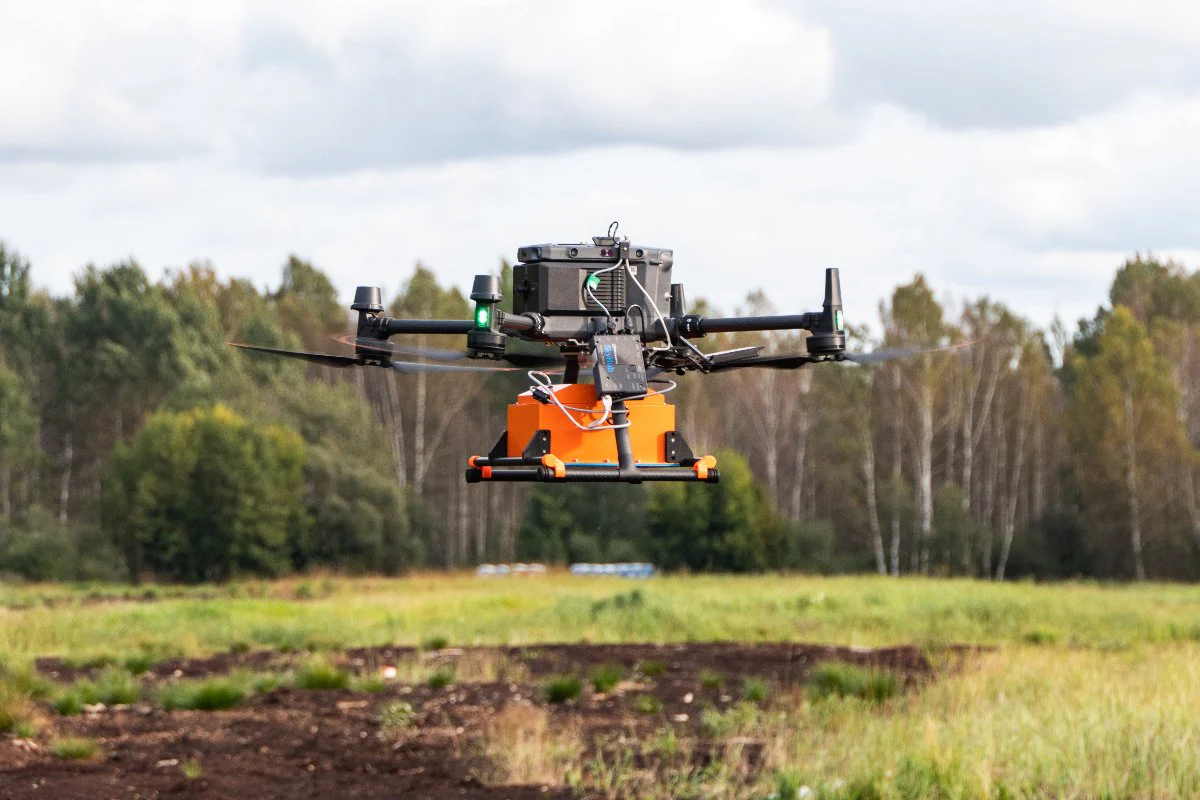

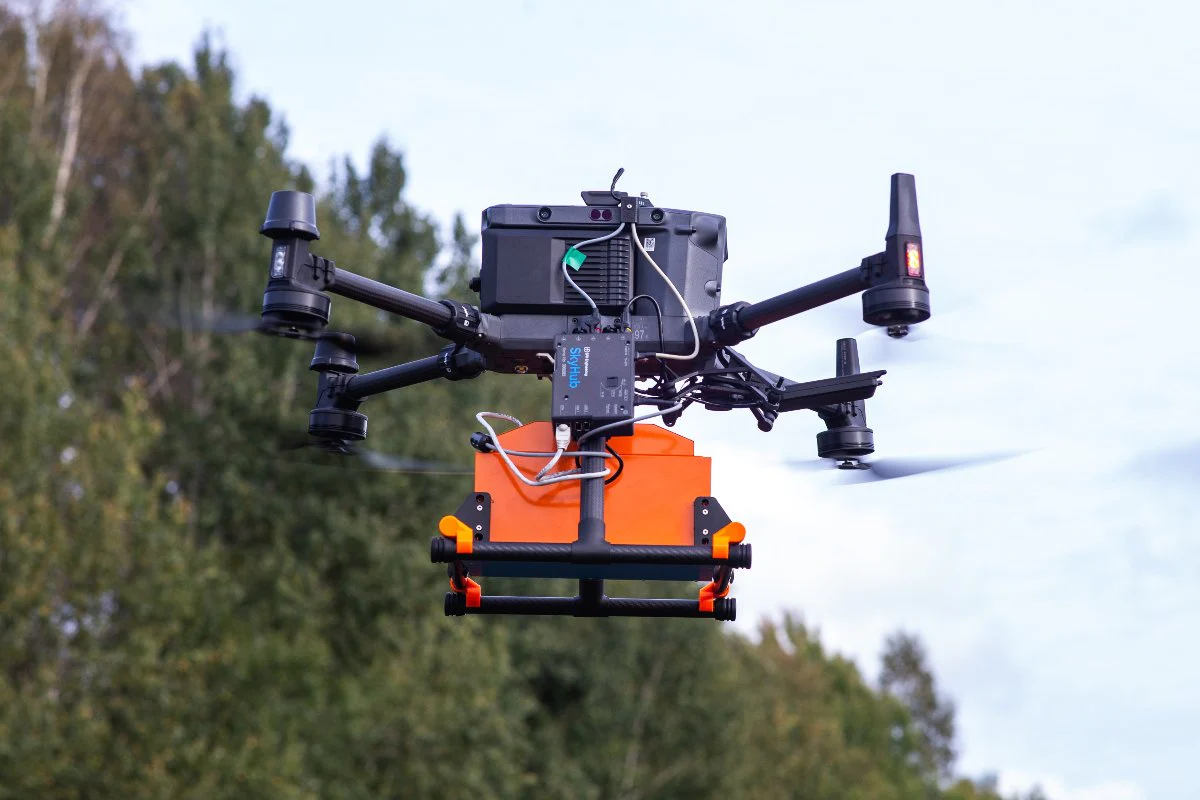

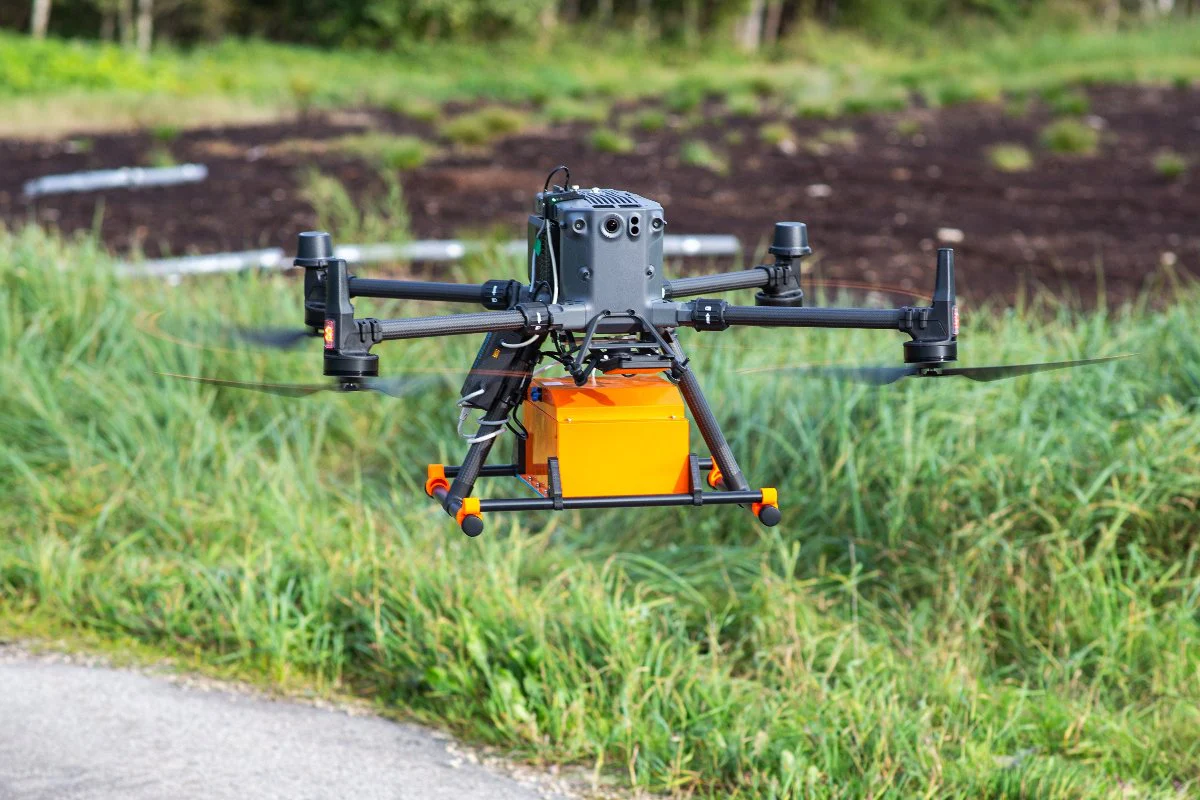

  • on a drone for large open areas without tall obstacles and vegetation

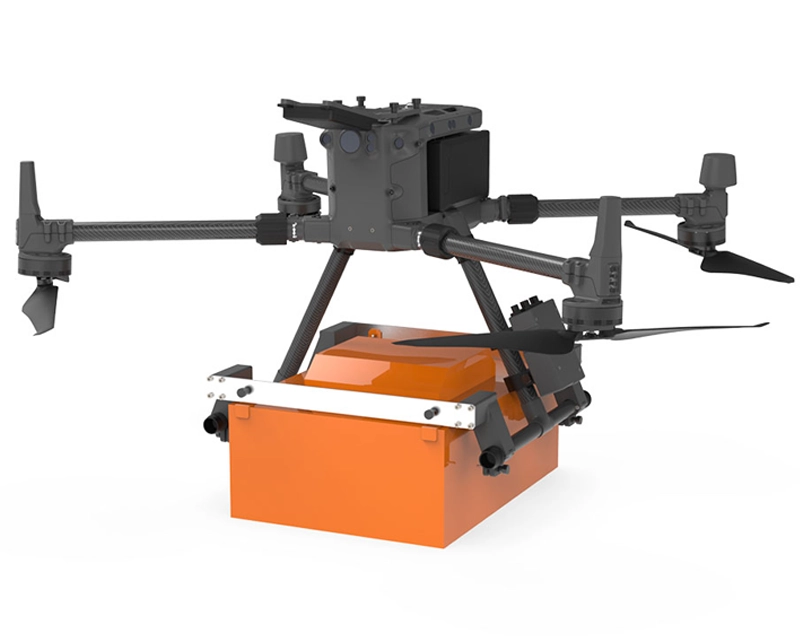

Lightweight GPR system on the market, suitable for medium-sized drones like DJI M350/M300 RTK.

This package includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.

Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set. Please ask for the quote.



Applications

  • Profiling snow and ice to a depth of several meters
  • Detection of small objects at a depth of a few tens of centimeters below the surface







Technical Specifications

Type

  • Single-channel with shielded antenna

Central Frequency

  • 1000 MHz

Operating Bandwidth

  • 600-1300 MHz (-6 dB)

Sampling

  • Real-Time Sampling (RTS) with high hardware stacking

Samples per scan

  • selectable
    256 / 512 / 1024 / 2048 / 4096 / 8192



Sample rate
  • Up to 1,280,000 (depends on hardware stacking)

Scan rate

  • Up to 2,500 scans/s (depends on hardware stacking)

Sample output

  • 32-bit digital raw data

Time range per sample

  • selectable
    71 ps / 125 ps / 179 ps / 250 ps / 500 ps / 625 ps / 714 ps / 1 ns

Depth

  • Up to 2 meters depending on ground properties

Data

  • Standard Geophysical SEGY Data Format (.sgy) with traces geotagging



Environmental

Temperature

  • -20°C to 60°C internal temperature

Humidity

  • 96% non-condensing

Ingress Protection

  • IP68 in a protective box (used for transportation and for ground surveys)
    IP52 in airborne variant



Mechanical

Size (L x W x H)

  • 1.8 kg – airborne configuration without a mounting kit for the drone
  • 7.0 kg – in a protective case
  • 10.0 kg – in a cardboard box for delivery

Weigh

  • 31 x 19 x 15 cm – airborne configuration
  • 52 x 43 x 21 cm – in protective case
  • 71 x 45 x 28 cm – carton box for delivery



Battery

Airborne variant

  • Drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload

Ground surveys

  • The battery is integrated into a protective box, operating time up to 12 hours 99 W/h Li-Ion



What’s in the Kit

  • Zond Aero 1000 NG GPR system with 1000 MHz center frequency antenna
  • Prism 2 Data Acquisition/Processing software
  • NANUK protective case (also used for ground surveys)
  • 99 W/h Li-Ion battery integrated into the case (used for ground surveys only)
  • Wi-Fi router integrated into the case (used for ground surveys only)
  • Charger
  • Tow rope for terrestrial surveys
  • Mounting kit to fix GPR system on the DJI M300/M350 RTK drone



Size (L x W x H)

  • 71 x 45 x 28 cm – carton box for delivery

Weight

  • 10.0 kg – in a cardboard box for delivery

HS Code

  • HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
