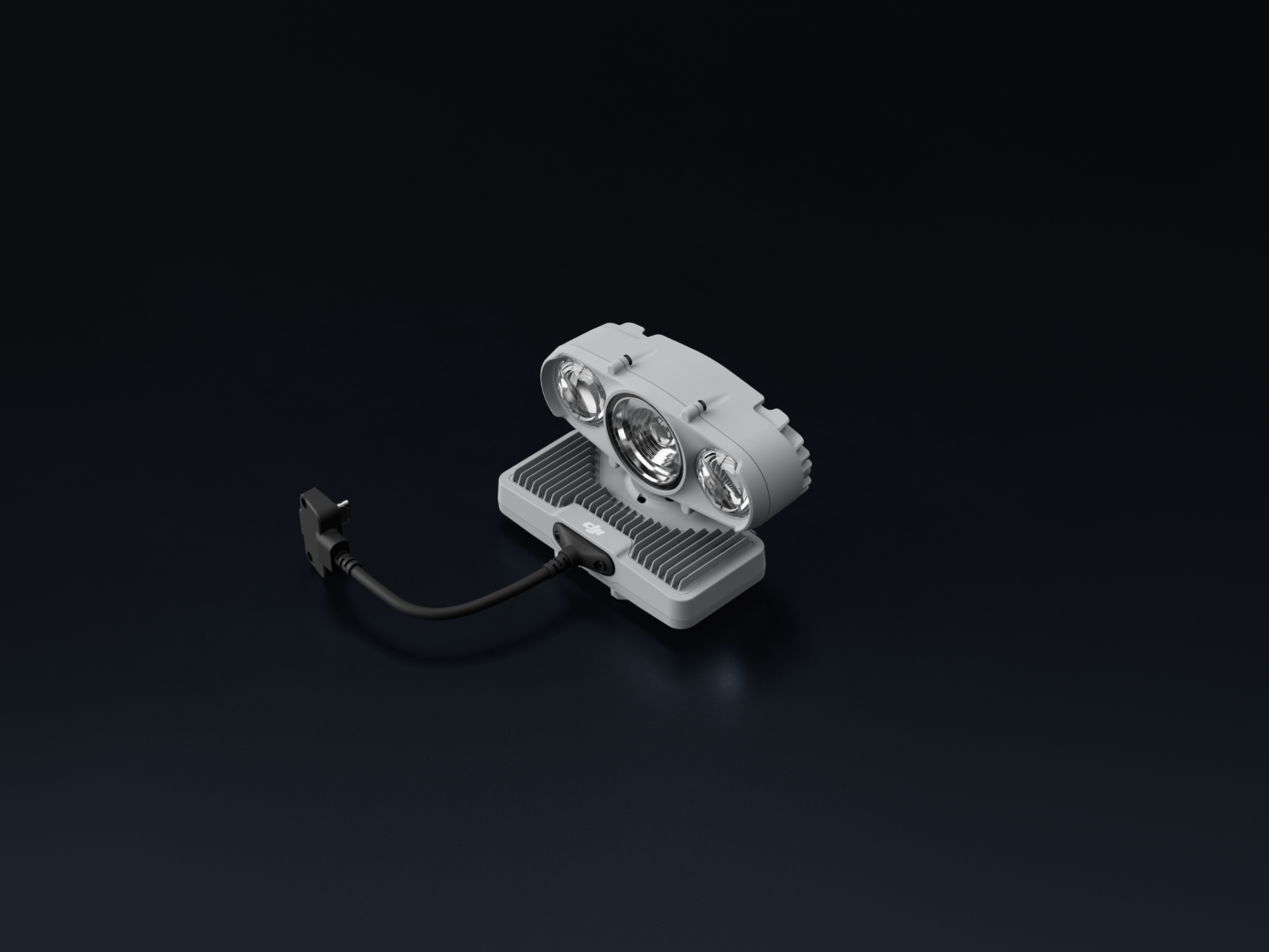

Spot and Flood modules deliver 2.6× the previous-gen brightness and illuminate up to 100 m. Always-On Mode offers Spotlight, Floodlight, Both On, and Auto. Also supports Strobe Mode, gimbal follow, and +90° tilt. Mount alone or with the speaker/parachute. IP55-rated.
Specifications
| AL2D Spotlight | Weight | 115 g (excluding bracket) | |
| AL2D Spotlight | Dimensions | 91×54×60 mm (L×W×H, excluding bracket) | |
| AL2D Spotlight | Max Power | Spotlight: 40 W
Floodlight: 18 W Both On: 48 W |
|
| AL2D Spotlight | Illuminance | Spotlight: 11.2±0.5 lux @ 100 meters
Floodlight: 2.7±0.2 lux @ 100 meters |
This data was measured with the aircraft hovering in a laboratory environment at an ambient temperature of 25° C (77° F). |
| AL2D Spotlight | Effective Illumination Angle | Spotlight: 14.5° (10% center illuminance)
Floodlight: 23° (10% center illuminance) |
|
| AL2D Spotlight | Effective Illumination Area | Spotlight: 500 square meters @ 100 meters (10% center illuminance)
Floodlight: 1,300 square meters @ 100 meters (10% center illuminance) |
|
| AL2D Spotlight | Operating Mode | Always-On Mode: Spotlight, Floodlight, Both On, and Auto (automatically switches lighting modes based on the zoom level)
Strobe Mode: Slow, Fast |
When the spotlight is turned on, visual obstacle sensing is disabled and only the mmWave radar and LiDAR remain active, reducing omnidirectional obstacle sensing performance. Fly with caution. |
| AL2D Spotlight | Gimbal Mechanical Range | Tilt: -135° to +135° | |
| AL2D Spotlight | Gimbal Controllable Range | Tilt: -90° to +90° | |
| AL2D Spotlight | Gimbal Max Control Speed (tilt) | 120°/s | |
| AL2D Spotlight | Gimbal Alignment Accuracy | ±0.1° | |
| AL2D Spotlight | Operating Temperature | -40° to 50° C (-40° to 122° F) | |
| AL2D Spotlight | Ingress Protection Rating | IP55 | |
| AL2D Spotlight | Mounting | Mounted on the right side of the aircraft using the Matrice 5TD Accessory Mount. Make sure to tighten the mounting screws during installation. |
