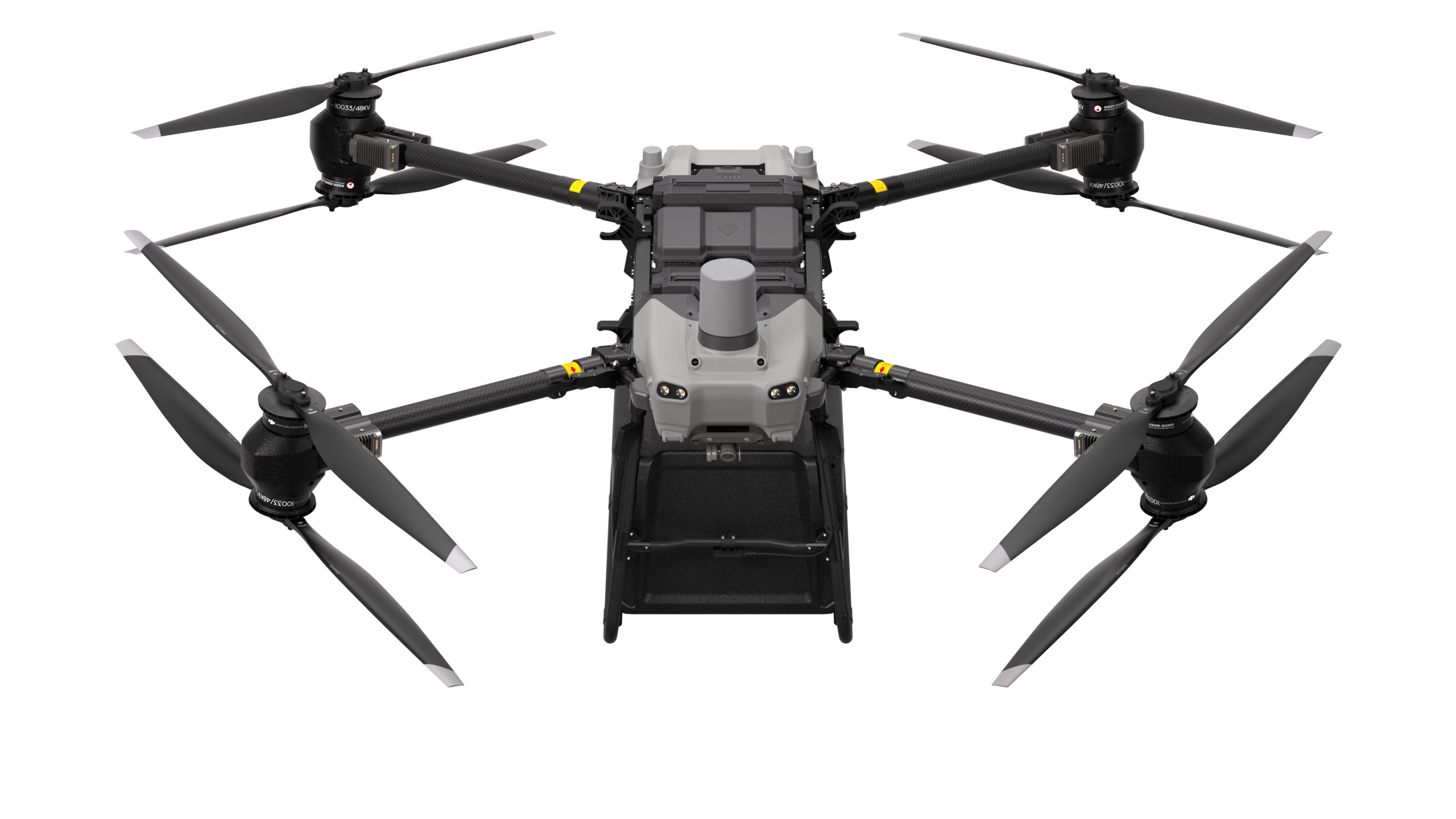

DJI FlyCart 30

Beskrivelse

Dynamic Aerial Delivery

Multiple features assure safe takeoff and landing, including sound and light prompts, a 6s delay of propeller rotation, and secondary confirmation of landing. Integrate an RTK module to achieve centimeter-level positioning to further improve takeoff and landing safety.

In case of an emergency, the integrated parachute can open in low altitude and land the drone stably, reducing risk to people and property^[14]. The parachute has its own self-check upon startup, an independent power supply, sound and light alerts, and propellers stop rotation before opening.

Choose Your Payload Configuration

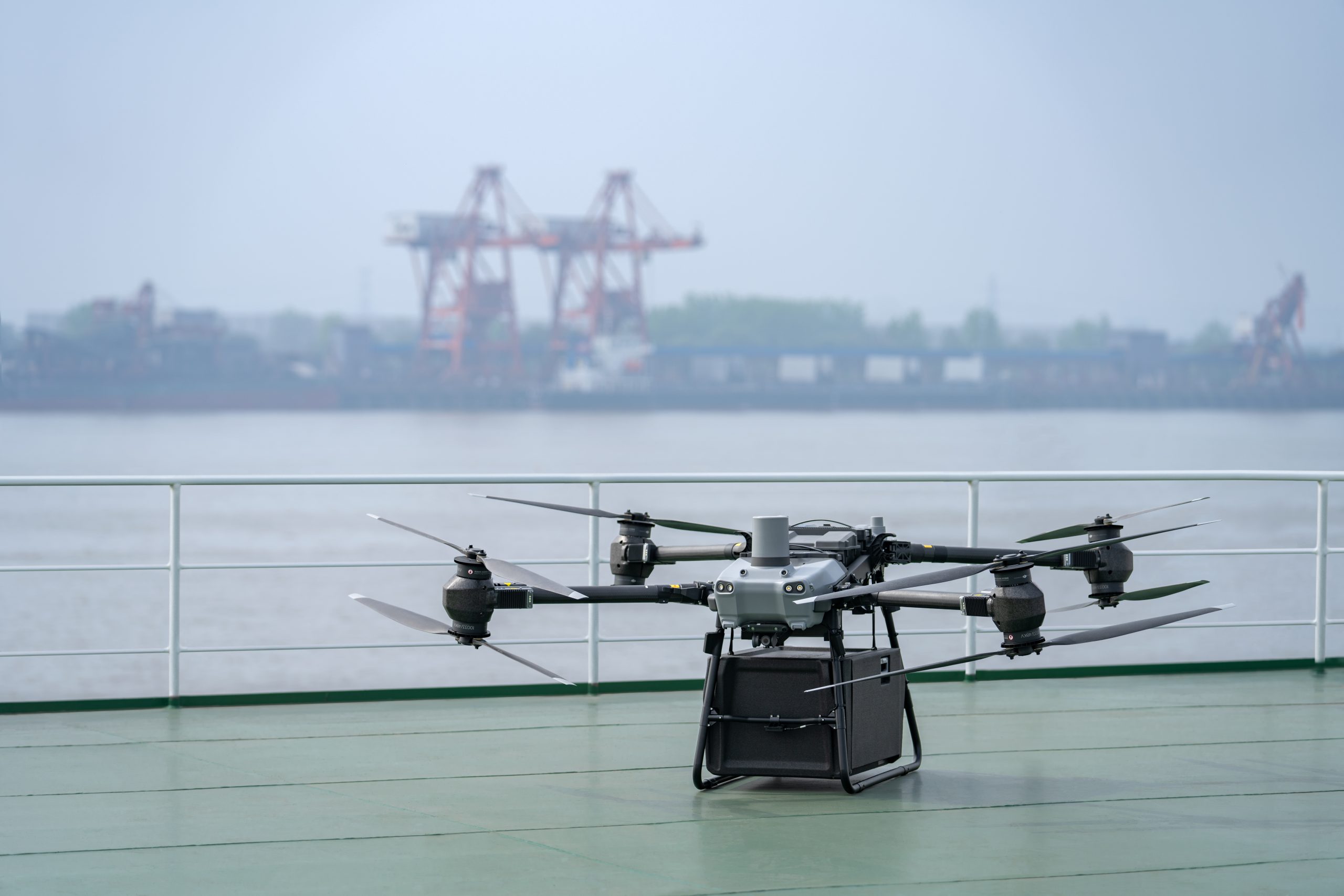

Cargo mode or Winch mode facilitate payload delivery depending on its destination.

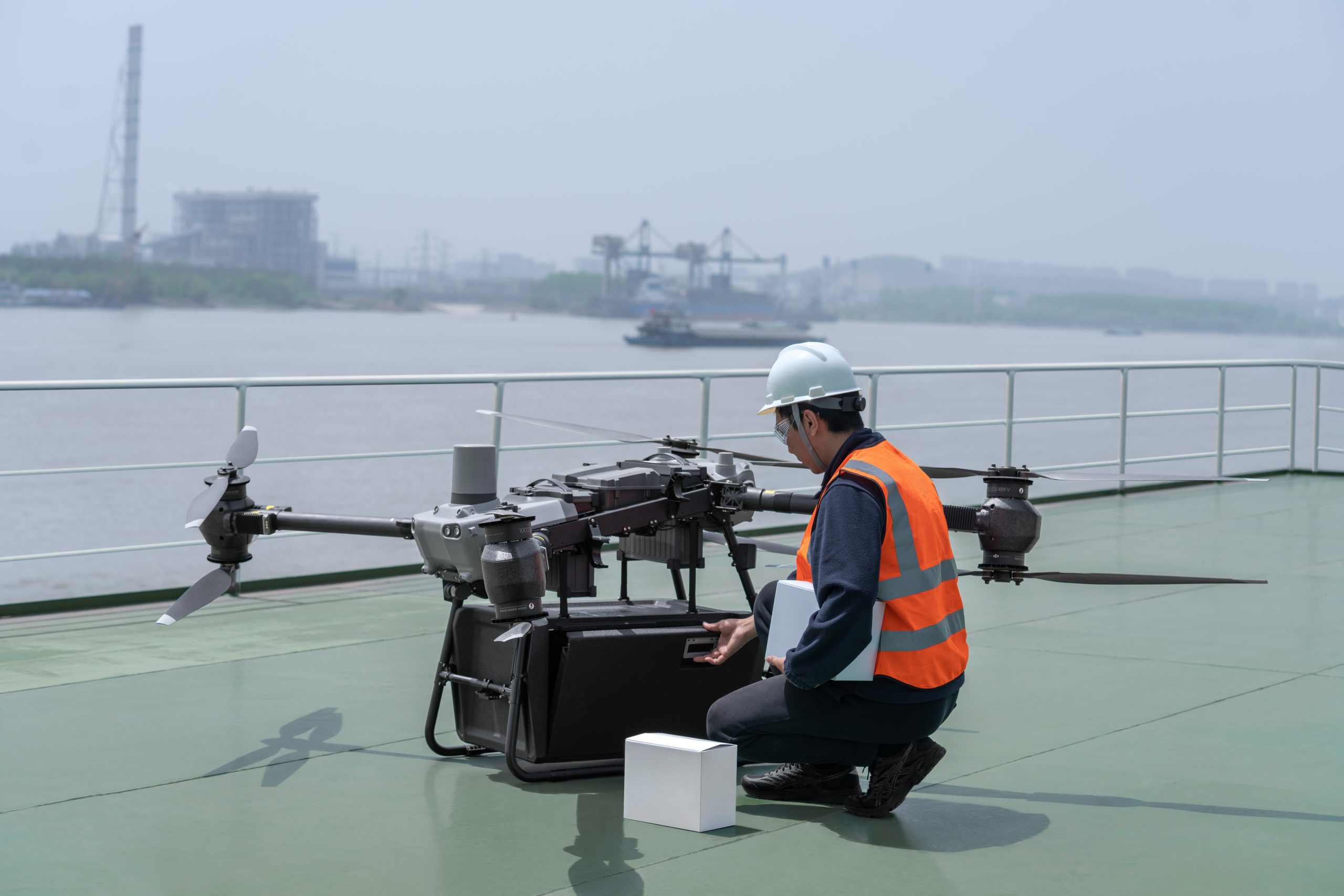

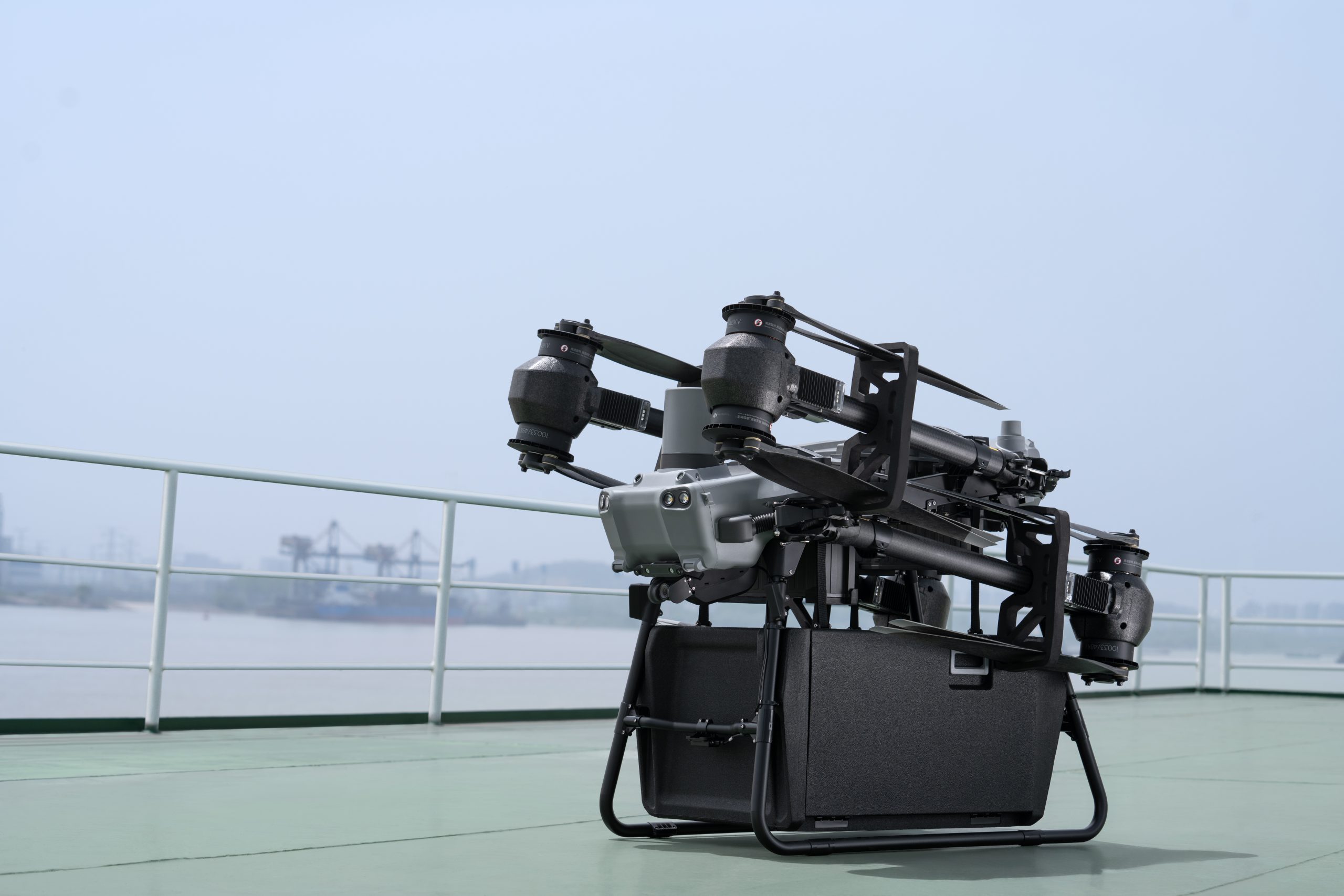

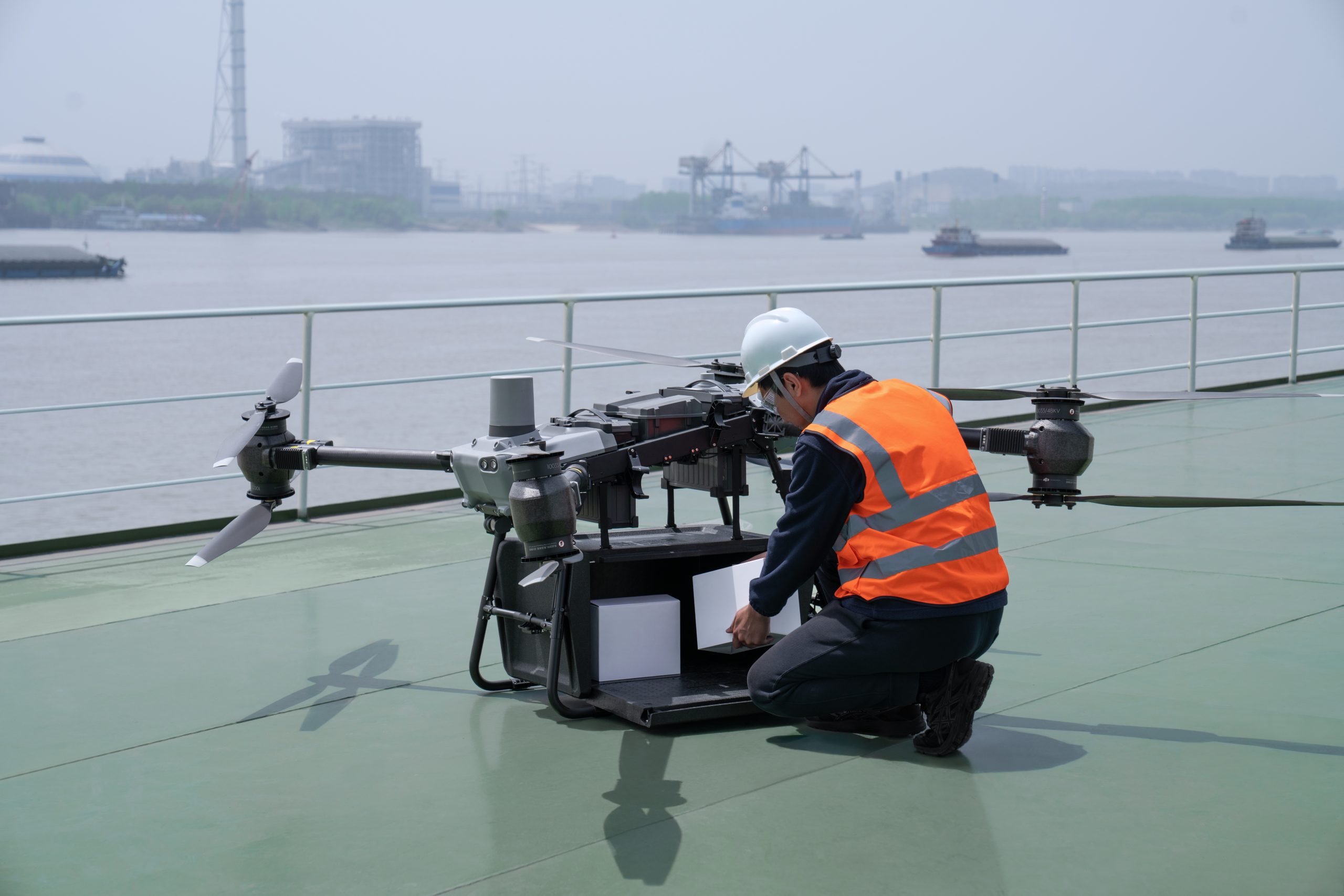

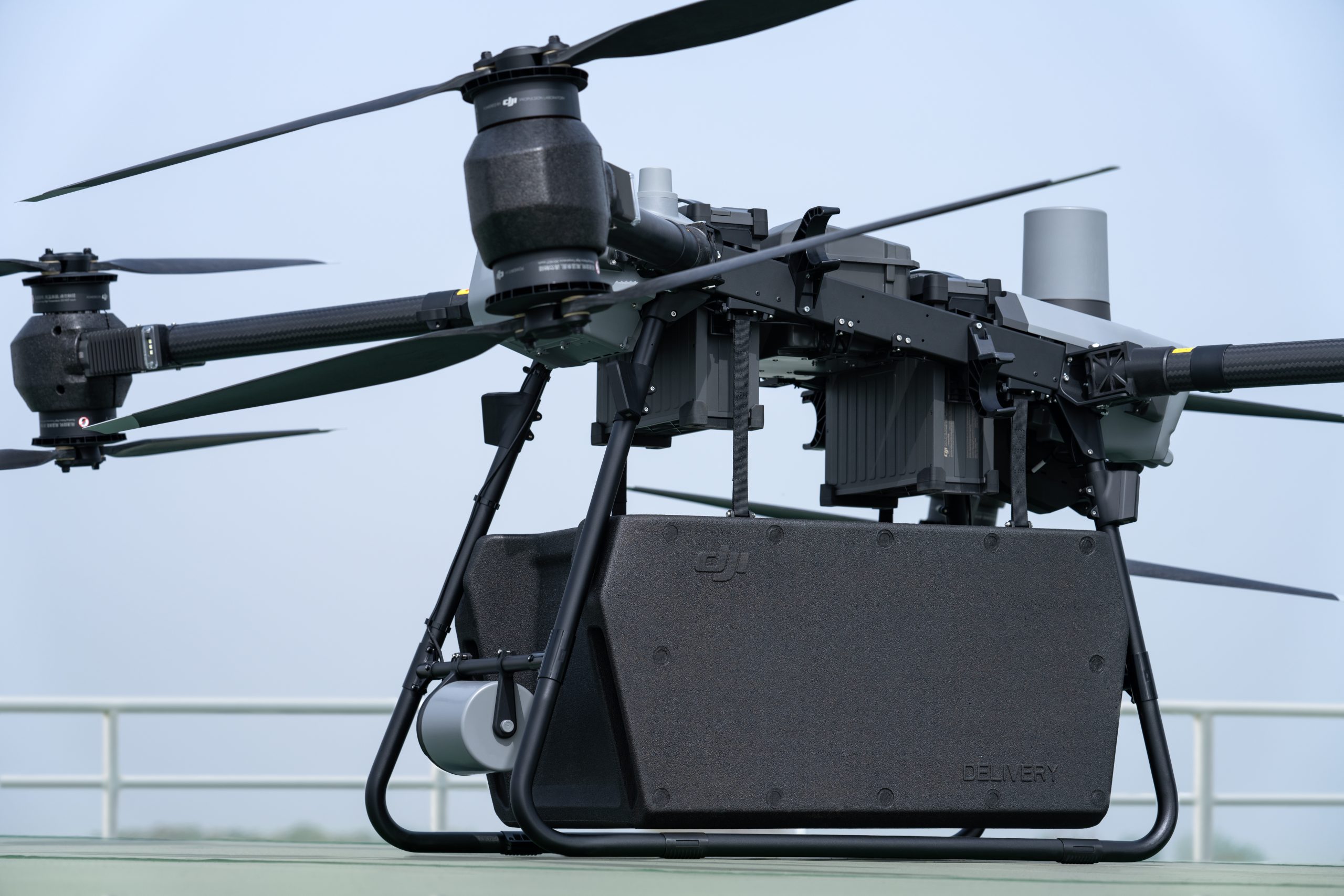

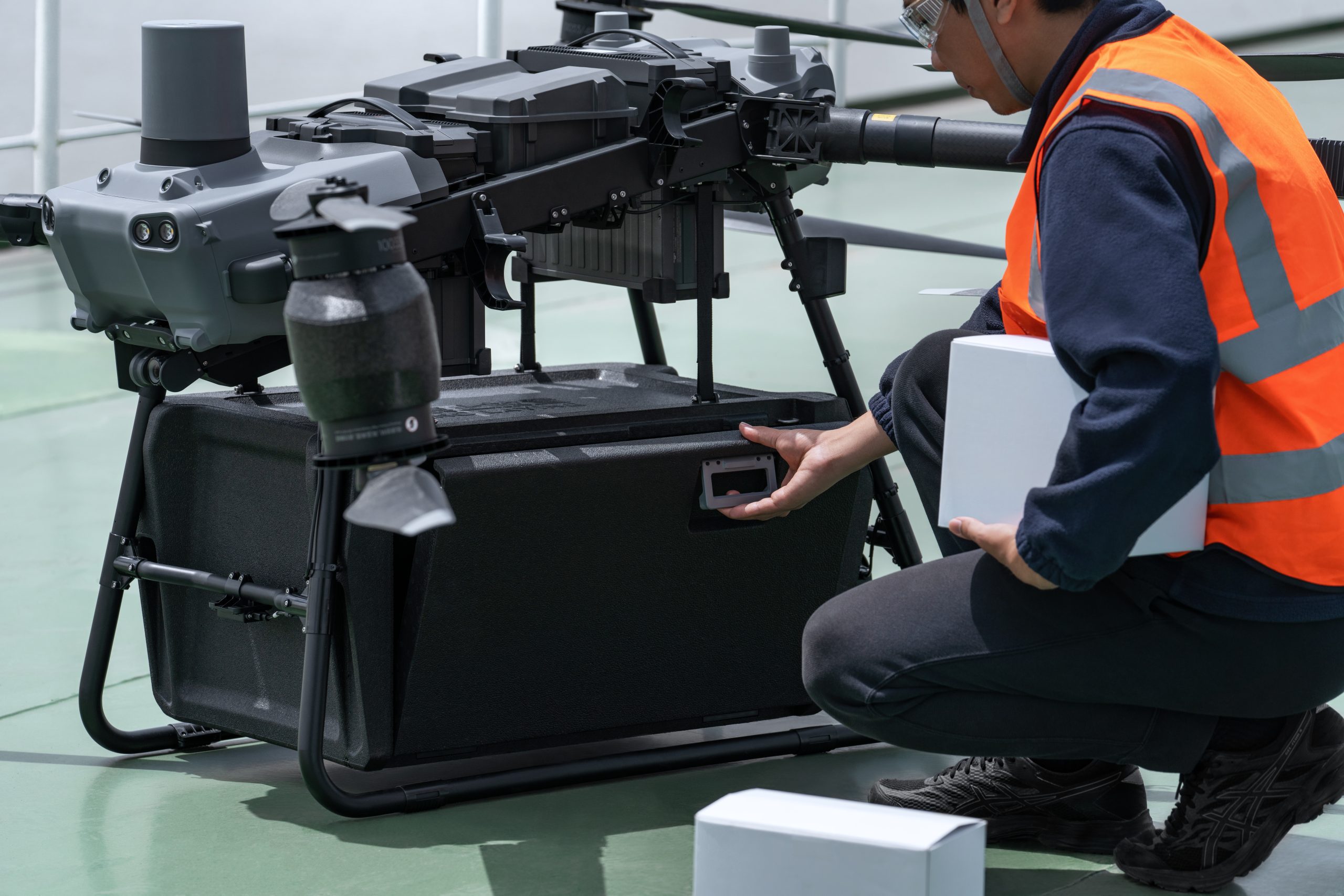

DJI FlyCart 30 comes standard with an EPP case that supports easy loading and unloading.

Weight and center-of-gravity detection ensures balanced cargo loading for safe and stable flight.

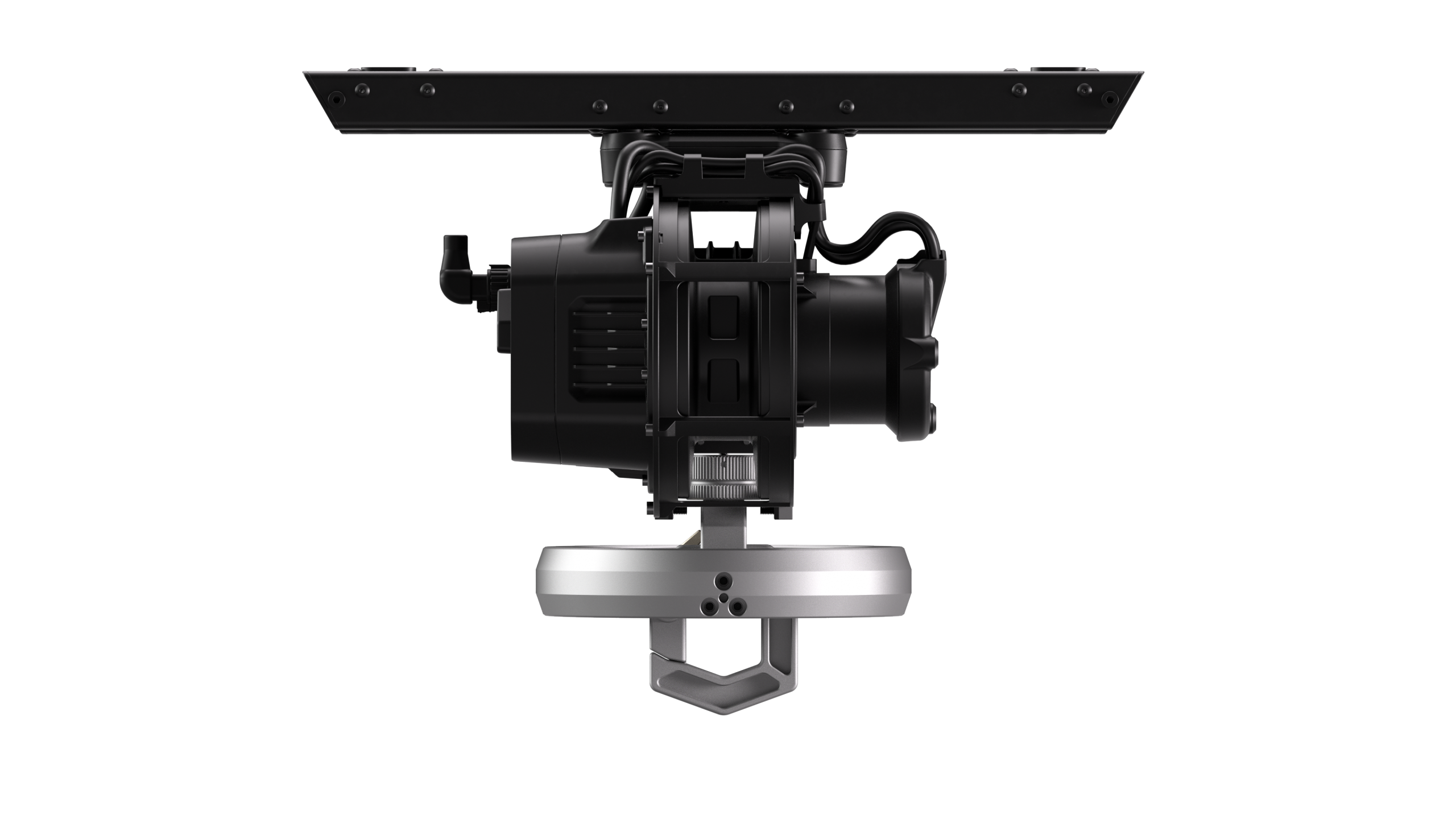

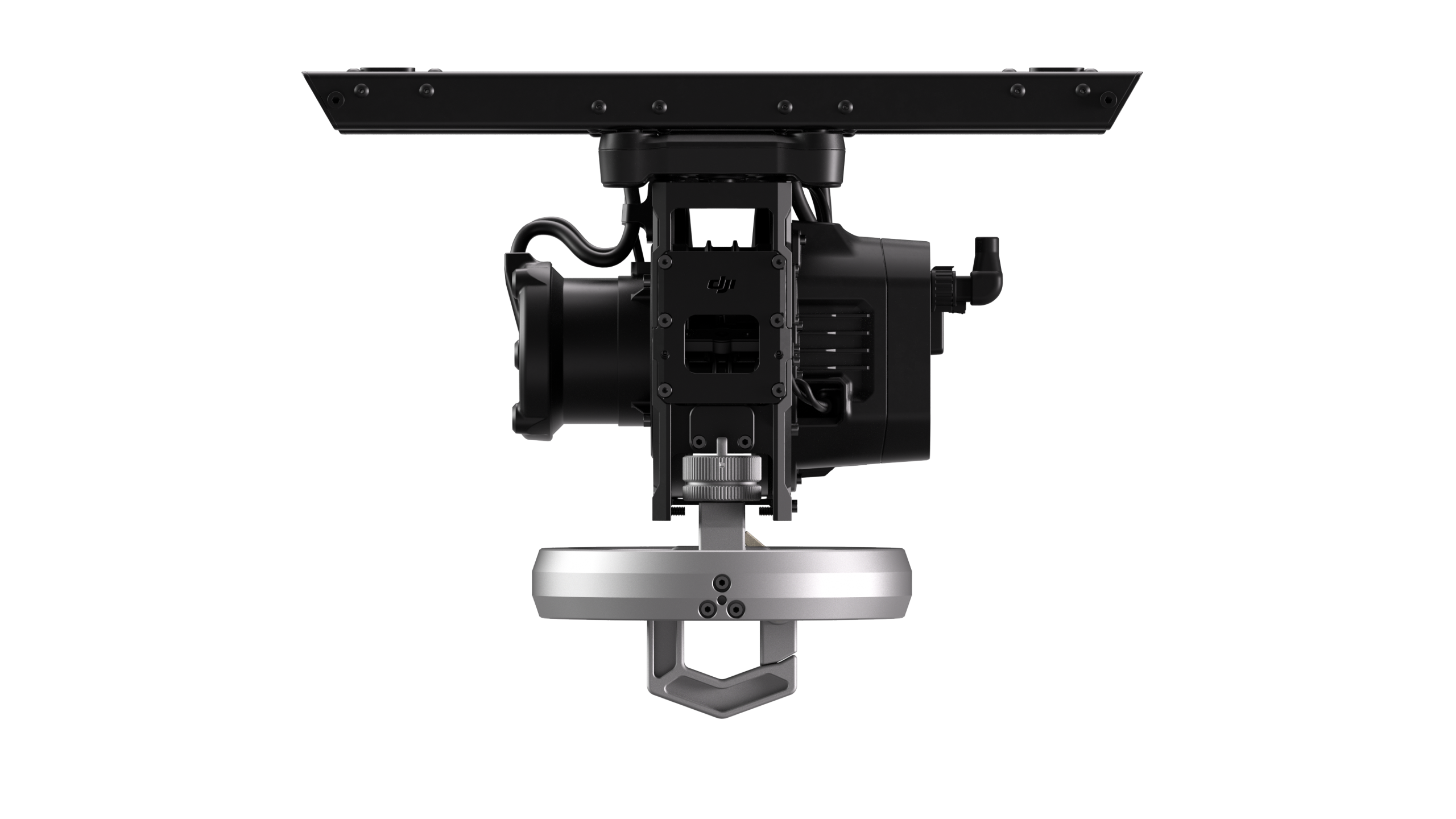

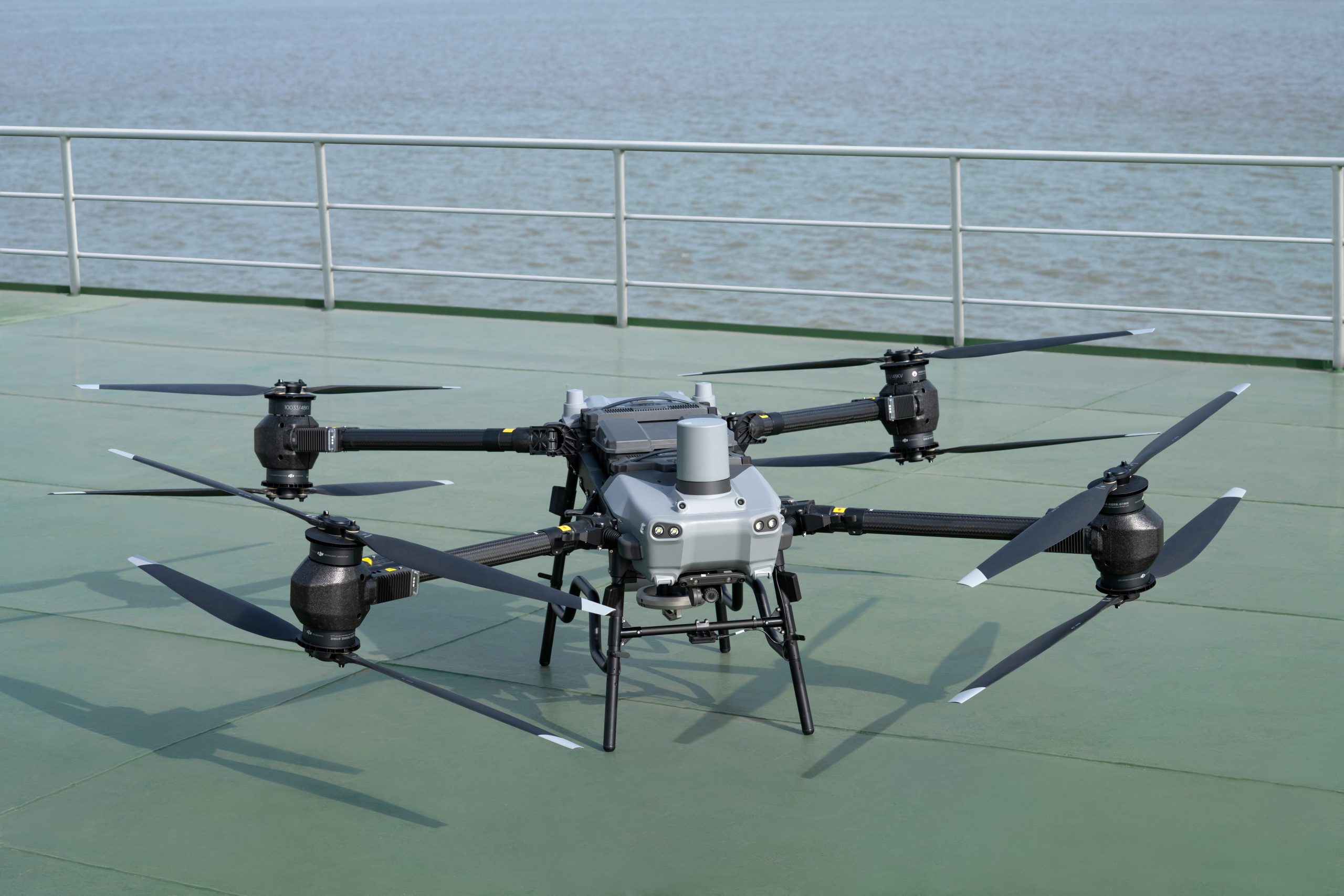

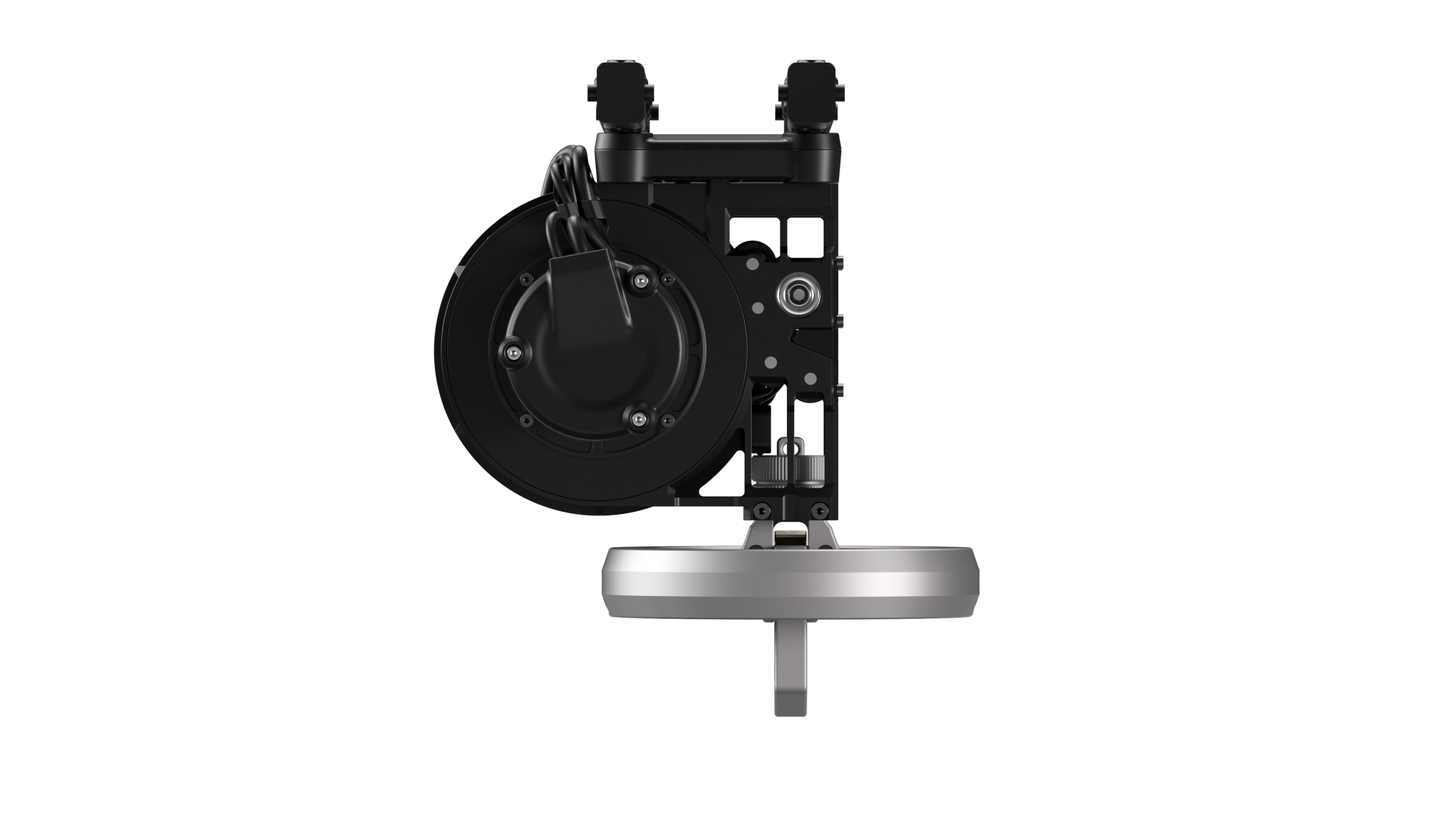

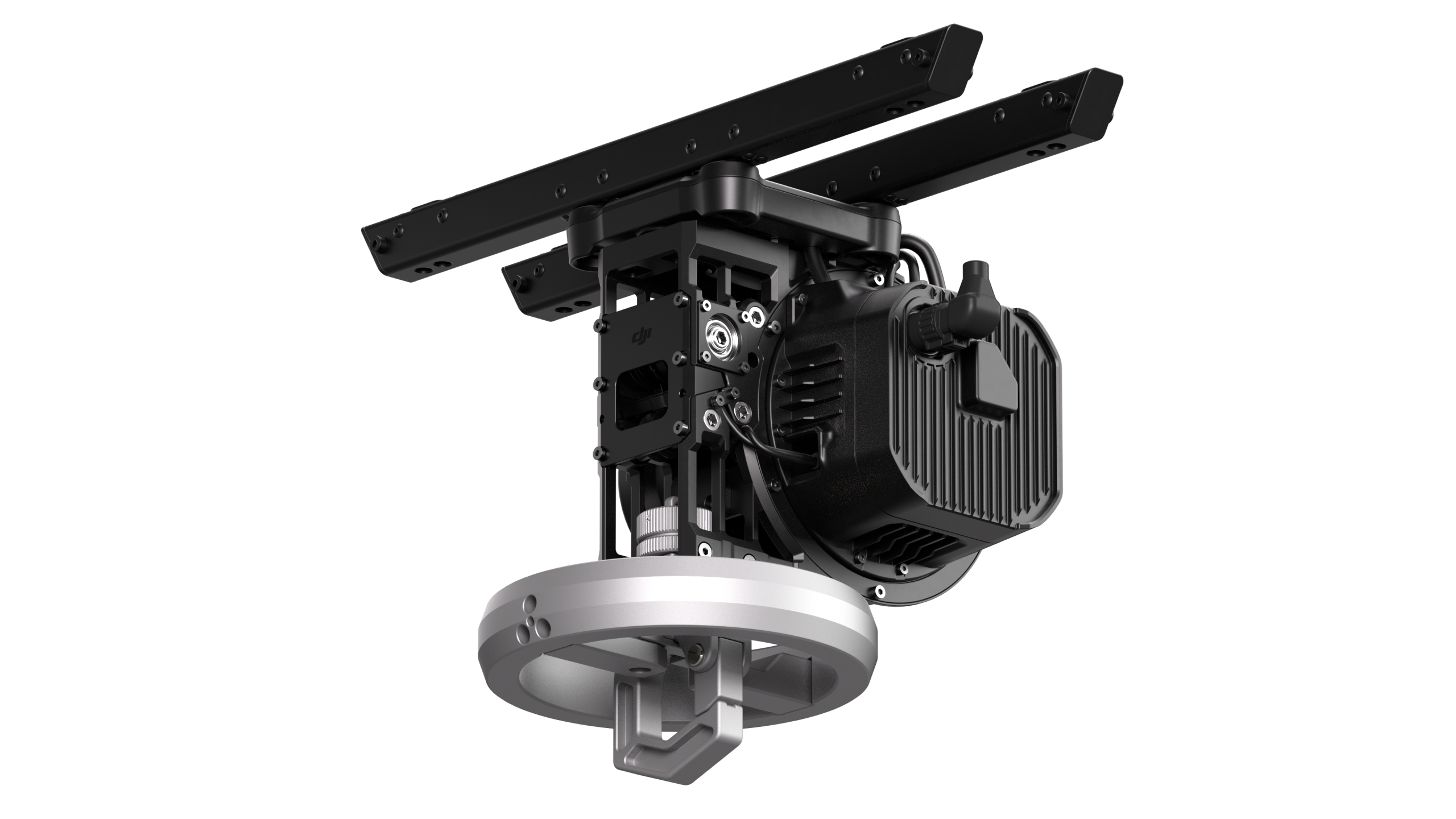

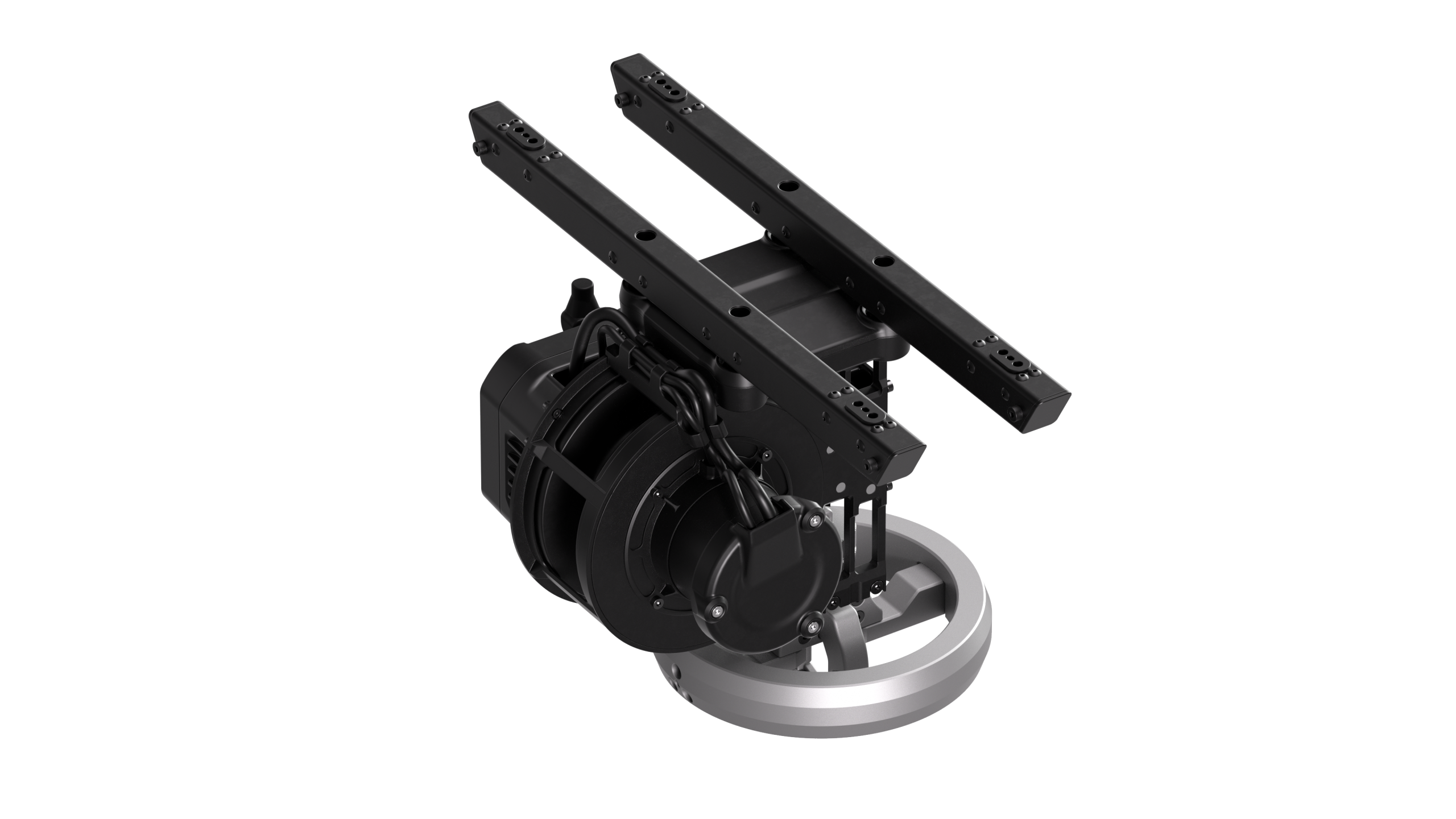

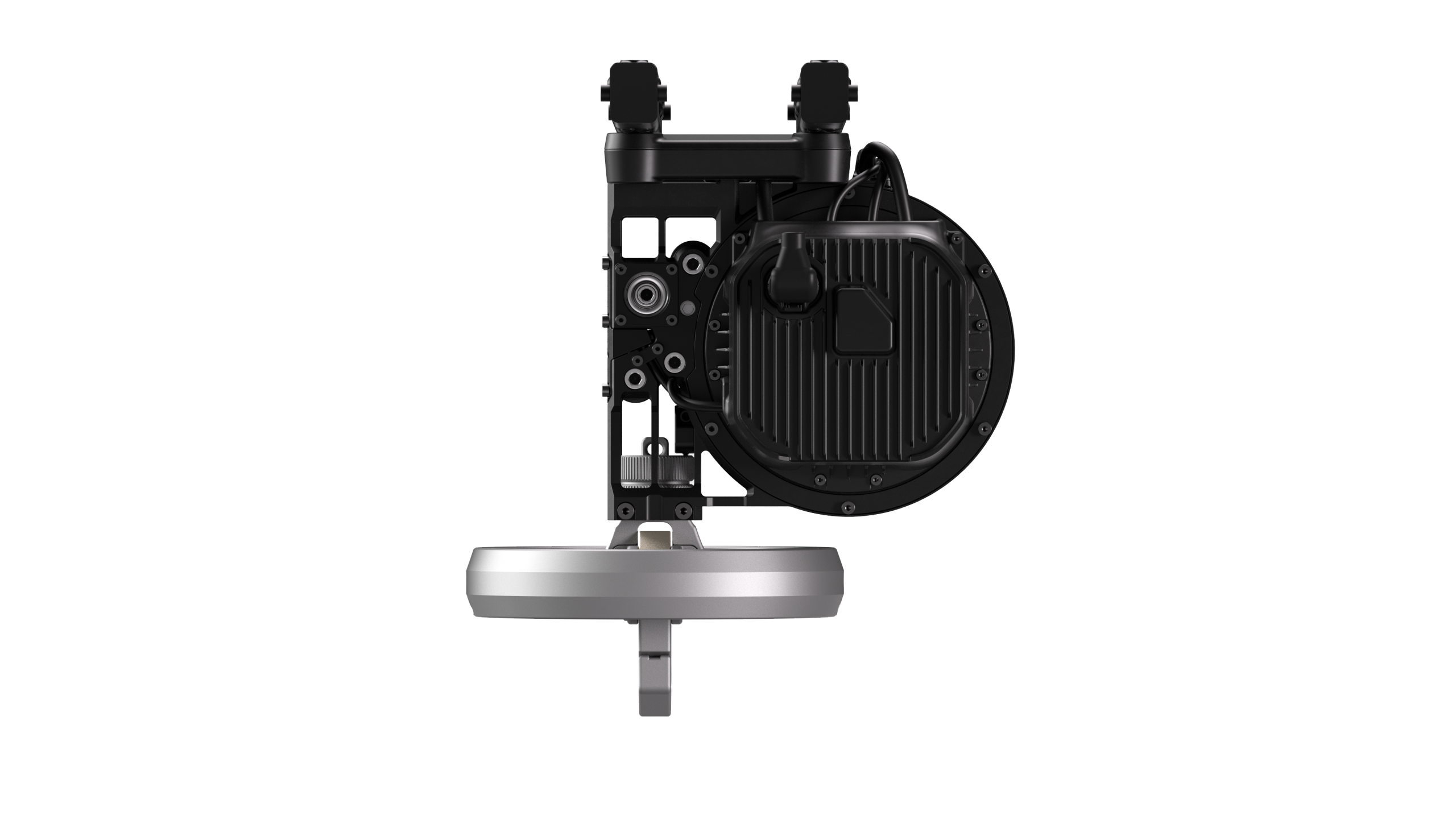

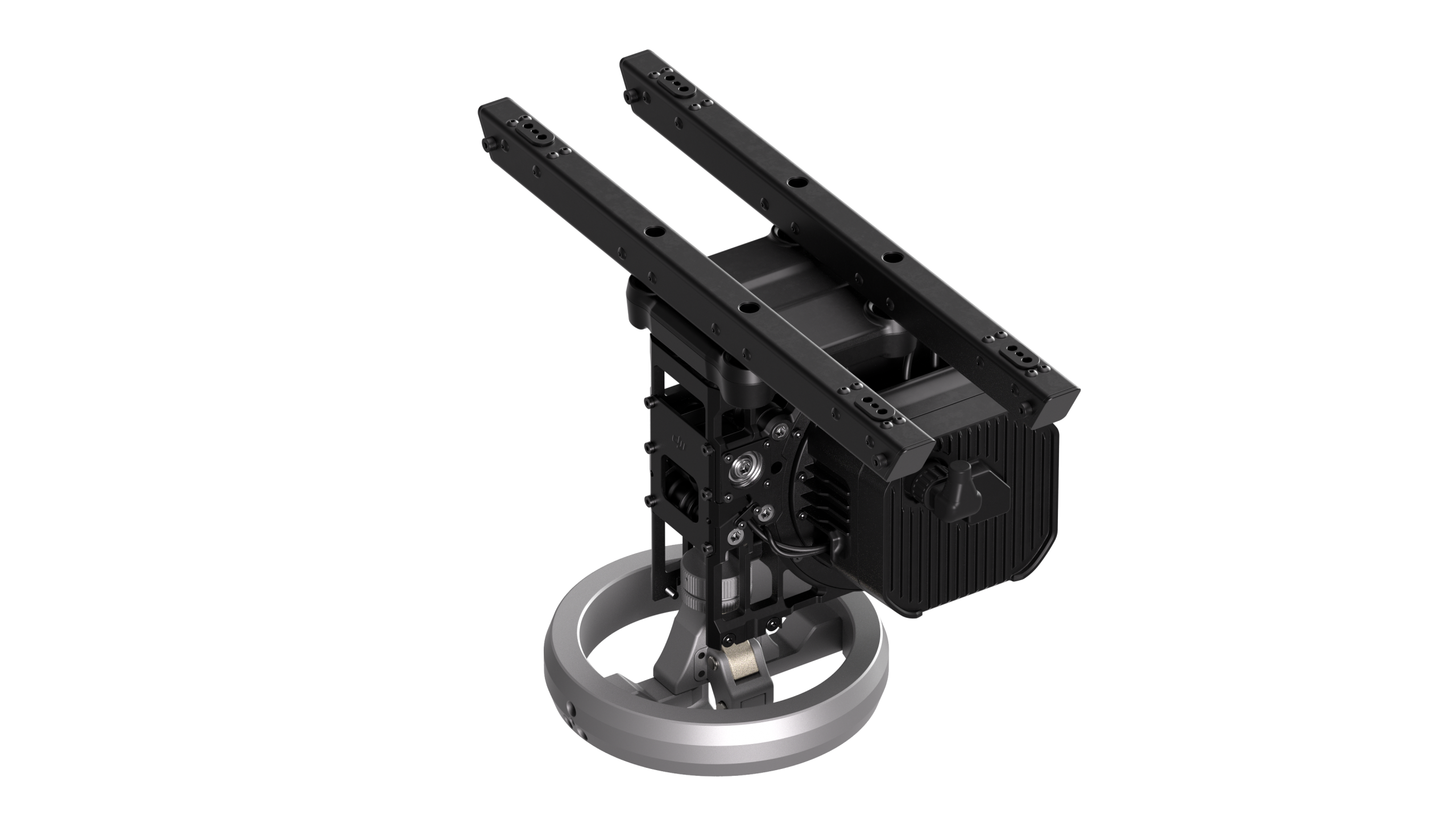

Winch Mode: Flexible and Precise

30 kg Max Payload (Dual Batteries)^[1]
40 kg Max Payload (Single Battery)^[1]
0.8 m/s Max Cable Speed
20 m Max Cable Length
*Winch System Kit is sold separately

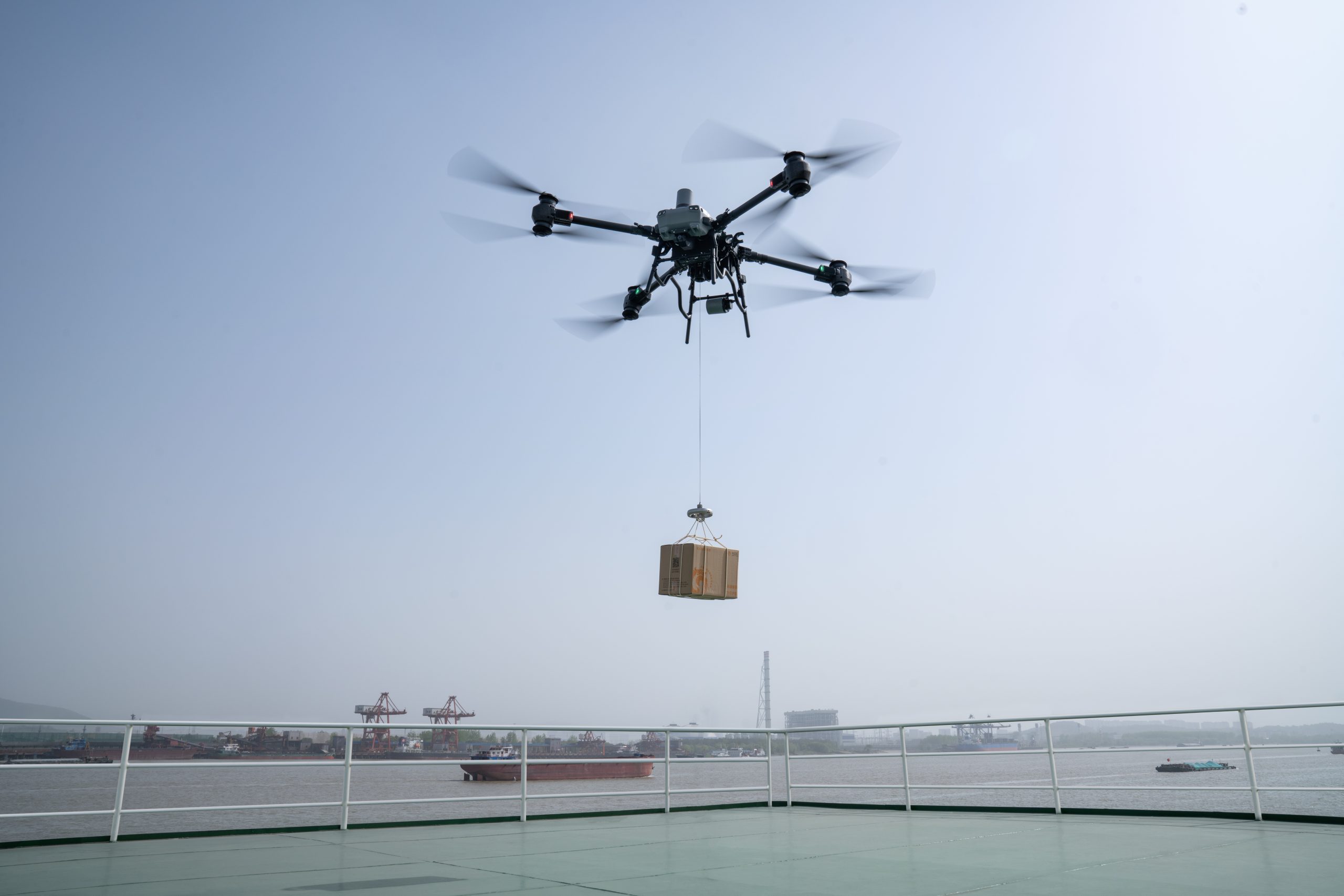

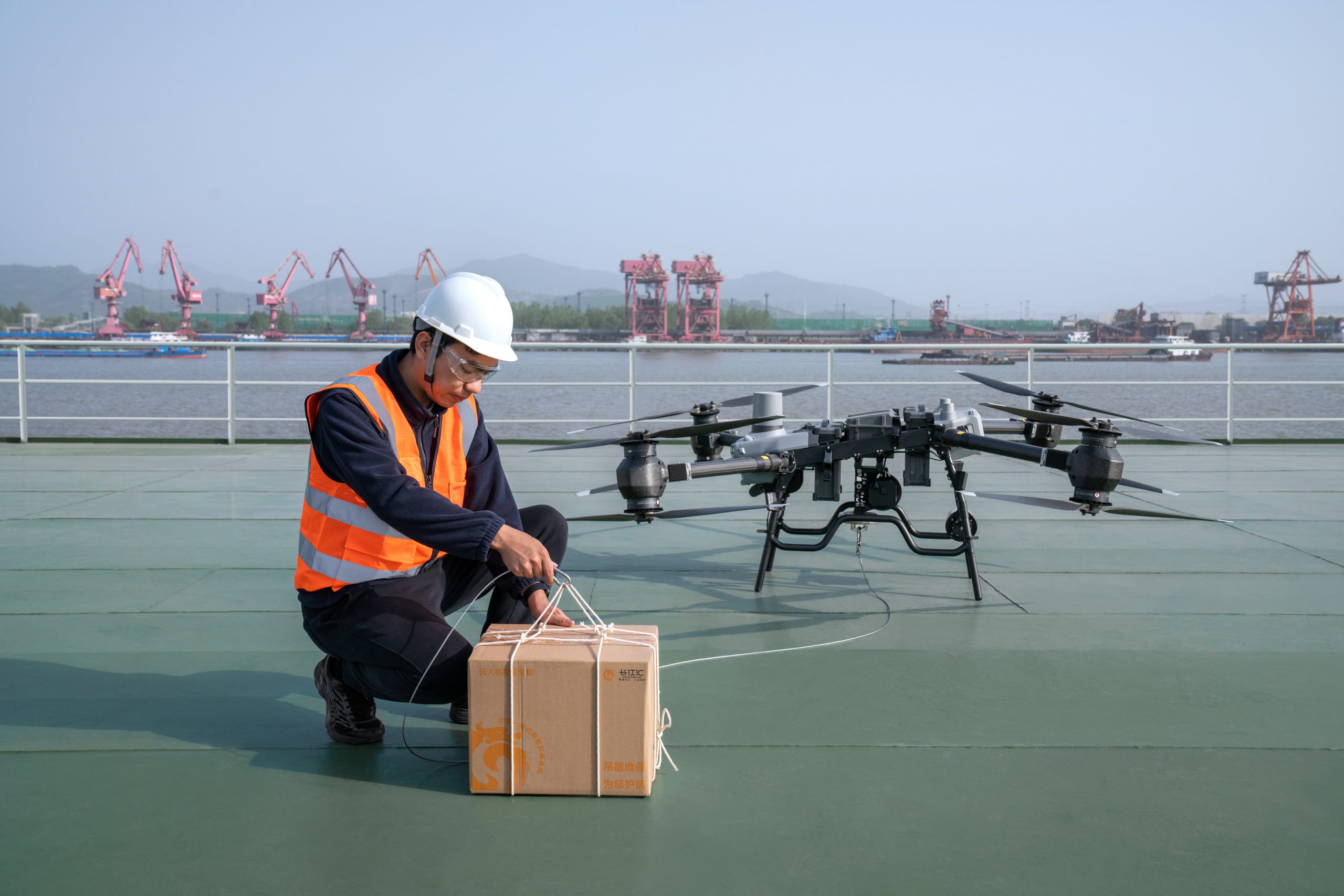

Winched cargo is delivered by a retractable cable which can be controlled either manually or automatically. Cargo releases automatically upon touchdown and does not require manual detachment, ensuring safe and precise delivery.

DJI FlyCart 30 can intelligently adjust its attitude to minimize cargo swing and improve stability. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the winch cable, freeing the drone.

Spesifikasjoner:

^{*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only.}

• Hovering Endurance (max weight, with max battery capacity)

• 18 mins (30 kg weight load, dual battery mode)
  8 mins (40 kg weight load, single battery mode)

^{*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only.}

• Max Flight Distance (empty weight, with max battery capacity)

• 28 km (dual battery mode)
  12 km (single battery mode)

^{*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s. For reference only.}

• Max Flight Distance (max weight, with max battery capacity)

• 16 km (30 kg weight load, dual battery mode)
  8 km (40 kg weight load, single battery mode)

^{*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15 m/s. For reference only.}

• Max Flight Time (max weight, with max battery capacity)

• 18 mins (30 kg weight load, dual battery mode)
  9 mins (40 kg weight load, single battery mode)

^{*The data was collected in controlled conditions: zero altitude and a windless environment, at a constant speed of 15 m/s. For reference only.}

• Operating Temperature

• -20° to 45° C

• Ingress Protection Rating

• IP55

• Hovering Accuracy (with strong GNSS signal)

• RTK positioning enabled:
  ±10 cm horizontal, ±10 cm vertical

RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)

• RTK/GNSS Operating Frequency

• RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
  GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1

• Max Pitch Angle

• 30°

• Max Ascent Speed

• 5 m/s

  ^{*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.}

• Max Descent Speed

• 3 m/s (vertical)
  5 m/s (tilted)

^{*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.}

• Max Horizontal Speed

• 20 m/s

  ^{*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload, for reference only.}

• Max Flight Altitude

• 6000 m (without payload)

• Max Wind Speed Resistance

• 12 m/s

  ^{*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.}

^{*Measured with FCC compliance in unobstructed environments with typical interference. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.}

• O3 Operating Frequency

• 2.4000 to 2.4835 GHz
  5.725 to 5.850 GHz

^{*Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details.}

• EIRP

• 2.400 GHz – 2.4835 GHz:
  <33 dBm（FCC）
  <20 dBm（CE/SRRC/MIC）

5.725 GHz – 5.850 GHz：
<33 dBm（FCC）
<30 dBm（SRRC）
<14 dBm（CE）

• Data Security

• AES-256

• ADS-B

• Supported

5.725-5.850 GHz:
<33 dBm（FCC）
<23 dBm（SRRC）
<14 dBm（CE）

• Operating Temperature

• -20° to 50° C

• Charging Environment Temperature

• 5° to 40° C

• Built-in Battery Life

• 3.3 hours

• External Battery

• 2.7 hours

• Charging Method

• Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.

• Charging Time

• 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)

• Ingress Protection Rating

• IP54

• Video Output Interface

• HDMI

• Wi-Fi Protocol

• Wi-Fi 6

• Wi-Fi Working Frequency

• 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

• Bluetooth Protocol

• Bluetooth 5.1

• Bluetooth Working Frequency

• 2.4000 – 2.4835 GHz

• EIRP

• <10 dBm

• GNSS

• GPS+Galileo+BeiDou

• Screen

• 7.02 inch touch LCD display screen, resolution 1920*1200, brightness 1200 nits

• Dual Operator Mode

• Supported
