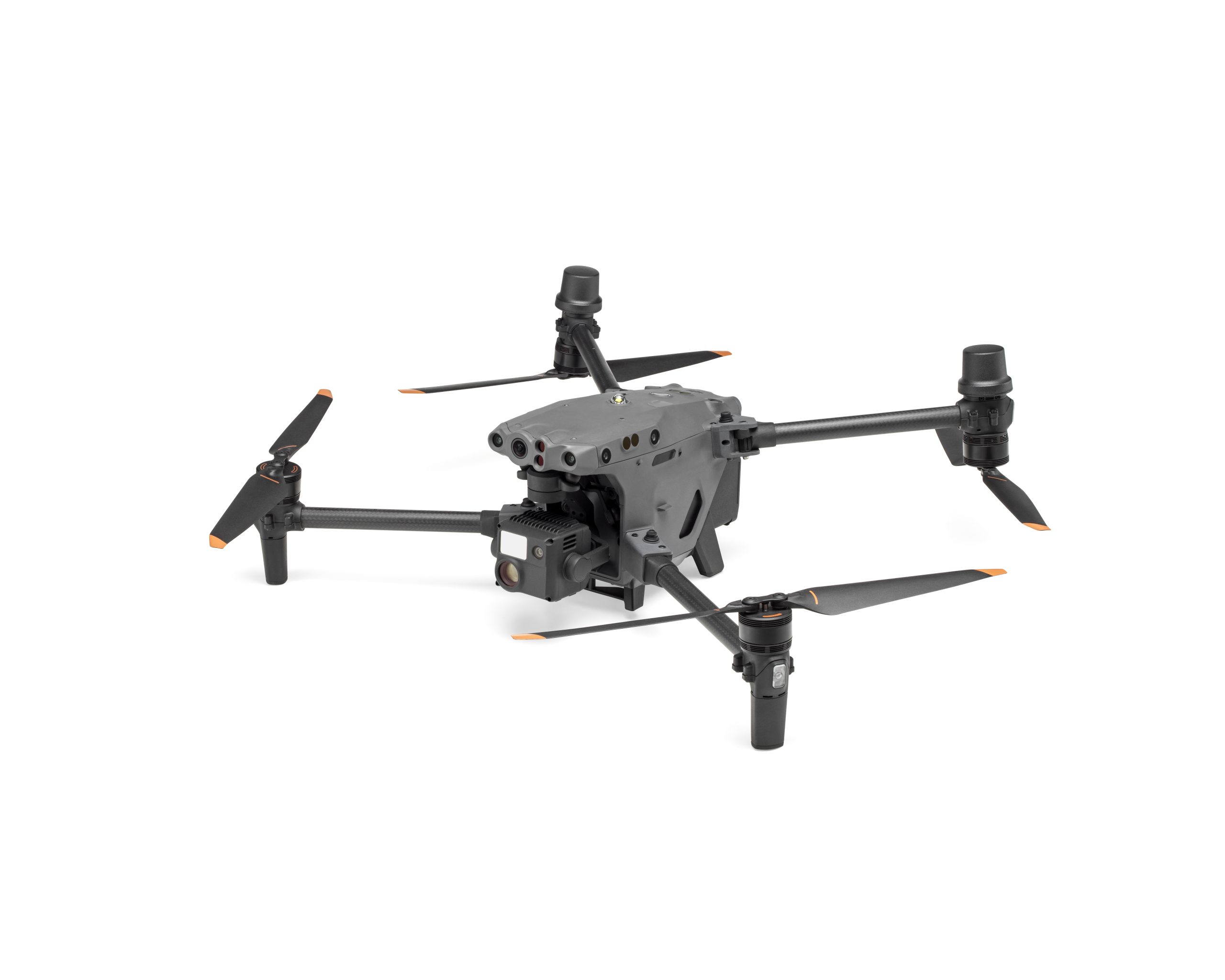

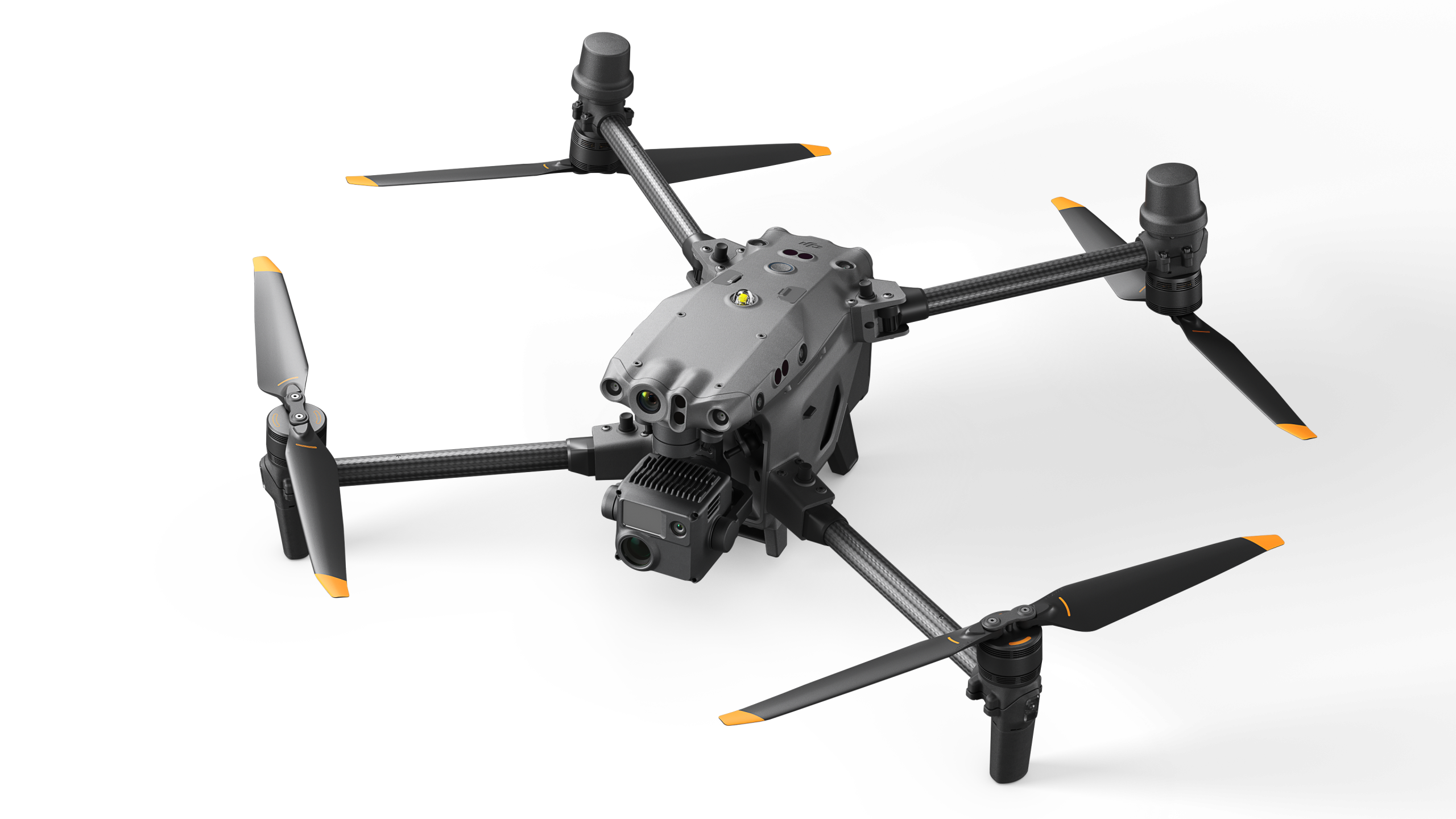

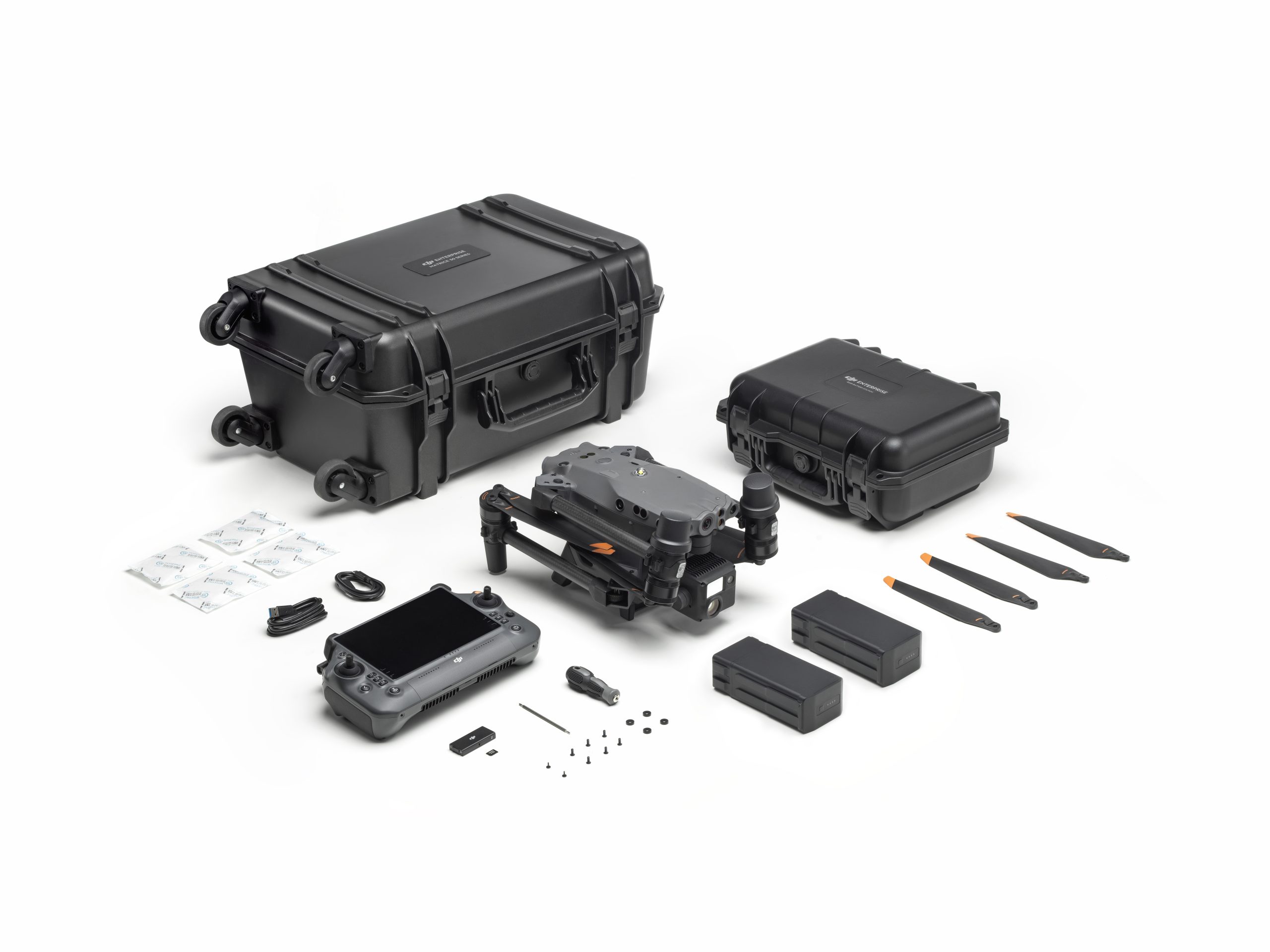

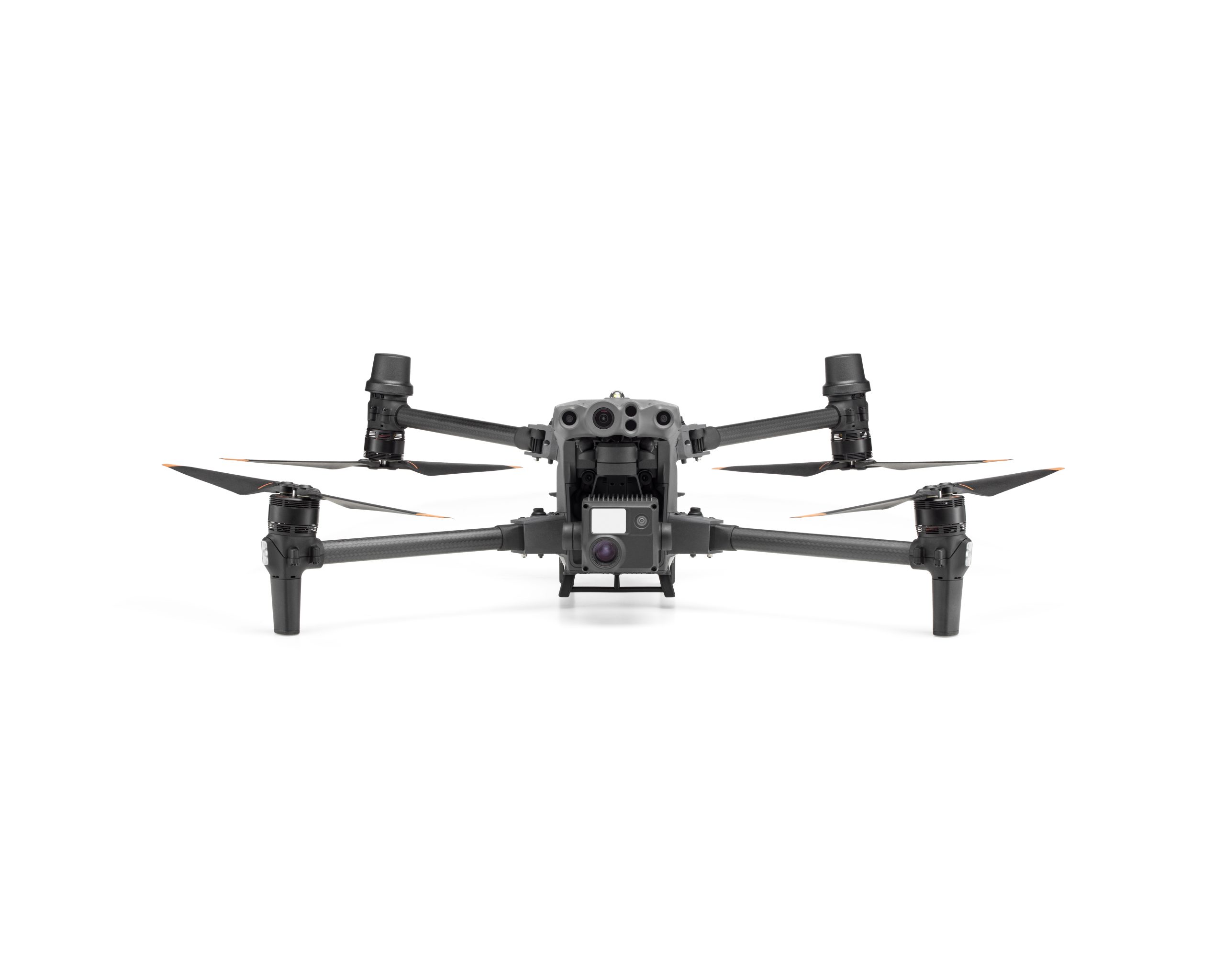

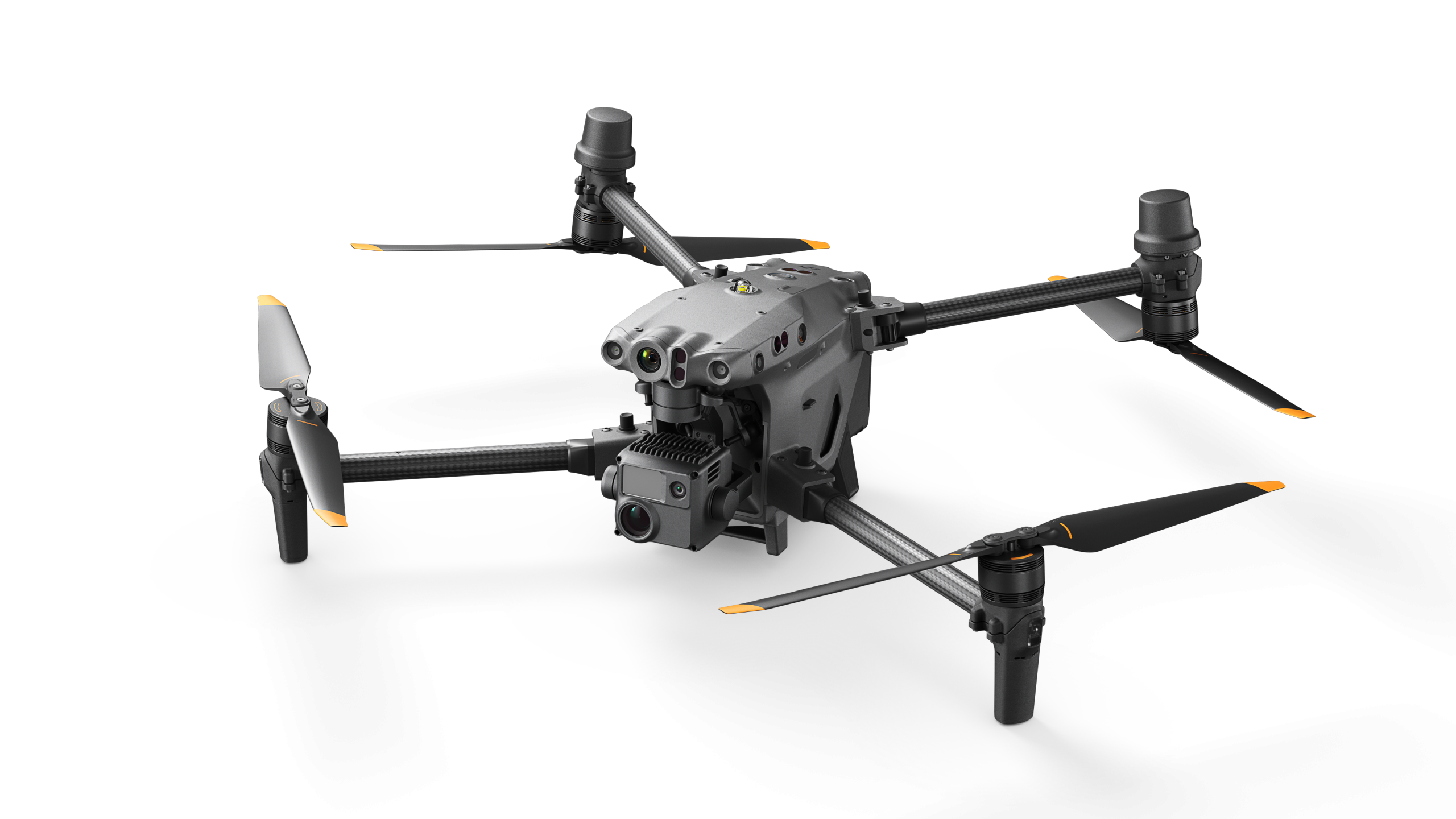

DJI M30

kr 72 400 eks. MVA

  • Integrerte FPV, vidvinkel-, og zoom kameraer med en laseravstandsmåler sensor i tillegg
  • IP55 inntrengningsbeskyttelse, og -20° C~50° C temperaturdriftsområde
  • Lett og bærbar, for de som krever mobilitet
  • Fjernkontrollen er skreddersydd for proffbrukere
  • 41-min maks. flytid
  • Kompatibel med FlightHub 2 for effektiv bakke-til-sky-synergi
  • Støtter fjernoperasjoner med DJI Dock
  • 15 m/s vind toleranse
  • 7000 m maksimal operasjons høyde
  • ADS-B mottaker

Kontakt oss for bestilling og info!

Kategori: Stikkord: , , , , ,


Beskrivelse

Power in portability

DJI M30 er versjonen uten thermokamera







Spesifikasjoner:

Aircraft

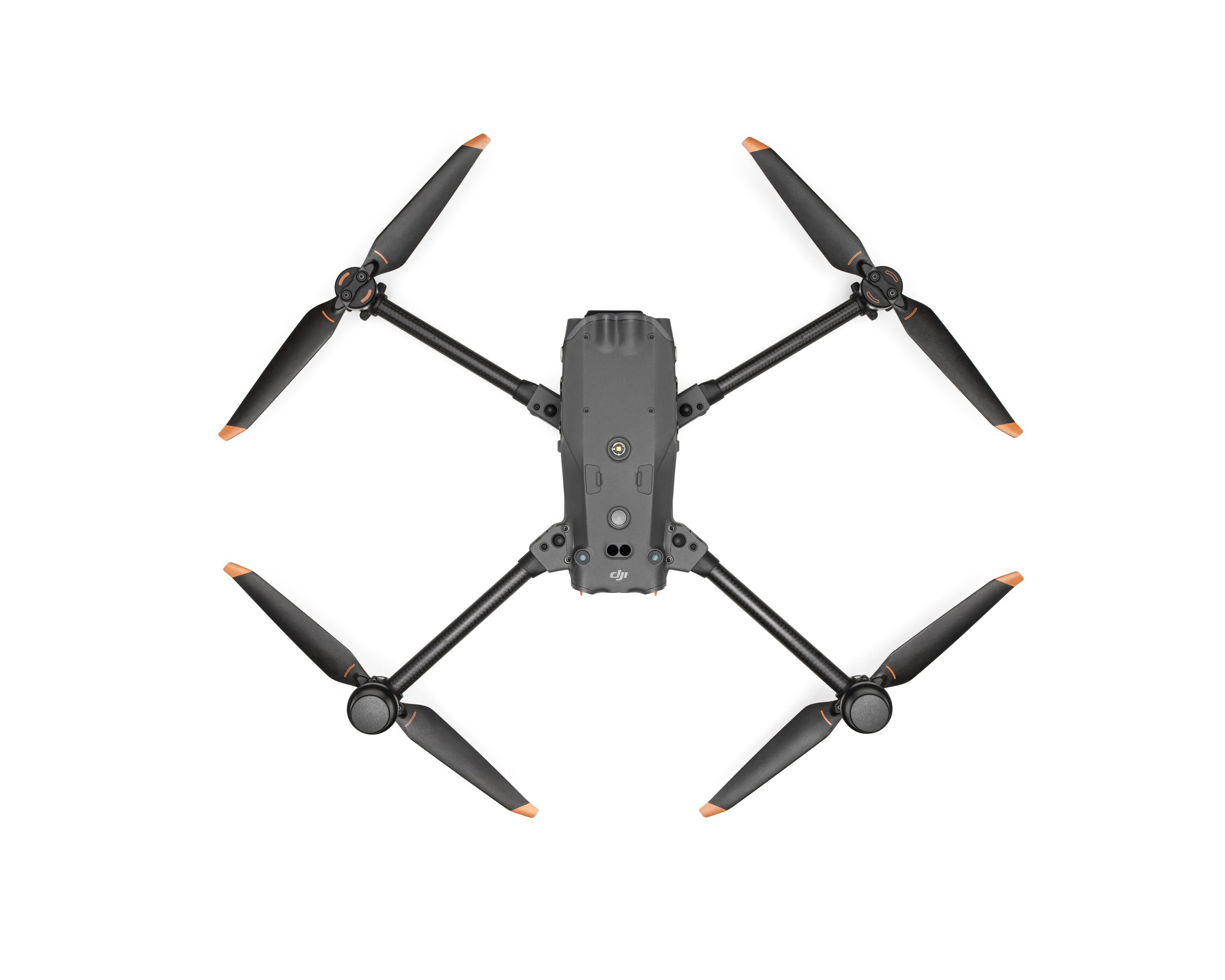

  • Dimensions
    (unfolded, excl. propellers)

  • 470×585×215 mm (L×W×H)
  • Dimensions (folded)

  • 365×215×195 mm (L×W×H)
  • Diagonal Wheelbase

  • 668 mm
  • Weight (incl. two batteries)

  • 3770 ± 10 g
  • Max Takeoff Weight

  • 4000 g
  • Operation Frequency[1]

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
  • Hovering Accuracy
    (windless or breezy)

  • Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
    Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
  • RTK Positioning Accuracy
    (fixed RTK enabled)

  • 1 cm+1 ppm (horizontal)
    1.5 cm+1 ppm (vertical)
  • Max Angular Velocity

  • Pitch: 150°/sec.; Yaw: 100°/sec.
  • Max Tilt Angle

  • 35° (N-mode and Forward Vision System enabled: 25°)
  • Max Ascent/Descent Speed

  • 6 m/s, 5 m/s
  • Max Tilt Descent Speed

  • 7 m/s
  • Max Horizontal Speed

  • 23 m/s
  • Max Service Ceiling Above Sea Level (without other payload)

  • 5,000 m (with 1671 propellers)
    7,000 m (with 1676 propellers)
  • Max Wind Resistance

  • 15 m/s
    12 m/s during taking off and landing
  • Max Hover Time [2]

  • 36 min
  • Max Flight Time[2]

  • 41 min
  • Motor Model

  • 3511
  • Propeller Model

  • 1671
    1676 High Altitude (not included)
  • Ingress Protection Rating[3]

  • IP55
  • GNSS

  • GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

Gimbal

  • Angular Vibration Range

  • ±0.01°
  • Controllable Range

  • Pan: ±90°
    Tilt: -120° to +45°
  • Mechanical Range

  • Pan: ±105°
    Tilt: -135° to +60°
    Roll: ±45°

Zoom Camera

  • Sensor

  • 1/2″ CMOS, Effective pixels: 48M
  • Lens

  • Focal length: 21-75 mm (equivalent: 113-405 mm)
    Aperture: f/2.8-f/4.2
    Focus: 5 m to ∞

Wide Camera

  • Sensor

  • 1/2″ CMOS, Effective pixels: 12M
  • Lens

  • DFOV: 84°
    Focal length: 4.5 mm (equivalent: 24 mm)
    Aperture: f/2.8
    Focus: 1 m to ∞

FPV Camera

  • Resolution

  • 1920×1080
  • DFOV

  • 161°
  • Frame Rate

  • 30 fps

Laser Module

  • Wavelength

  • 905 nm
  • Max Laser Power

  • 3.5 mW
  • Single Pulse Width

  • 6 ns
  • Measurement Accuracy

  • ± (0.2 m + D×0.15%)D is the distance to a vertical surface
  • Measuring Range

  • 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

  • Obstacle Sensing Range

  • Forward: 0.6-38 m
    Upward/Downward/Backward/Sideward: 0.5-33 m
  • FOV

  • 65° (H), 50° (V)
  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

  • Obstacle Sensing Range

  • 0.1 to 10 m
  • FOV

  • 30°
  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

  • Capacity

  • 5880 mAh
  • Voltage

  • 26.1 V
  • Battery Type

  • LiPo 6S
  • Energy

  • 131.6 Wh
  • Net Weight

  • Approx. 685 g
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Storage Temperature

  • 20° to 30° C (68° to 86° F)
  • Charging Temperature

  • -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
  • Chemical System

  • LiNiMnCoO2

Auxiliary Lights

  • Effective Illumination Distance

  • 5 m
  • Illumination Type

  • 60 Hz, solid glow

Remote Controller

  • Screen

  • 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
  • Internal Battery

  • Type: Li-ion (6500 mAh @ 7.2 V)
    Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
    Charge Time: 2 hours
    Chemical System: LiNiCoAIO2
  • External Battery(WB37 Intelligent Battery)

  • Capacity: 4920 mAh
    Voltage: 7.6 V
    Battery Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2
  • Operating Time[5]

  • Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours
  • Ingress Protection Rating[3]

  • IP54
  • GNSS

  • GPS+Galileo+BeiDou
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

O3 Enterprise

  • Operating Frequency[1]

  • 2.4000-2.4835 GHz, 5.725-5.850 GHz
  • Max Transmission Distance (unobstructed, free of interference)

  • 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)
  • Max Transmission Distance (with interference)

  • Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
    Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC)
    Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)
  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
    5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

  • Protocol

  • Wi-Fi 6
  • Operating Frequency[1]

  • 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
    5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
    5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

  • Protocol

  • Bluetooth 5.1
  • Operating Frequency

  • 2.4000-2.4835 GHz
  • Transmitter Power (EIRP)

  • <10 dBm

BS30 Intelligent Battery Station

  • Dimensions

  • 353×267×148 mm
  • Net Weight

  • 3.95 kg
  • Compatible Battery Type

  • TB30 Intelligent Flight Battery
    WB37 Intelligent Battery
  • Input

  • 100-240 VAC, 50/60 Hz
  • Output

  • TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
    WB37 Intelligent Battery: 8.7 V, 6 A
  • Output Power

  • 525 W
  • USB-C port

  • Max. output power of 65 W
  • USB-A port

  • Max. output power of 10 W (5 V, 2 A)
  • Power Consumption (when not charging battery)

  • < 8 W
  • Output Power (when warming up battery)

  • Approx. 30 W
  • Operating Temperature

  • -20° to 40° C (-4° to 104° F)
  • Ingress Protection Rating[3]

  • IP55 (with the cover closed properly)
  • Charging Time[6]

  • Approx. 30 min (charging two TB30 batteries from 20%-90%)
    Approx. 50 min (charging two TB30 batteries from 0%-100%)
  • Protection Features

  • Anti-Backflow Protection
    Short Circuit Protection
    Over Voltage Protection
    Over Current Protection
    Temperature Protection

Other

  • Footnotes

  • [1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors.
    [2] The maximum flight time and the hover time were tested in a lab environment and is for reference only.
    [3] This protection rating is not permanent and may reduce over time after long-term use.
    [4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only.
    [5] The maximum operating time was tested in a lab environment and is for reference only.
    [6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only.
