Beskrivelse

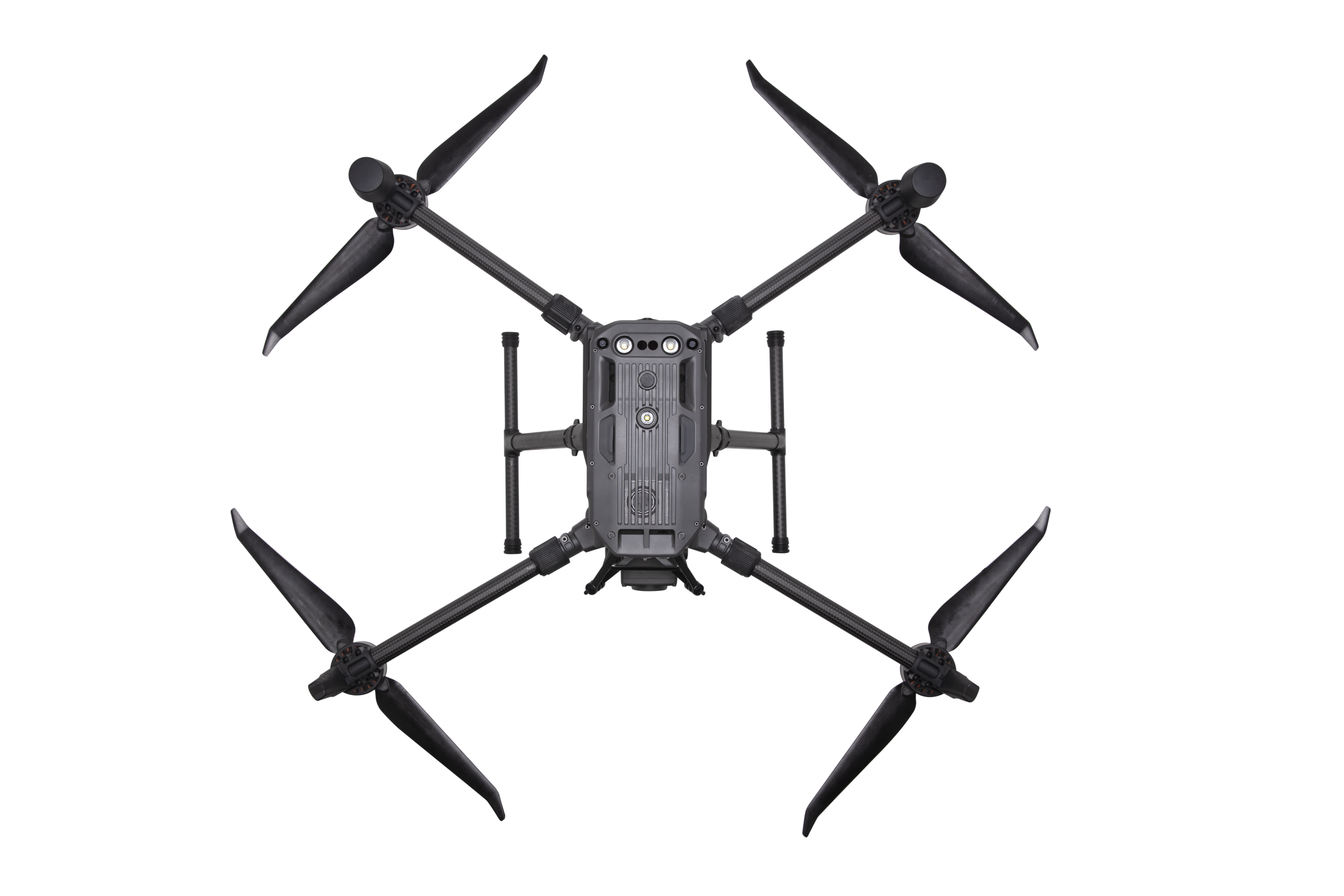

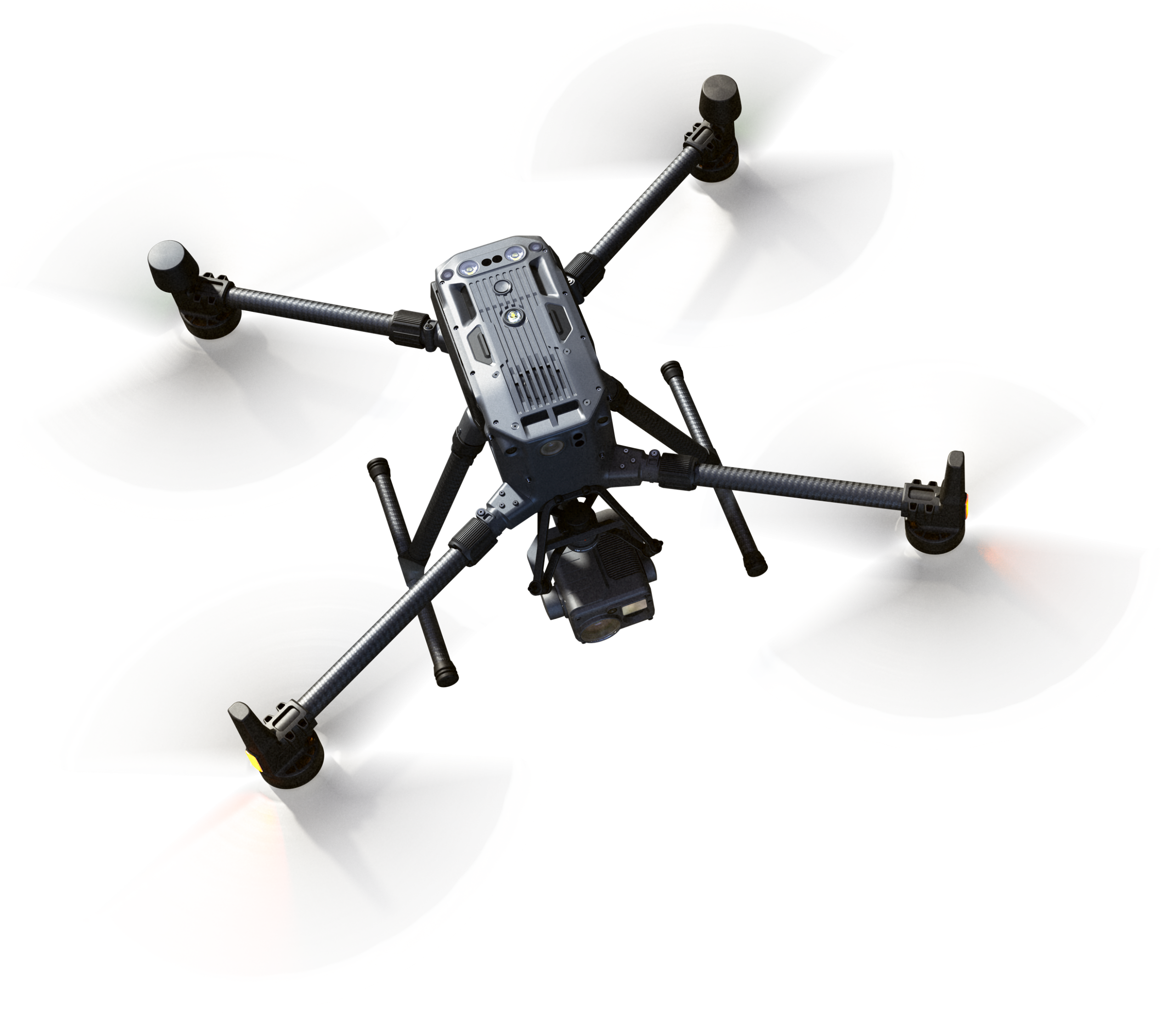

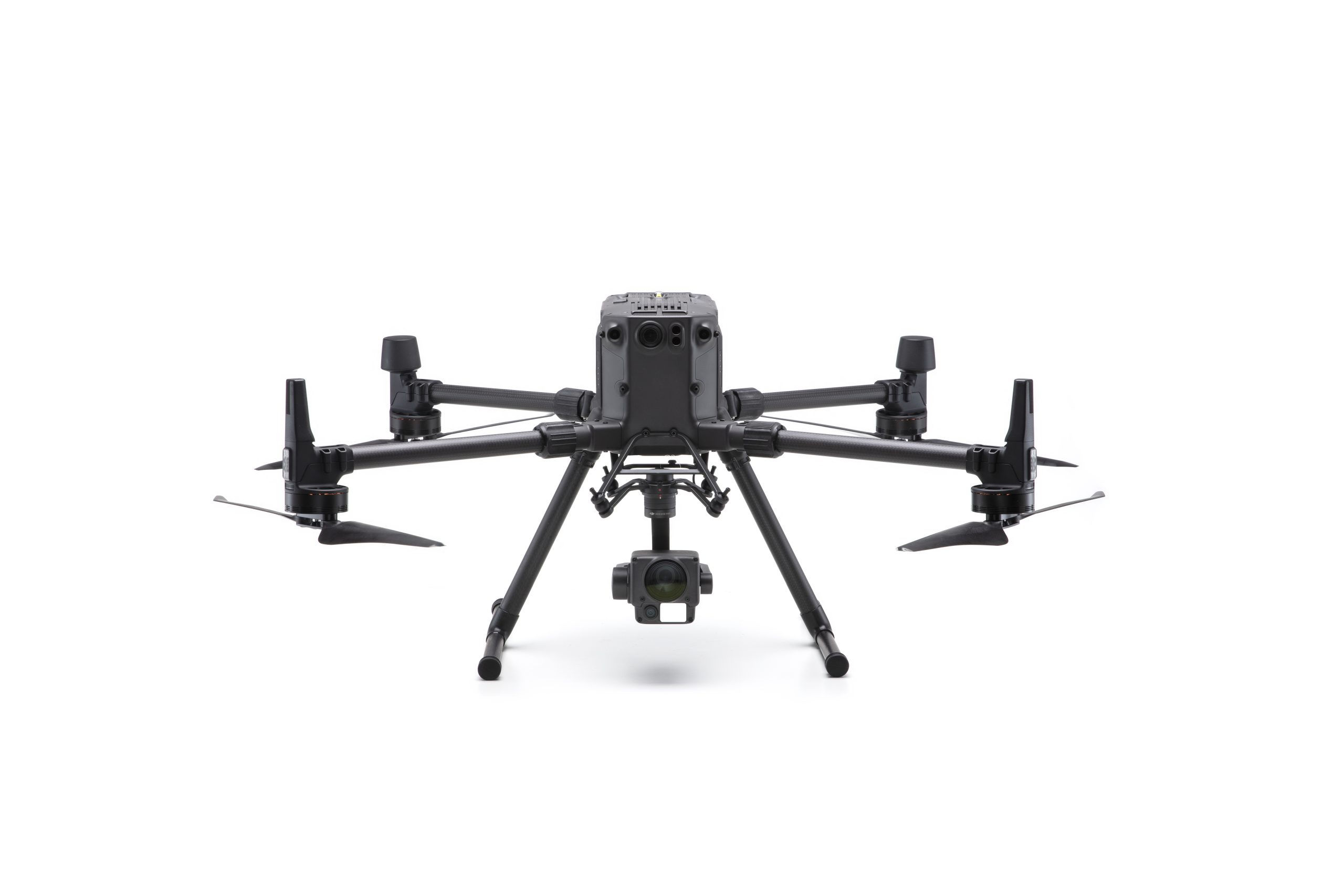

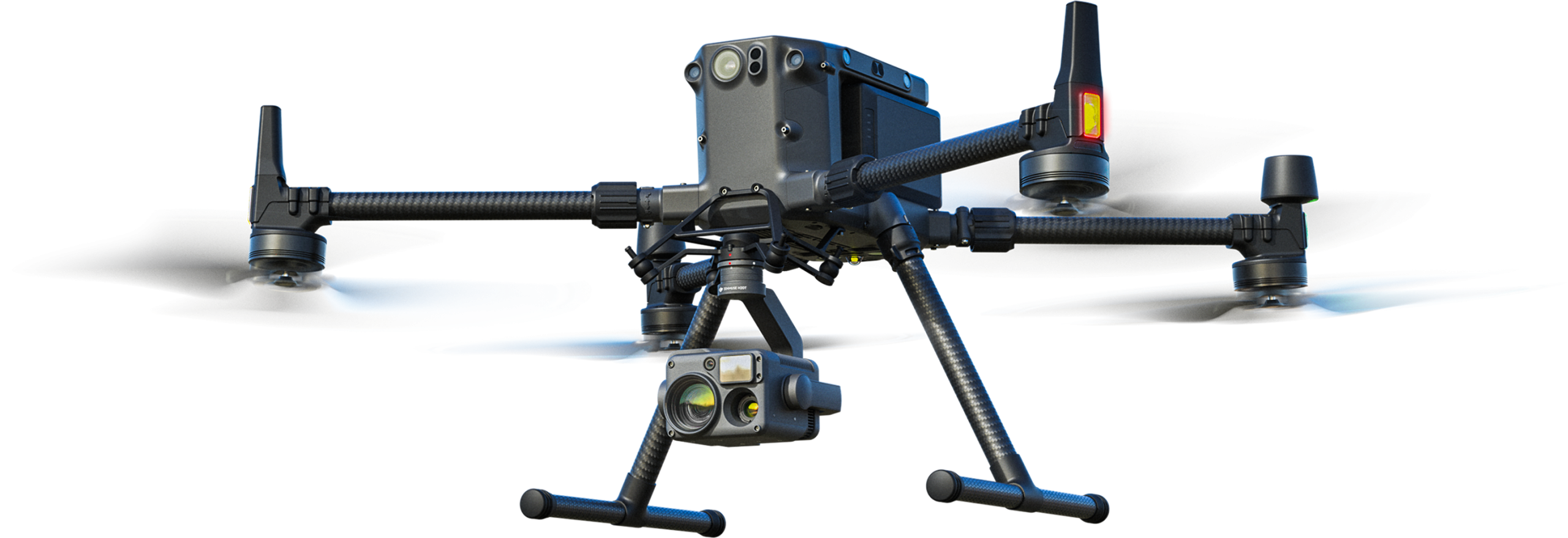

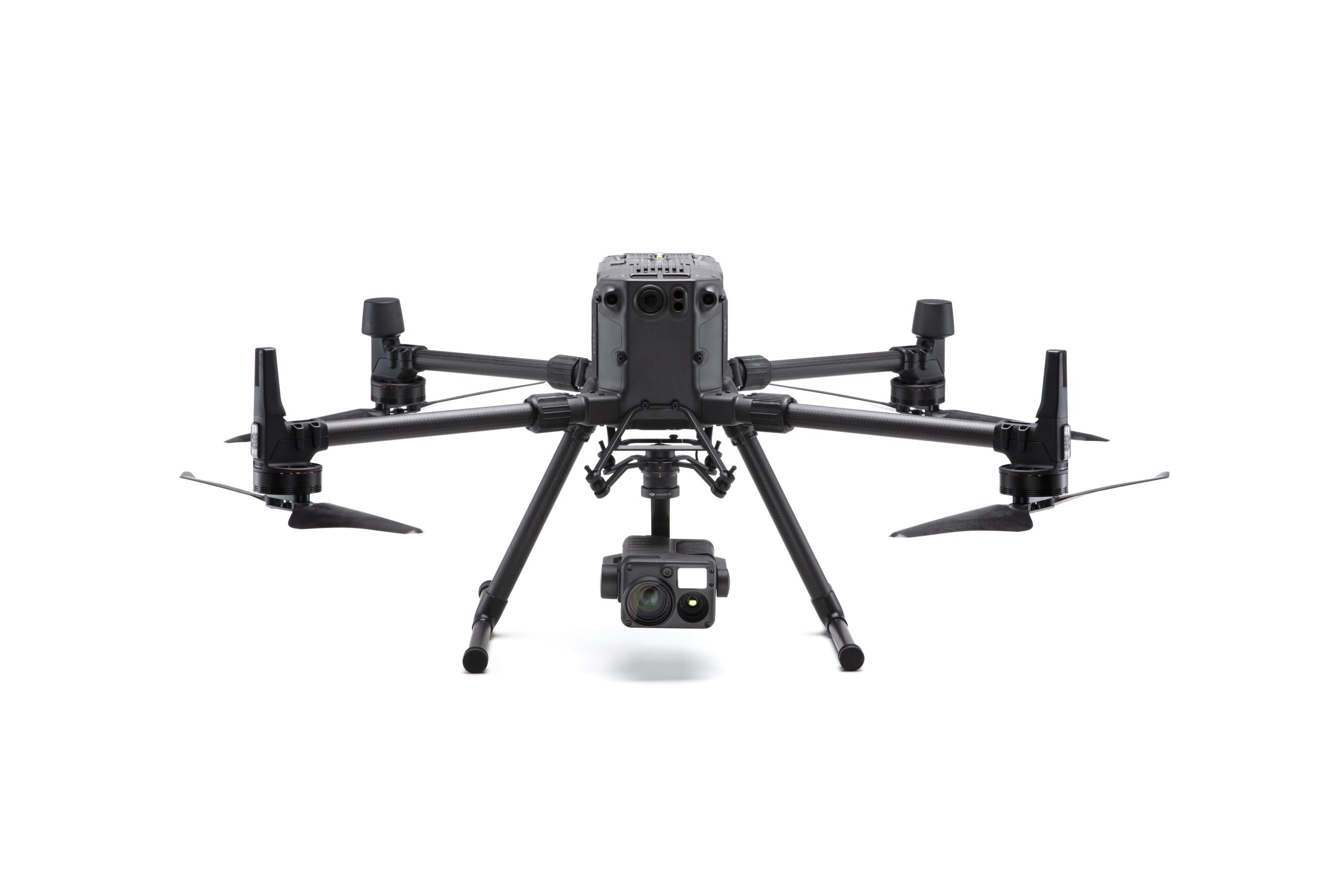

DJI´s revolusjonerende arbeidsmaskin som er utviklet for profesjonelt bruk
- 15 km video rekkevidde
- Opptil 55 min flytid
- 15 m/s godkjent vind toleranse
- 23 m/s toppfart
- 7 m/s ned stignings hastighet
- IP45
- Anti kollisjons system
- ADS-B mottaker
- Intelligent inspeksjons software med posisjons deling
- 2 operatører, samt mulighet for bytting av operatør under flyging
Ta kontakt for mer info, så skreddersyr vi totalpakker for ditt bruk
|
Category |
Item |
Specification |
||
| Aircraft | Dimensions | Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H) |
||
| Aircraft | Diagonal Wheelbase | 895 mm | ||
| Aircraft | Weight (with single downward gimbal) | Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries) |
||
| Aircraft | Max Payload | 2.7 kg | ||
| Aircraft | Max Takeoff Weight | 9 kg | ||
| Aircraft | Operating Frequency | 2.4000-2.4835 GHz
5.725-5.850 GHz |
||
| Aircraft | EIRP | 2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE) 18.5 dBm (SRRC); 18.5dBm (MIC) 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE) 28.5 dBm (SRRC) |
||
| Aircraft | Hovering Accuracy (P-mode with GPS) | Vertical:
±0.1 m (Vision System enabled) ±0.5 m (GPS enabled) ±0.1 m (RTK enabled) Horizontal: ±0.3 m (Vision System enabled) ±1.5 m (GPS enabled) ±0.1 m (RTK enabled) |
||
| Aircraft | RTK Positioning Accuracy | When RTK enabled and fixed:
1 cm+1 ppm (Horizontal) 1.5 cm + 1 ppm (Vertical) |
||
| Aircraft | Max Angular Velocity | Pitch: 300°/s, Yaw: 100°/s | ||
| Aircraft | Max Pitch Angle | 30° (P-mode, Forward Vision System enabled: 25°) | ||
| Aircraft | Max Ascent Speed | S mode: 6 m/s
P mode：5 m/s |
||
| Aircraft | Max Descent Speed (vertical) | S mode: 5 m/s
P mode：3 m/s |
||
| Aircraft | Max Descent Speed (tilt) | S Mode: 7 m/s | ||
| Aircraft | Max Speed | S mode: 23 m/s
P mode：17 m/s |
||

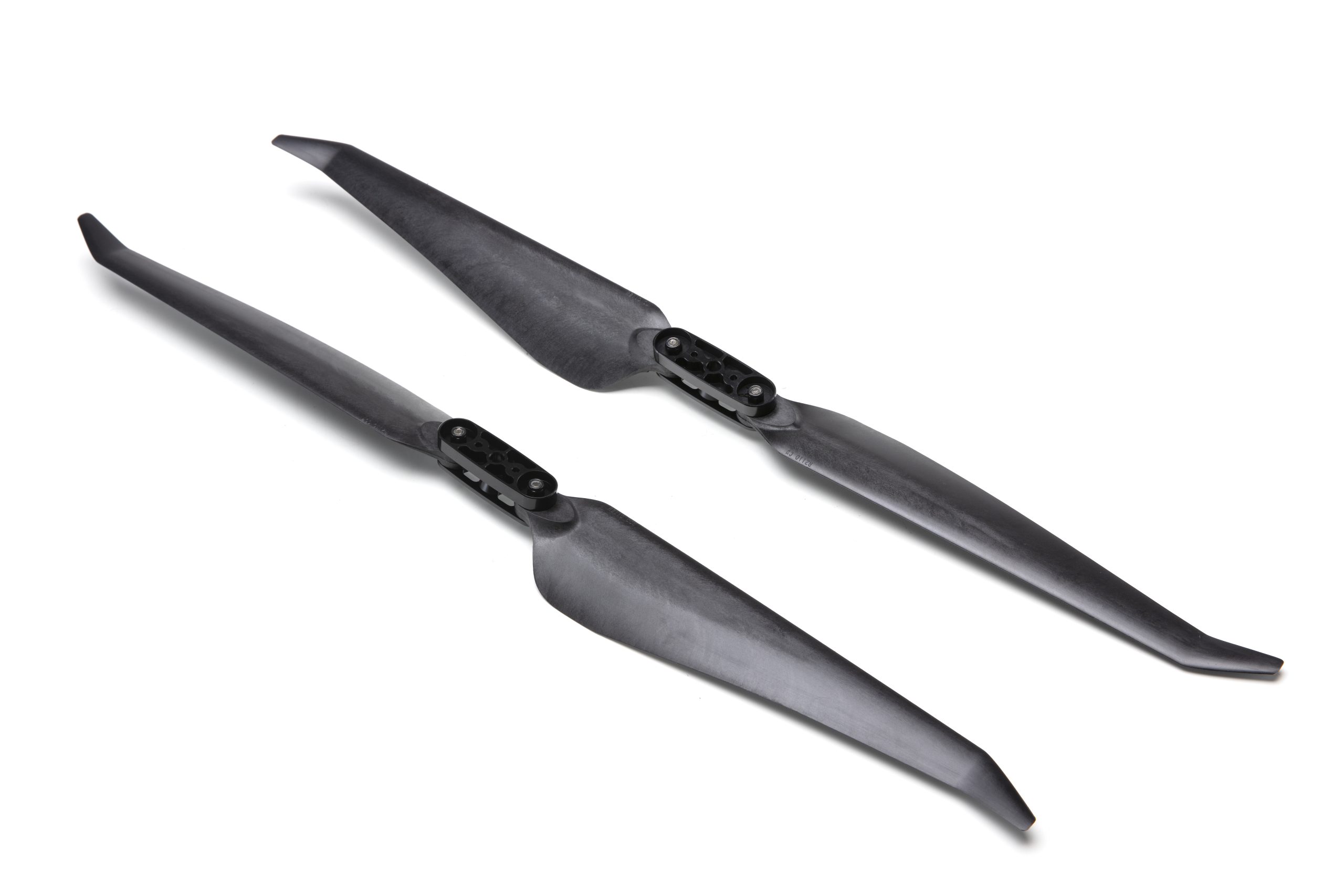

| Aircraft | Service Ceiling Above Sea Level | 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg) | ||
| Aircraft | Max Wind Resistance | 15 m/s | ||
| Aircraft | Max Flight Time | 55 min | ||

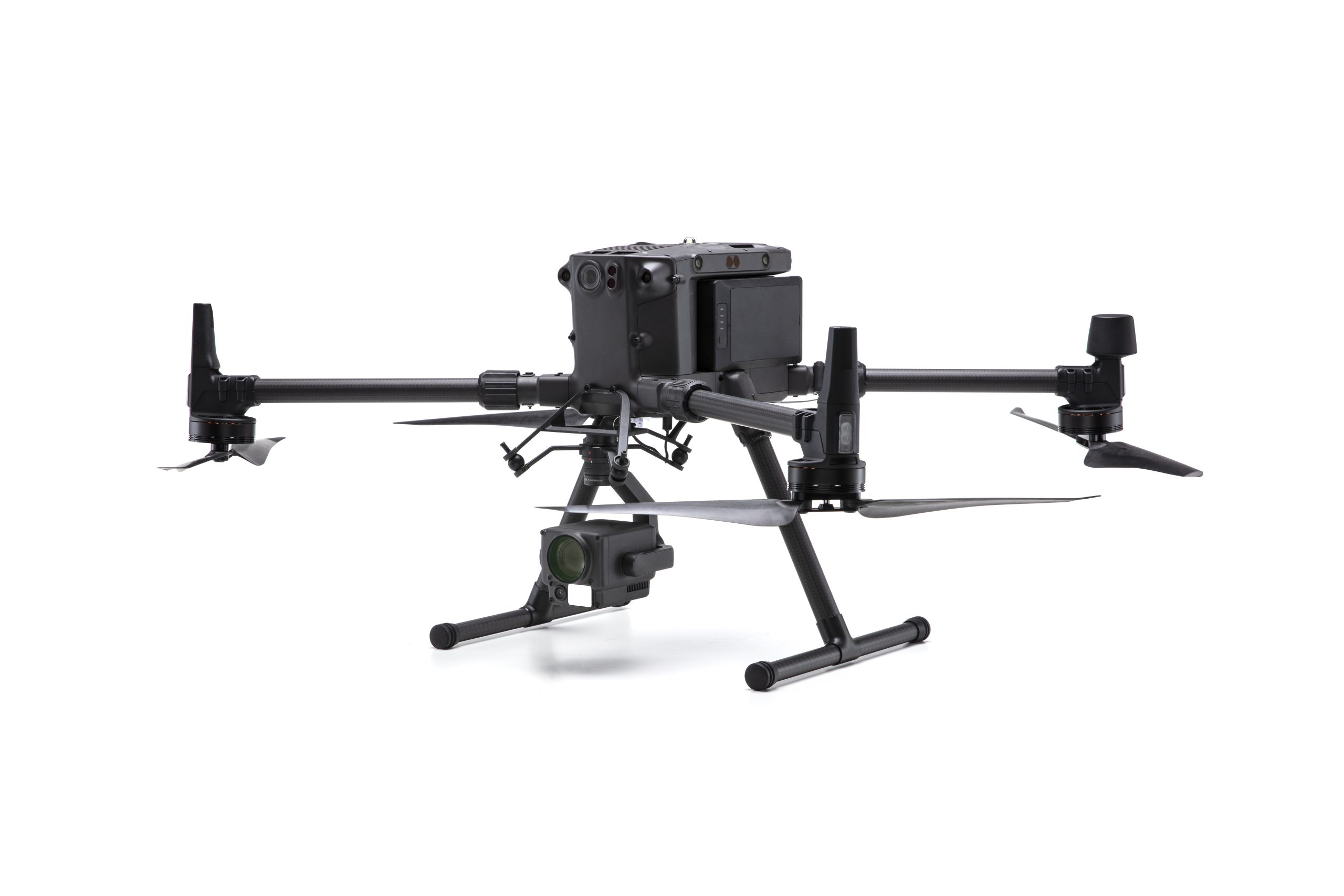

| Aircraft | Supported DJI Gimbals | Zenmuse XT2/XT S/Z30/H20/H20T | ||

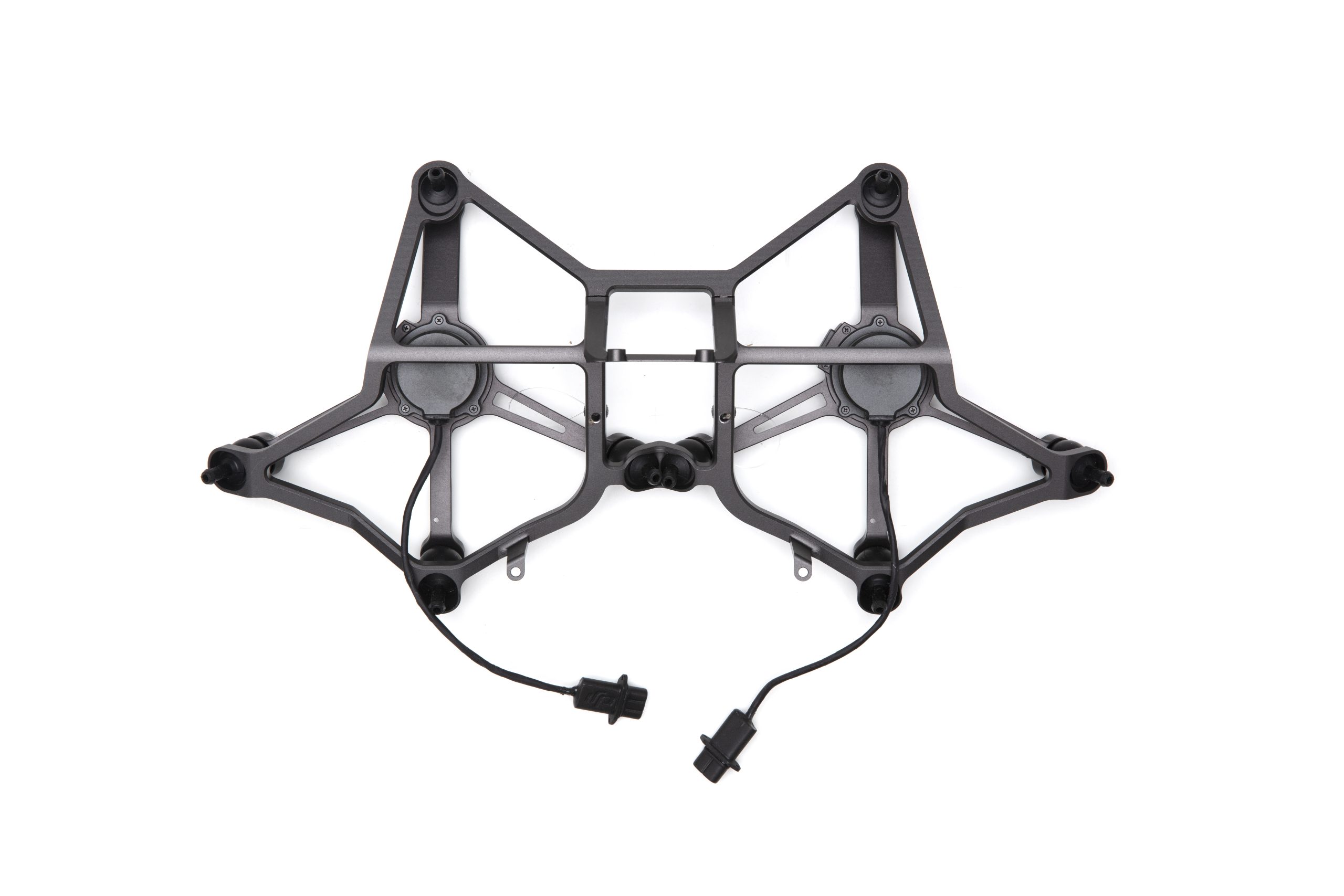

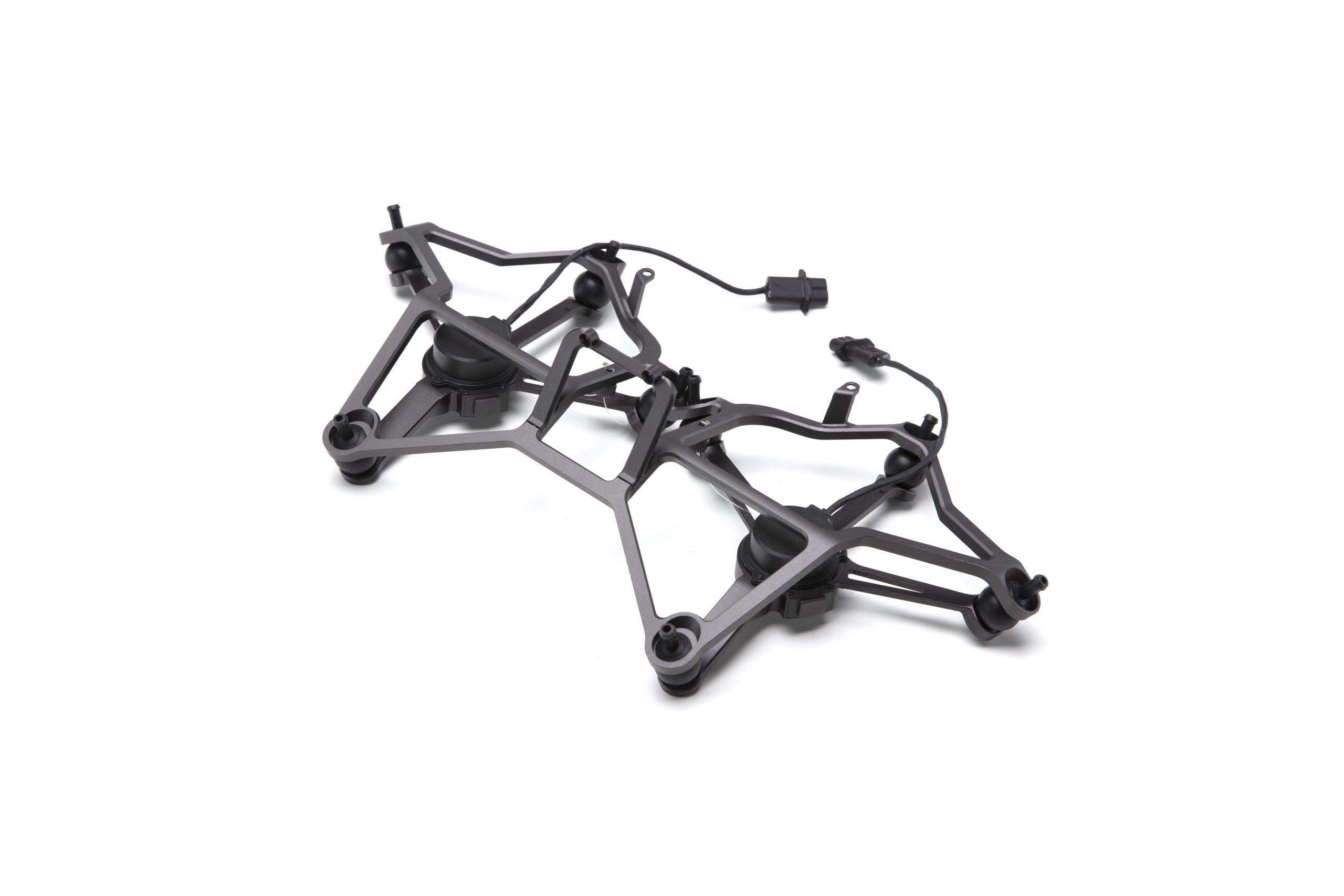

| Aircraft | Supported Gimbal Configurations | Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals | ||
| Aircraft | Ingress Protection Rating | IP45 | ||
| Aircraft | GNSS | GPS+GLONASS+BeiDou+Galileo | ||
| Aircraft | Operating Temperature | -20°C to 50°C (-4°F to 122° F) | ||
| Remote Controller | Operating Frequency | 2.4000-2.4835 GHz
5.725-5.850 GHz |
||
| Remote Controller | Max Transmitting Distance(unobstructed, free of interference)） | NCC/FCC: 15 km
CE/MIC: 8 km SRRC: 8 km |
||
| Remote Controller | EIRP | 2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE) 18.5 dBm (SRRC); 18.5dBm (MIC) 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE) 20.5 dBm (SRRC) |
||
| Remote Controller | External battery | Name: WB37 Intelligent Battery
Capacity: 4920 mAh Voltage: 7.6V Type: LiPo Energy: 37.39Wh Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C) |
||
| Remote Controller | Built-in battery | Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A Rated power: 17 W Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A) |
||
| Remote Controller | Battery Life | Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h |
||
| Remote Controller | USB Power Supply | 5 V / 1.5 A | ||
| Remote Controller | Operating Temperature | -20°C to 40°C (-4 °F to 104 °F) | ||
| Vision System | Obstacle Sensing Range | Forward/Backward/Left/Right：0.7-40m
Upward/Downward：0.6-30m |
||
| Vision System | FOV | Forward/Backward/Downward：65° (H), 50° (V)
Left/Right/Upward：75°(H), 60°(V) |
||
| Vision System | Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) | ||
| Infrared ToF Sensing System | Obstacle Sensing Range | 0.1-8m | ||
| Infrared ToF Sensing System | FOV | 30° (±15°) | ||
| Infrared ToF Sensing System | Operating Environment | Large, diffuse and reflective obstacles (reflectivity >10%) | ||
| Top and bottom auxiliary light | Effective lighting distance | 5 m | ||
| FPV Camera | Resolution | 960p | ||
| FPV Camera | FOV | 145° | ||
| FPV Camera | Frame rate | 30 fps | ||

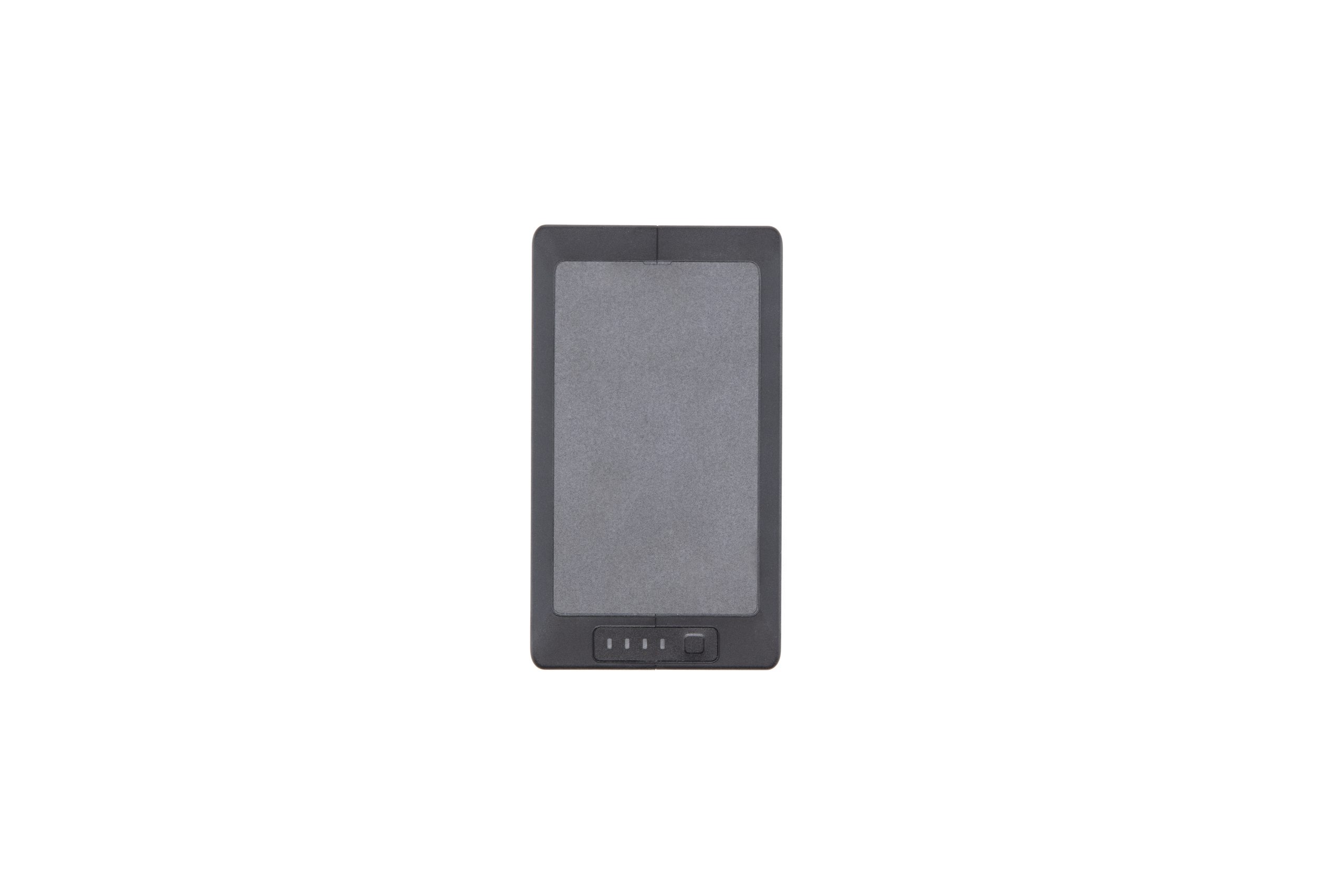

| Intelligent Flight Battery | Name | TB60 | ||
| Intelligent Flight Battery | Capacity | 5935 mAh | ||
| Intelligent Flight Battery | Voltage | 52.8 V | ||
| Intelligent Flight Battery | Battery Type | LiPo 12S | ||
| Intelligent Flight Battery | Energy | 274 Wh | ||
| Intelligent Flight Battery | Net Weight | Approx. 1.35 kg | ||
| Intelligent Flight Battery | Operating Temperature | -4°F to 122°F (-20°C to 50°C) | ||
| Intelligent Flight Battery | Ideal storage temperature | 71.6°F to 86°F (22°C to 30°C) | ||
| Intelligent Flight Battery | Charging Temperature | -4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
||
| Intelligent Flight Battery | Charging time | Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%) 110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%) |
||

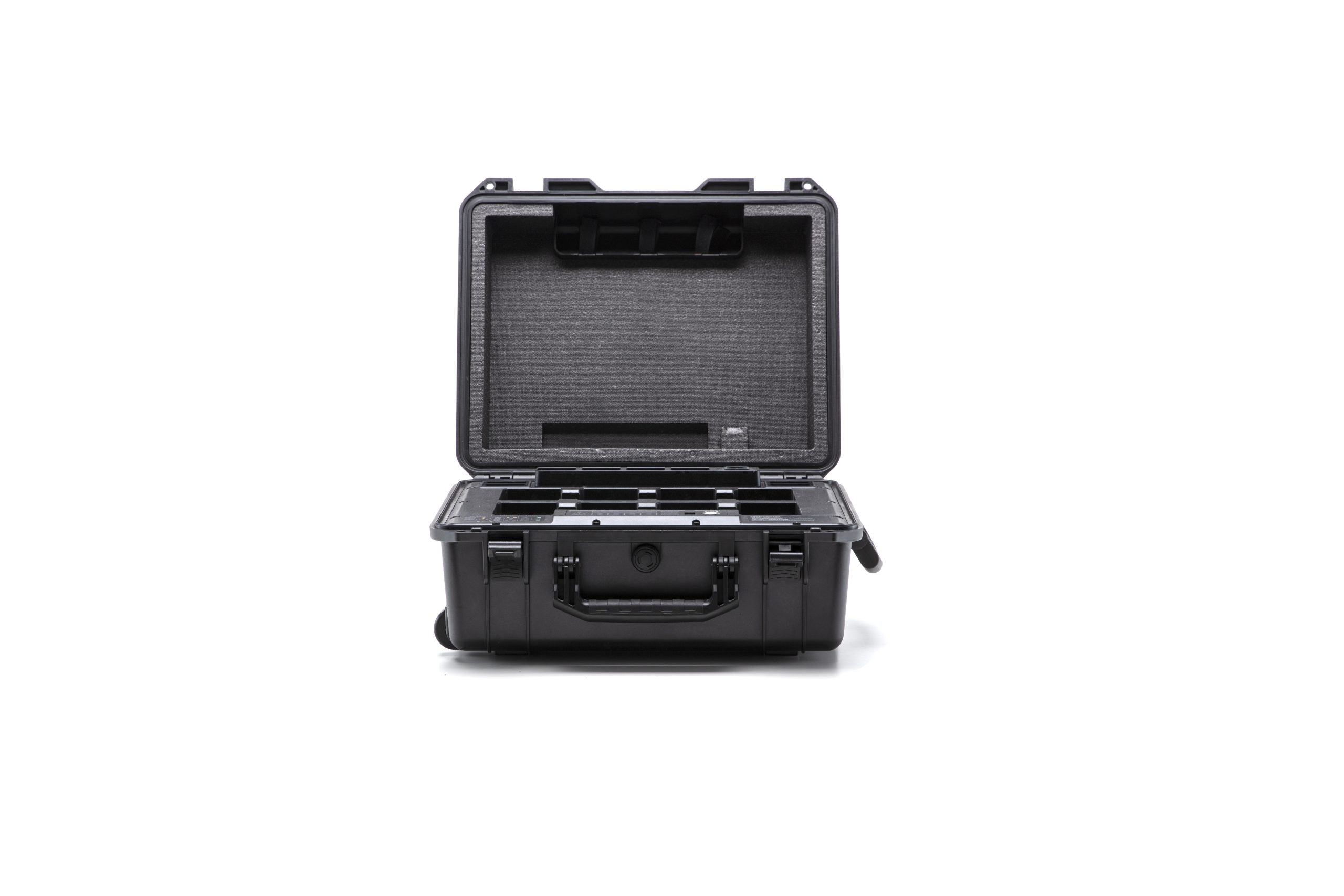

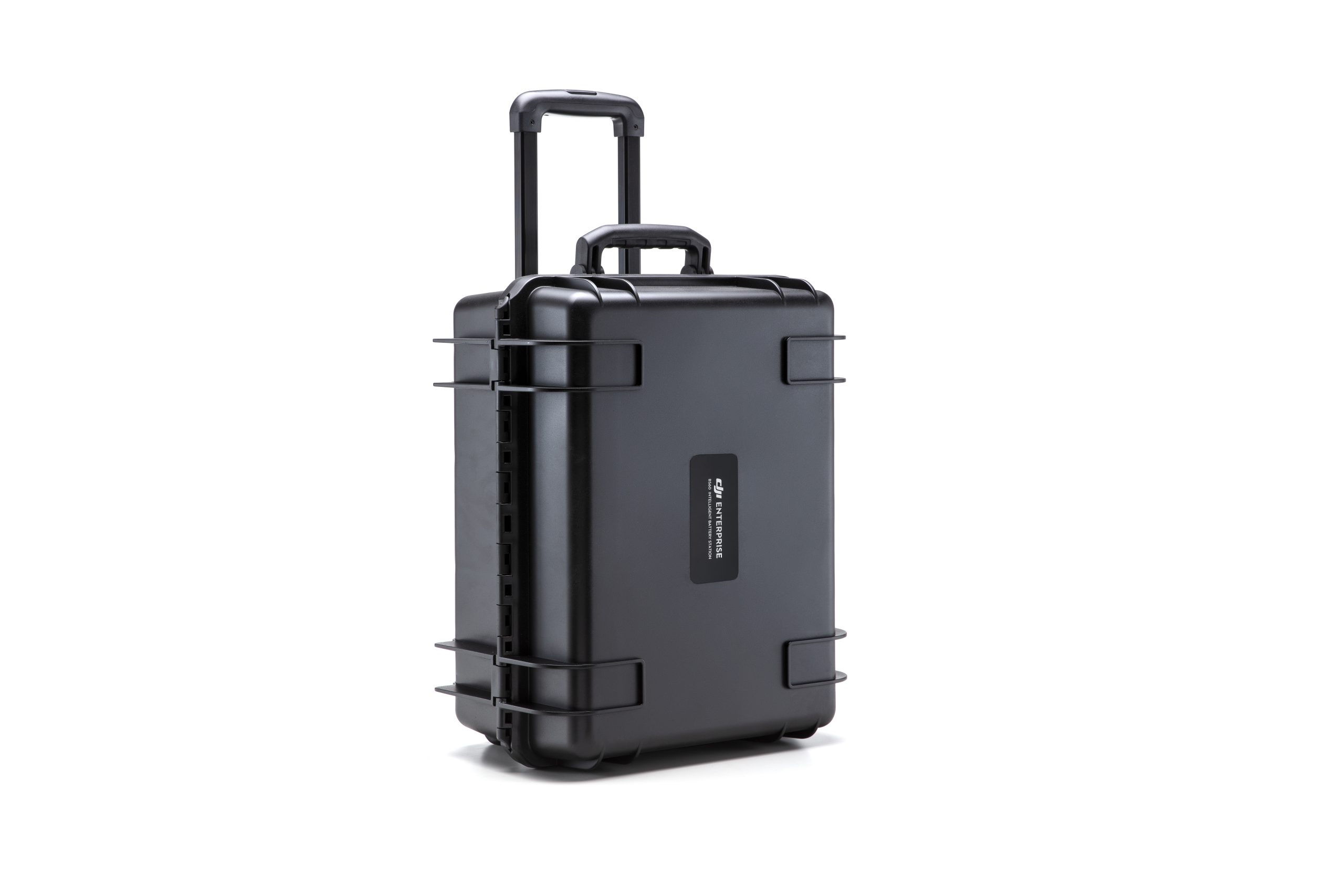

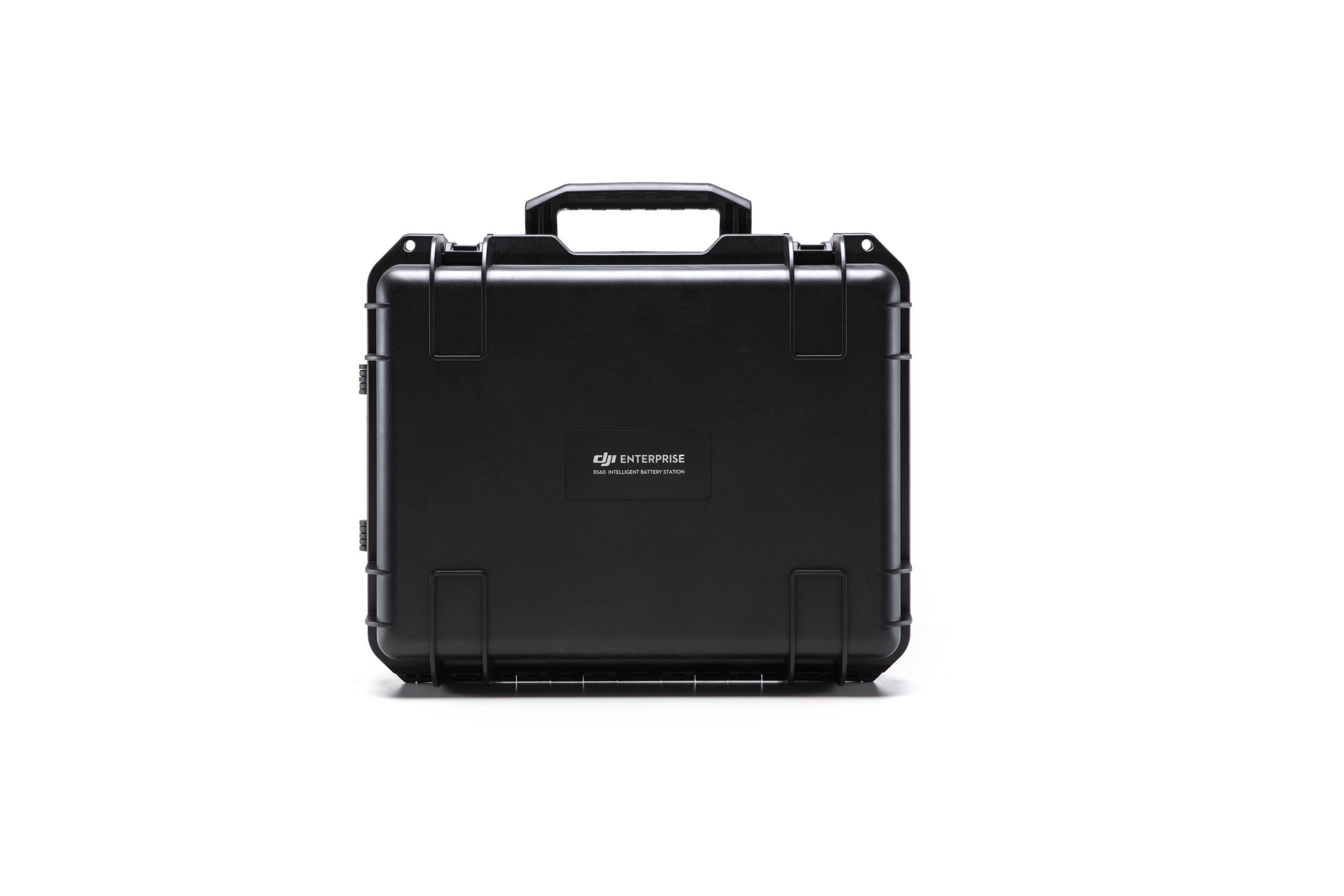

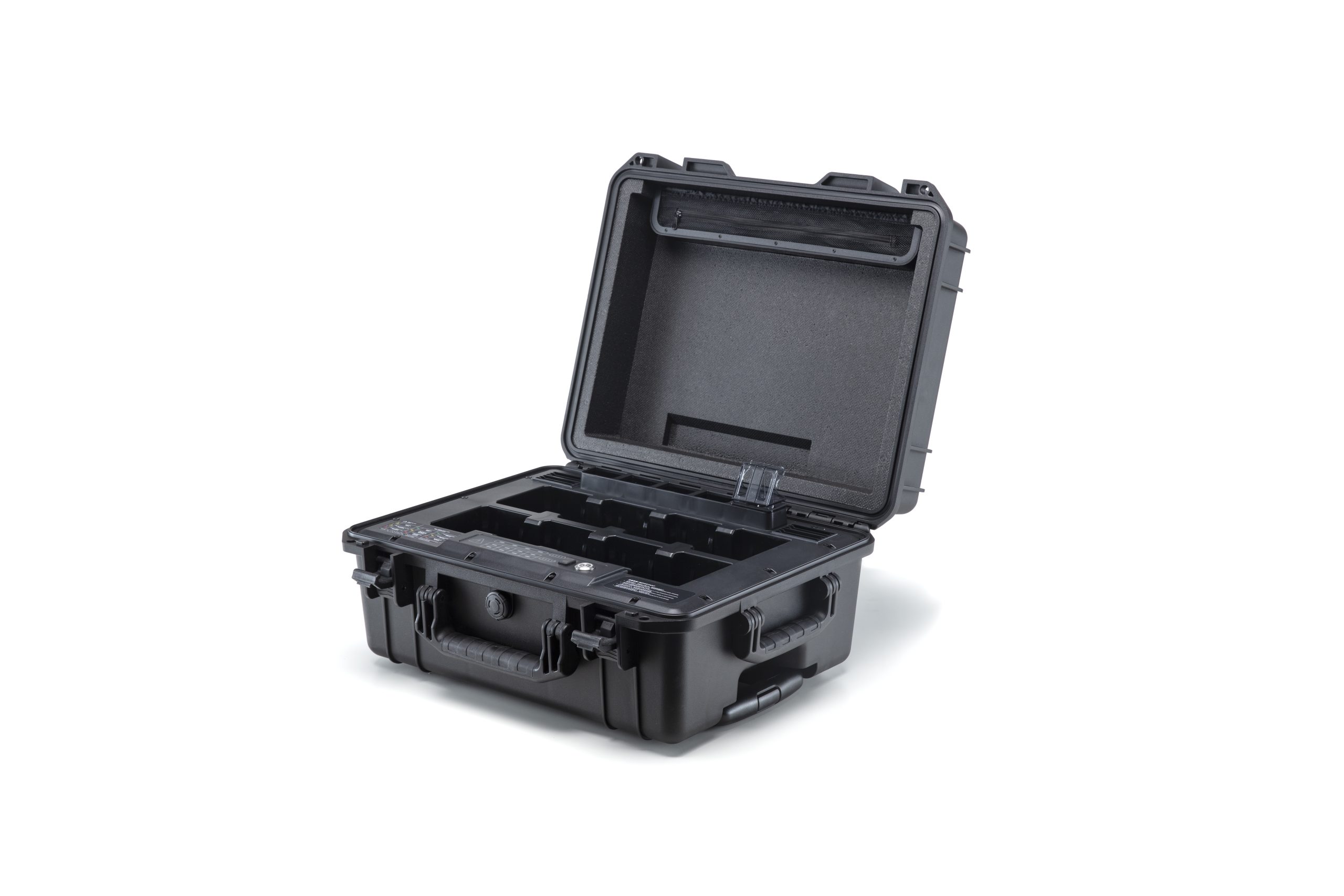

| BS60 Intelligent Battery Station | Dimensions | 501*403*252mm | ||
| BS60 Intelligent Battery Station | Net Weight | 8.37kg | ||
| BS60 Intelligent Battery Station | Maximum Capacity | TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4 |
||
| BS60 Intelligent Battery Station | Input | 100-120 VAC，50-60 Hz / 220-240 VAC，50-60 Hz | ||
| BS60 Intelligent Battery Station | Max. Input Power | 1070W | ||
| BS60 Intelligent Battery Station | Output Power | 100-120V: 750W
220-240V：992W |
||
| BS60 Intelligent Battery Station | Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
