Beskrivelse

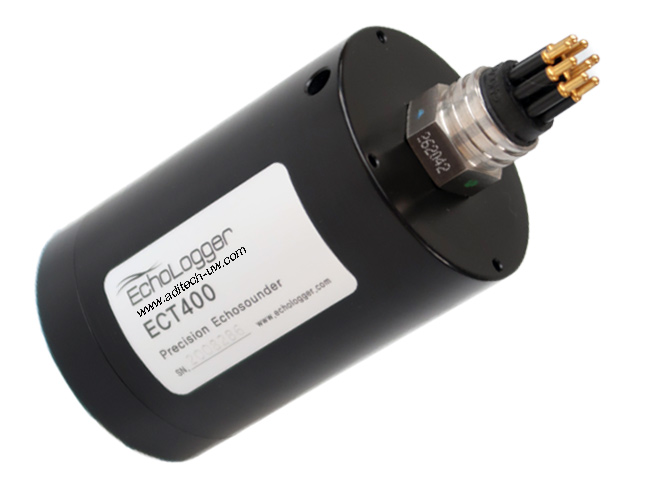

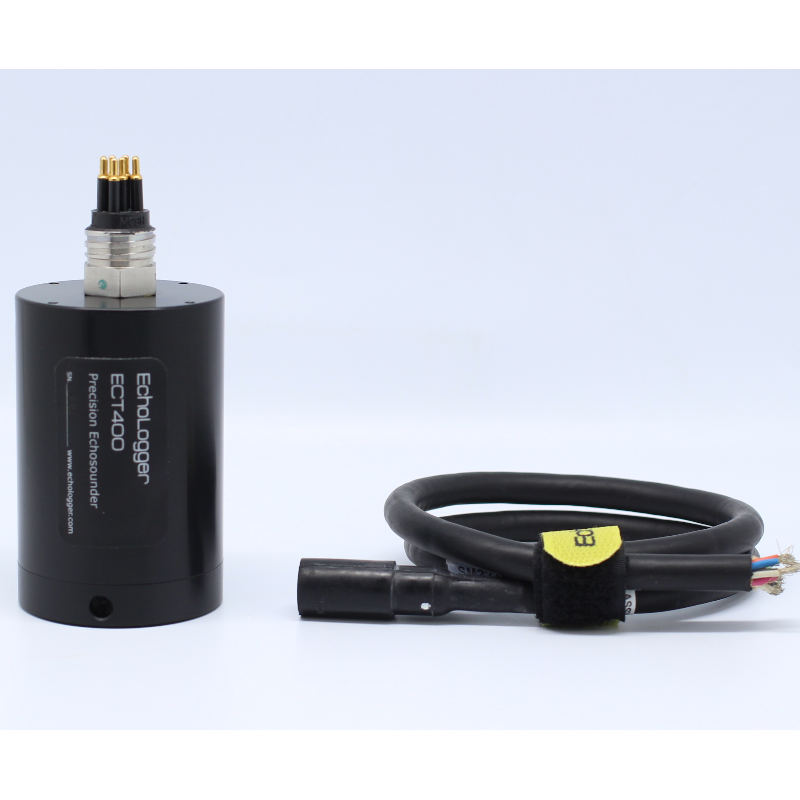

EchoLogger ECT 400S echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
The echo sounder cable is protected by a plastic sleeve, which supports the echo sounder and housing weight.
HS Code: 90158040 (hydrographic instruments)
Comes with an RS232 interface and connector for SkyHub
Cable length 2.5m.

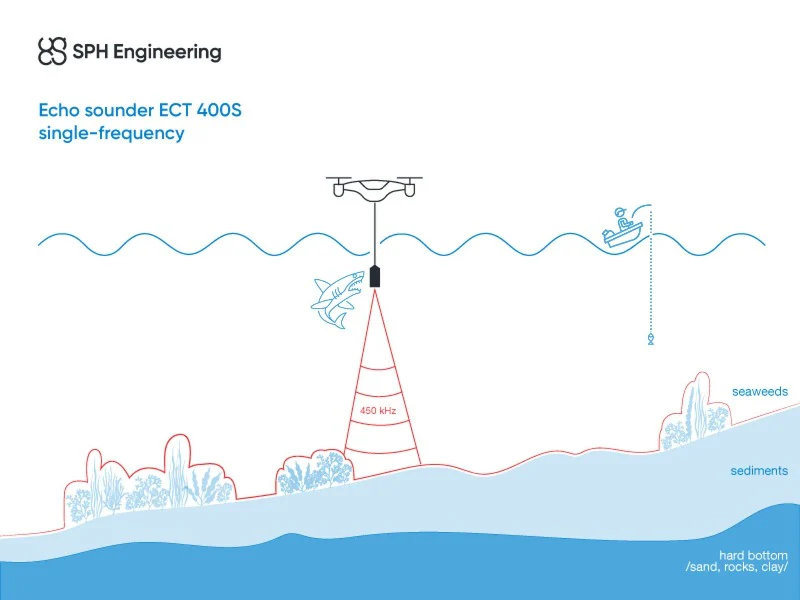

| Sensor | ECT 400S |
| Type | Single-frequency |
| Acoustic frequency, kHz | 450 |
| Measurement range, m | 0.15 … 100 |
| Beam width Conical (-3dB) | 5° |
| Weight of the echo sounder (in the air), kg | 1.3 |
| Weight of all components (in the air), kg (sensor, SkyHub, altimeter, housing, cables, mountings) |
1.9 |
| Suitable DJI drones (or Pixhawk drones of comparable size) |
M350 RTK M300 RTK |
