Beskrivelse

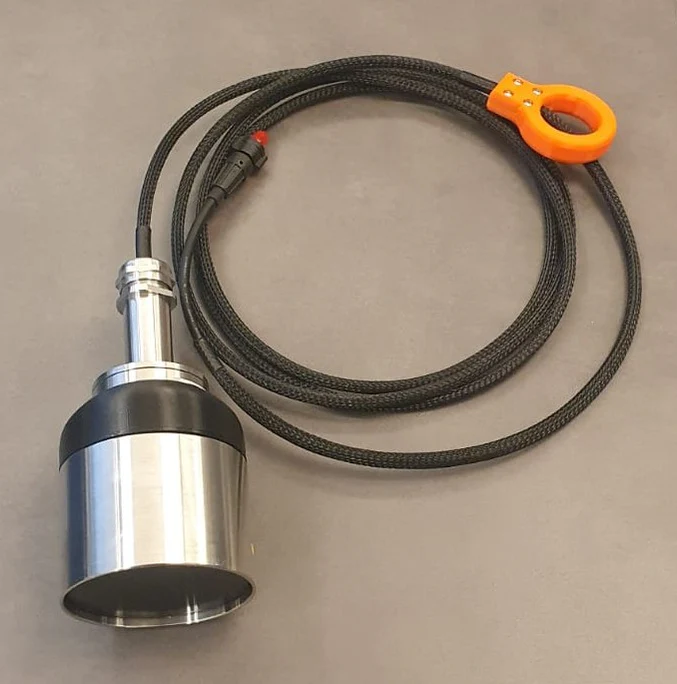

EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.

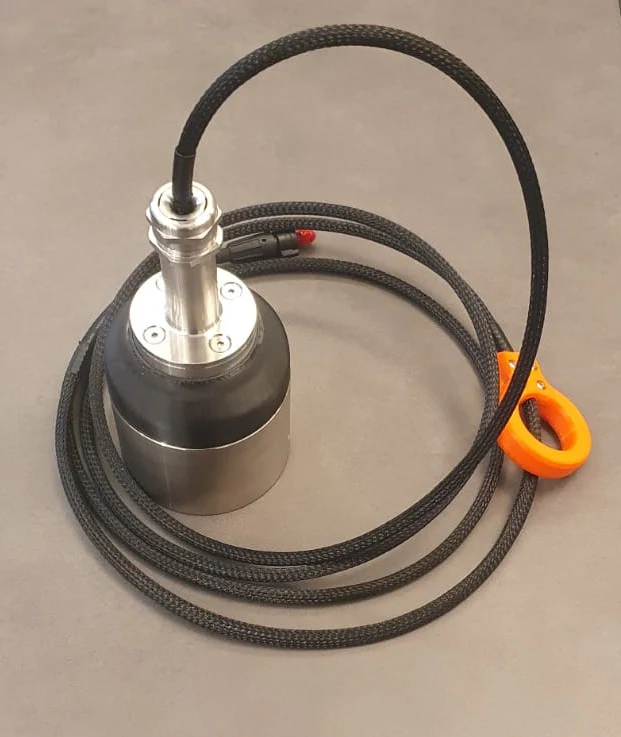

The echo sounder cable is protected by a plastic sleeve which also supports the echo sounder and housing weight.
HS Code: 90158040 (hydrographic instruments)
Comes with an RS232 interface and connector for SkyHub.
Cable length 2.5m.
| Sensor | ECT D052S |
| Type | Dual-frequency |

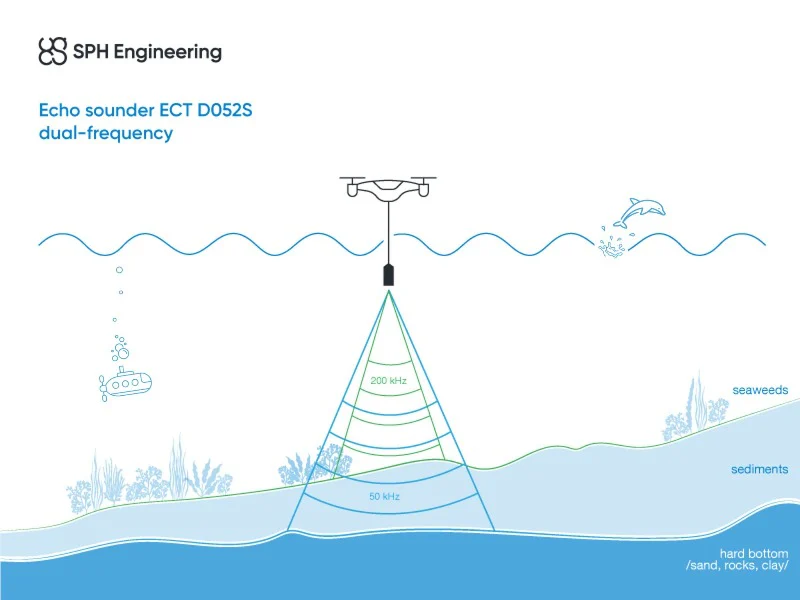

| Acoustic frequency, kHz | 50/200 |
| Measurement range | 1.0 … 200m (50 kHz) 0.5 … 200m (200 kHz) |
| Beam widthConical (-3dB) | 27°/7° (50 kHz/200 kHz) |
| Weight of the echo sounder (in the air), kg | 1.85 |
| Weight of all components (in the air), kg (sensor, SkyHub, altimeter, housing, cables, mountings) |
2.45 |

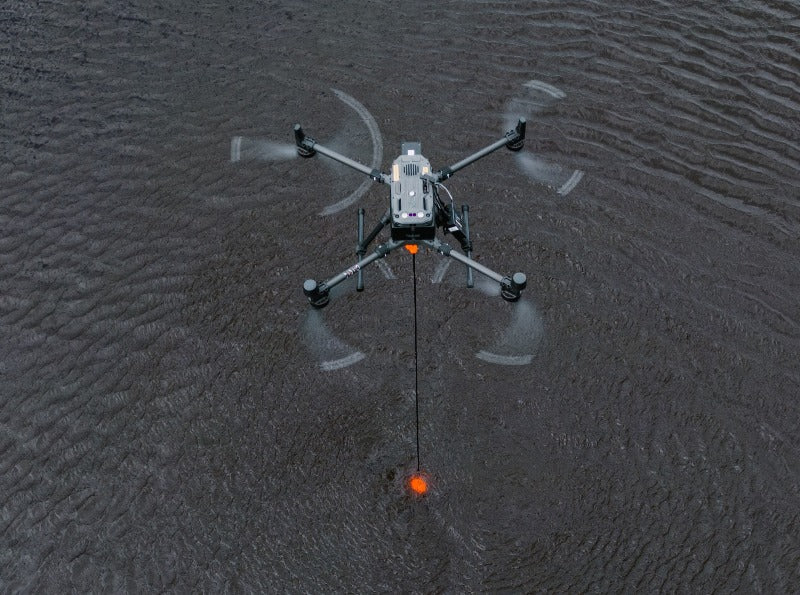

| Suitable DJI drones (or Pixhawk drones of comparable size) |
M350 RTK M300 RTK |
Please note that additional components and software must be purchased to use this sensor with drones. A full set of required items will be proposed when you request the quote.
