DJI Dual-Battery Lifting System
The DJI Dual-Battery Lifting System is an optional hoist module designed for the AGRAS T100 platform. By mounting two intelligent flight batteries and a reinforced winch assembly, it increases lift power and operational endurance for heavy-duty agricultural, surveying and industrial remote-lift tasks. The system is engineered for quick attachment and to integrate with the T100’s Safety System 3.0 for reliable operation.
Auto Balance Control
Minimize swing with a single click for smooth delivery
Rope Cut Escape
Heat and melt the rope with one click to free the drone for safe disentanglement
Real- Time Weighing
Avoid overloading, convenient for settlement
Lift performance & safety
When fitted to the T100, the dual-battery lift system is rated to safely lift up to 80 kg (under DJI’s specified conditions). The system includes a cable fuse/emergency release mode that allows the operator or the system to jettison the payload if necessary. To reduce pendulum swing and improve stability during lifting, the module uses a triaxial force sensor and automatic posture adjustments.
Endurance & power

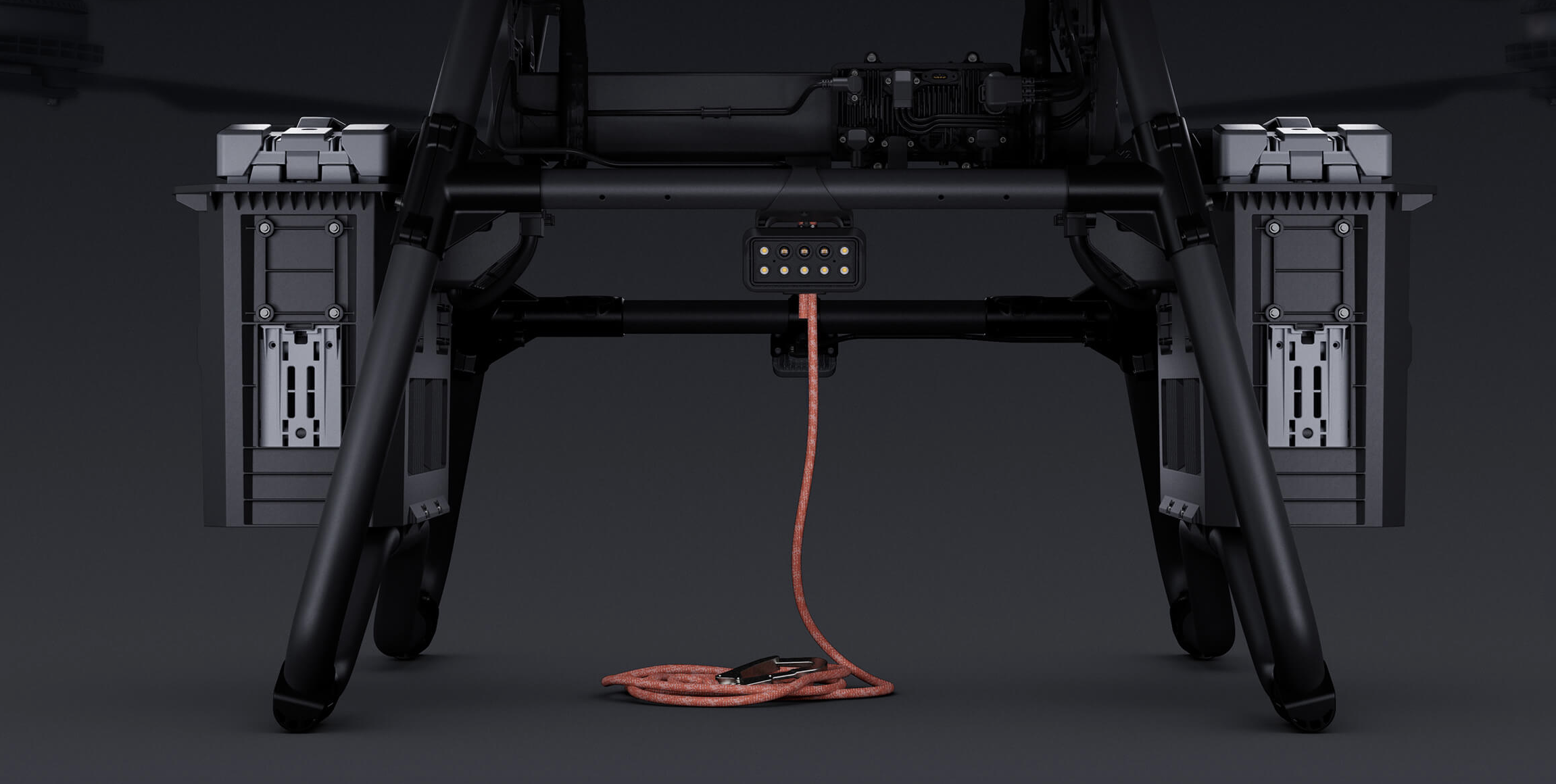

By accommodating two DB2160 smart batteries, the module provides higher available power for prolonged heavy-lift operations and reduces the frequency of battery swaps during long jobs. This configuration is intended for extended agricultural application and other professional workflows where longer uptime and stronger lift power are required.

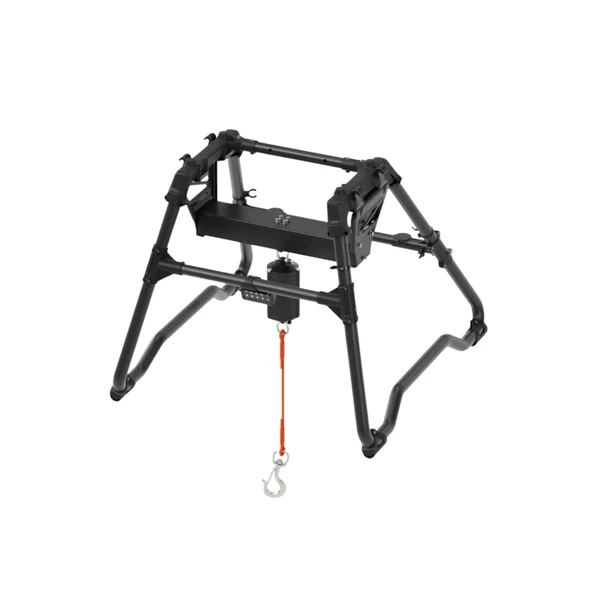

Design & durability
The lifting system is engineered from strong yet lightweight materials with a balanced quick-connect interface so it can be mounted/removed without complicated tooling. Under laboratory conditions the enclosure achieves an IPX6 rating (splash-resistant), but DJI warns the rating may degrade with wear and is not a permanent guarantee; water damage may not be covered by warranty.
Typical use cases
-
Large-scale agricultural lifting (seed/fertilizer spreader support, accessory hoists).
-
Industrial payload delivery and retrieval in remote or hard-to-reach areas.
-
Recovery and emergency drop-operations where fast jettison capability is required.

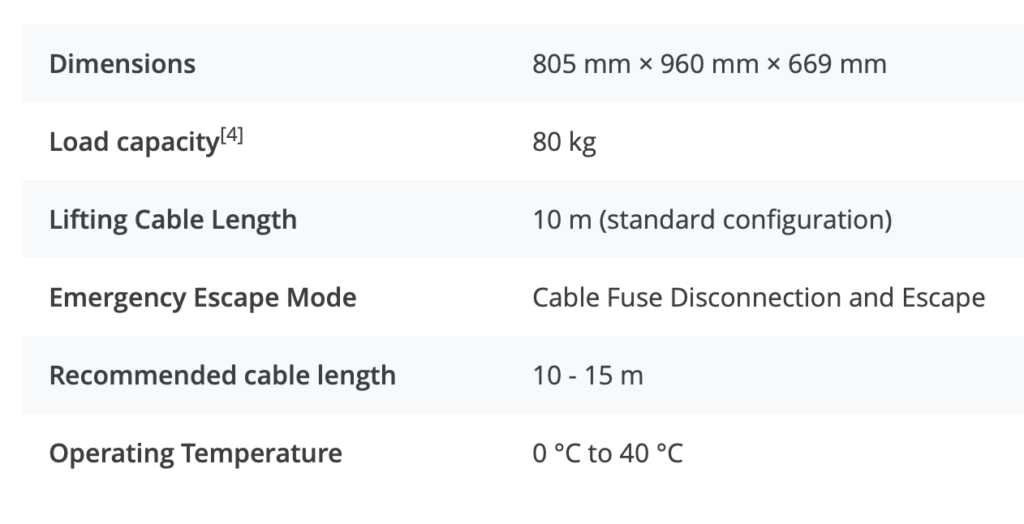

Specifications:
- Model compatibility: DJI AGRAS T100 (dual-battery configuration).
- Rated max lift capacity: 80 kg.
- Dimensions (module): 805 × 960 × 669 mm
- Lifting cable length (standard): 10 m
- Power source: 2 × DB2160 intelligent flight batteries
- Safety features: Triaxial force sensor (real-time weighing), cable fuse emergency escape, Safety System 3.0 compatibility.
- Ingress protection: IPX6
- Operating temperatur: 0 °C – 40 °C
