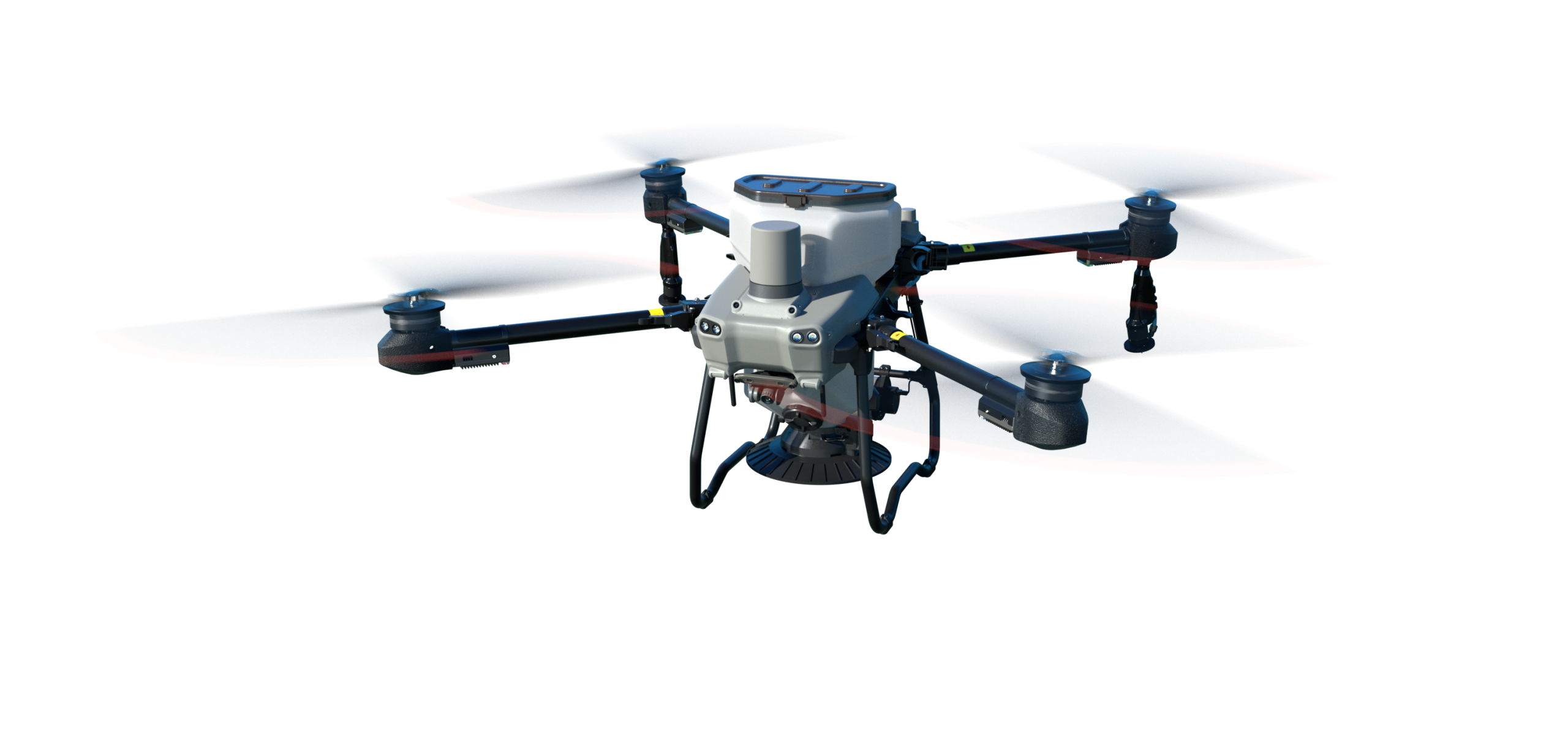

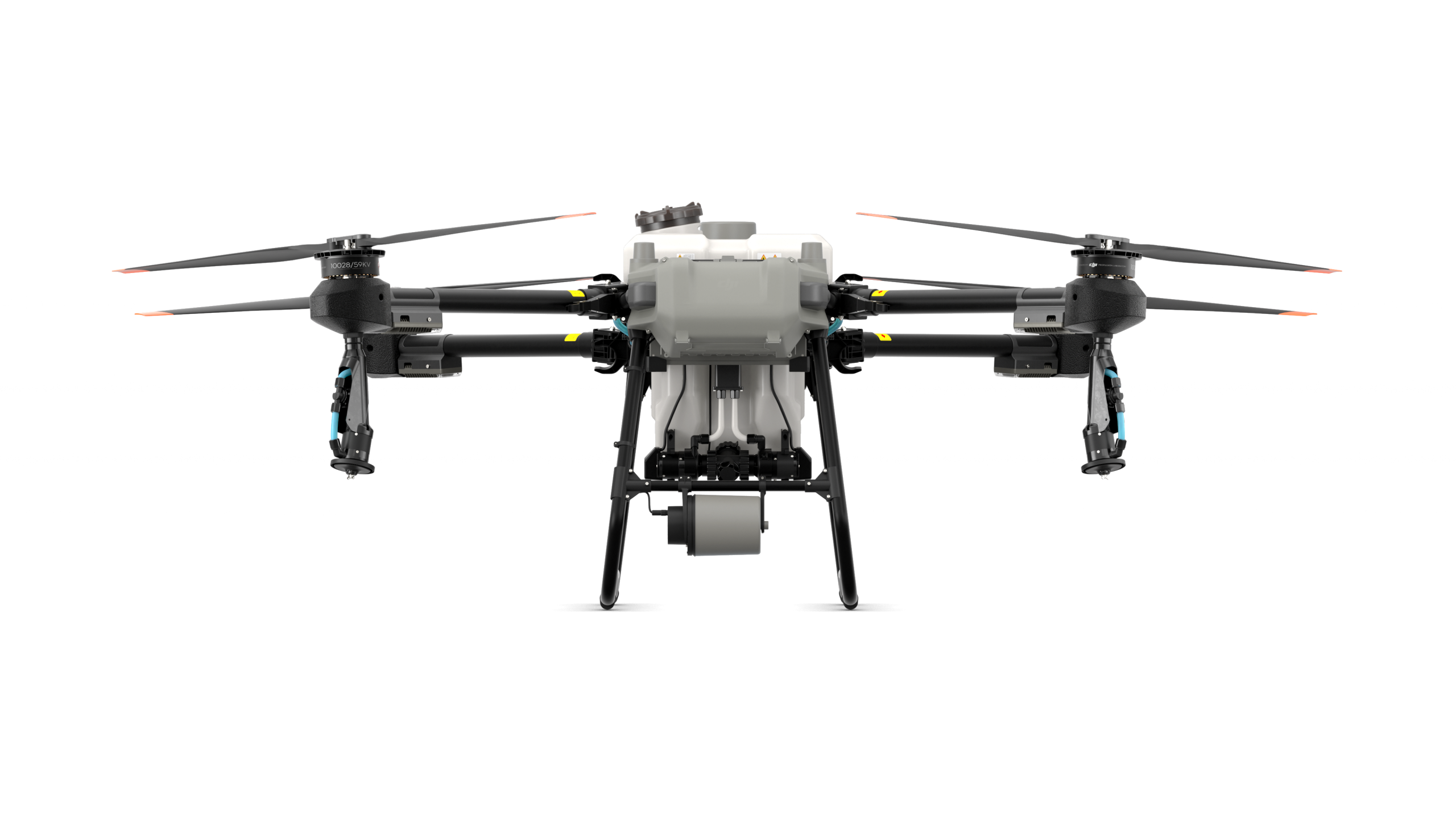

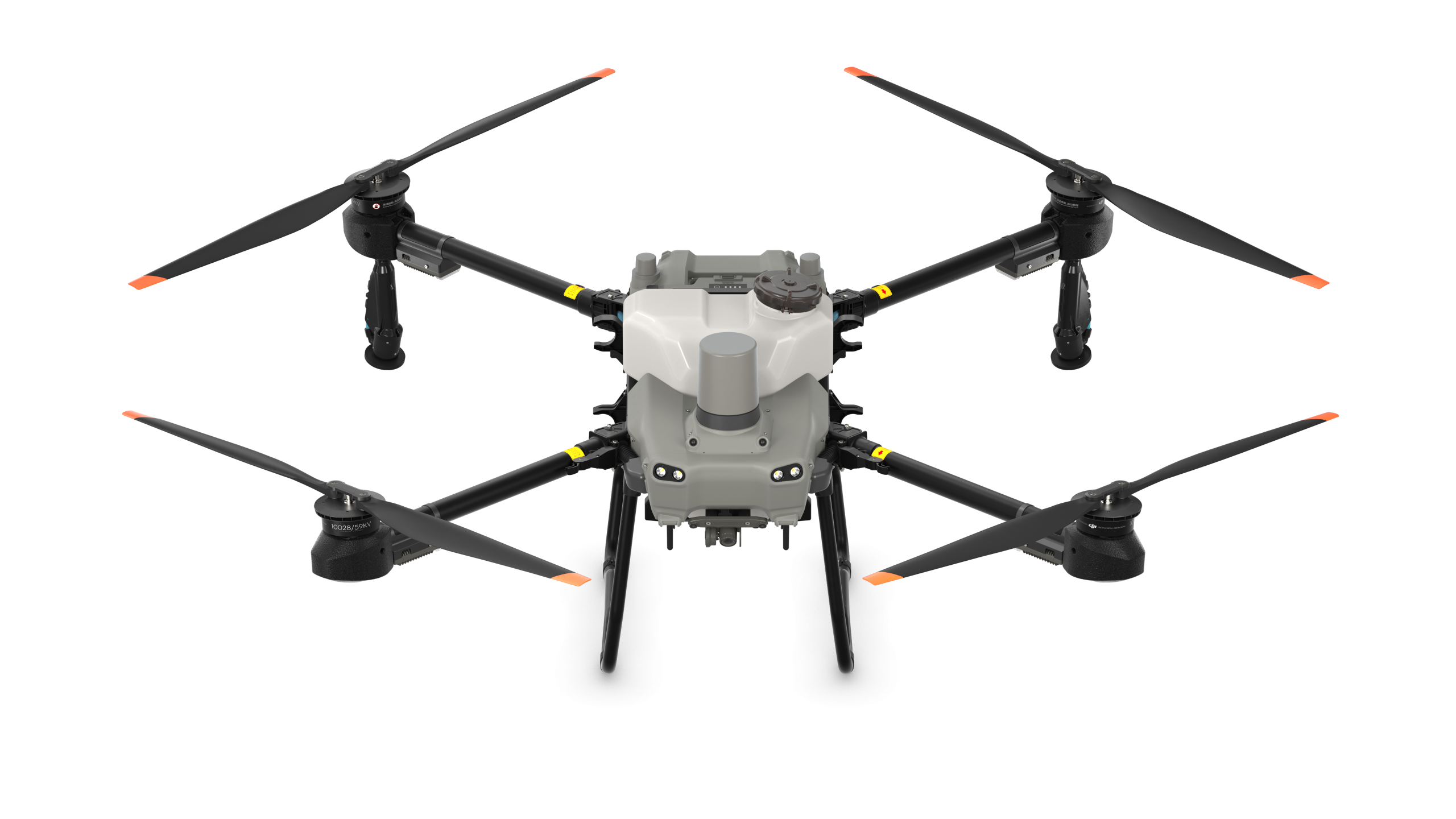

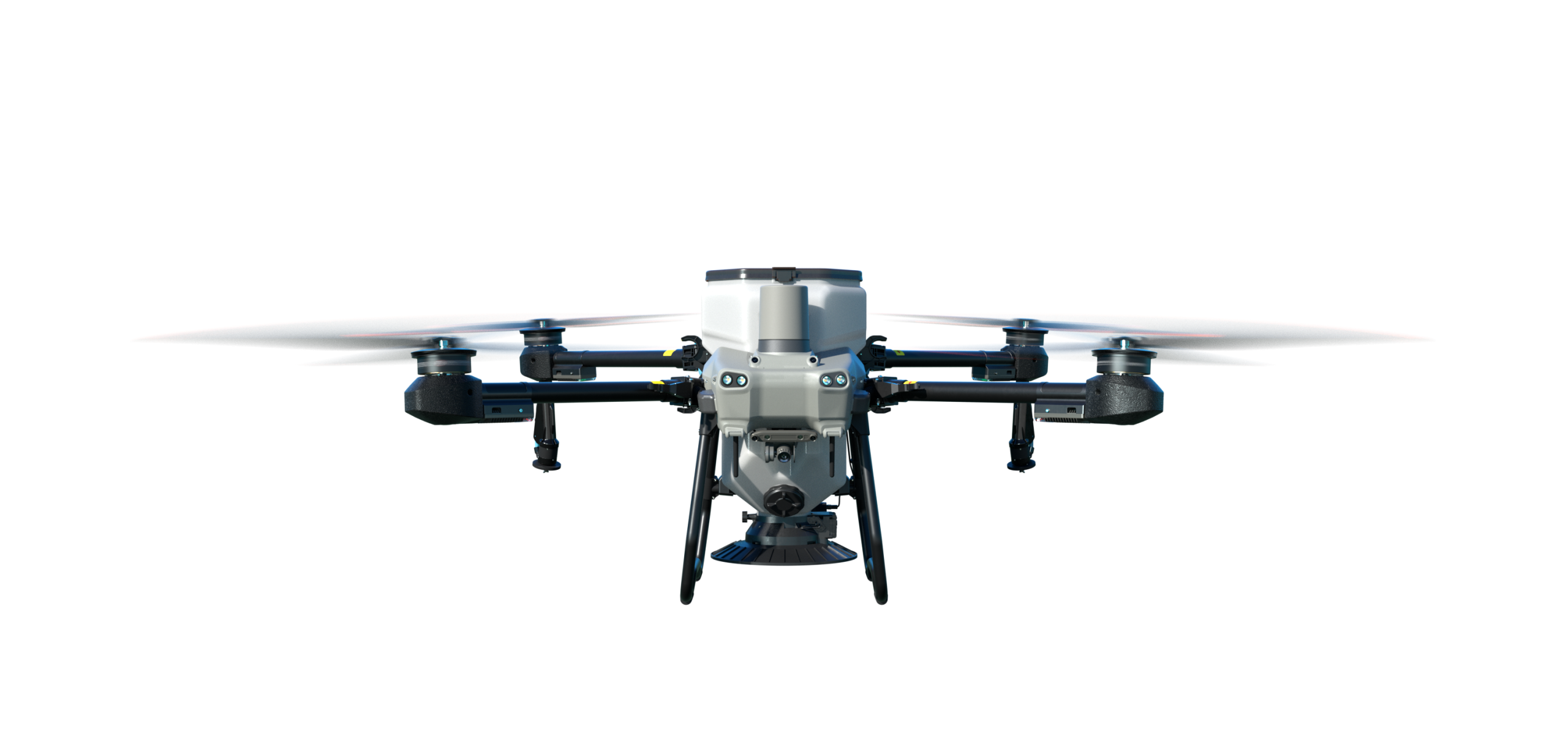

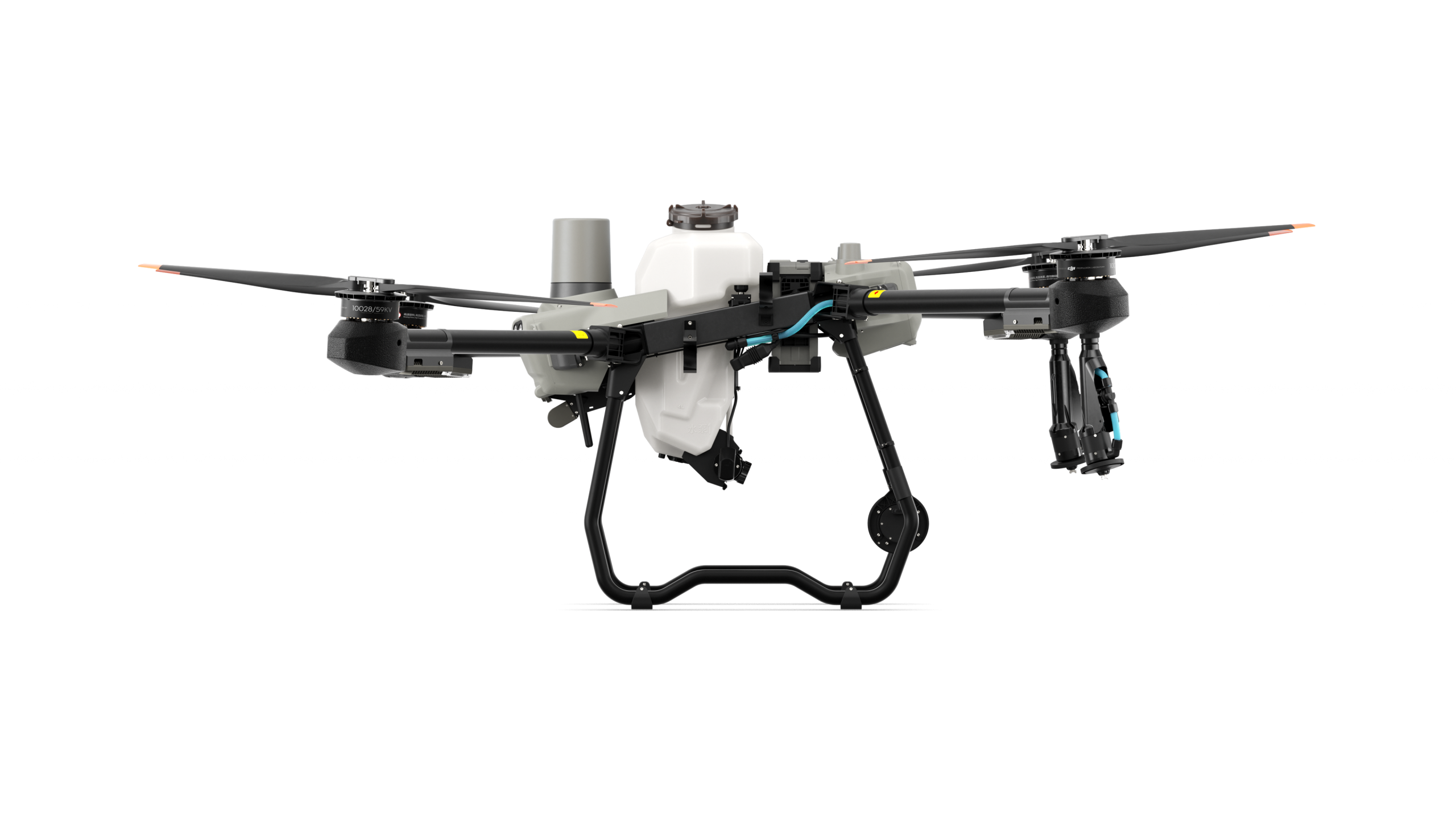

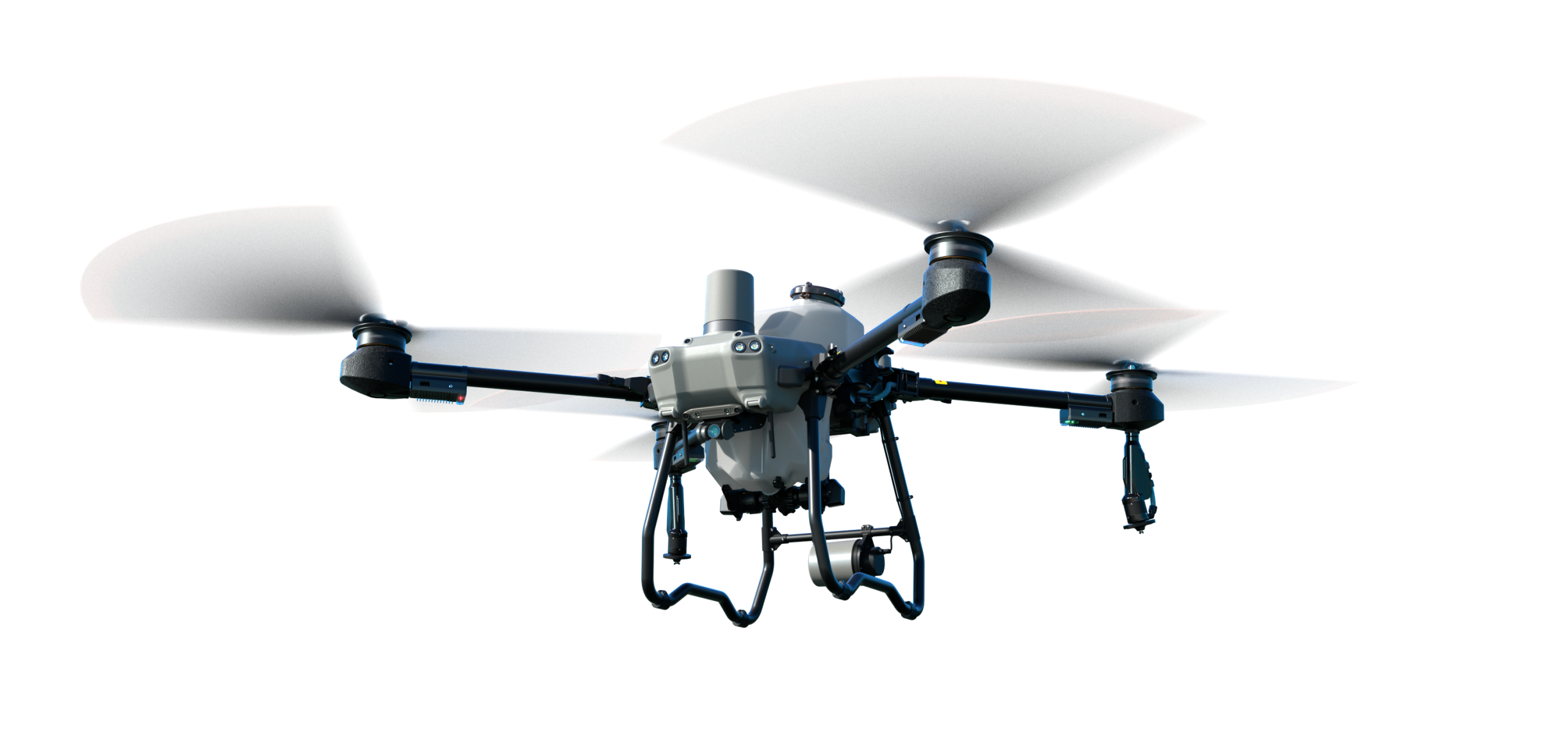

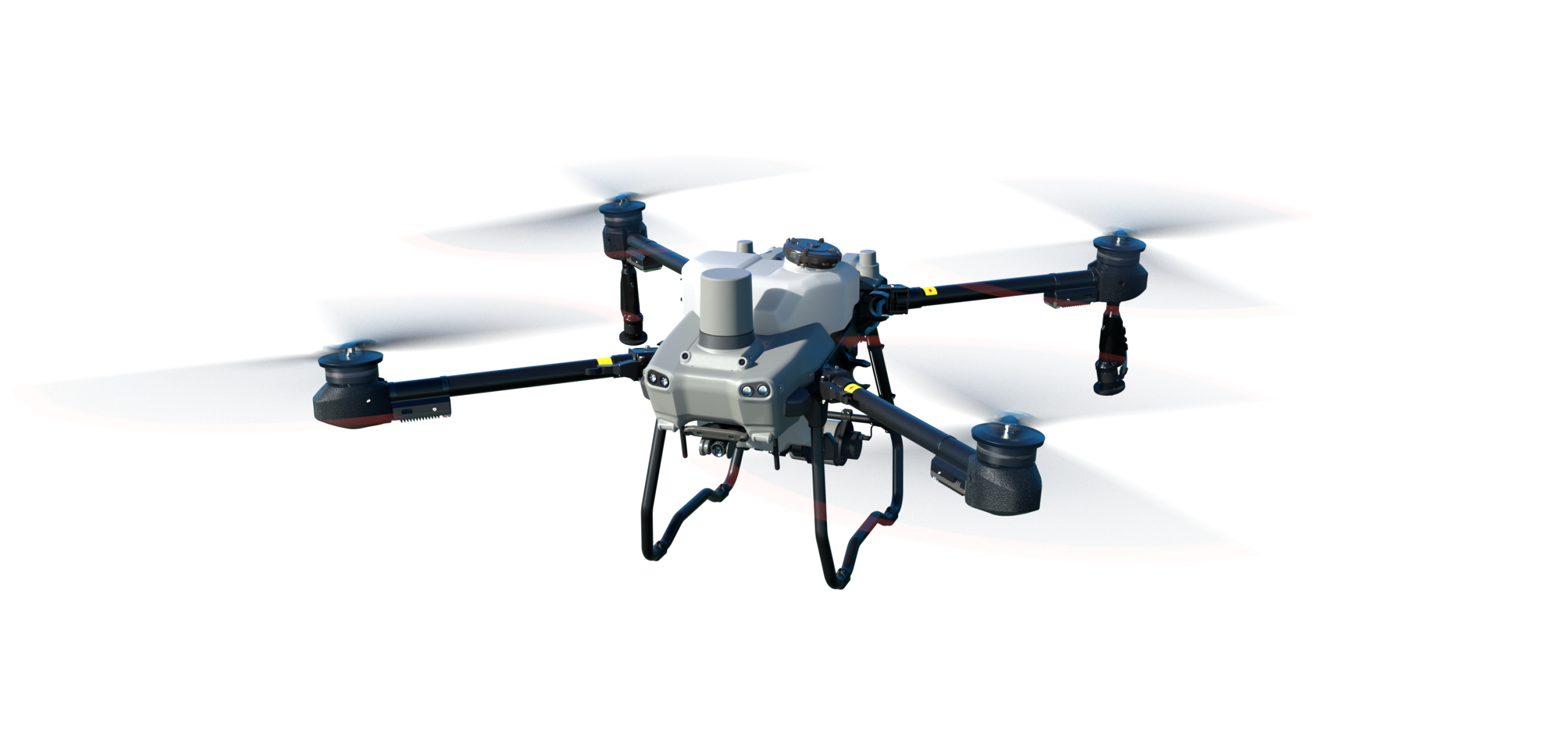

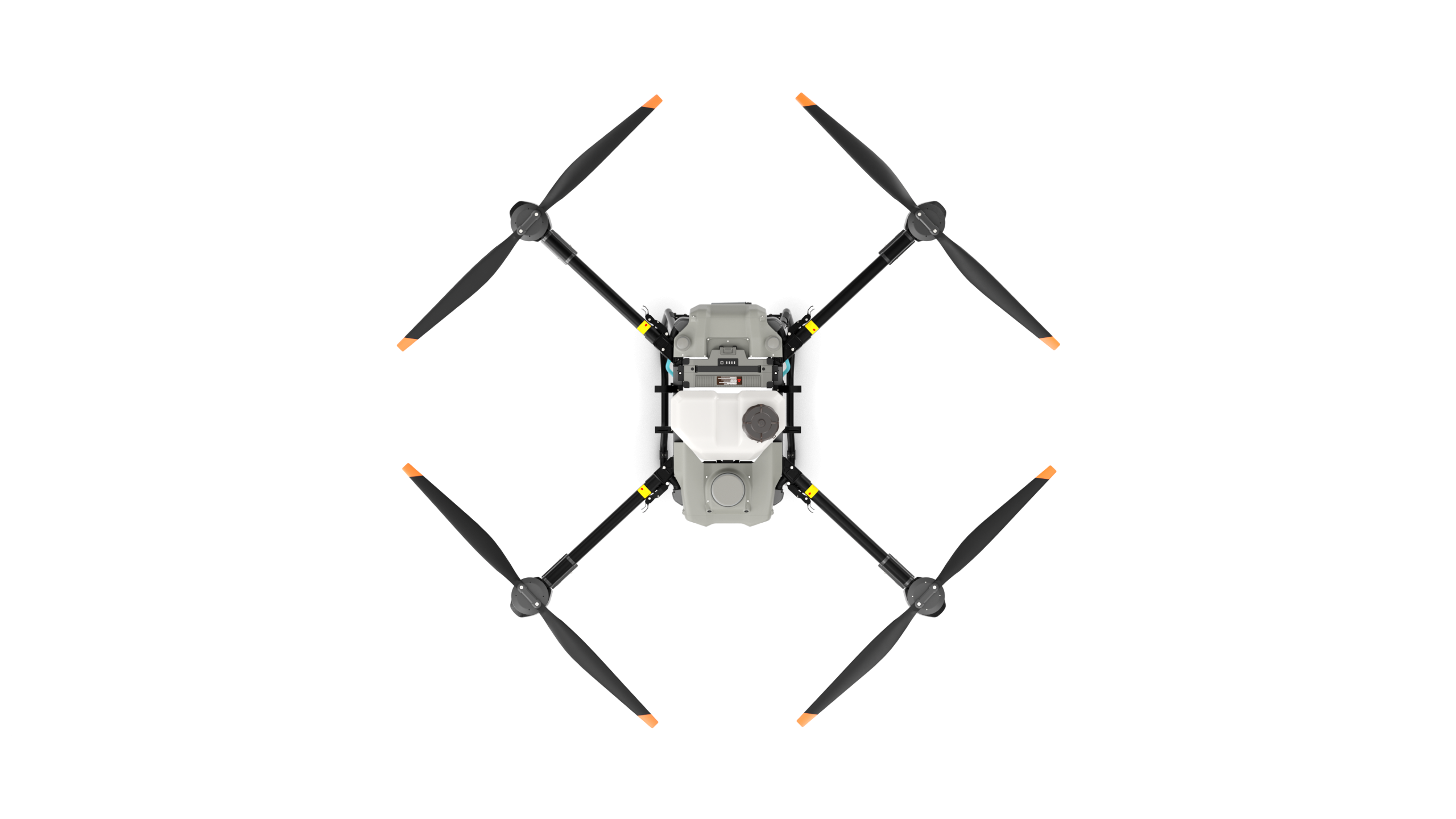

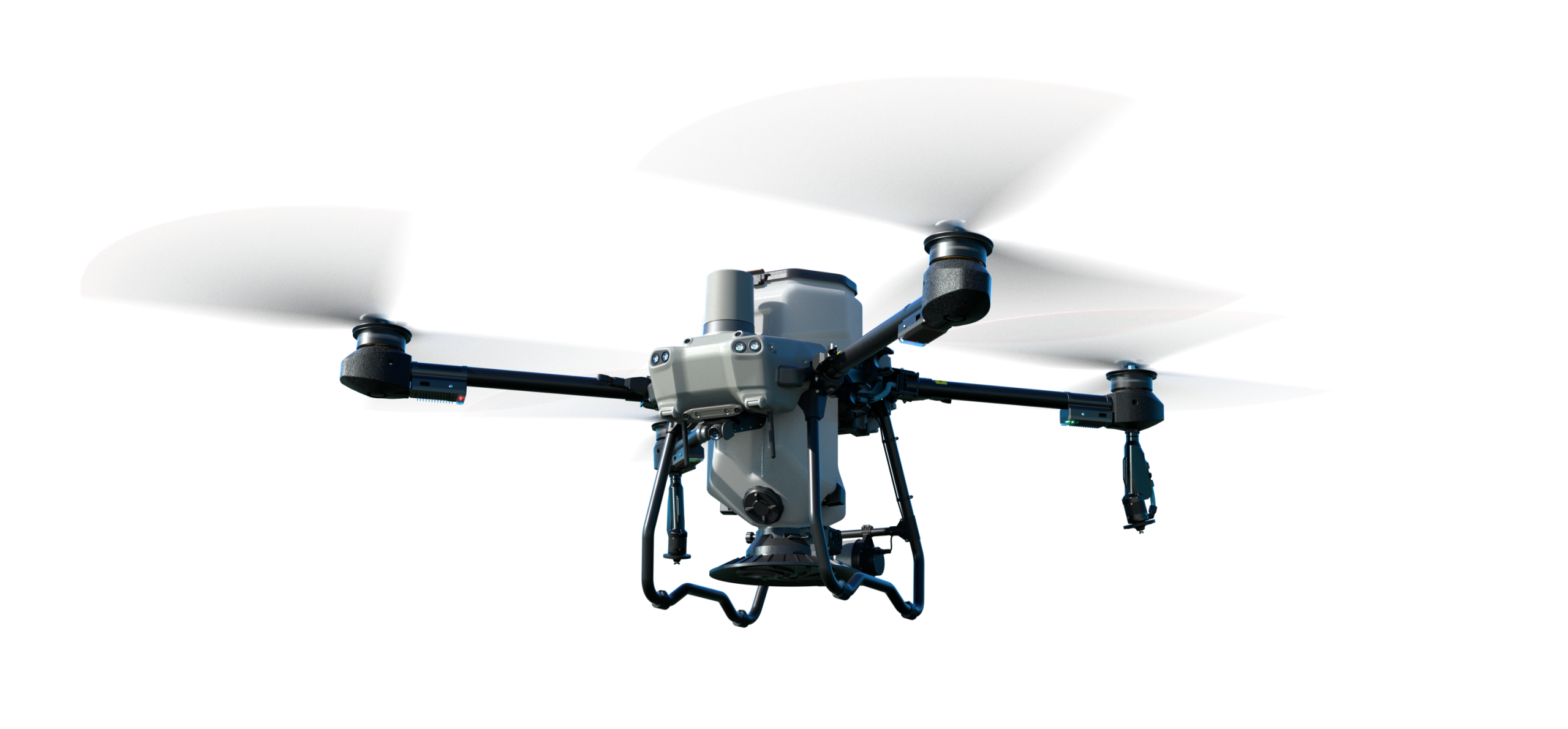

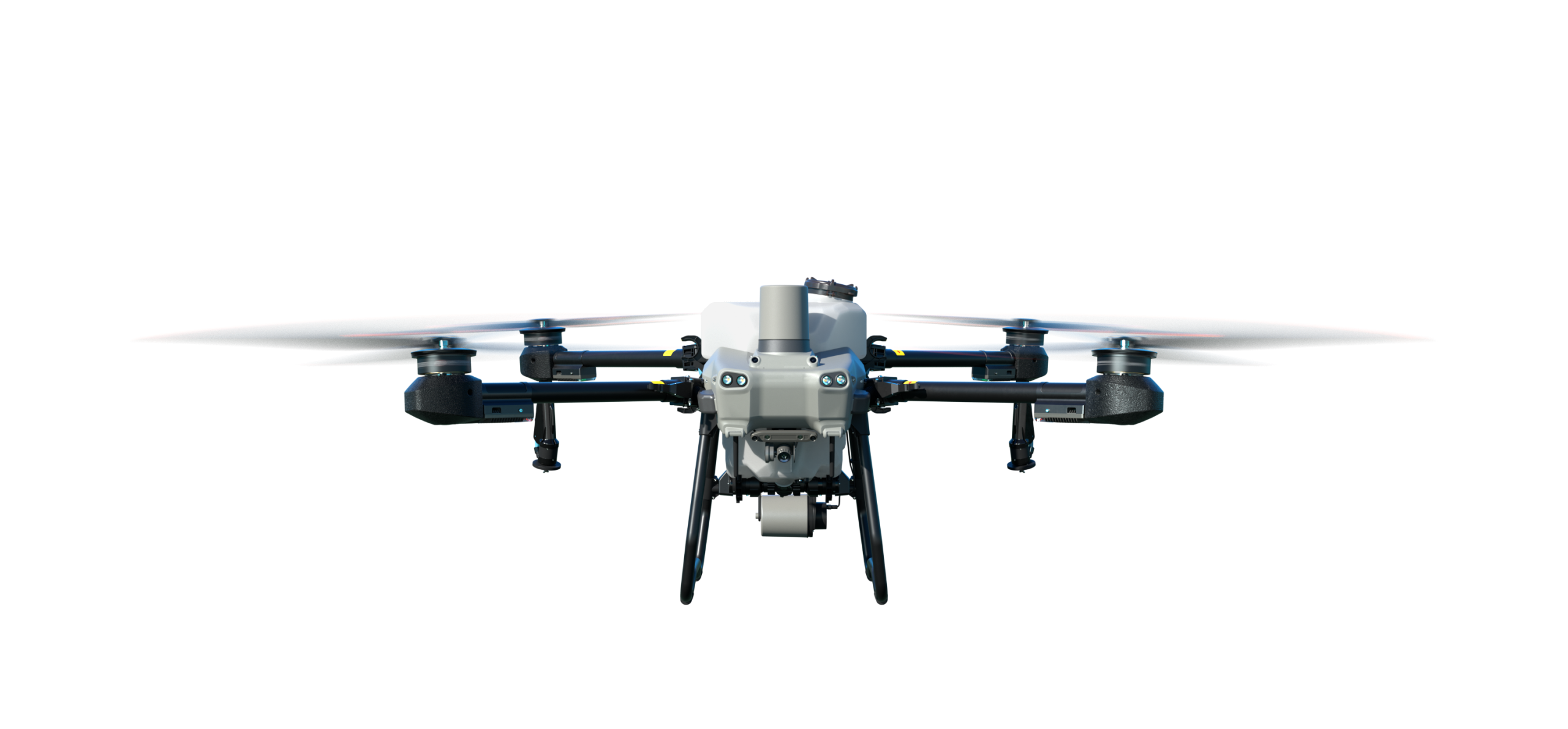

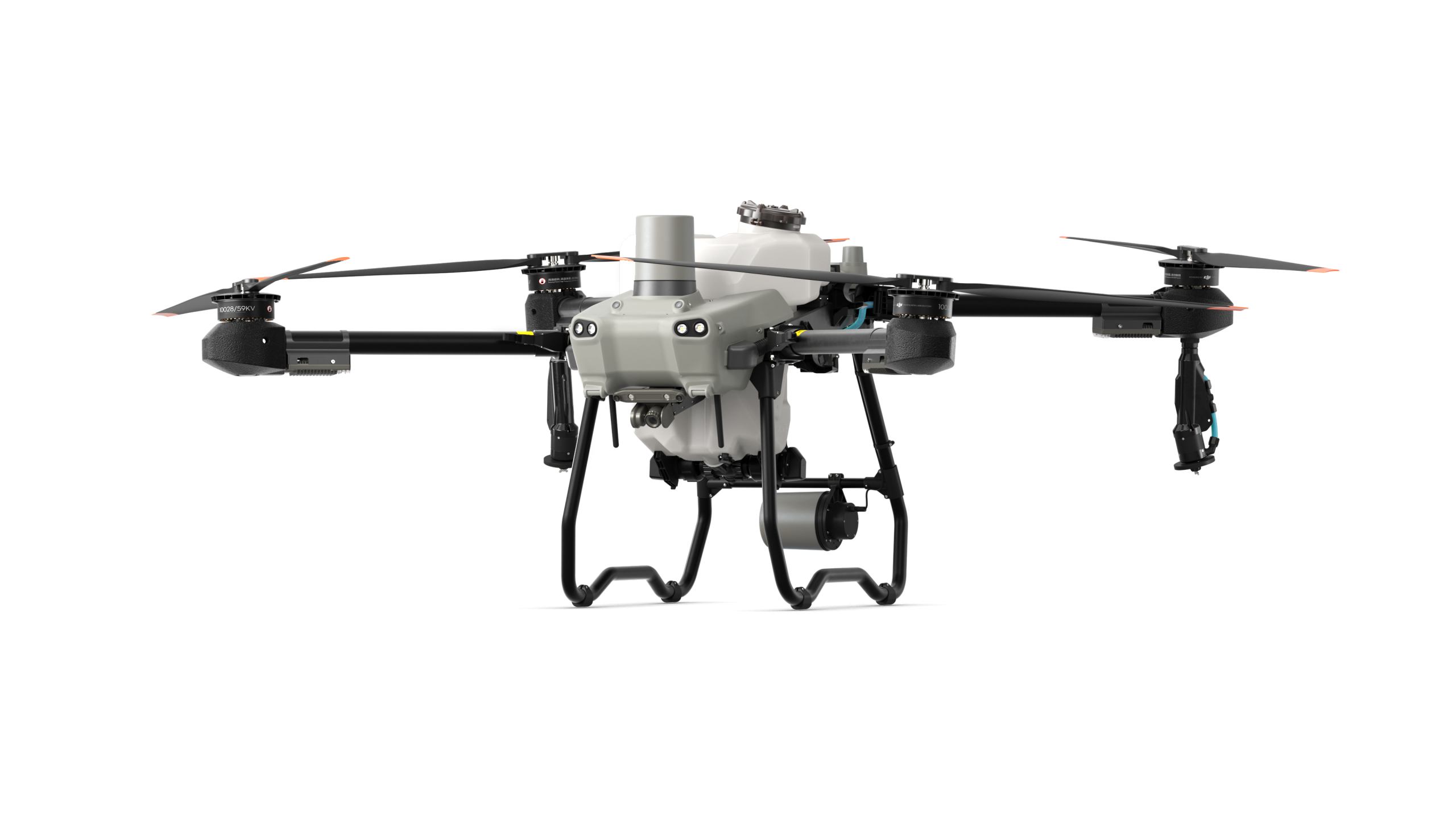

DJI Agras T25

kr 94 900 eks. MVA

DJI sin nye oppgraderte landbruks drone, med det nye revolusjonerende atomiserende sprøyte systemet.

  • 20 kg sprøyte kapasitet
  • 25 kg sprede kapasitet
  • Strømningshastighet opptil 16 L/min (24 L/min med ekstra sprinkler pakke)
  • Spredehastighet for granulat opptil 72 kg/min
  • 12 hektar per time på konvensjonell jorder
  • 4 hektar per time i frukthager
  • 1000 kg granulat per time
  • Helautomatisk og manuell drift
  • Egen Frukthage Modus
Kategori: Stikkord: ,


Beskrivelse



DJI Agras T25

A little smaller. A little smarter.







Spesifikasjoner:

Aircraft

  • Weight

  • 25.4 kg (excl. battery)
    32 kg (incl. battery)
  • Max Takeoff Weight[1]

  • Max takeoff weight for spraying: 52 kg (at sea level)
    Max takeoff weight for spreading: 58 kg (at sea level)
  • Max Diagonal Wheelbase

  • 1925 mm
  • Dimensions

  • 2585×2675×780 mm (arms and propellers unfolded)
    1475×1540×780 mm (arms unfolded and propellers folded)
    1050×690×820 mm (arms and propellers folded)
  • Hovering Accuracy Range (with strong GNSS signal)

  • D-RTK enabled:
    Horizontal: ±10 cm, Vertical: ±10 cm
    D-RTK disabled:
    Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
  • RTK/GNSSOperating Frequency

  • RTK:
    GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
    GNSS:
    GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1
  • Max Configurable Flight Radius

  • 2000 m
  • Max Wind Resistance

  • 6 m/s

Propulsion System – Motors

  • Stator Size

  • 100×28 mm
  • KV

  • 59 rpm/V
  • Power

  • 4600 W/rotor

Propulsion System – Propellers

  • Material

  • Nylon carbon fiber filament
  • Dimension

  • 50 inch
  • Propeller Rotation Diameter

  • 1270 mm
  • Quantity

  • 4

Dual Atomizing Spraying System – Spray Tank

  • Material

  • Plastic (HDPE)
  • Volume

  • 20 L
  • Operating Payload [1]

  • 20 kg[1]
  • Quantity

  • 1

Dual Atomizing Spraying System – Sprinklers

  • Model

  • LX8060SZ
  • Quantity

  • 2
  • Nozzle Distance

  • 1368 mm(Rear Nozzles)
  • Droplet Size

  • 50-500 μm
  • Effective Spray Width[2]

  • 4-7 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System – Delivery Pumps

  • Type

  • Impeller pump (magnetic drive)
  • Quantity

  • 2
  • Single Pump Flow Rate

  • 0-12 L/min
  • Max Flow Rate

  • 16 L/min (2 sprinklers)
    24 L/min (4 sprinklers)

DJI AGRAS T25 Spreading System

  • Compatible Material Diameter

  • 0.5-5 mm
  • Spread Tank Volume

  • 35 L
  • Spread Tank Internal Load [10]

  • 25 kg[1]
  • Effective Spraying Width

  • Varies according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.

Phased Array Radar System

  • Model

  • RD241608RF (forward phased array radar)
    RD241608RB (rear phased array radar)
  • Terrain Follow

  • Max slope in Mountain mode: 20°
    Altitude detection range: 1-50 m
    Stabilization working range: 1.5-30 m
  • Obstacle Avoidance[4]

  • Obstacle sensing range (omnidirectional): 1-50 m

    FOV:
    Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
    Rear phased array radar: vertical 360°, horizontal ±45°
    Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.

    Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)

    Sensing direction: 360° omnidirectional sensing

Binocular Vision System

  • Measurement range

  • 0.5-29 m
  • Effective Sensing Speed

  • ≤10 m/s
  • FOV

  • Horizontal: 90°, Vertical: 106°
  • Operating Environment

  • Adequate light and discernible surroundings

Remote Controller

  • Model

  • RM700B
  • Operating Frequency[5]

  • 2.4000-2.4835 GHz, 5.725-5.850 GHz
  • Max Transmission Distance

  • 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
    (unobstructed, free of interference, and at an altitude of 2.5 m)
  • Wi-Fi Protocol

  • Wi-Fi 6
  • Wi-Fi Operating Frequency [5]

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
  • Bluetooth Protocol

  • Bluetooth 5.1
  • GNSS

  • GPS+Galileo+BeiDou
  • Screen

  • 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Storage Temperature Range

  • Less than one month: -30° to 45° C (-22° to 113° F)
    One to three months: -30° to 35° C (-22° to 95° F)
    Six months to one year: -30° to 30° C (-22° to 86° F)
  • Charging Temperature

  • 5° to 40° C (41° to 104° F)
  • Internal Battery Runtime

  • 3 hours 18 minutes
  • External Battery Runtime

  • 2 hours 42 minutes
  • Charging Type

  • It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
  • Charging Time

  • 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB800 Intelligent Flight Battery

  • Model

  • DB800 Intelligent Flight Battery
    (BAX702-30000mAh-52.22V)
  • Weight

  • Approx. 6.6 kg
  • Capacity

  • 15000 mAh
  • Nominal Voltage

  • 52.22 V

D6000i Multifunctional Inverter Generator

  • Output Channel

  • 1. DC charging output 42-59.92V/9000W
    2. Power supply for air-cooled heat sink 12 V/6 A
    3.AC output 230V/1500W or 120V/750W [8]
  • Battery Charging Time

  • To fully charge one battery (DB800 battery) takes 9-12 mins
  • Fuel Tank Capacity

  • 20 L
  • Starting Method

  • Starting the Generator via the One-Button Start Switch
  • Max Power of Engine

  • 6000 W
  • Fuel Type

  • Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
  • Reference Fuel Consumption [9]

  • 600 ml/kWh
  • Engine Oil Model

  • SJ10W-40

C8000 Intelligent Charger

  • Model Number

  • CSX702-9500
  • Dimensions

  • 400 × 266 × 120 mm
  • Weight

  • Approx. 11.4 kg
  • Input/Output

  • Input Voltage: 100-240 VAC
    Output Voltage: 59.92V
    Output Current: 100A max
  • Charging Time

  • Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)
  • Protection Functions

  • Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
  • Charging Safety

  • AC wire protection, power wire protection, and charge connector protection

Relay

  • Model

  • RL01-65
  • Dimensions

  • 120×110×100 mm
  • Weight

  • ≤575 g
  • Input Voltage [6]

  • 9 V3 A / 12 V2.5 A / 15 V2 A
  • Power Consumption

  • 9 W (SRRC), 12 W (FCC)
  • Capacity

  • 6500 mAh
  • Operating Time

  • 4 hours
  • Operating Frequency [5]

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz
  • Max Transmission Distance

  • 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
    (unobstructed, free of interference, and at a flight altitude of 2.5 m)
  • Charging Time

  • 2 hours and 20 minutes (when using a standard DJI charger)
  • IP Rating [6]

  • IP55
