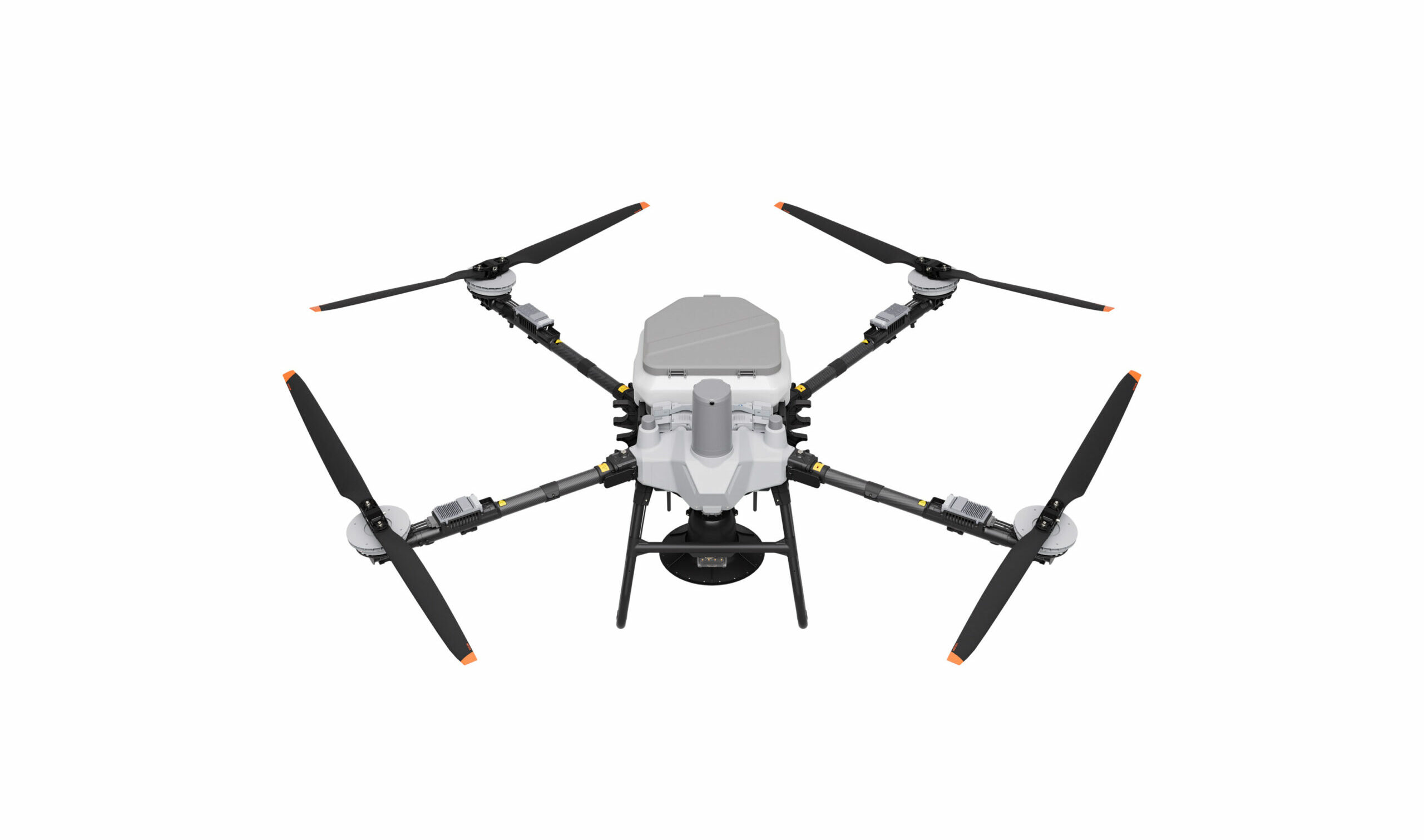

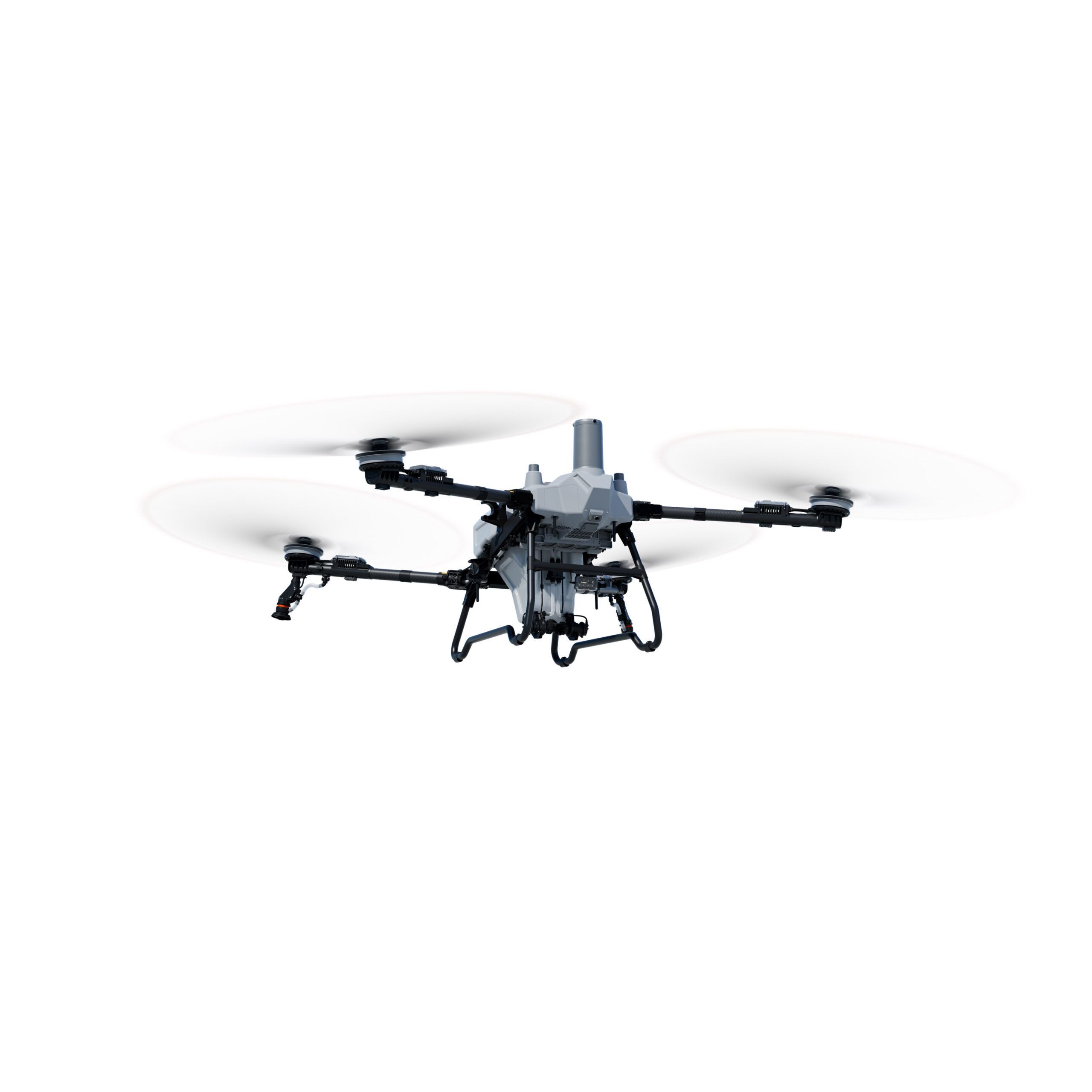

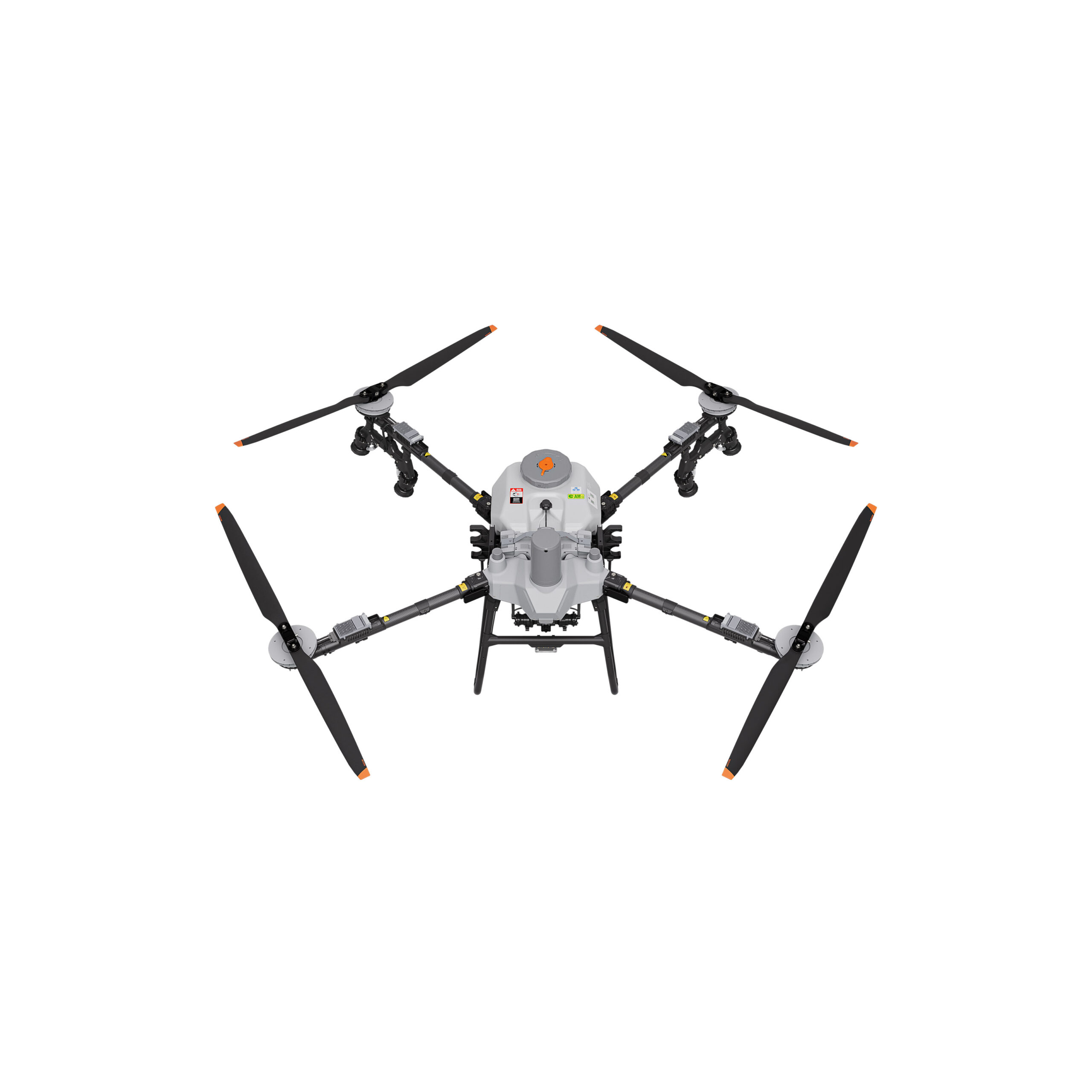

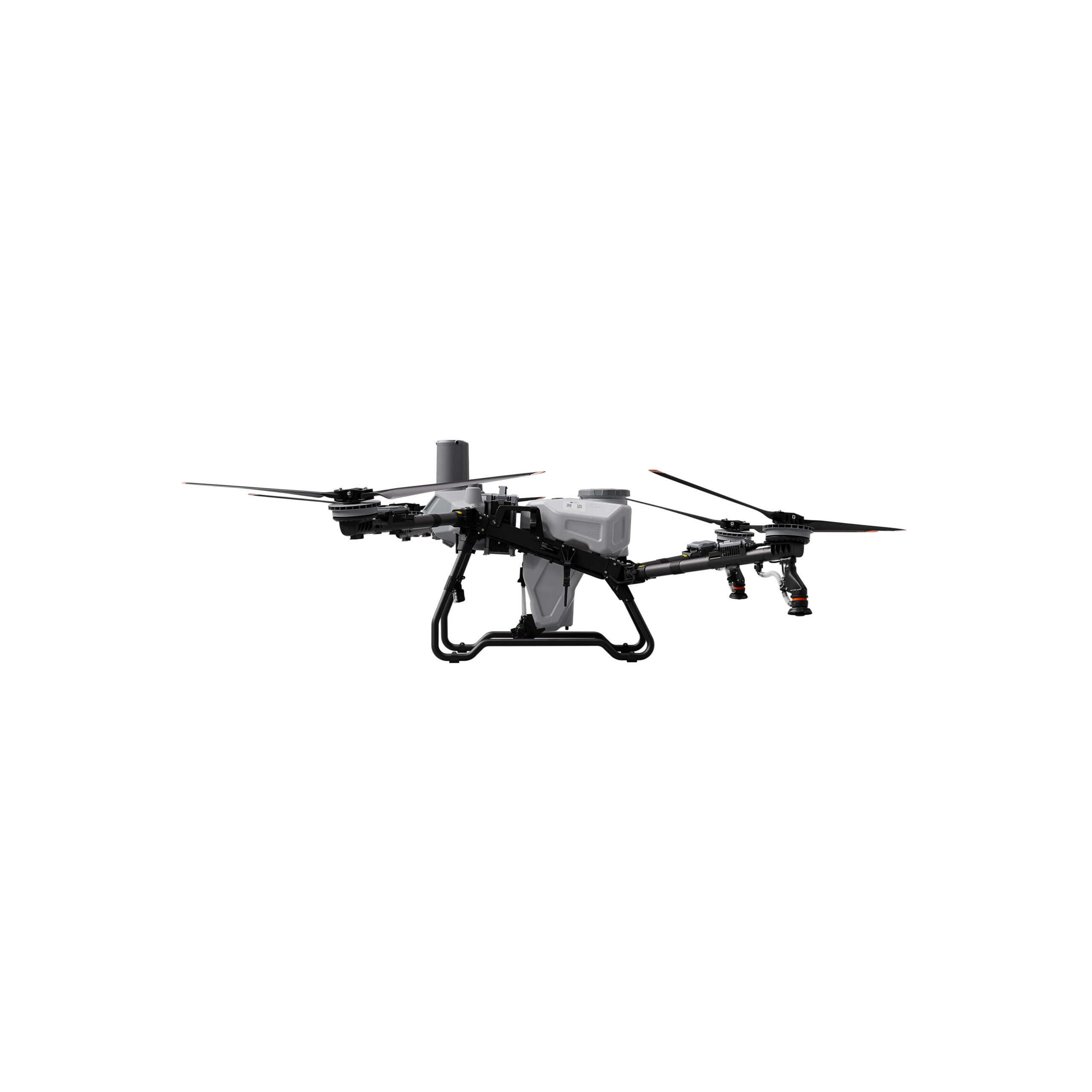

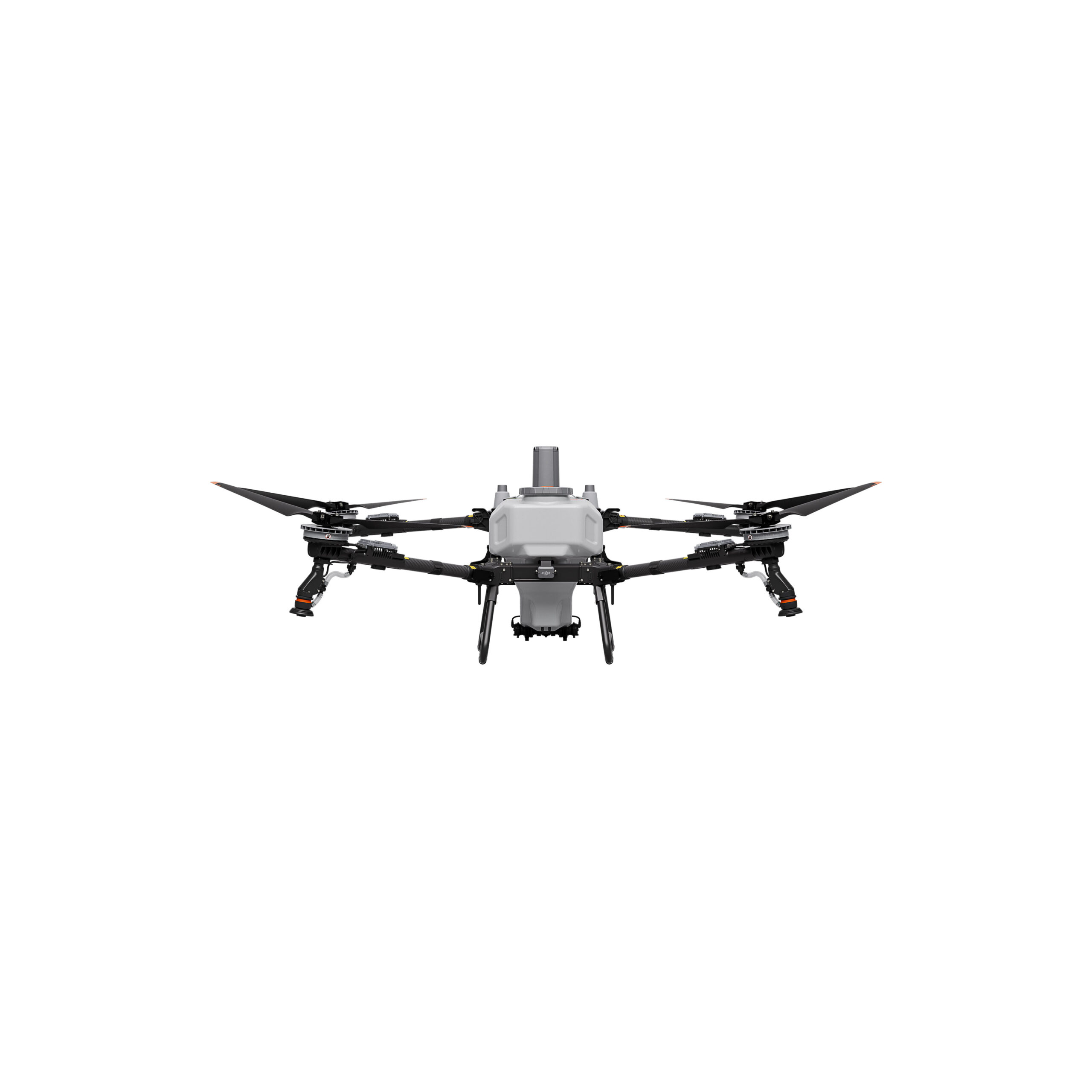

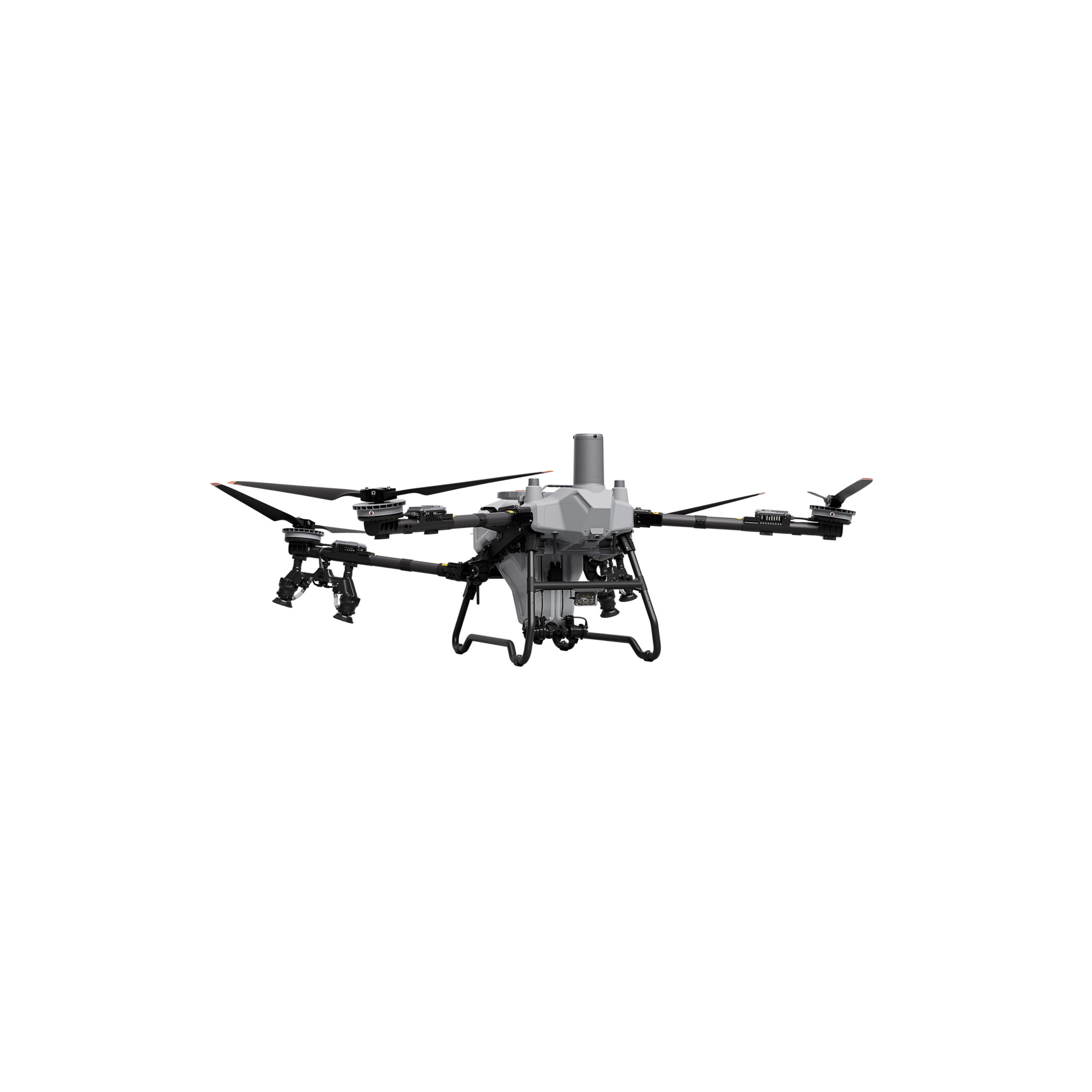

DJI Agras T55

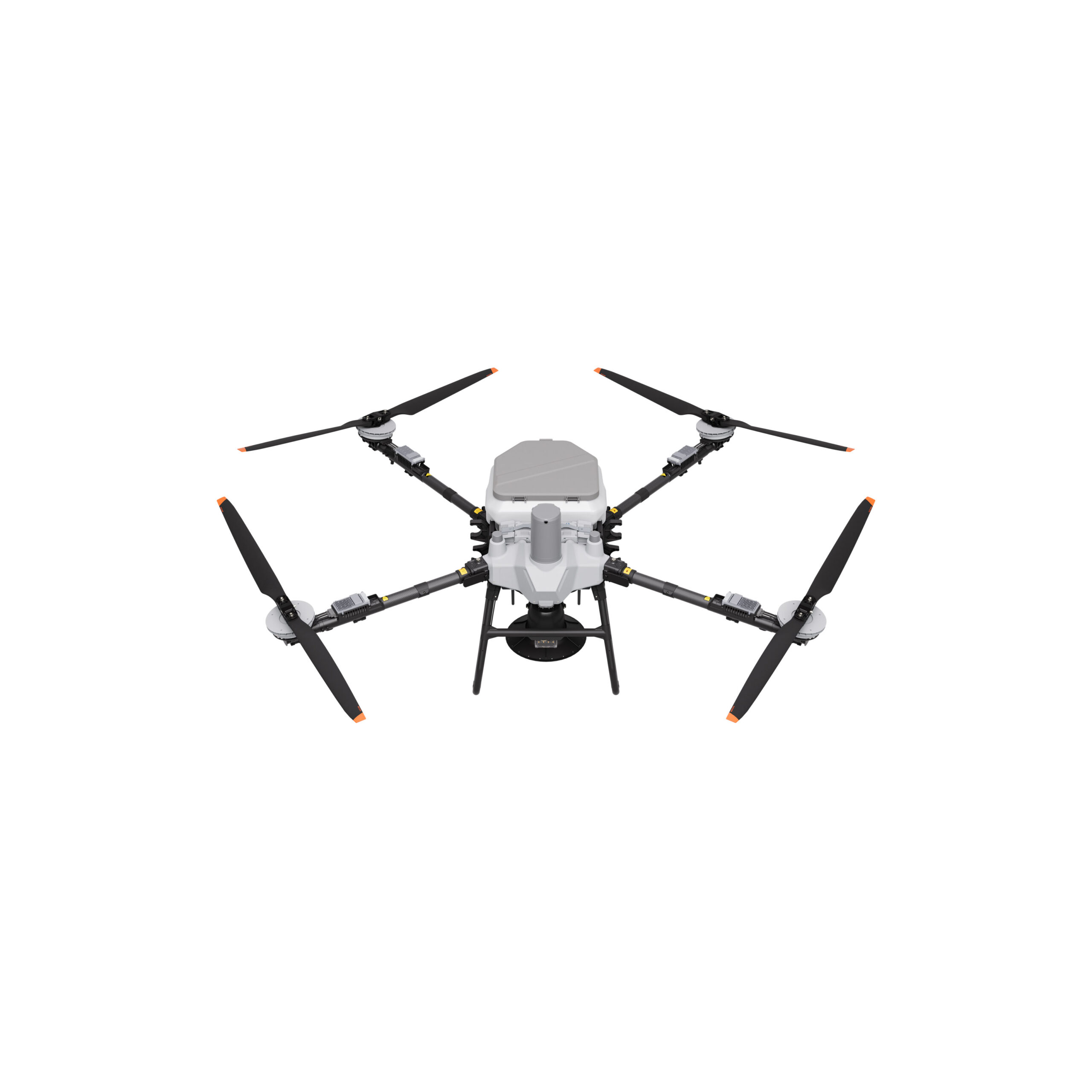

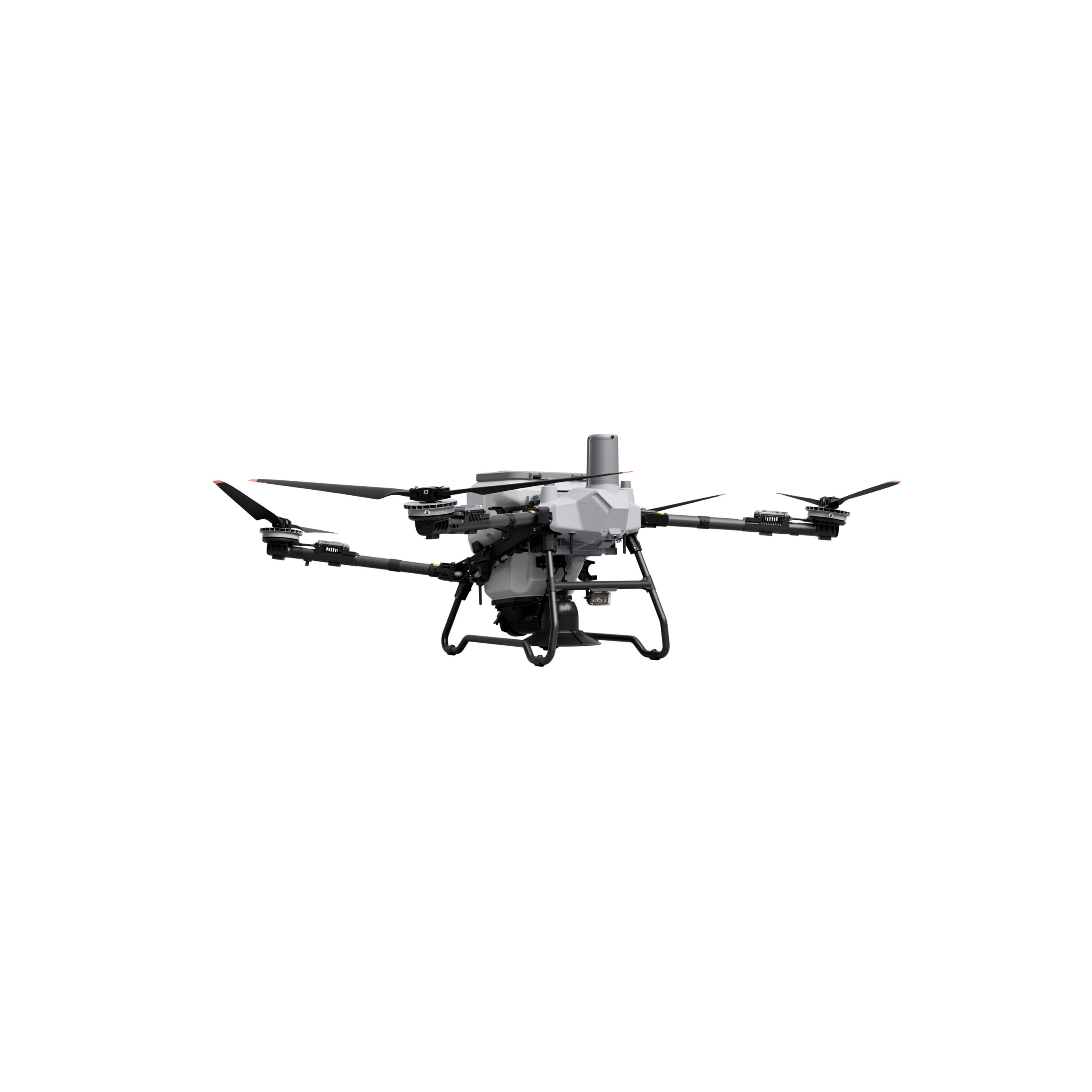

Aircraft

• Weight (with battery)

  • 45 kg (standard configuration: two nozzles, 50 L tank, and DB1050 battery)
  • 48.4 kg (standard configuration: two nozzles, 50 L tank, and DB1580 battery)

• Max Takeoff Weight

  • With DB1050 battery installed:
    • Maximum spraying takeoff weight: 95 kg (standard with 2 spray nozzles)
    • Maximum spraying takeoff weight: 99 kg (with optional 4-nozzle setup)
    • Maximum spreading takeoff weight: 104 kg (with spreading system installed)

    • Maximum hoisting takeoff weight: 84 kg (with hoisting system installed)

  • With DB1580 battery installed:
    • Maximum spraying takeoff weight: 99 kg (standard with 2 nozzles)
    • Maximum spraying takeoff weight: 103 kg (with optional 4 nozzles)
    • Maximum spreading takeoff weight: 108 kg (with spreading system installed)
    • Maximum hoisting takeoff weight: 89 kg (with hoisting system installed)

• Maximum Wheelbase (Diagonals Wheelbase)

  • 2415 mm (Diagonals Wheelbase)

• Dimensions

  • Frame arm unfolded, propellers unfolded: 3190 mm × 3570 mm × 934 mm;
  • Frame arm unfold, propellers folded: 1800 mm × 2170 mm × 934 mm;
  • Frame arm folded, propellers folded: 1120 mm × 896 mm × 934 mm;

• Hovering Accuracy Range (with strong GNSS signal)

  • RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical)
  • RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical)

• Max Configurable Flight Radius

  • 2 km

• Operating Temperature

  • 0° to 40° C (32° to 104° F)

• Max Wind Speed Resistance

  • 6 m/s

Propulsion system – Motors

• Stator dimensions

  • 155 × 16 mm

• KV

  • 55 rpm/V

Propulsion system – Propeller

• Material

  • Carbon Fiber Composite

• Dimensions

  • 62 inches

• Quantity

  • 4 pairs

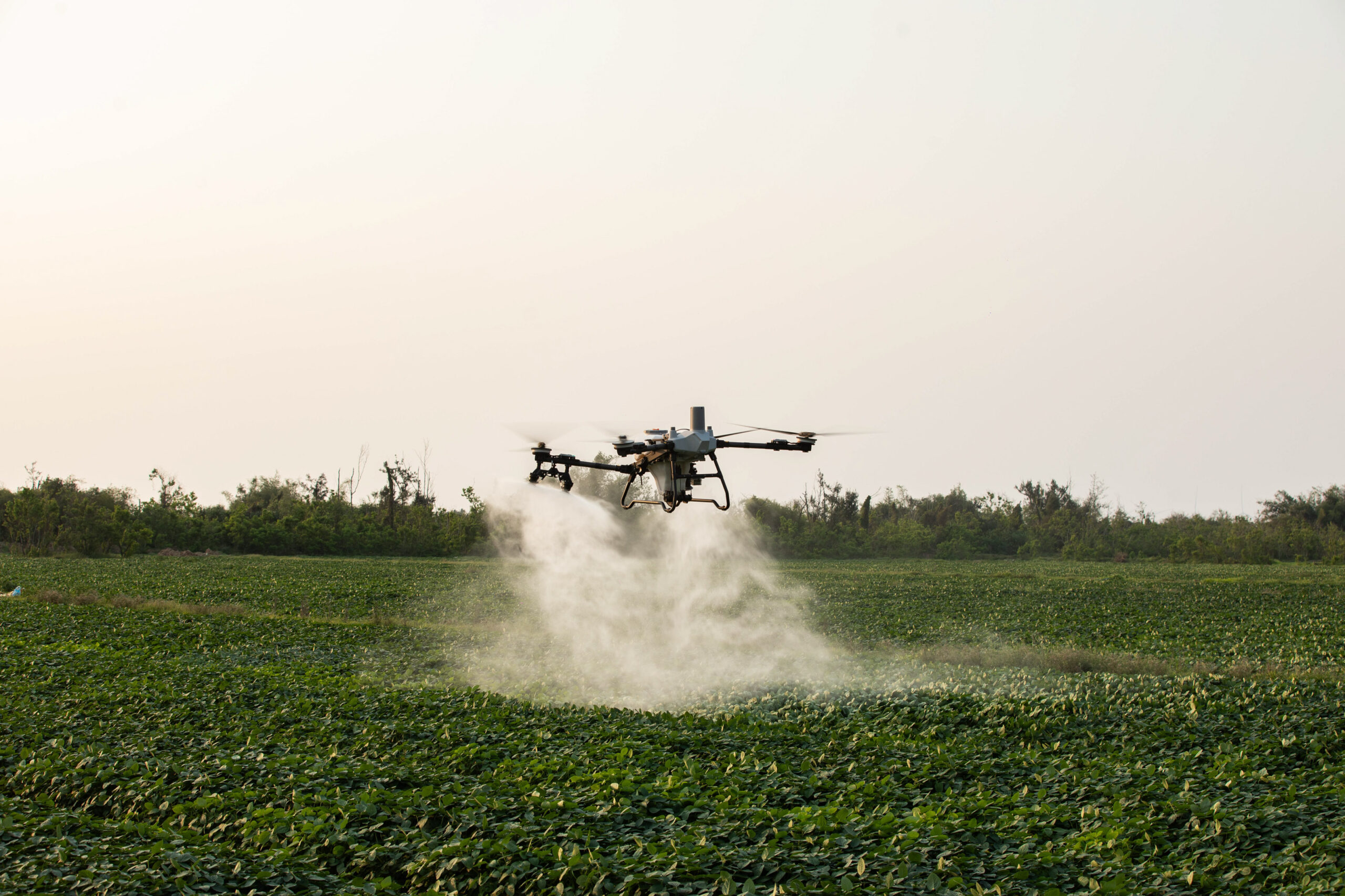

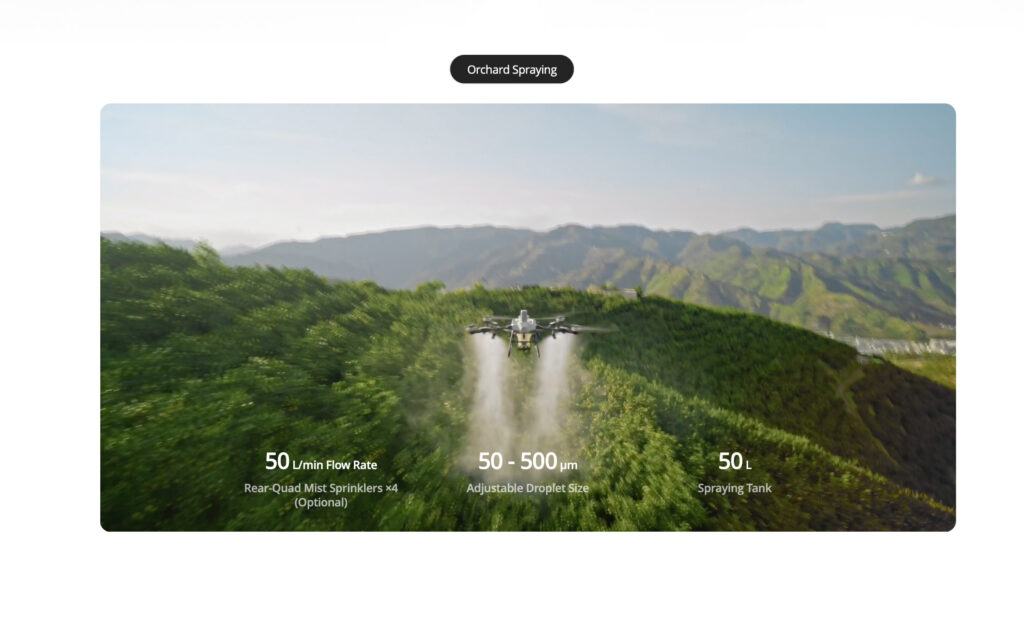

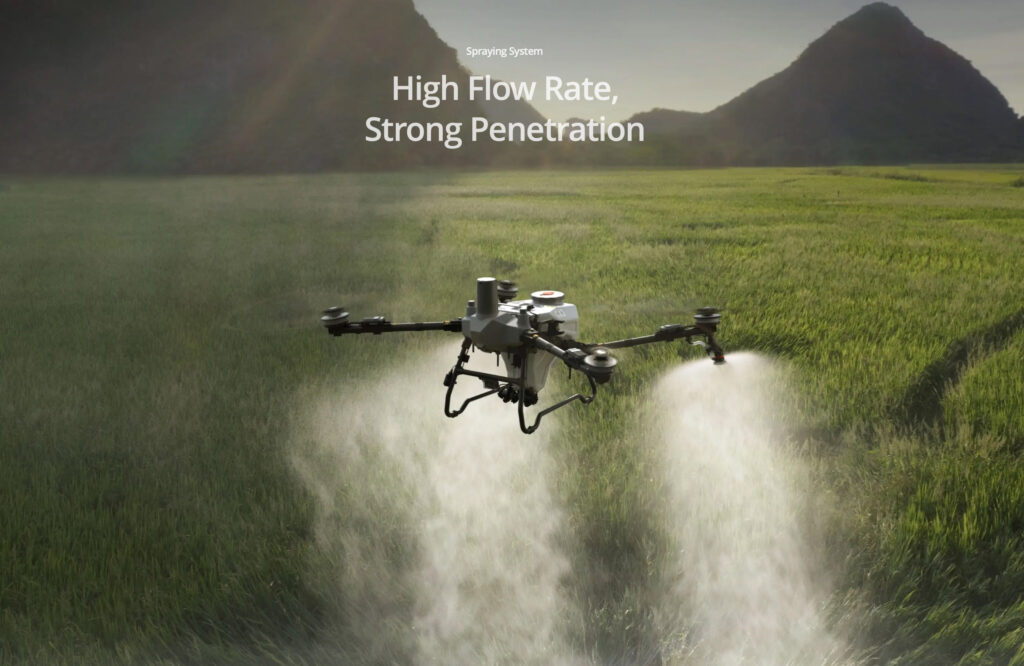

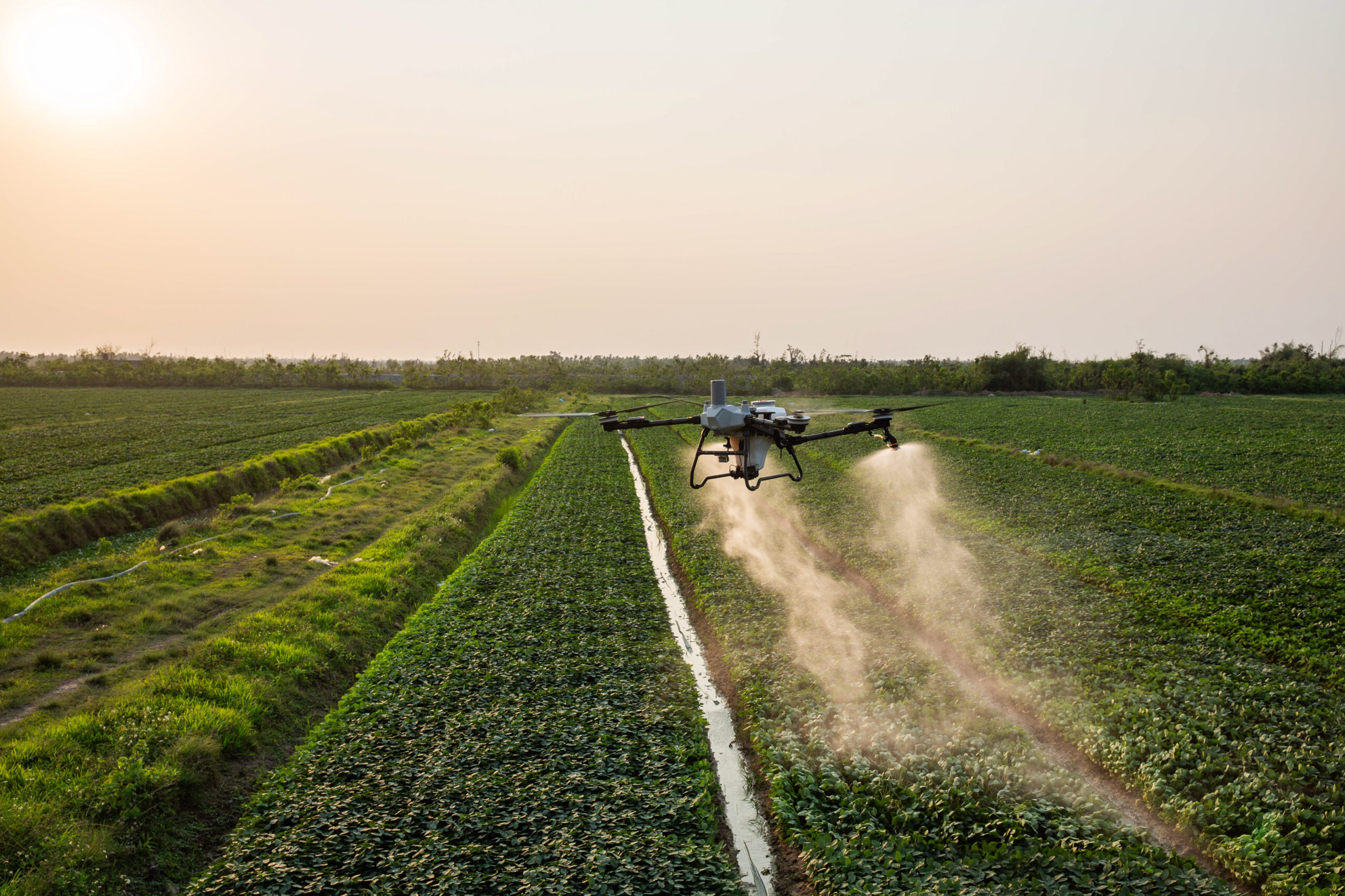

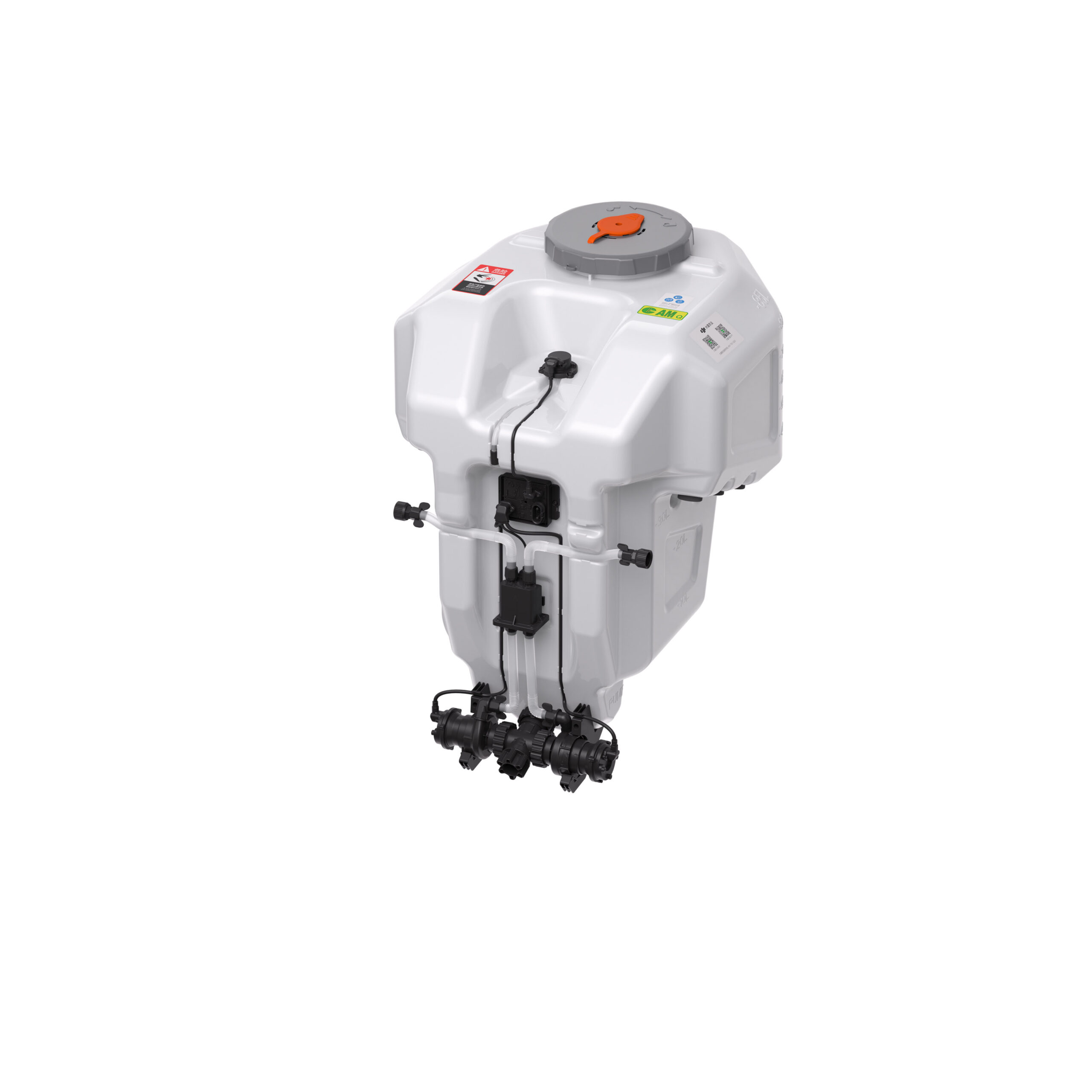

Spraying system – Spray tank

• Material

  • HDPE

• Volume

  • 50 L

• Operating Payload

  • 50 kg

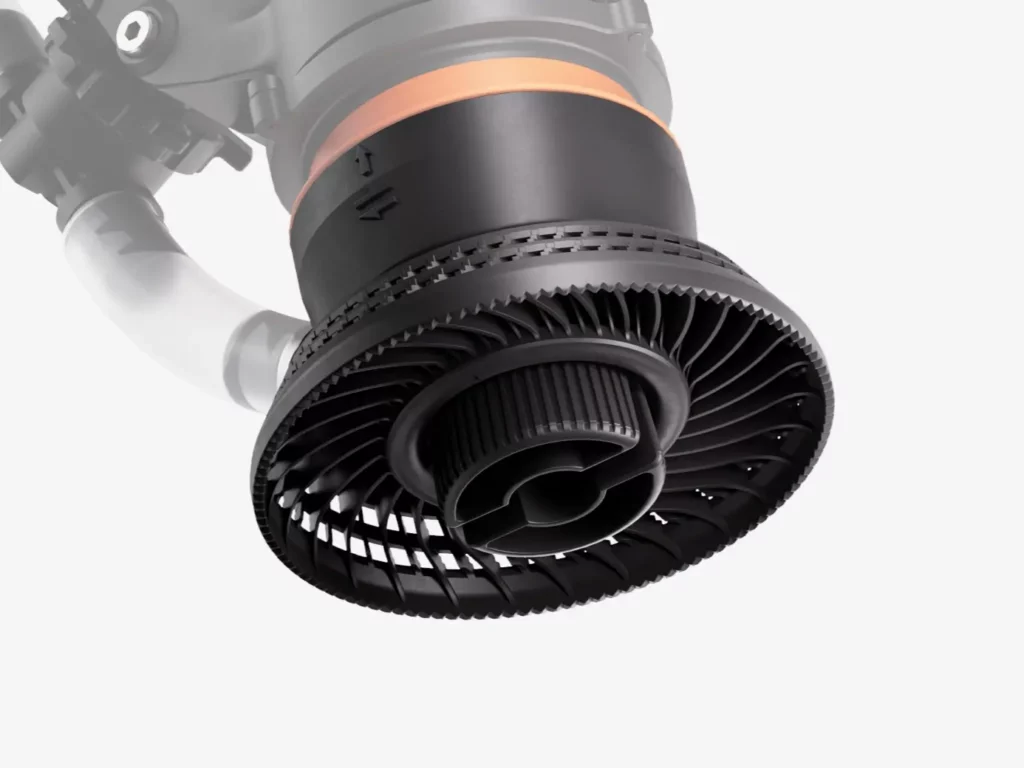

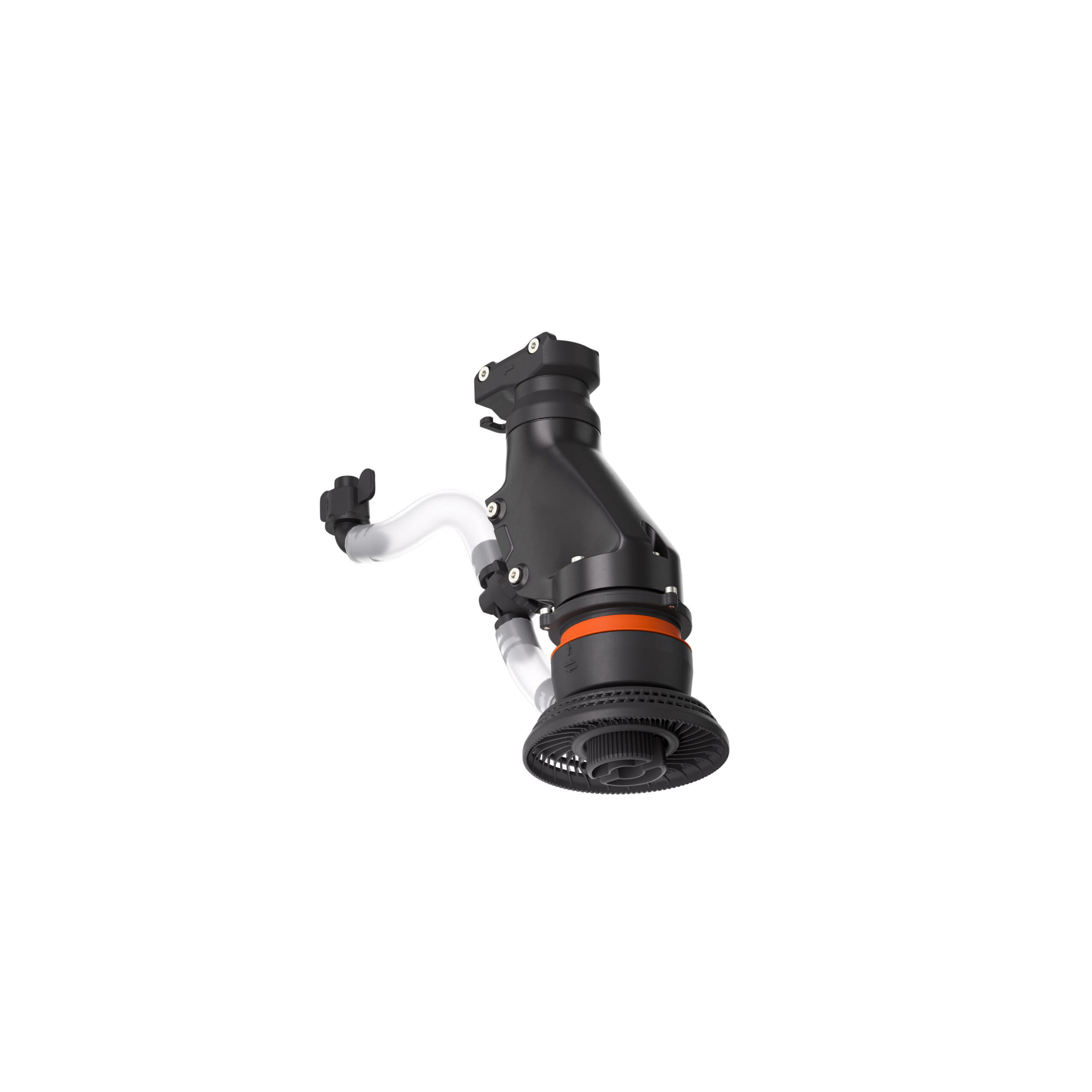

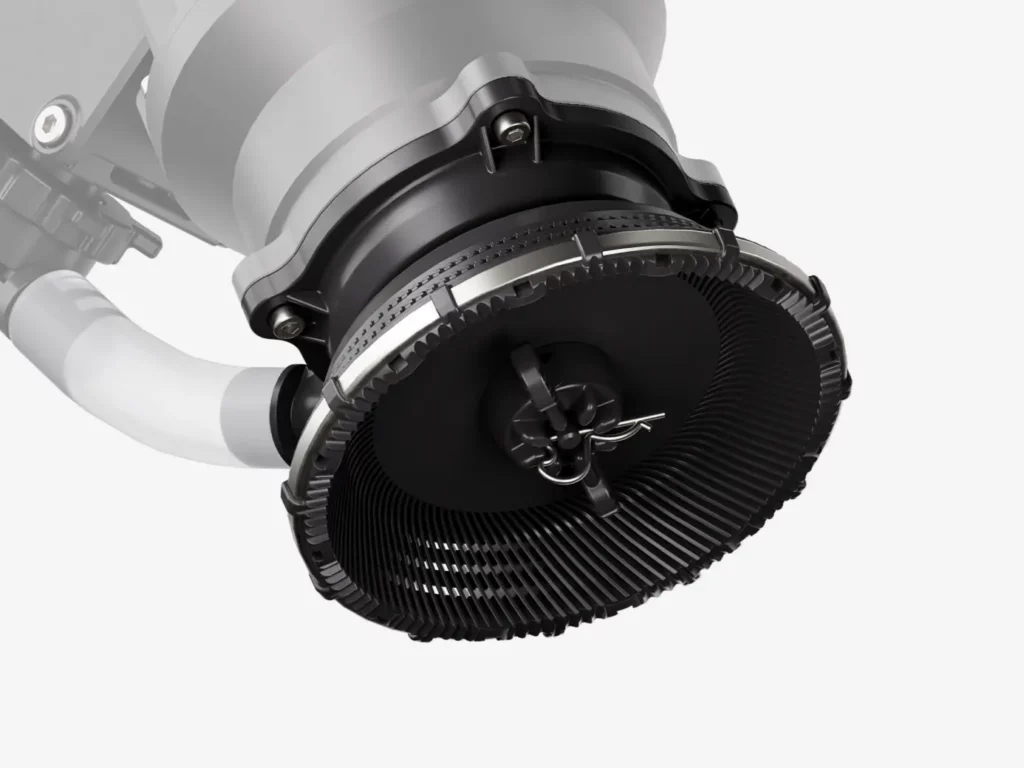

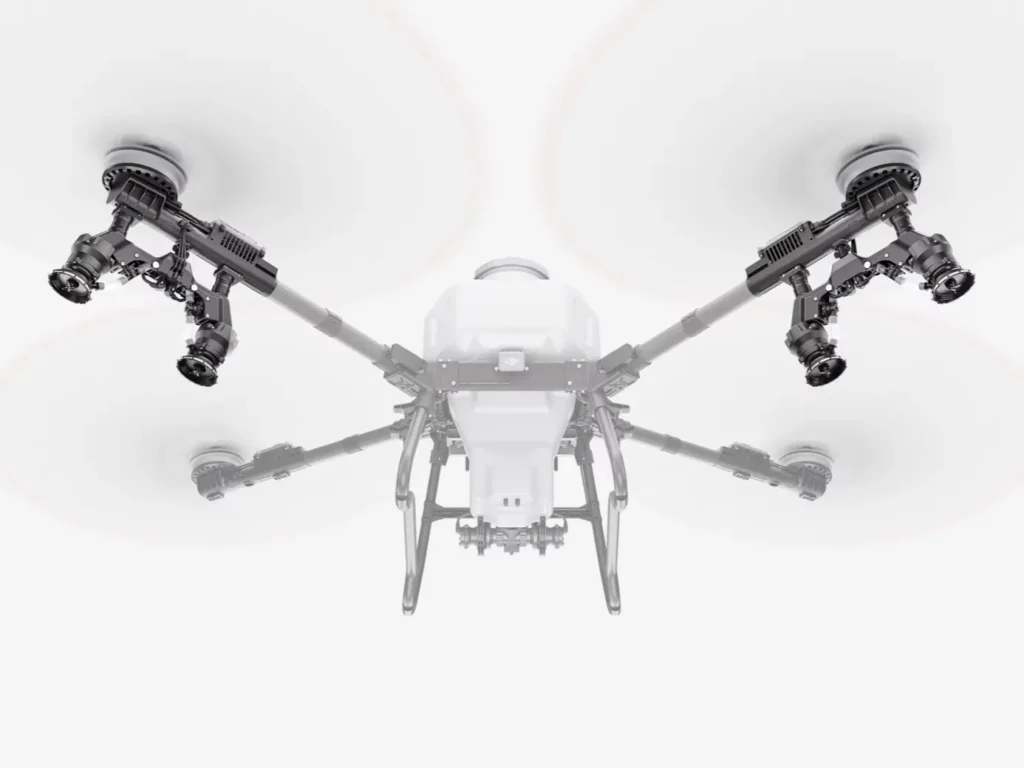

Spraying system – Sprinklers

• Model

  • LX09050DX (standard centrifugal nozzle) / LX09510DX (optional mist nozzle)

• Quantity

  • 2 (standard) / 4 (optional)

• Nozzle Distance

  • 1800 mm (Standard Two Nozzles)

• Droplet size

  • 50 – 500 μm

• Effective spray width

  • 4 – 11 m

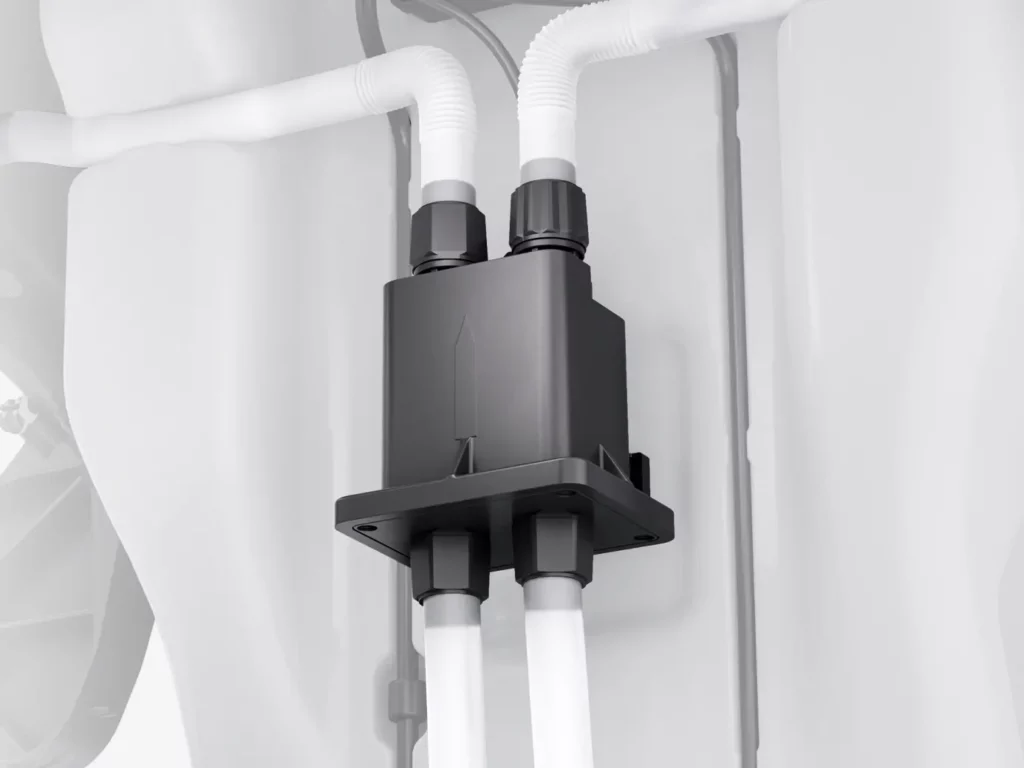

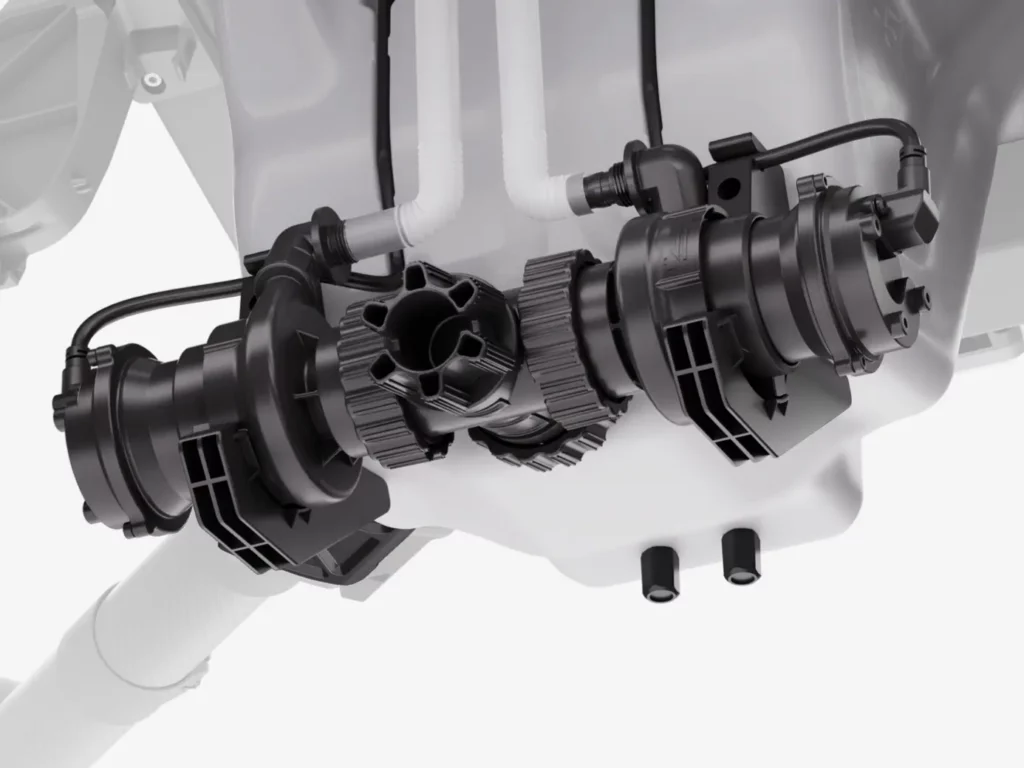

Spraying system – Delivery Pumps

• Type

  • Impeller pump (Magnetic Drive)

• Quantity

  • 2

• Maximum flow rate

  • 40 L/min (standard 2 nozzles), 50 L/min (optional 4 nozzles)

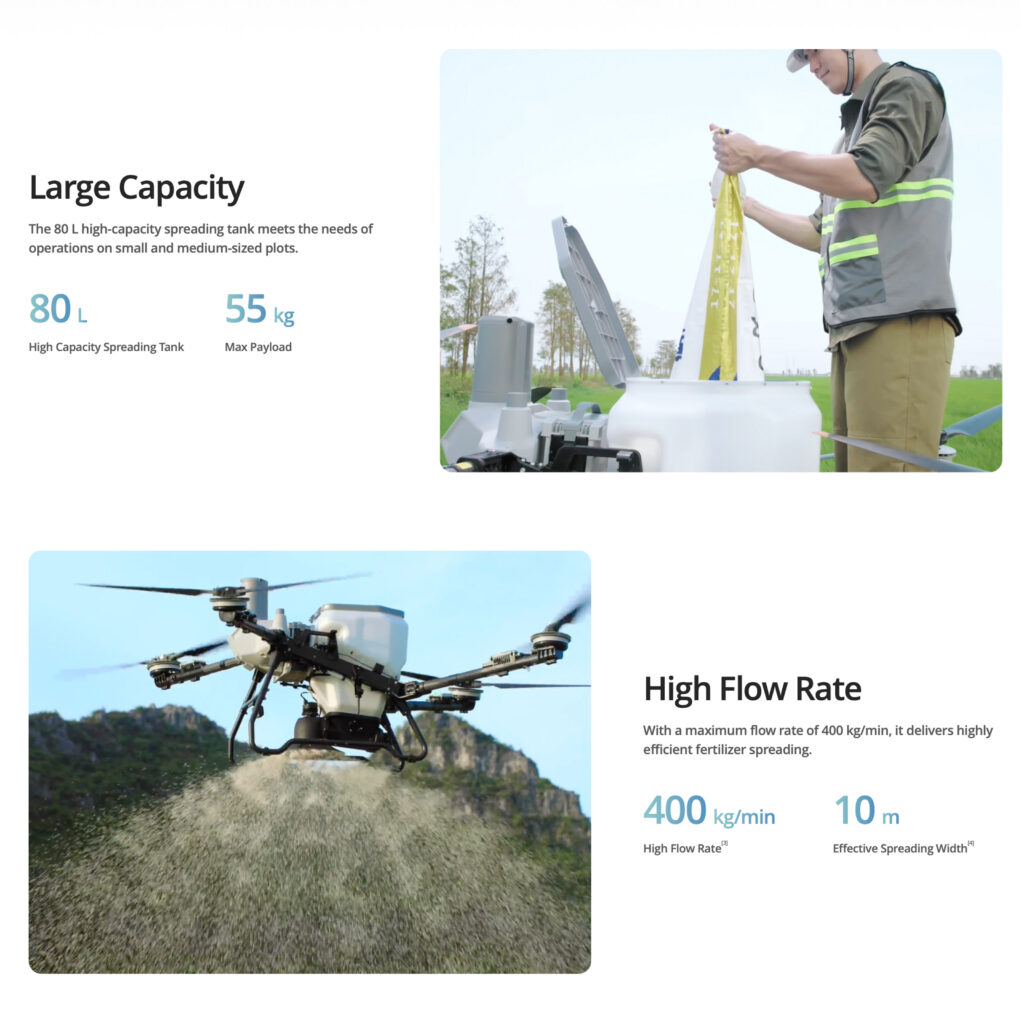

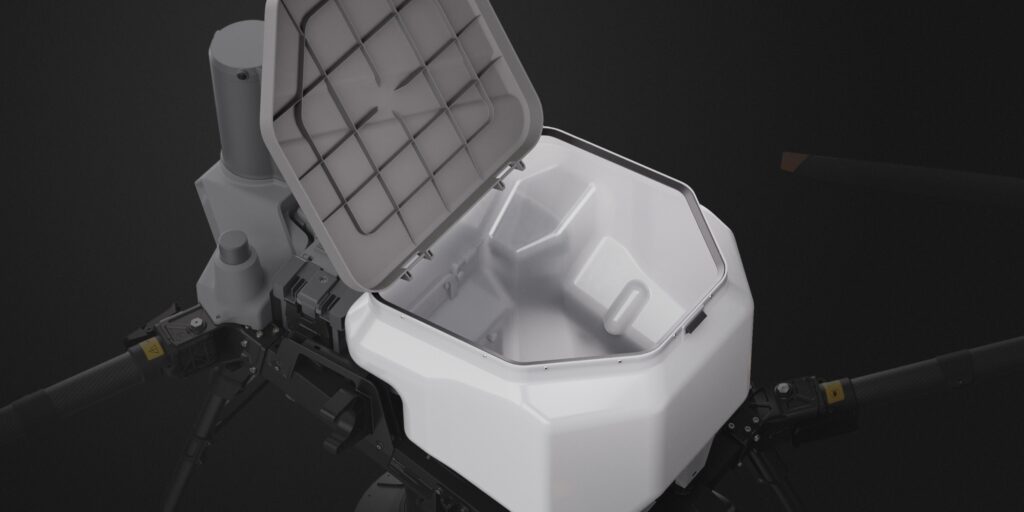

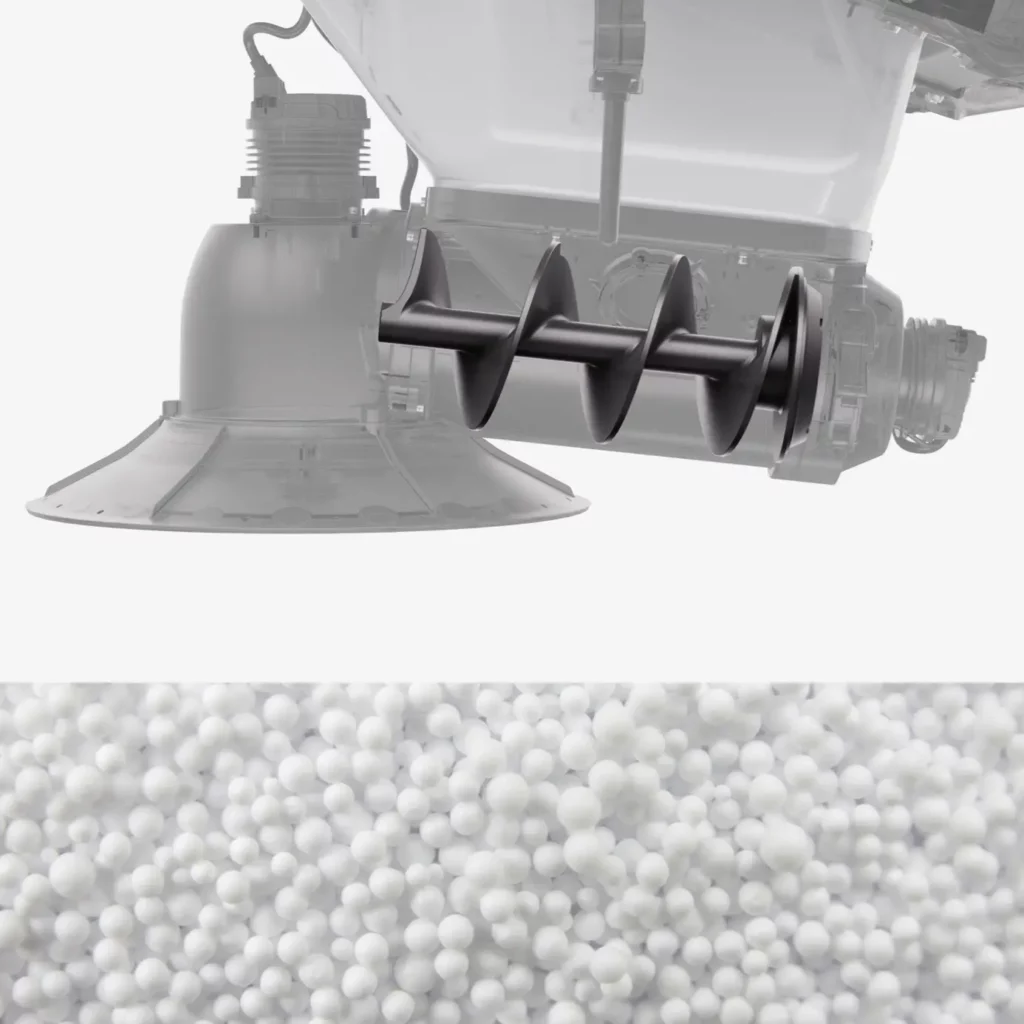

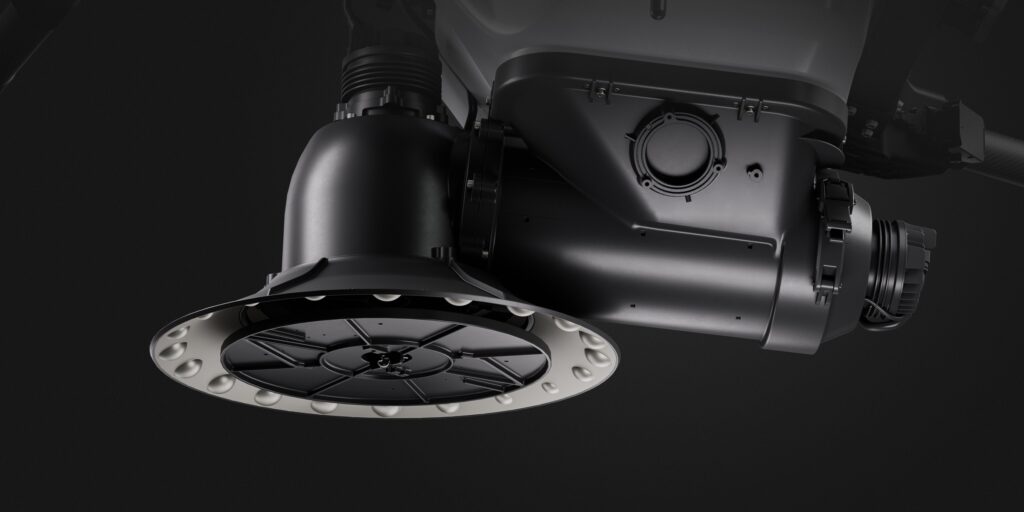

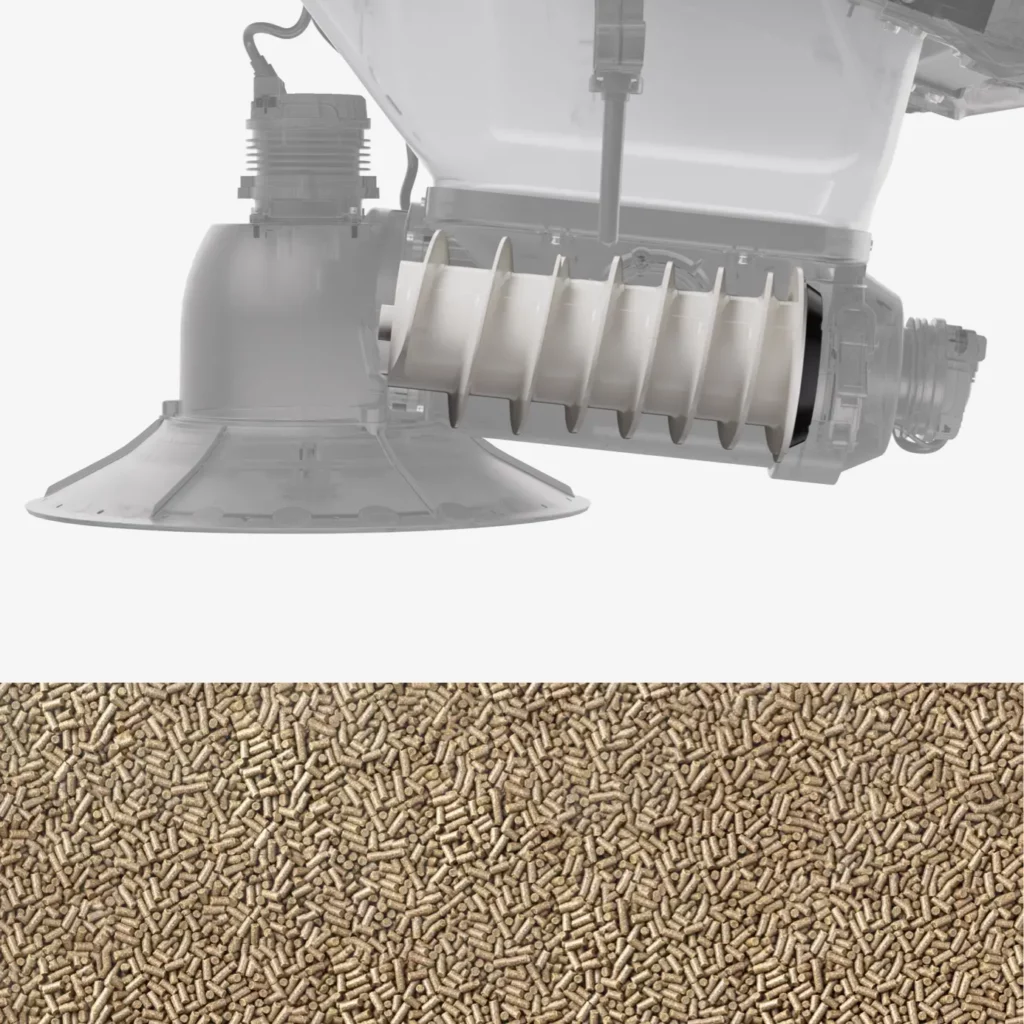

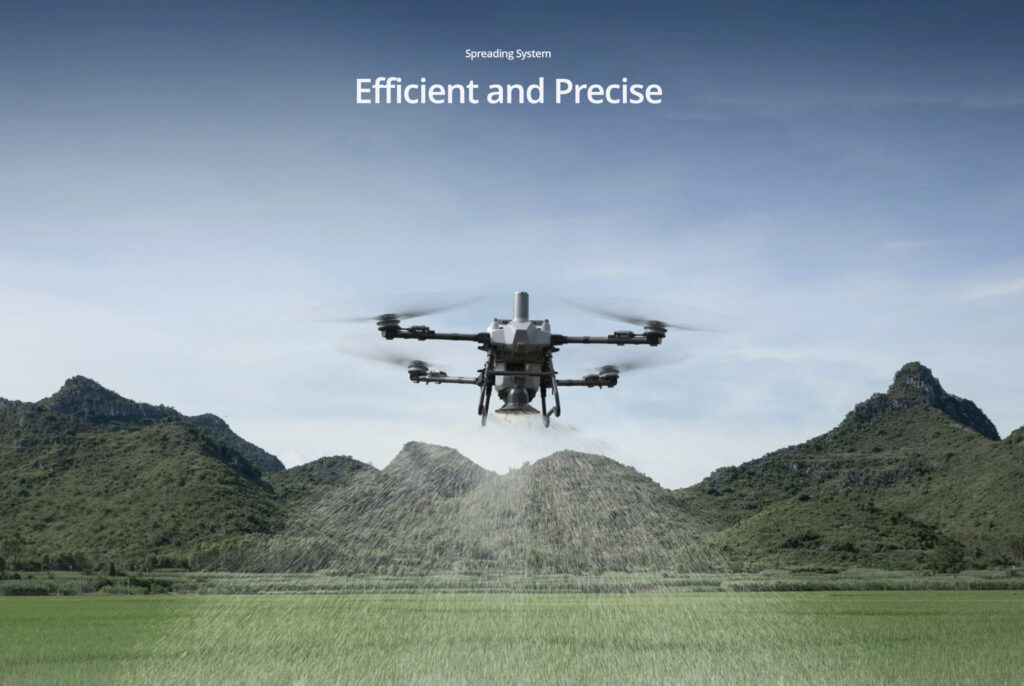

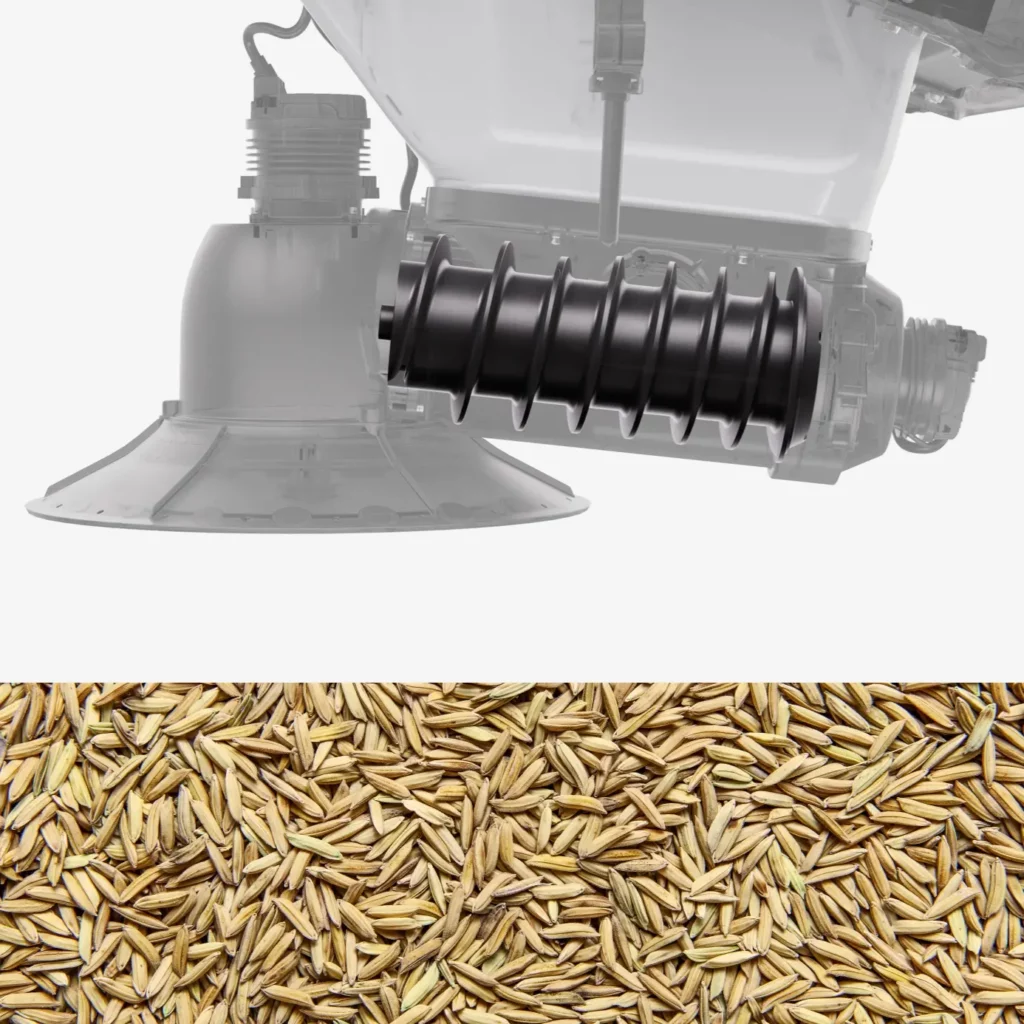

DS80L Spreading System

• Volume

  • 80 L

• Operating Payload

  • 55 kg

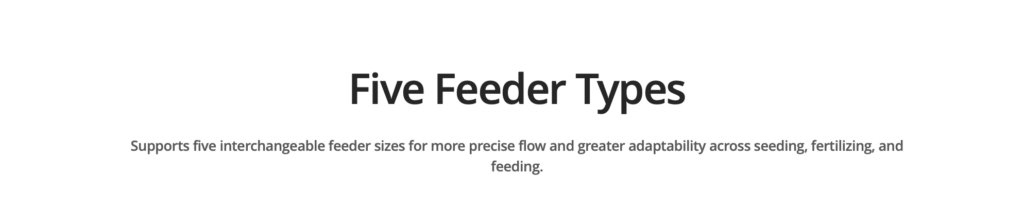

• Compatible Material Diameter

  • Standard configuration:

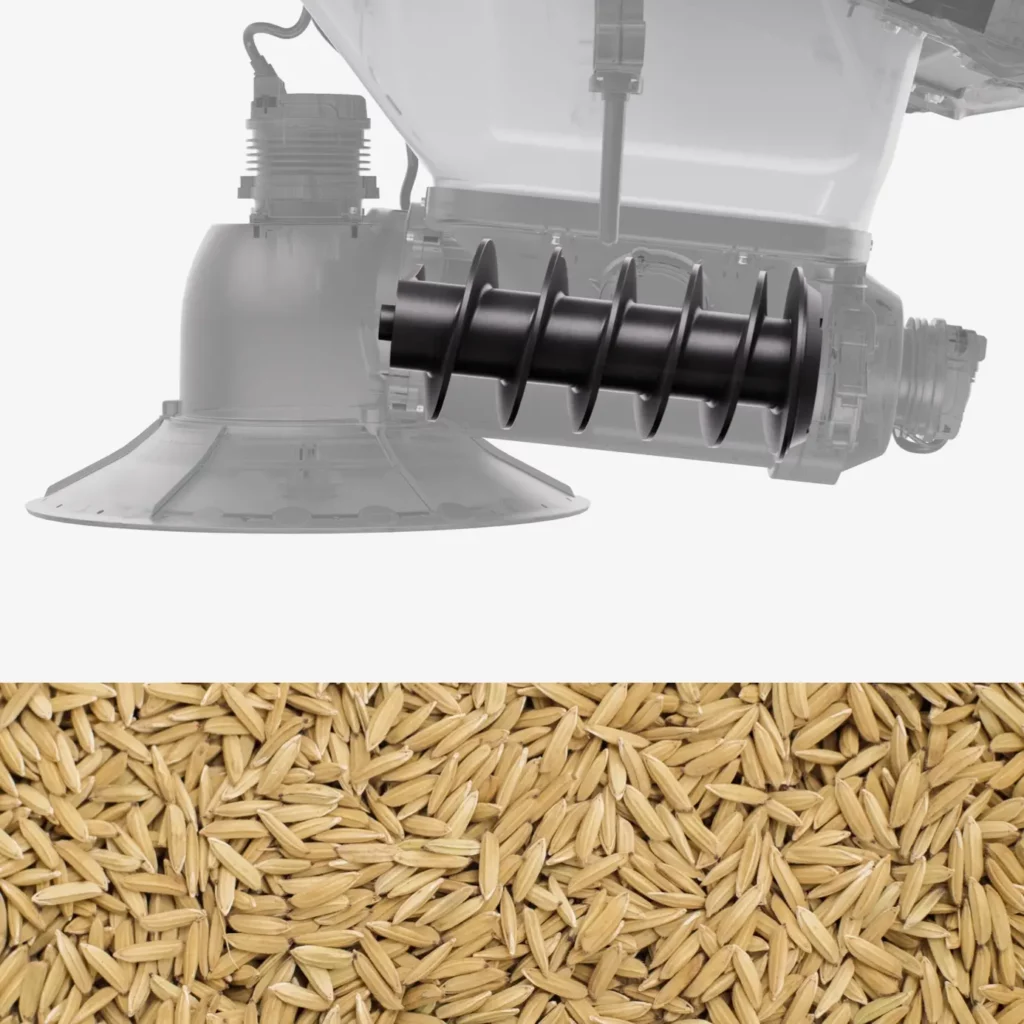

    • Extra-large auger: 0.5 mm–10 mm granules (fertilizer, wheat, feed, etc.)

    • Medium auger: 4 mm–6 mm granules (rice)

  • Optional:
    • Large auger: 4 mm–10 mm granules (rice, fertilizer)
    • Small and medium-sized auger: 0.5 mm–2 mm pellets (crayfish and prawn feed)

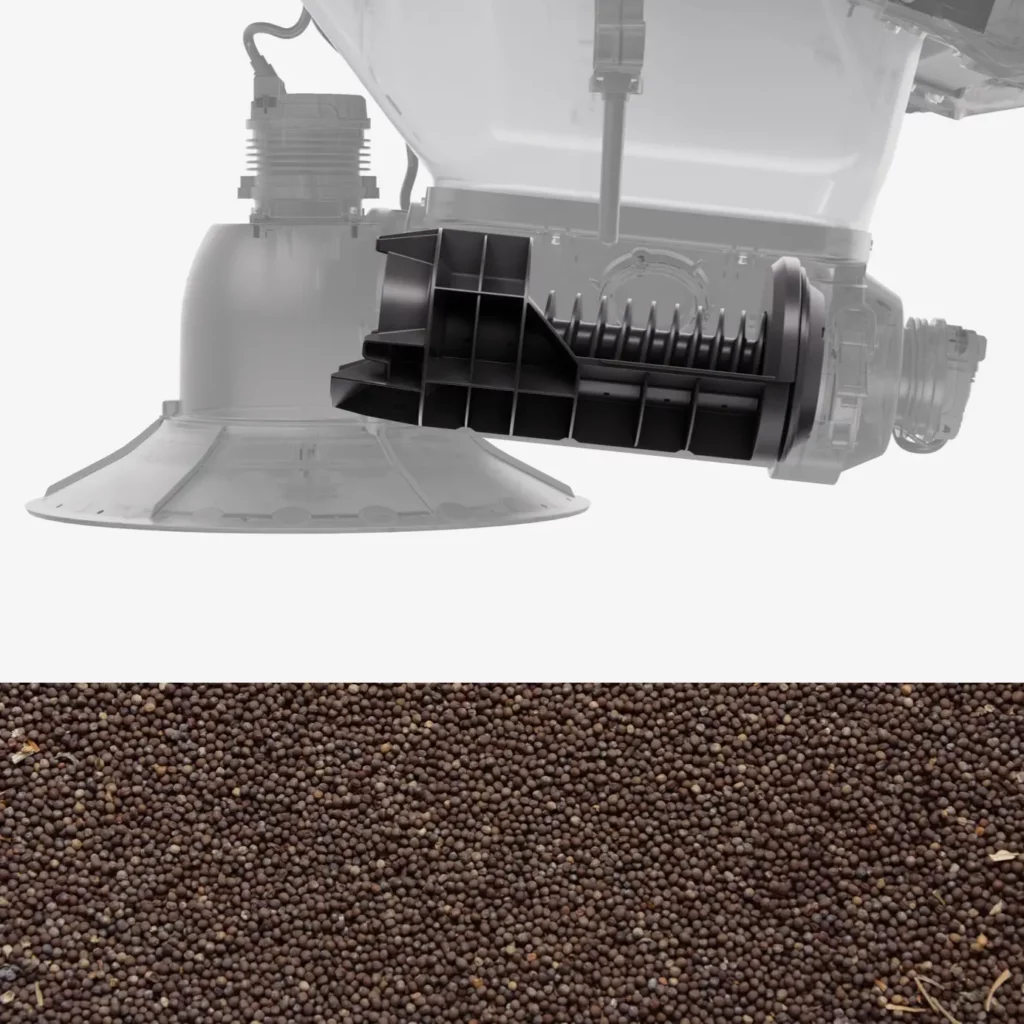

    • Small auger: 0.5 mm–4 mm granules (rapeseed, granular herbicides, granular insecticides)

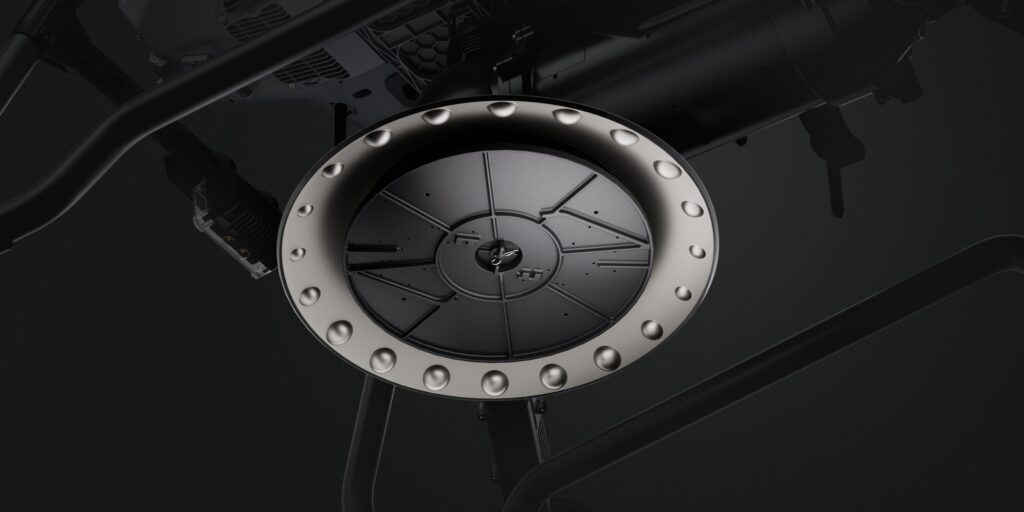

• Spreader structure type

  • Centrifugal Disc

• Discharge structure type

  • Screw Feeder Feeding

• Maximum discharge rate

  • 400 kg/min (compound fertilizer)

• Effective spreading width

  • 3 – 10 m

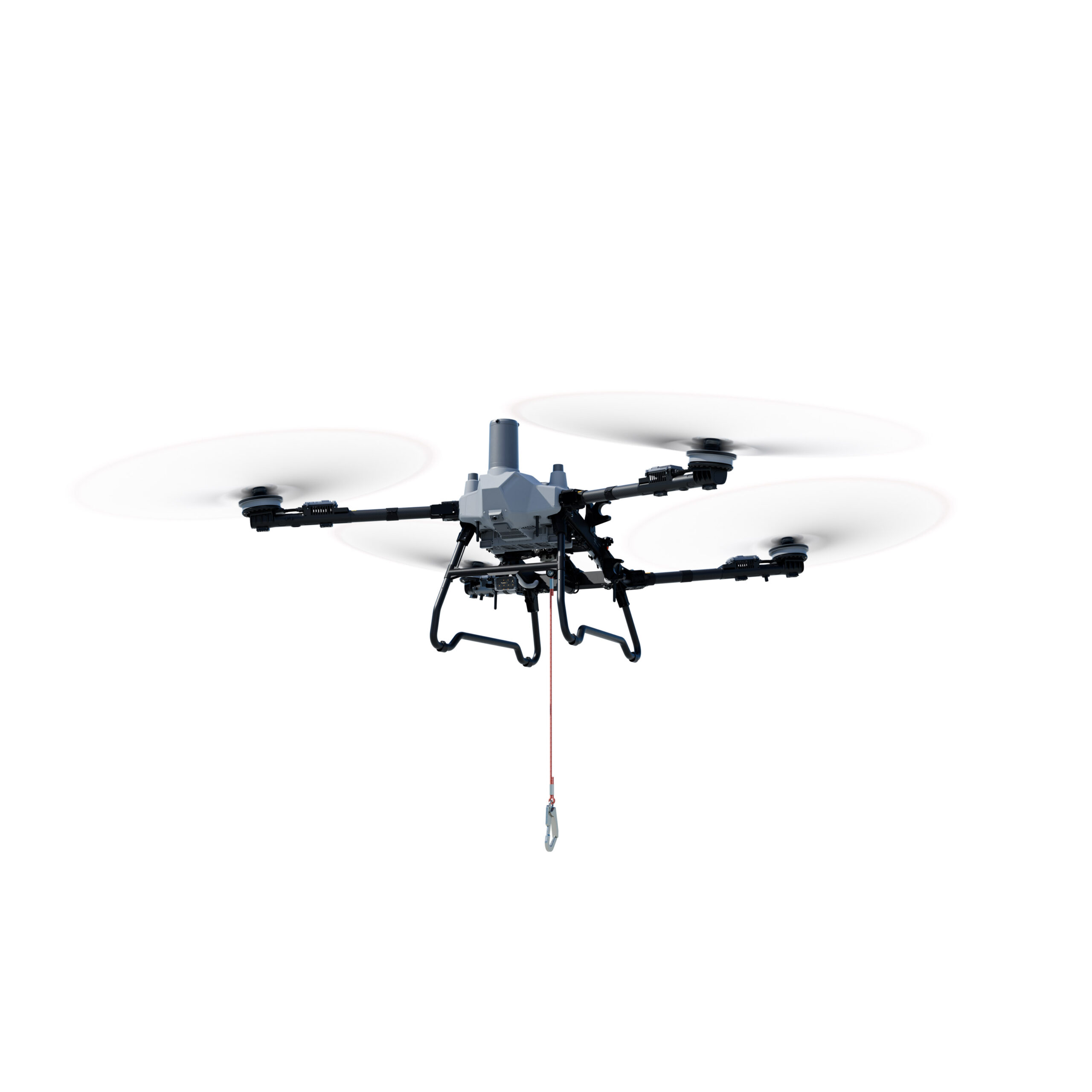

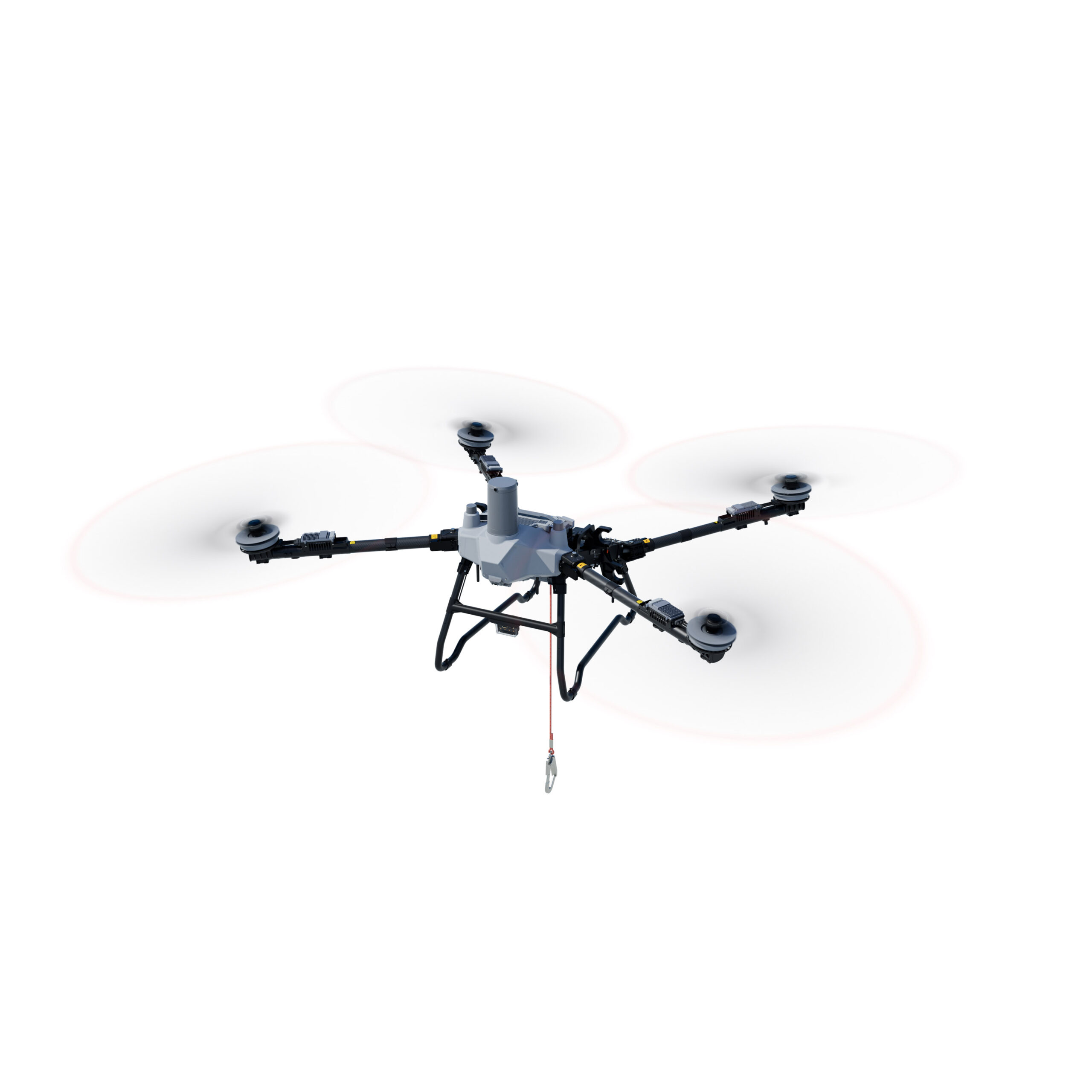

DL100 lifting system

• Operating Payload

  • 40 kg

• Lifting Cable Length

  • 10 m

• Recommended cable length

  • 10–15 m

• Operating Temperature

  • 0° to 40° C (32° to 104° F)

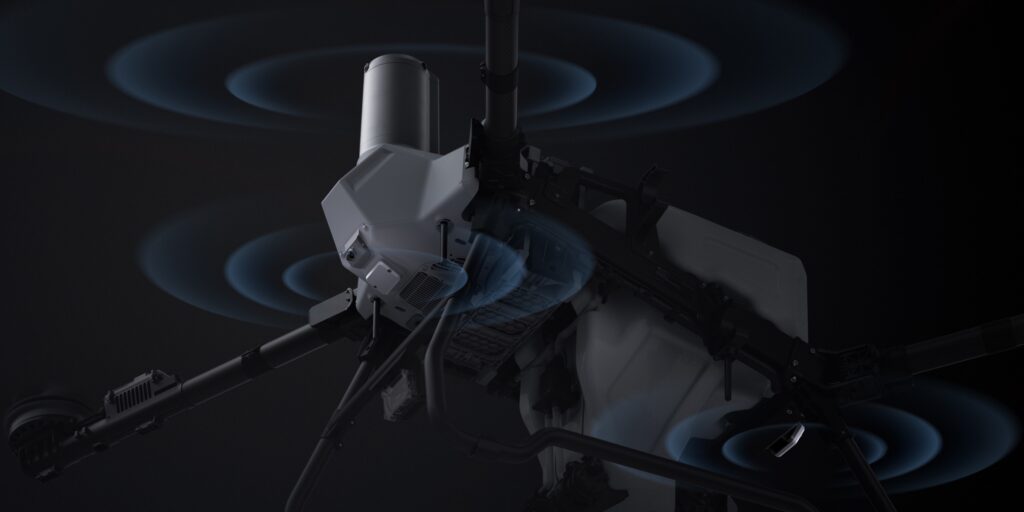

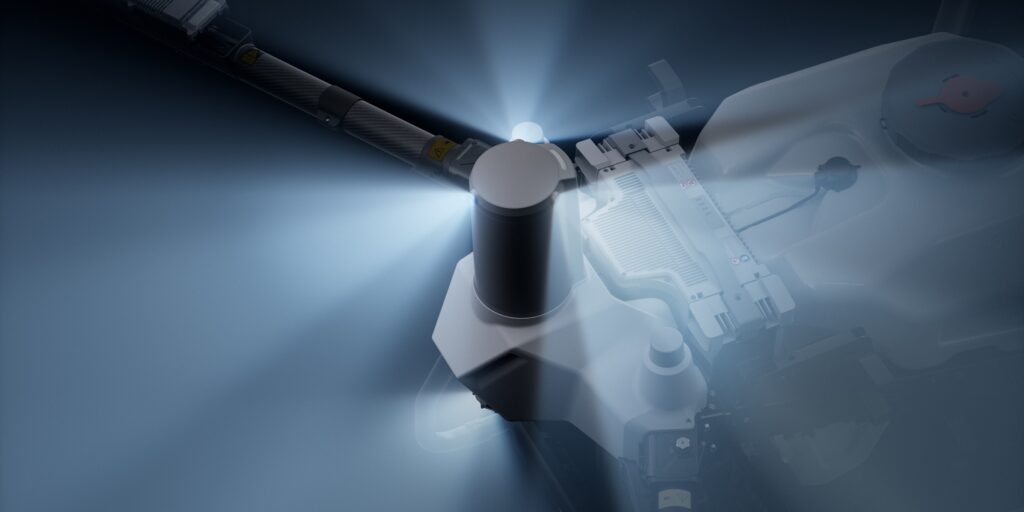

Safety System

• Radar EIRP

  • < 20 dBm (NCC / KC / CE / FCC)
  • < 13 dBm (MIC)

• Operating Temperature

  • 0° to 40° C (32° to 104° F)

• Operating Environment Requirements

  • Normal light intensity, rich Scene texture features, and no dirt.

• Operating Power Consumption

  • Front Radar: 36 W (peaking)
  • Downward Vision Radar: 3.5 W (peaking)
  • Rear Radar: 3.5 W (peaking)

• Field of View (FOV)

  • Front Radar: horizontal 360°, vertical ± 45°
  • Top Radar: Left and Right ± 45°, Front and Back ± 45°
  • Downward Radar: Left and Right ± 45°, Front and Back ± 45°
  • Rear Radar: Left and Right ± 45°, Front and Back ± 45°
  • Tri-vision system: horizontal 360°, vertical 180°
  • FPV camera: 86° horizontal, 155° vertical

• Measurement Range

  • 60 m

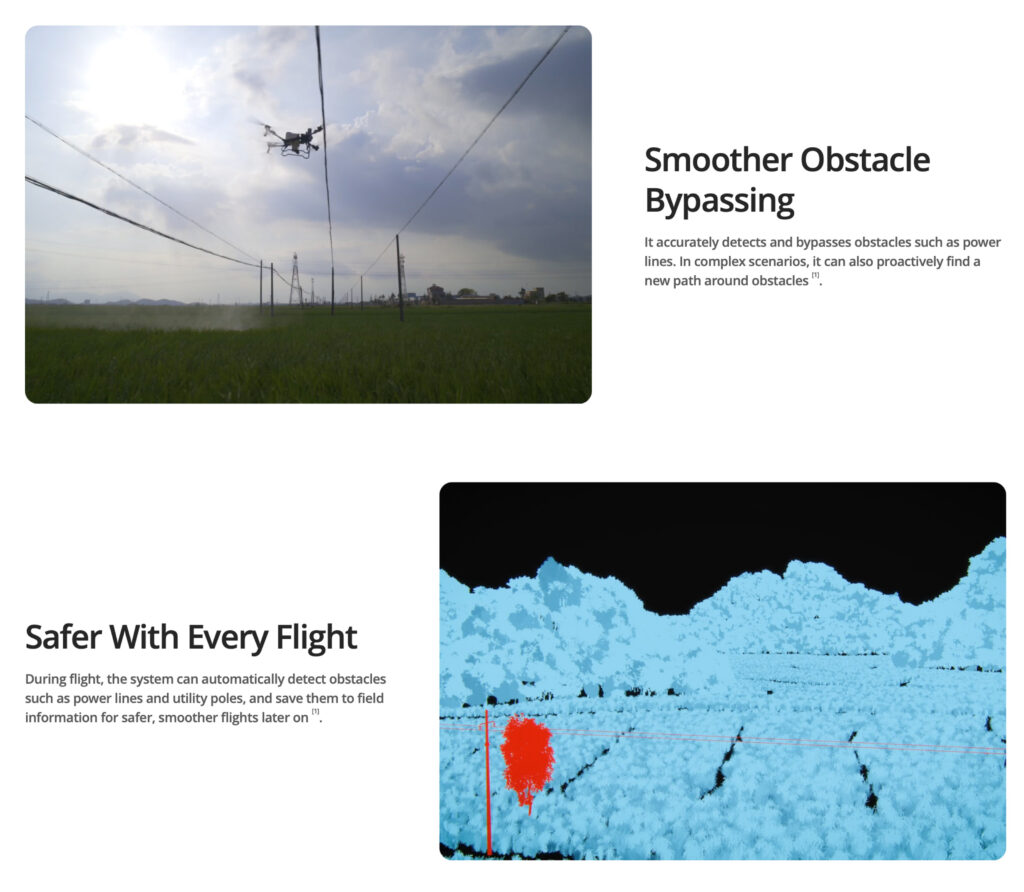

• Effective safe obstacle Bypass speed

  • ≤ 13.8 m/s

• Effective obstacle avoidance Height

  • ≥ 1.5 m

• Safety distance

  • 2.5 m (distance from the obstacle after the aircraft brakes and stabilizes in Hover)

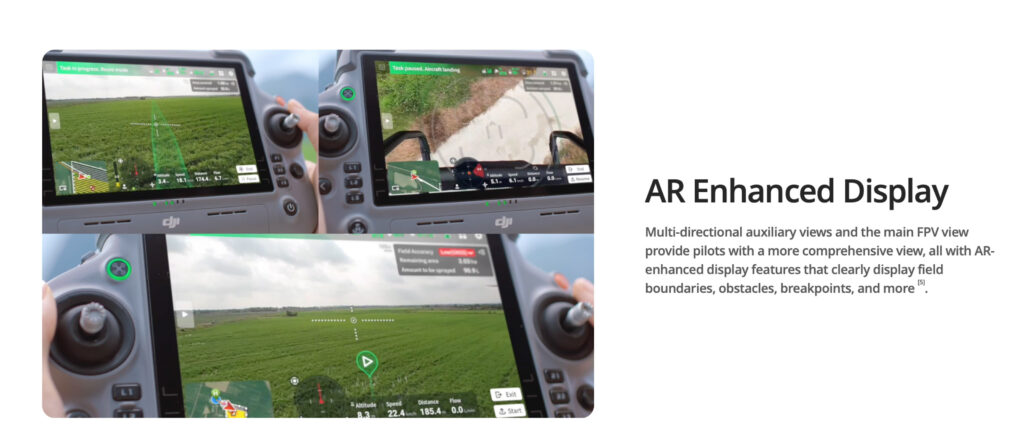

DJI RC Plus 2 AG

• Model

  • TKPL 2

• Screen

  • 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m²

• Storage Temperature

  • Within one month: -30° to 45° C (-22° to 140° F)
  • One to three months: -30° to 35° C (-22° to 113° F)
  • Three months to one year: -30° to 30° C (-22° to 86° F)

• Recharging Temperature

  • 5° to 40° C (41° to 104° F)

• Internal Battery Runtime

  • 3.8 hours

• External Battery Runtime

  • 3.2 hours

• Charging Type

  • Use a USB-C Fast recharge charger with a Max Power output of 65 W (maximum voltage 20 V); the DJI Portable Charger is recommended.

• Charging Time

  • 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB1050 Intelligent Flight Battery

• Weight

  • 8.3 ± 0.3 kg

• Capacity

  • 20000 mAh

• Voltage

  • 52.5 V

DB1580 Intelligent Flight Battery

• Weight

  • 11.7 ± 0.3 kg

• Capacity

  • 30000 mAh

• Voltage

  • 52 V

C7000 Smart Charger

• Charger Model

  • CSX711-7000

• Dimensions

  • 460 mm × 160 mm × 80 mm

• Weight

  • 8.5 kg

• Input Voltage

  • Single-phase 220 – 240 V
  • Three-phase 380 – 480 V

• Output Voltage

  • 50 – 62 V

• Rated Output Current

  • Single-phase 40 A
  • Three-phase, 140 A

• Rated Power

  • 7000 W (three-phase 380 V input)
  • 2000 W (single-phase 220 V input)

• Charging Time

  • 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge)

• Protection Functions

  • Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions

• Operating Temperature

  • -20° to 40° C (-4° to 104° F)

• Output Channels

  • 1

• Compatible Battery

  • DB1050 / DB1580 / DB2160 Intelligent Flight Battery

Relay

• Model

  • RL0265

• Dimensions

  • 112 mm × 112 mm × 51 mm (no Antenna)
  • 120 mm × 112 mm × 101 mm (with Antenna)

• Weight

  • 630 g

• Input Voltage

  • 2.7 V to 24 V

• Power consumption

  • 10.48 W (FCC)

• Total Capacity

  • 6500 mAh

• Operating Time

  • 5 hours

• Operating Frequency

  • 2.4000-2.4835 GHz, 5.170-5.250 GHz, 5.725-5.850 GHz

• Signal range

  • 4 km (MIC/KCC/CE), 8 km (FCC)
    (in a None-interference, unobstructed environment, at a flight altitude of 2.5 m)

• Charging Time

  • 2.5 hours (30 W recharge)

• Ingress Protection Rating

  • IP55

D-RTK 3 AG

• Supports satellite systems

  • GPS: L1/L2/L5
  • BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
  • Galileo: E1/E5a/E5b/E6
  • GLONASS: G1/G2
  • QZSS: L1CA/L2C/L5
  • L-BAND

• Dimensions

  • 345 mm × 244 mm × 300 mm

• Weight

  • 3.77 kg (including packaging)

• Power consumption

  • 7 W

• Total Capacity

  • 6500 mAh

• Operating Time

  • 7 hours

• Operating Frequency

  • Broadcast mode:
  • O4: 2.4 GHz/5.8 GHz

• Signal range

  • FCC: 15 km
  • CE/JP: 8 km

• Charging Time

  • 2.5 hours (30W recharge)

• Ingress Protection Rating

  • IP67

• Positioning Accuracy

  • PPP satellite-based service accuracy:
    • Convergence Time: 20 minutes
    • Horizontal: 30 cm (RMS)
    • Elevation: 40 cm (RMS)
  • Network RTK Calibration:
    • Horizontal: 0.8 cm + 1 ppm (RMS)
    • Vertical: 1.5 cm + 1 ppm (RMS)
    • 1 ppm: For every additional 1 km between the aircraft and the base station, accuracy decreases by 1 mm. For example, if the aircraft is 1 km from the base station, the accuracy is 1.1 cm.
