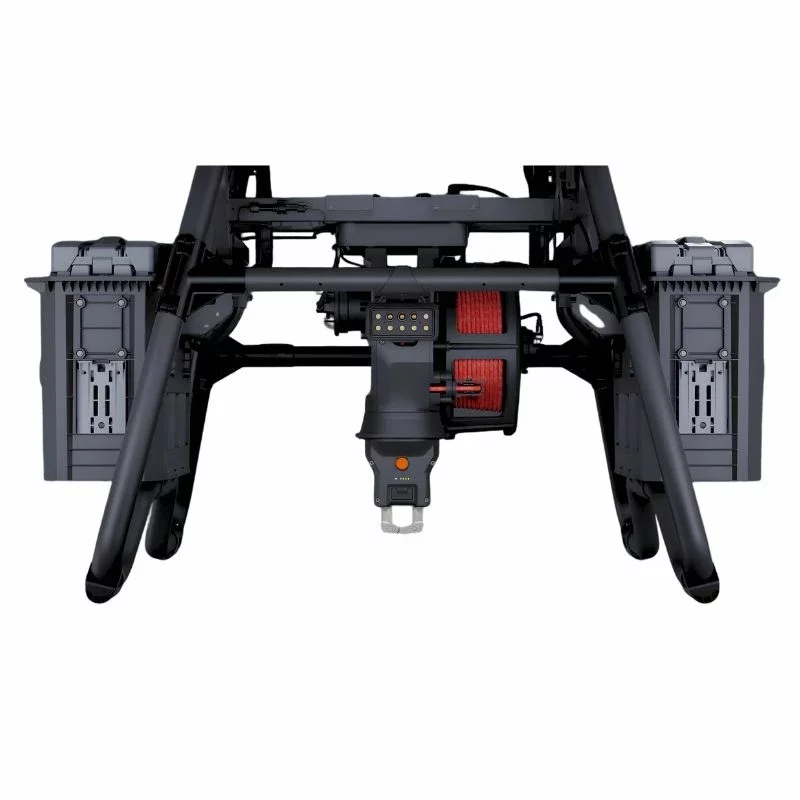

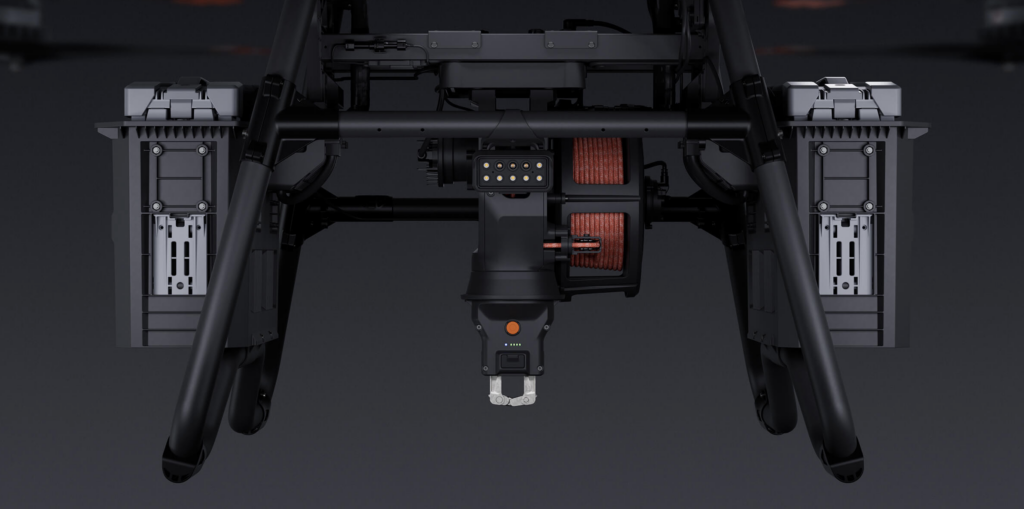

DJI FlyCart 100 Flagship Winch System

Beskrivelse

DJI FlyCart 100 Flagship Winch System

High Speed Release and Retrieve

Winch system offers both automatic and manual release and retrieval options, equipped with a rope length of 30m, it can maintain a retractable speed of 1.2 m/s with heavy loads, ensuring efficient and reliable operation.

Safe Unloading

Cargo releases automatically upon touchdown, and the hook can be remotely controlled to open, ensuring safe and precise delivery.

Auto Balance Control

The combination of a triaxial force sensor and intelligent algorithms enables minimize cargo swing and improve stability.

Cable Discard Escape

For extreme situations when hanging cargo gets trapped or tangled, discard the cable entirely with one click and let the drone free.

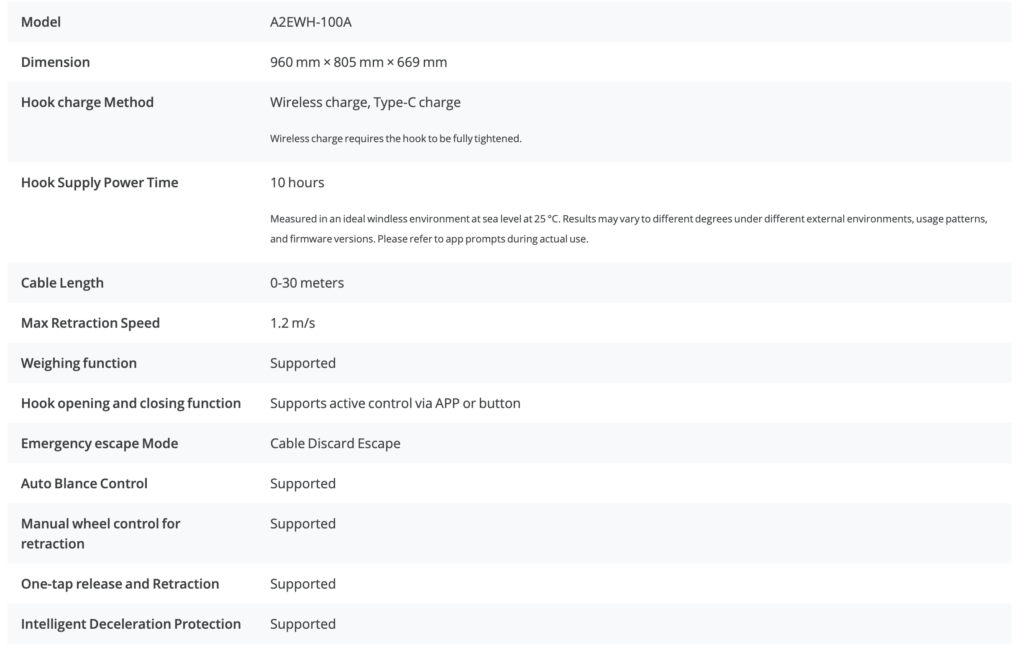

Specifications:

• Model

  • A2EWH-100A

• Dimension

  • 960 mm × 805 mm × 669 mm

• Hook charge Method

  • Wireless charge, Type-C charge

    ^{Wireless charge requires the hook to be fully tightened.}

• Hook Supply Power Time

  • 10 hours

    ^{Measured in an ideal windless environment at sea level at 25 °C. Results may vary to different degrees under different external environments, usage patterns, and firmware versions. Please refer to app prompts during actual use.}

• Cable Length

  • 0-30 meters

• Max Retraction Speed

  • 1.2 m/s

• Weighing function

  • Supported

• Hook opening and closing function

  • Supports active control via APP or button

• Emergency escape Mode

  • Cable Discard Escape

• Auto Blance Control

  • Supported

• Manual wheel control for retraction

  • Supported

• One-tap release and Retraction

  • Supported

• Intelligent Deceleration Protection

  • Supported
