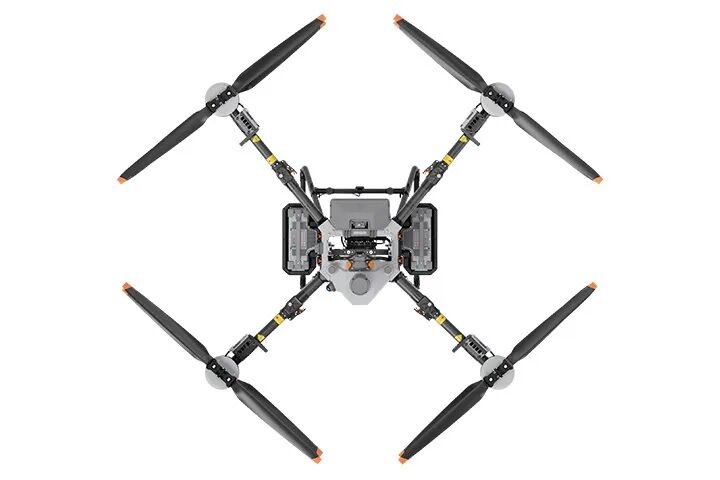

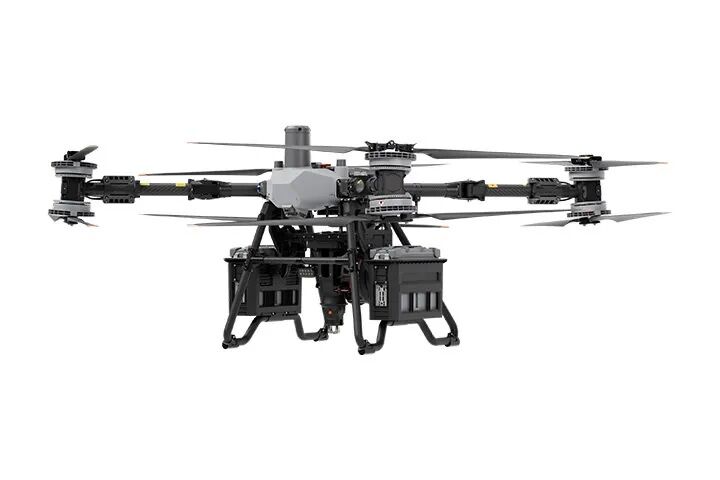

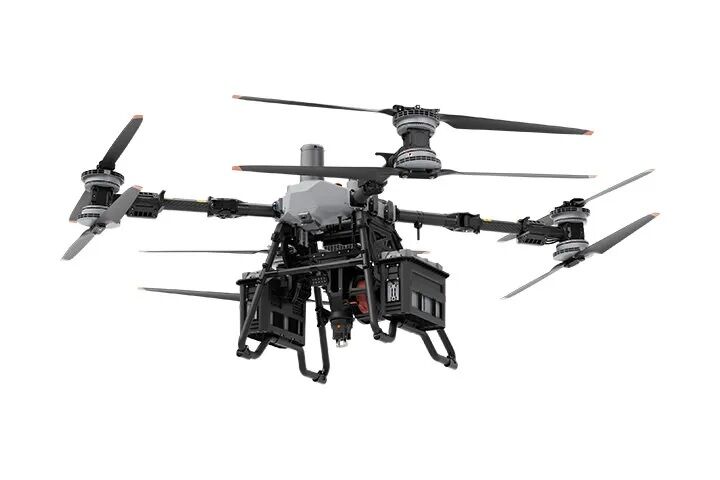

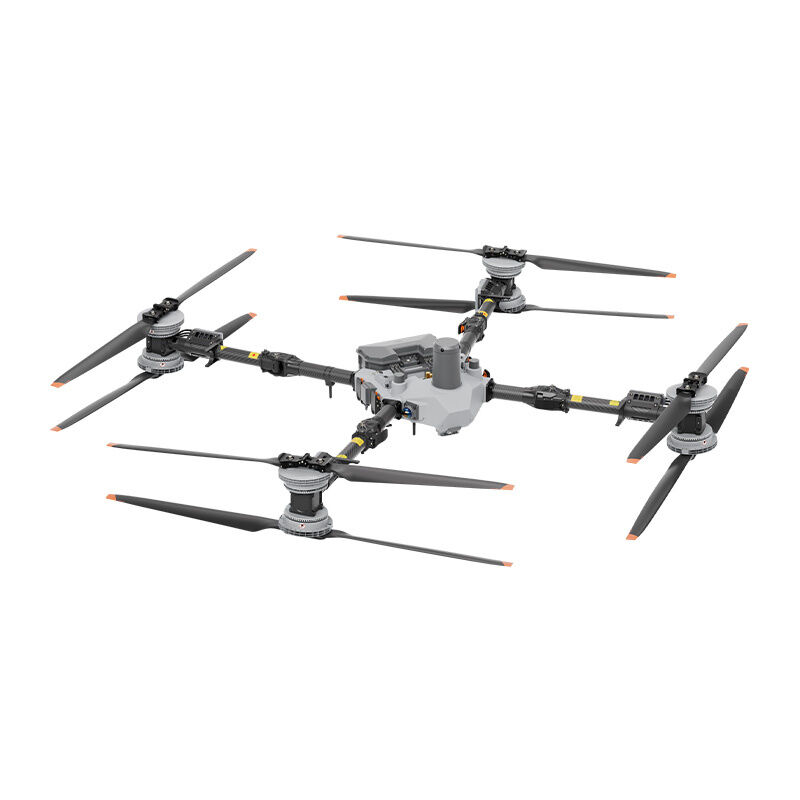

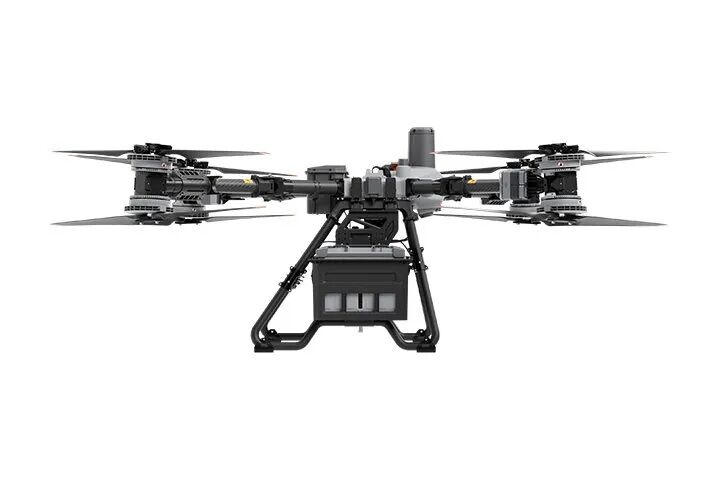

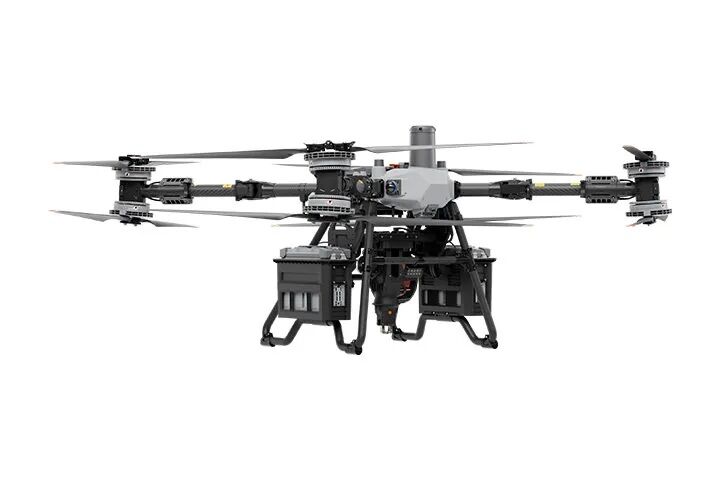

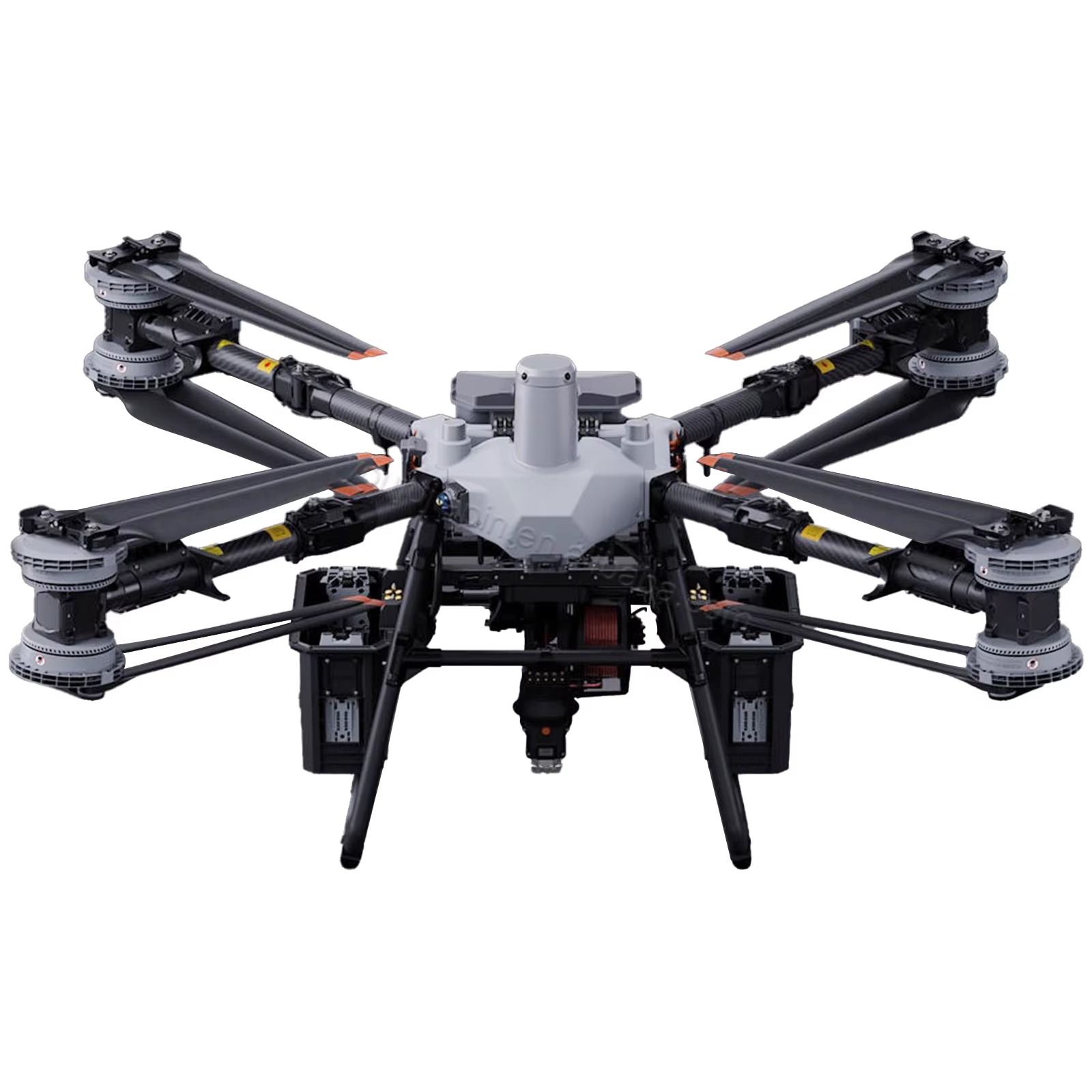

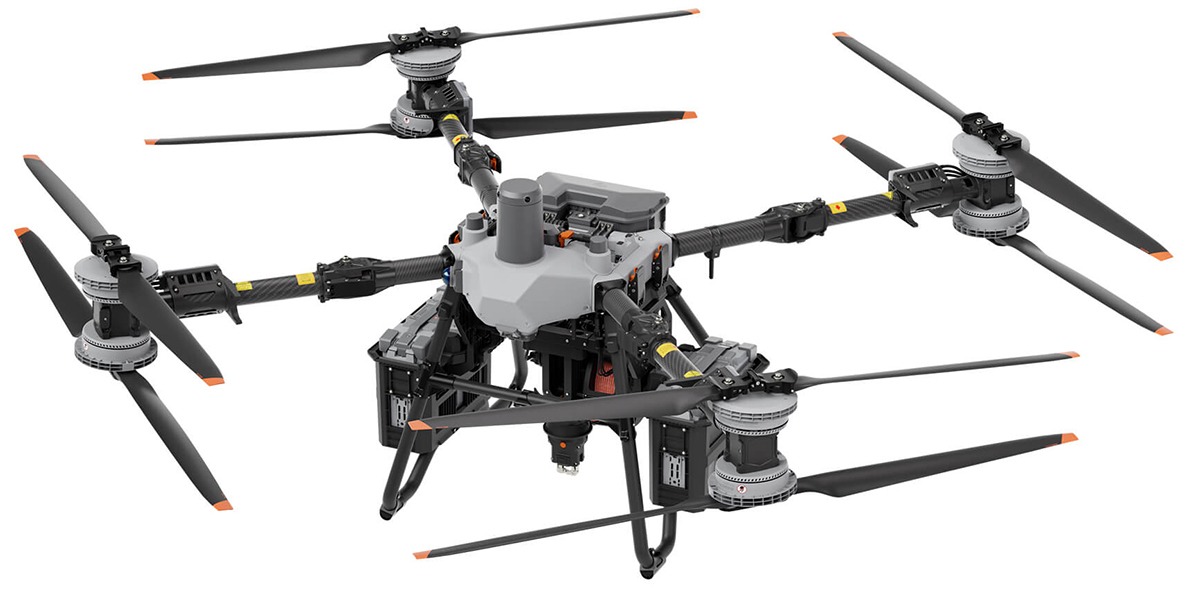

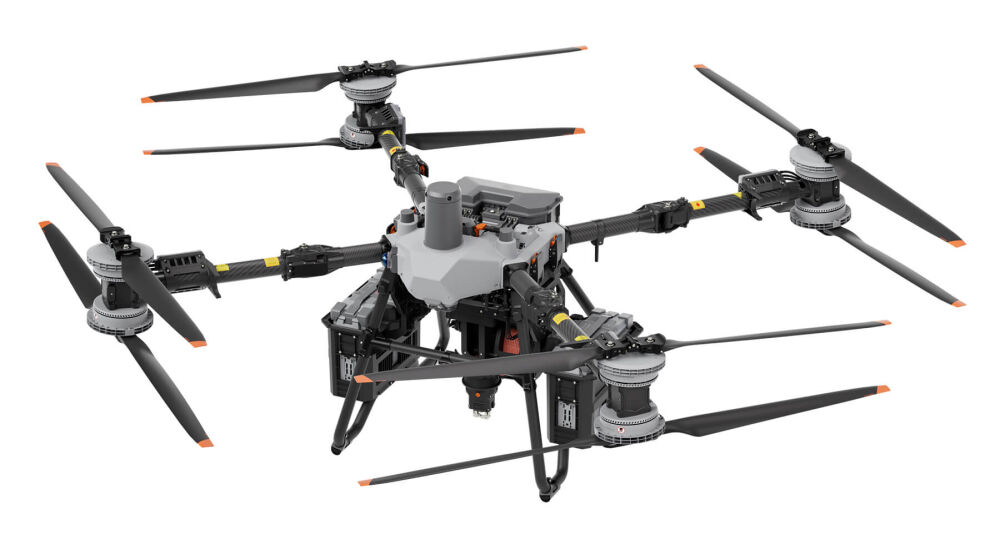

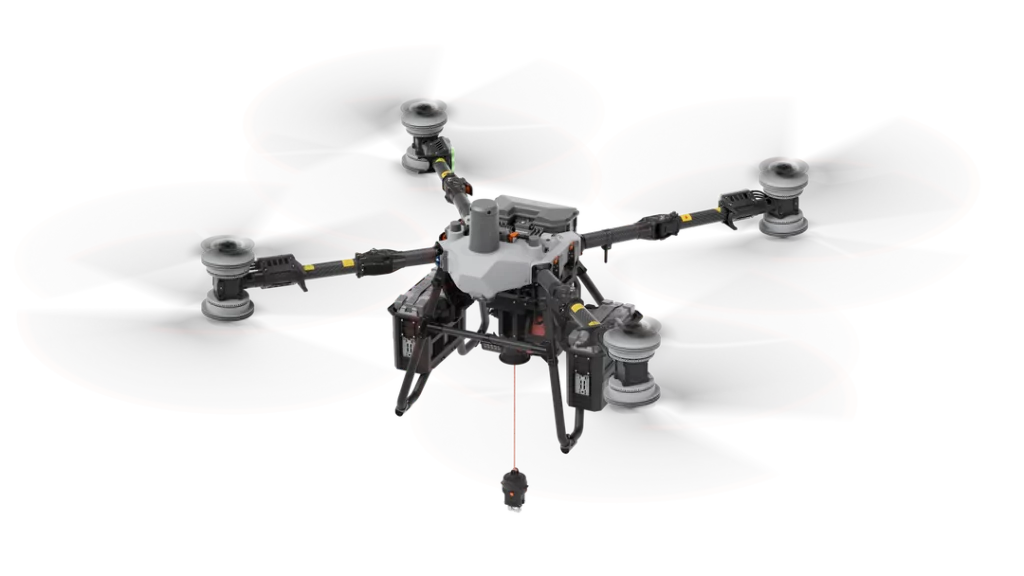

DJI FlyCart 100

Aircraft

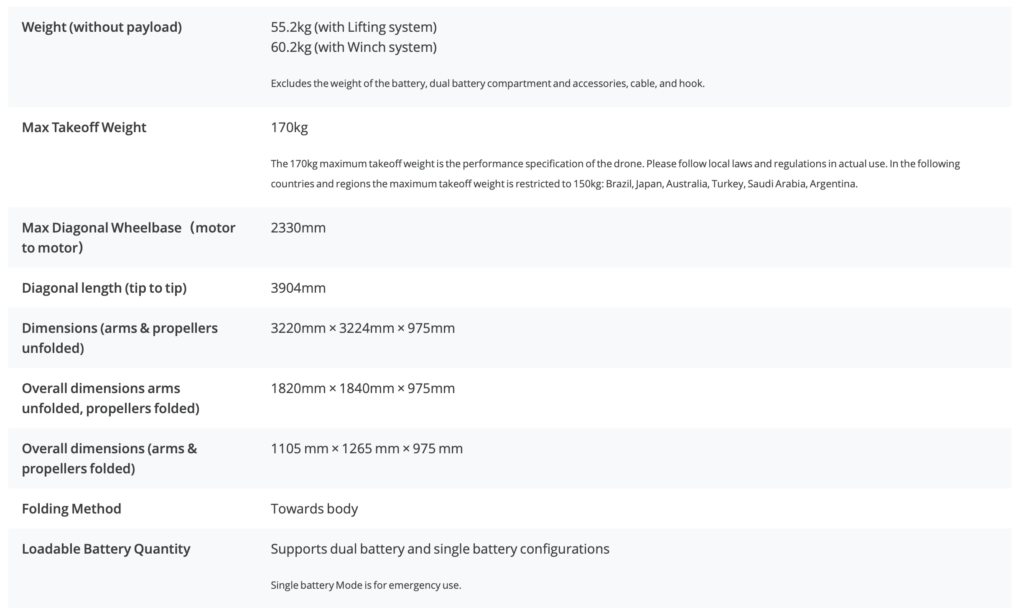

• Weight (without payload)

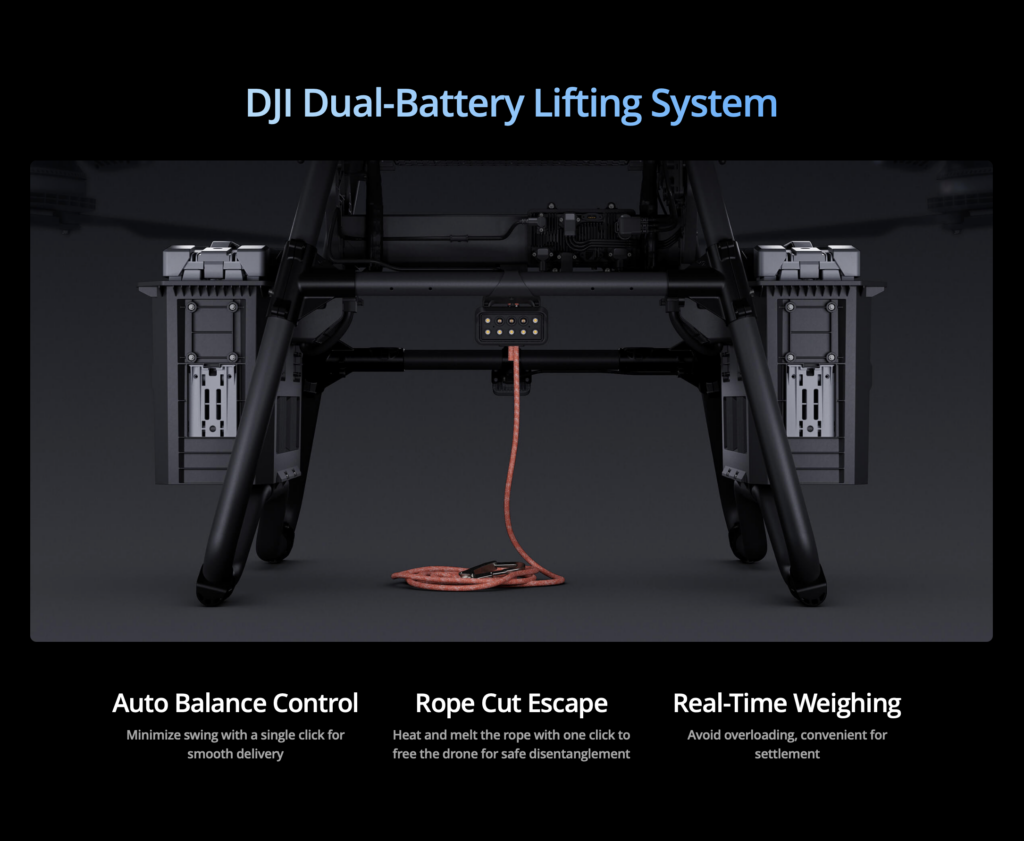

  • 55.2kg (with Lifting system)

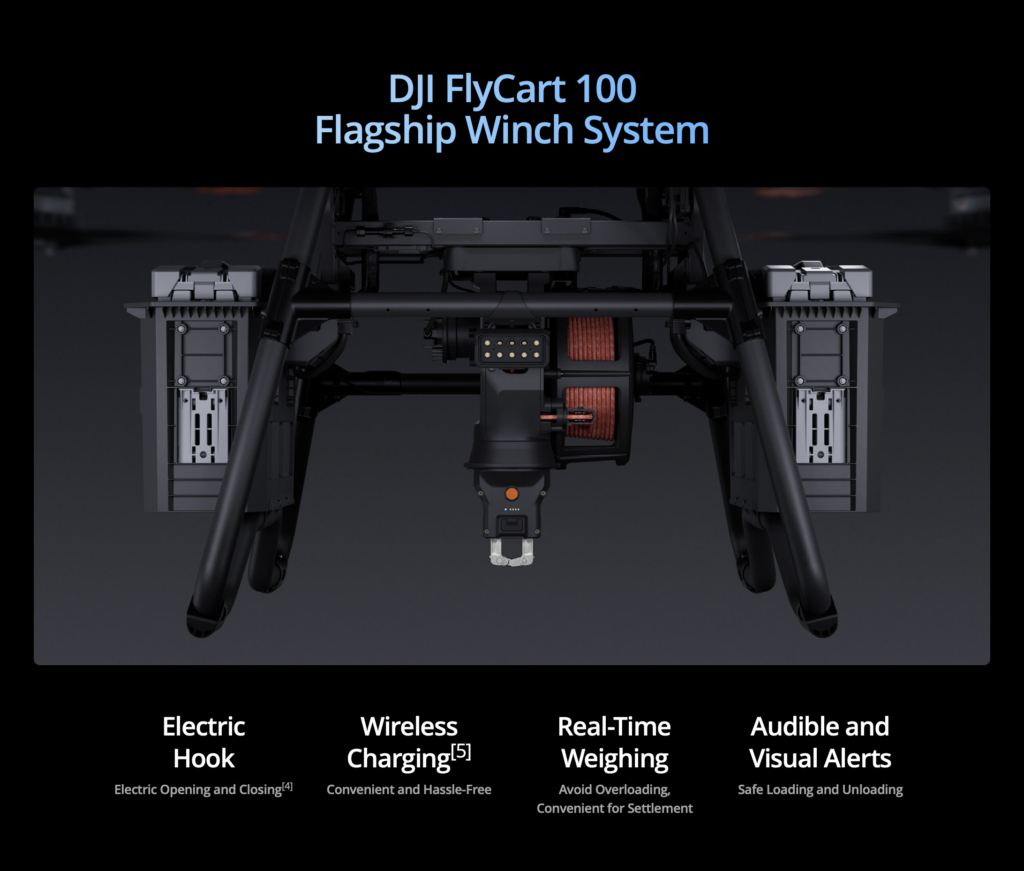

    60.2kg (with Winch system)^{Excludes the weight of the battery, dual battery compartment and accessories, cable, and hook.}

• Max Takeoff Weight

  • 170kg

    ^{The 170kg maximum takeoff weight is the performance specification of the drone. Please follow local laws and regulations in actual use. In the following countries and regions the maximum takeoff weight is restricted to 150kg: Brazil, Japan, Australia, Turkey, Saudi Arabia, Argentina.}

• Max Diagonal Wheelbase（motor to motor）

  • 2330mm

• Diagonal length (tip to tip)

  • 3904mm

• Dimensions (arms & propellers unfolded)

  • 3220mm × 3224mm × 975mm

• Overall dimensions arms unfolded, propellers folded)

  • 1820mm × 1840mm × 975mm

• Overall dimensions (arms & propellers folded)

  • 1105 mm × 1265 mm × 975 mm

• Folding Method

  • Towards body

• Loadable Battery Quantity

  • Supports dual battery and single battery configurations

    ^{Single battery Mode is for emergency use.}

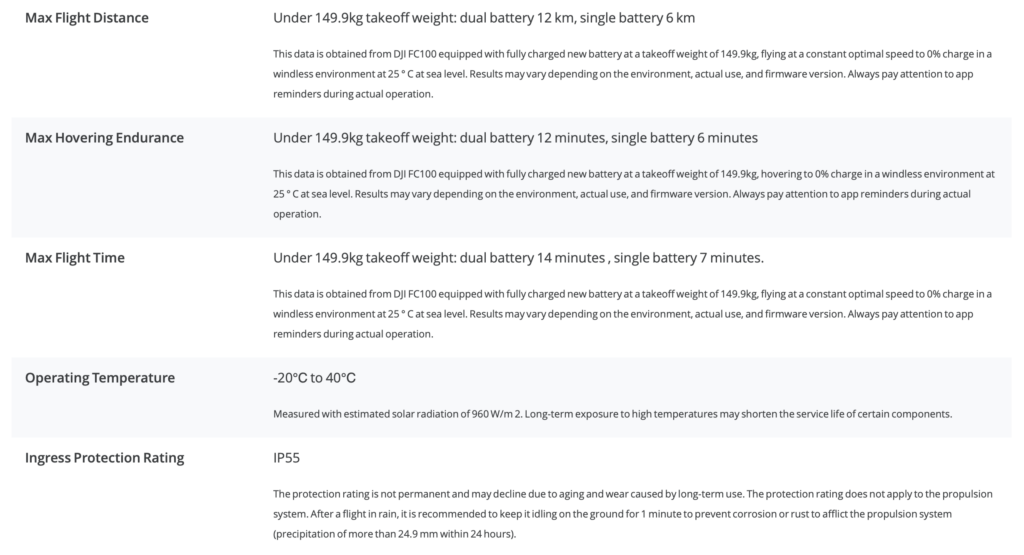

• Max Flight Distance

  • Under 149.9kg takeoff weight: dual battery 12 km, single battery 6 km

    ^{This data is obtained from DJI FC100 equipped with fully charged new battery at a takeoff weight of 149.9kg, flying at a constant optimal speed to 0% charge in a windless environment at 25 ° C at sea level. Results may vary depending on the environment, actual use, and firmware version. Always pay attention to app reminders during actual operation.}

• Max Hovering Endurance

  • Under 149.9kg takeoff weight: dual battery 12 minutes, single battery 6 minutes

    ^{This data is obtained from DJI FC100 equipped with fully charged new battery at a takeoff weight of 149.9kg, hovering to 0% charge in a windless environment at 25 ° C at sea level. Results may vary depending on the environment, actual use, and firmware version. Always pay attention to app reminders during actual operation.}

• Max Flight Time

  • Under 149.9kg takeoff weight: dual battery 14 minutes , single battery 7 minutes.

    ^{This data is obtained from DJI FC100 equipped with fully charged new battery at a takeoff weight of 149.9kg, flying at a constant optimal speed to 0% charge in a windless environment at 25 ° C at sea level. Results may vary depending on the environment, actual use, and firmware version. Always pay attention to app reminders during actual operation.}

• Operating Temperature

  • -20℃ to 40℃

    ^{Measured with estimated solar radiation of 960 W/m 2. Long-term exposure to high temperatures may shorten the service life of certain components.}

• Ingress Protection Rating

  • IP55

    ^{The protection rating is not permanent and may decline due to aging and wear caused by long-term use. The protection rating does not apply to the propulsion system. After a flight in rain, it is recommended to keep it idling on the ground for 1 minute to prevent corrosion or rust to afflict the propulsion system (precipitation of more than 24.9 mm within 24 hours).}

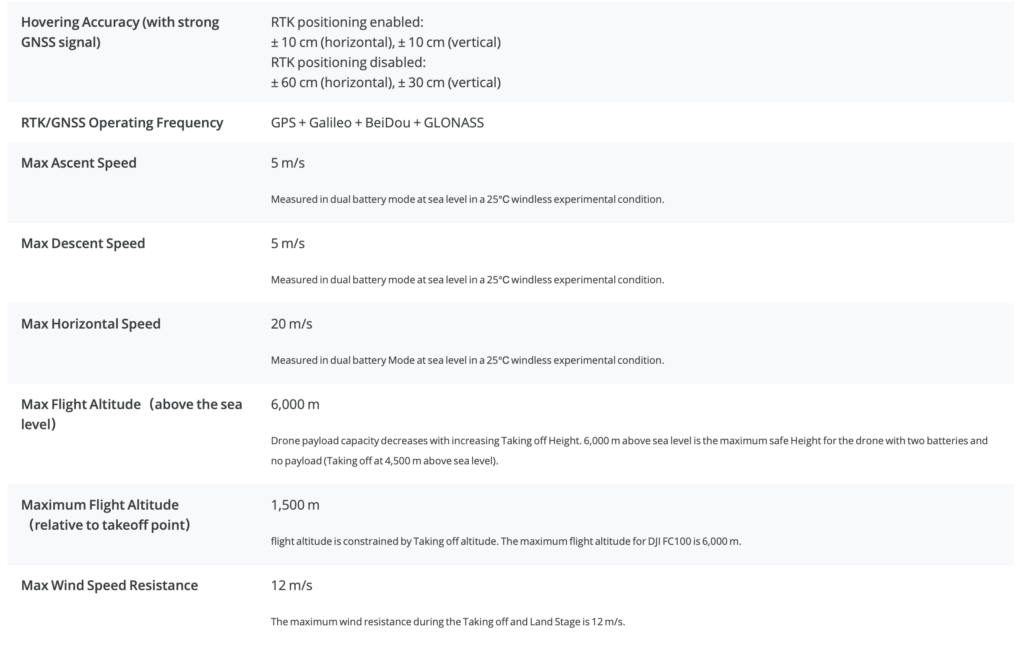

• Hovering Accuracy (with strong GNSS signal)

  • RTK positioning enabled:
    ± 10 cm (horizontal), ± 10 cm (vertical)
  • RTK positioning disabled:
    ± 60 cm (horizontal), ± 30 cm (vertical)

• RTK/GNSS Operating Frequency

  • GPS + Galileo + BeiDou + GLONASS

• Max Ascent Speed

  • 5 m/s

    ^{Measured in dual battery mode at sea level in a 25℃ windless experimental condition.}

• Max Descent Speed

  • 5 m/s

    ^{Measured in dual battery mode at sea level in a 25℃ windless experimental condition.}

• Max Horizontal Speed

  • 20 m/s

    ^{Measured in dual battery Mode at sea level in a 25℃ windless experimental condition.}

• Max Flight Altitude（above the sea level）

  • 6,000 m

    ^{Drone payload capacity decreases with increasing Taking off Height. 6,000 m above sea level is the maximum safe Height for the drone with two batteries and no payload (Taking off at 4,500 m above sea level).}

• Maximum Flight Altitude （relative to takeoff point）

  • 1,500 m

    ^{flight altitude is constrained by Taking off altitude. The maximum flight altitude for DJI FC100 is 6,000 m.}

• Max Wind Speed Resistance

  • 12 m/s

    ^{The maximum wind resistance during the Taking off and Land Stage is 12 m/s.}

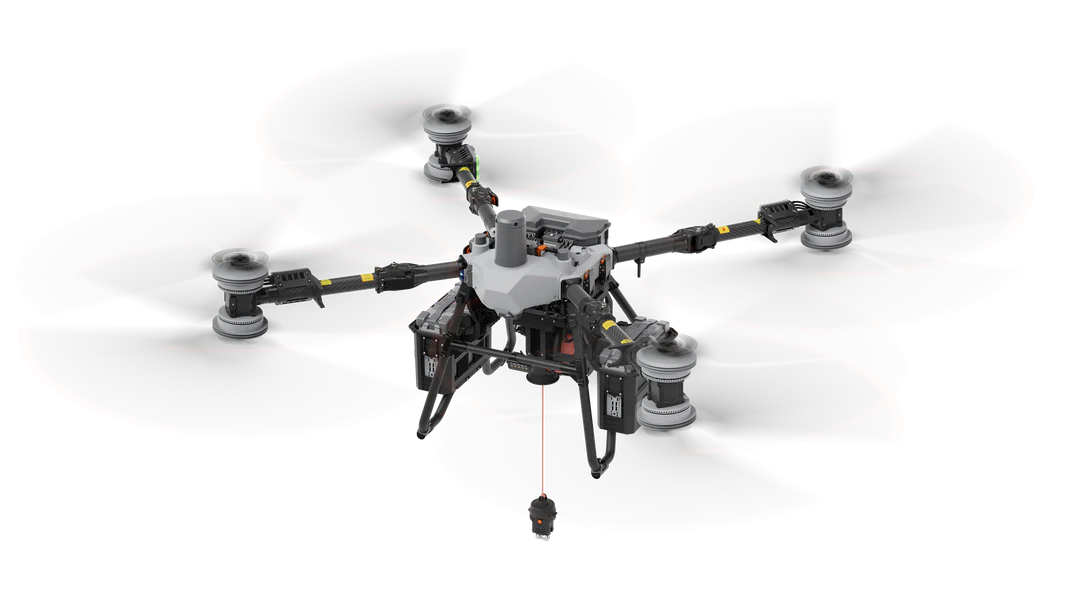

Propulsion System

• Stator Size

  • 155 × 16 mm

• Motor KV Value

  • 60 rpm/V

• Propeller Material

  • Carbon Fiber Composite

• Propeller Dimensions

  • 62 inches（1574.8mm）

• Propeller Type

  • Dual-Blade Folded Propeller

• Number of Rotors

  • 8 pairs

Safety System

• Safety System Type

  • Front Millimeter-Wave Radar
  • Rear Radar (Single Board)
  • Downward Radar (Single Board)
  • LiDAR
  • Quad-vision System
  • FPV

• Millimeter-Wave Radar EIRP

  • <20 dBm (NCC/MIC/KC/CE/FCC)

• Operating Temperature

  • -20° to 40° C (-4° to 104° F)

• Operating Environment Requirements

  • Adequate light and discernible surroundings

• Operating Power Consumption

  • LiDAR: 6.5 W
  • Front Radar: 18 W
  • Downward Radar: 5 W
  • Rear Radar: 5 W

• Field of View (FOV)

  • LiDAR: Vertical 272°, Horizontal 60°
  • Front Radar: Horizontal 360°, Vertical ±45°
  • Downward Radar: Left/Right ±12.5°, Front and Back ±22.5°
  • Rear Radar: Left and Right ±45°, Front/Back ±45°
  • Quad-vision SystemHorizontal 360°, Vertical 180°
  • FPV Camera: Horizontal ±86°, Vertical 108°

• Measurement Range

  • ≤ 60 m

    ^{The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used to assist in Terrain Following flight and altitude stabilization, while other directions assist with obstacle avoidance. AR safety assistance features serve only as supplementary hints, operators must confirm the surrounding environment’s safety during operation.
    Note 1. Downward sensing assists in Terrain Following flight. If the bottom collides with obstacles, it is considered user responsibility.
    Note 2. Due to limitations in safety system performance, the aircraft cannot automatically avoid moving objects, and accidents of this nature will be attributed to user responsibility.
    Note 3. Cargo obstacle avoidance is only for auxiliary flight; if the cargo and lifting caboe collide with an obstacle, it is the customer’s responsibility.}



DJI O4 Video Transmission

• Max Transmission Distance

  • 20 km (FCC)
  • 10 km (CE)
  • 12 km (SRRC)

  • 10 km (MIC)

    ^{Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to reminder on the DJI Delivery App.}

• Operating Frequency

  • 2.400 GHz to 2.4835 GHz

  • 5.725 GHz to 5.850 GHz

    ^{The supported operating frequency bands and corresponding available range vary by country/region. For Details, please refer to local laws and regulations.}

• Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

• Live View Quality

  • 1080p/30fps

• Antenna

  • 4 Antennas, 2T4R

• 4G Enhanced Transmission

  • Supported

Lighting

• Illumination Direction

  • Forward, Downward

• Control mode

  • Auto, Manual

• Max illumination power

  • 46 W（Standard）
