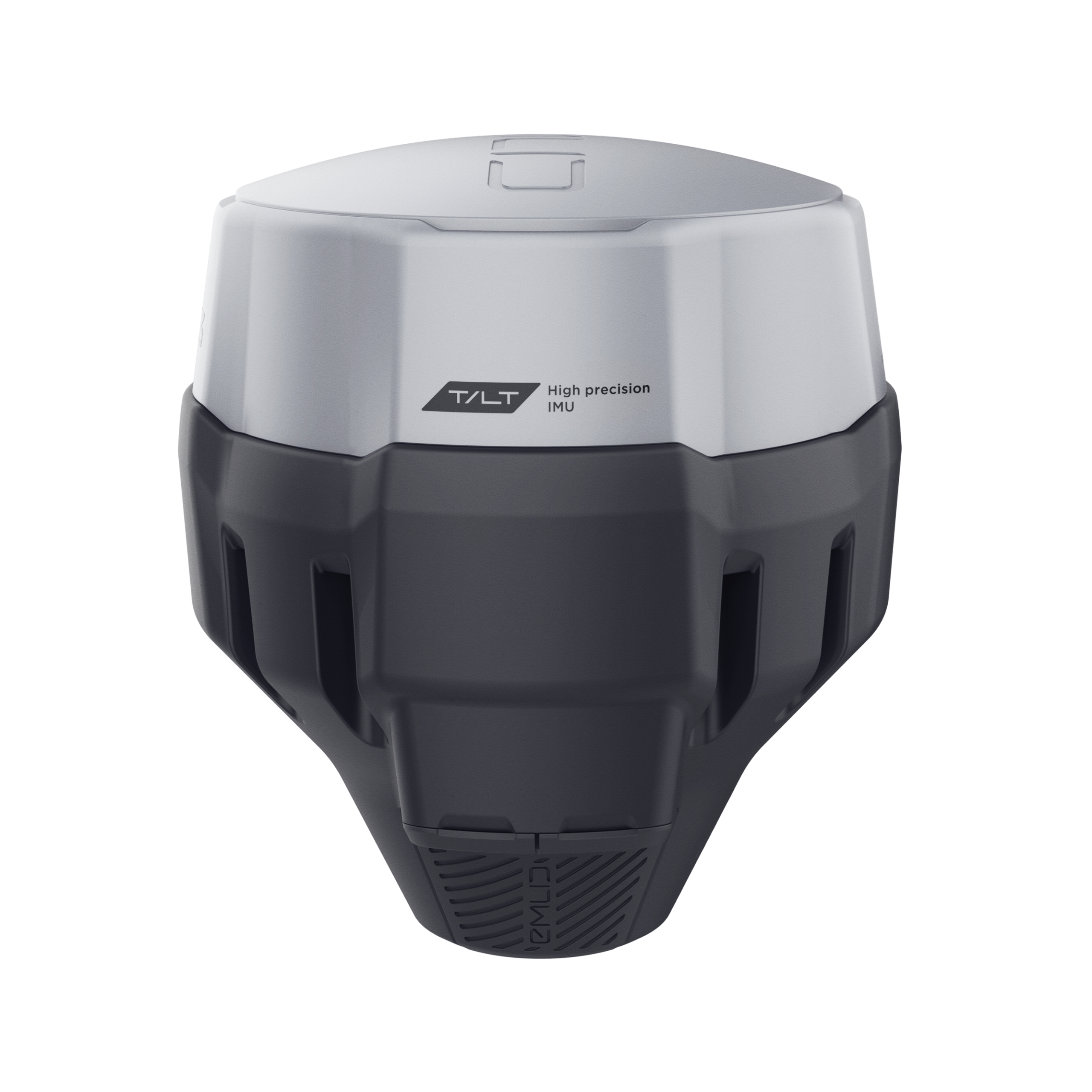

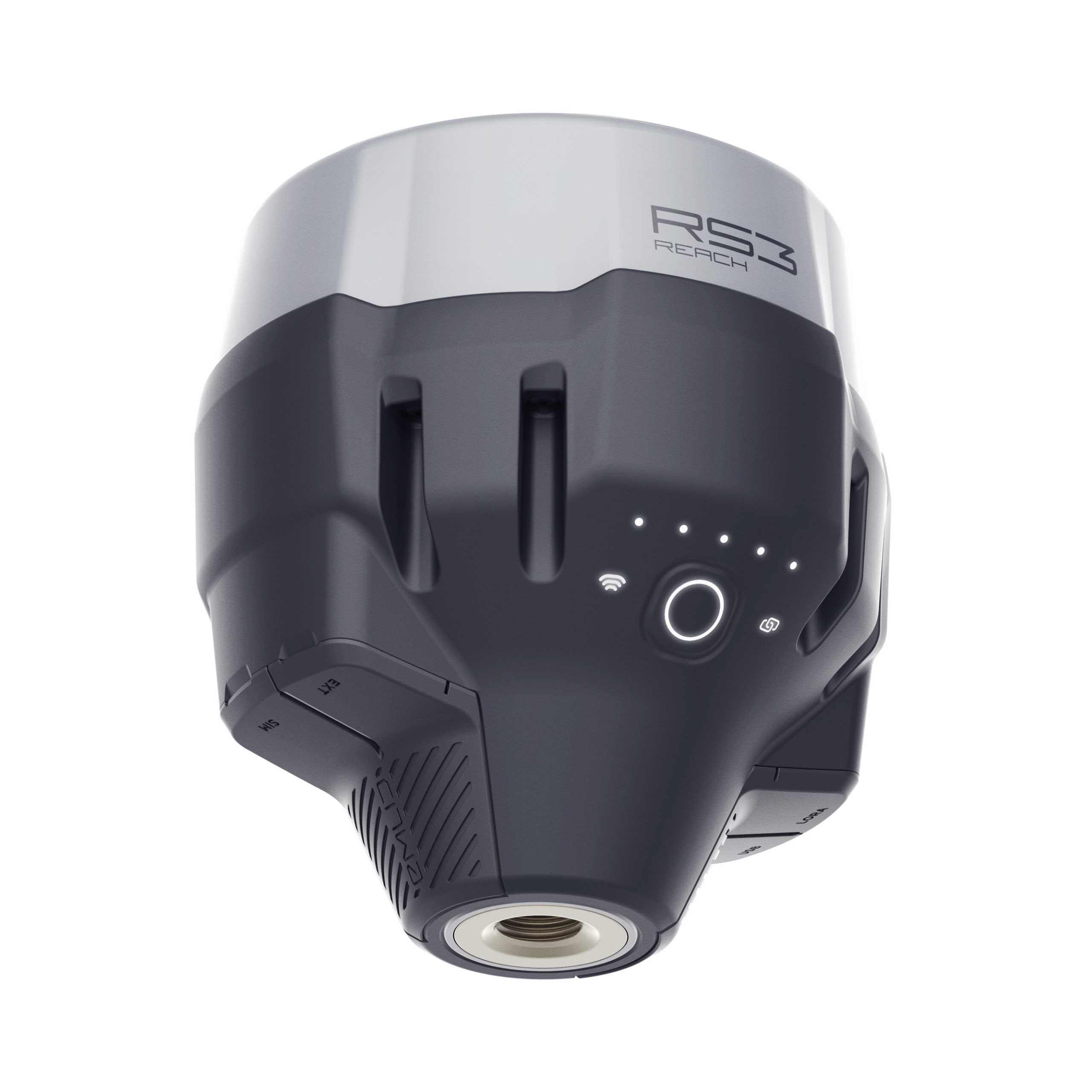

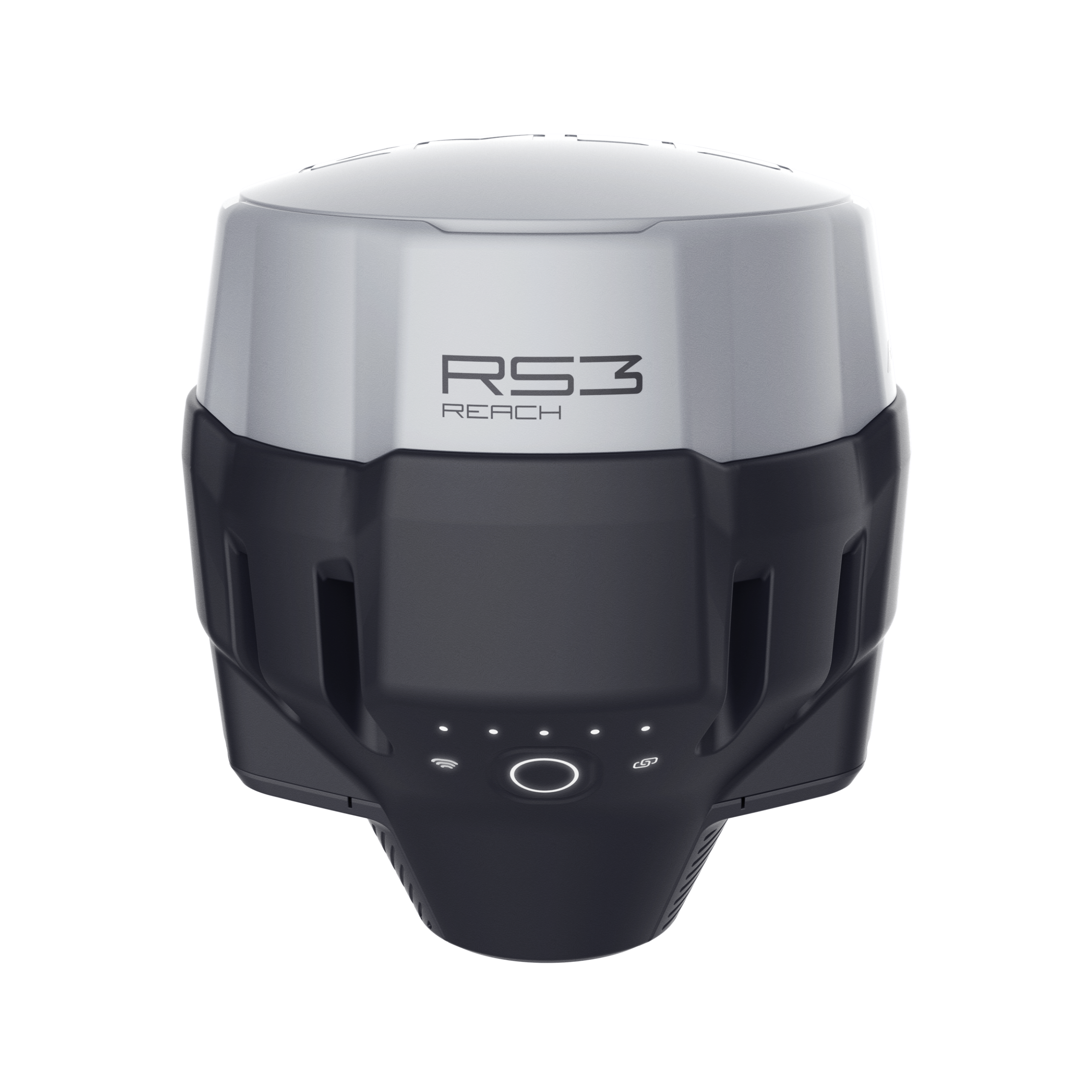

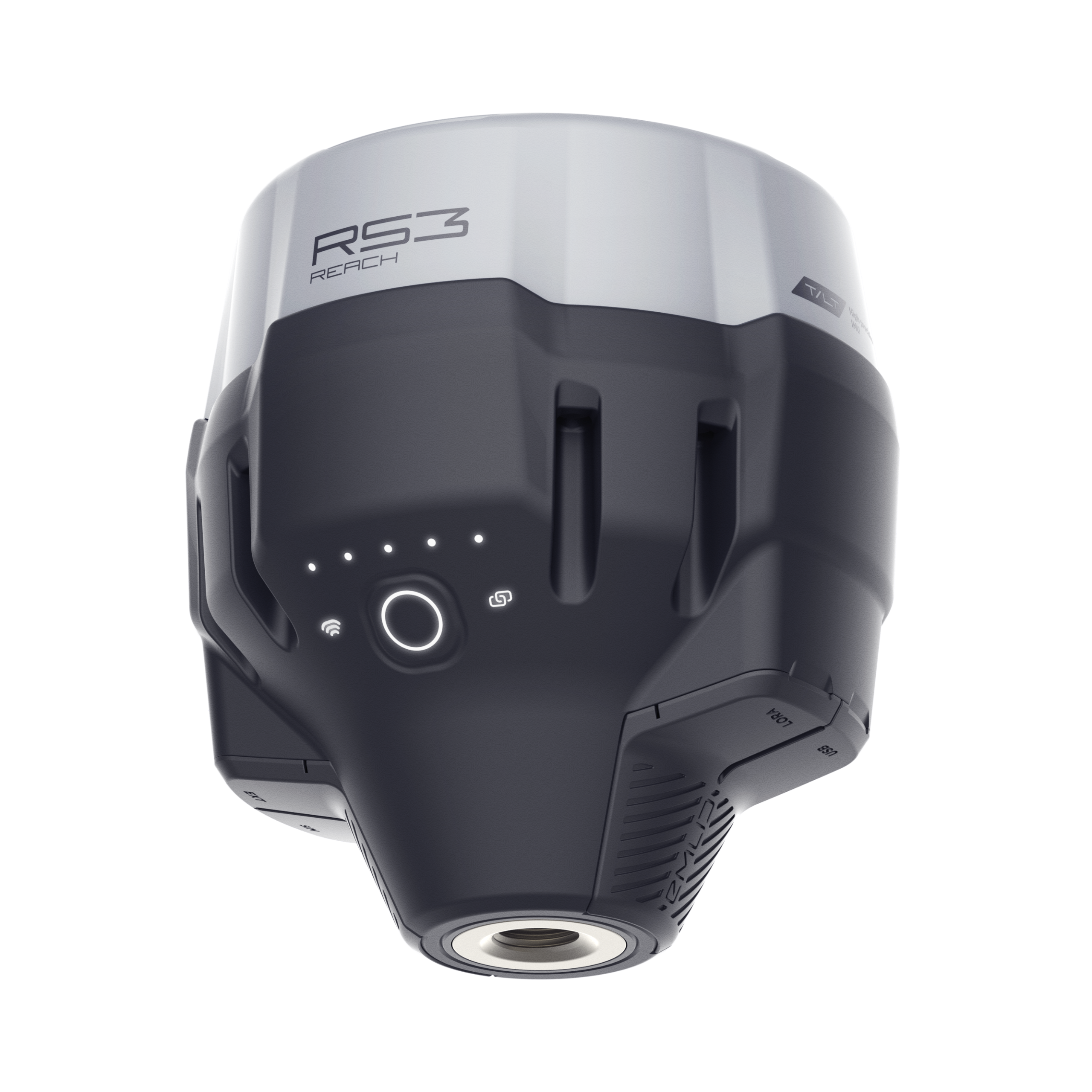

Emlid Reach RS3

kr 29 400 eks. MVA

Multi-band RTK GNSS receiver with tilt compensation

Survey grade precision even in hard-to-reach spots. Comes with a mobile app.



Beskrivelse





Multi-band RTK GNSS receiver with tilt compensation

Survey grade precision even in hard-to-reach spots. Comes with a mobile app.









IMU:

6DOF, RTK + 2 mm + 0.3 mm/°



GNSS

GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b



18 hrs with tilt compensation

Li-Ion battery, USB Type-C charging



LTE and Wi-Fi

To connect the device to the internet



Dual-band radio

868/915 MHz LoRa to receive and transmit corrections
450 MHz UHF to receive corrections



NTRIP and RTCM3

Supported protocols to send and receive corrections

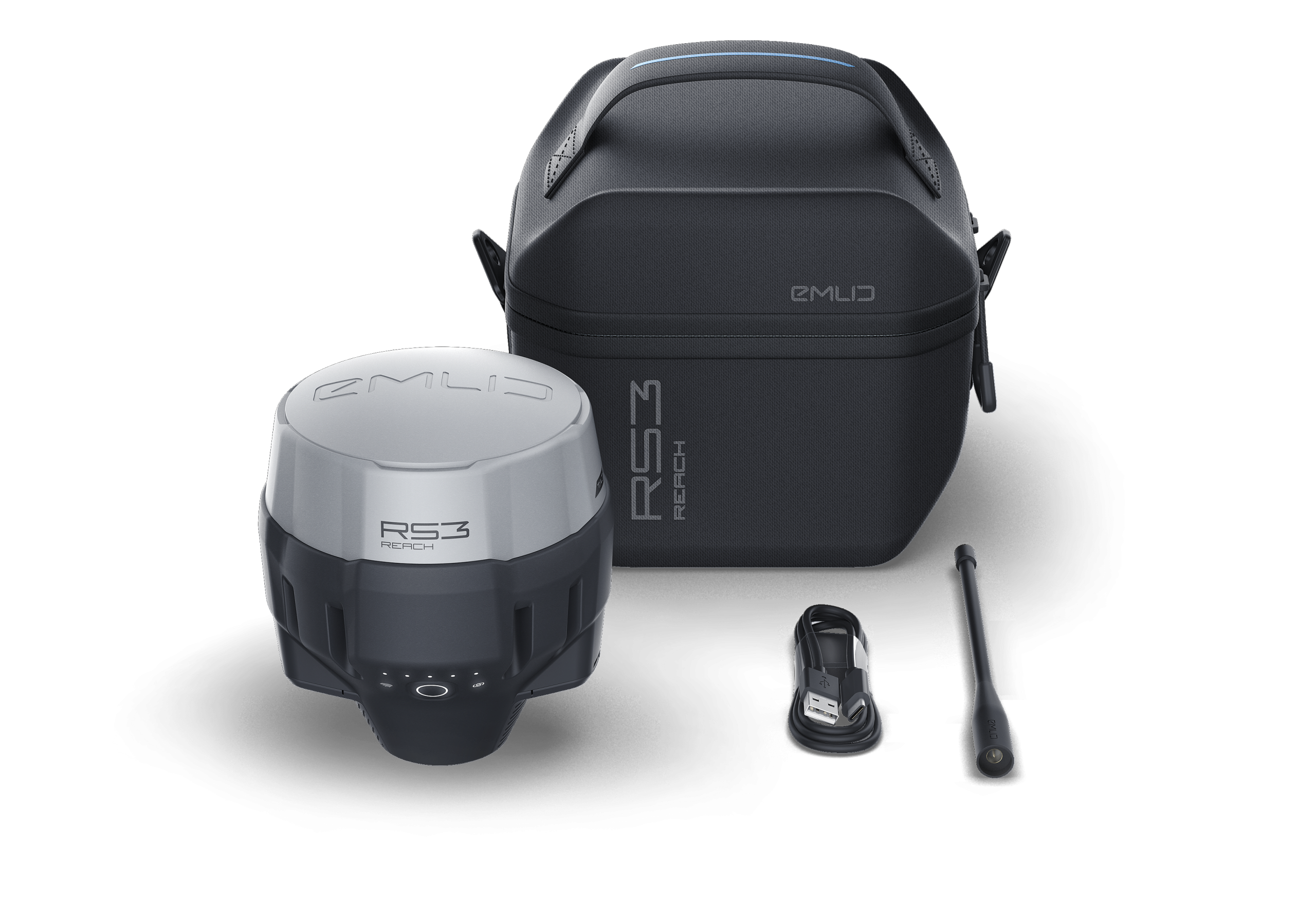

Package includes:

  • Reach RS3
  • Carrying case with a strap

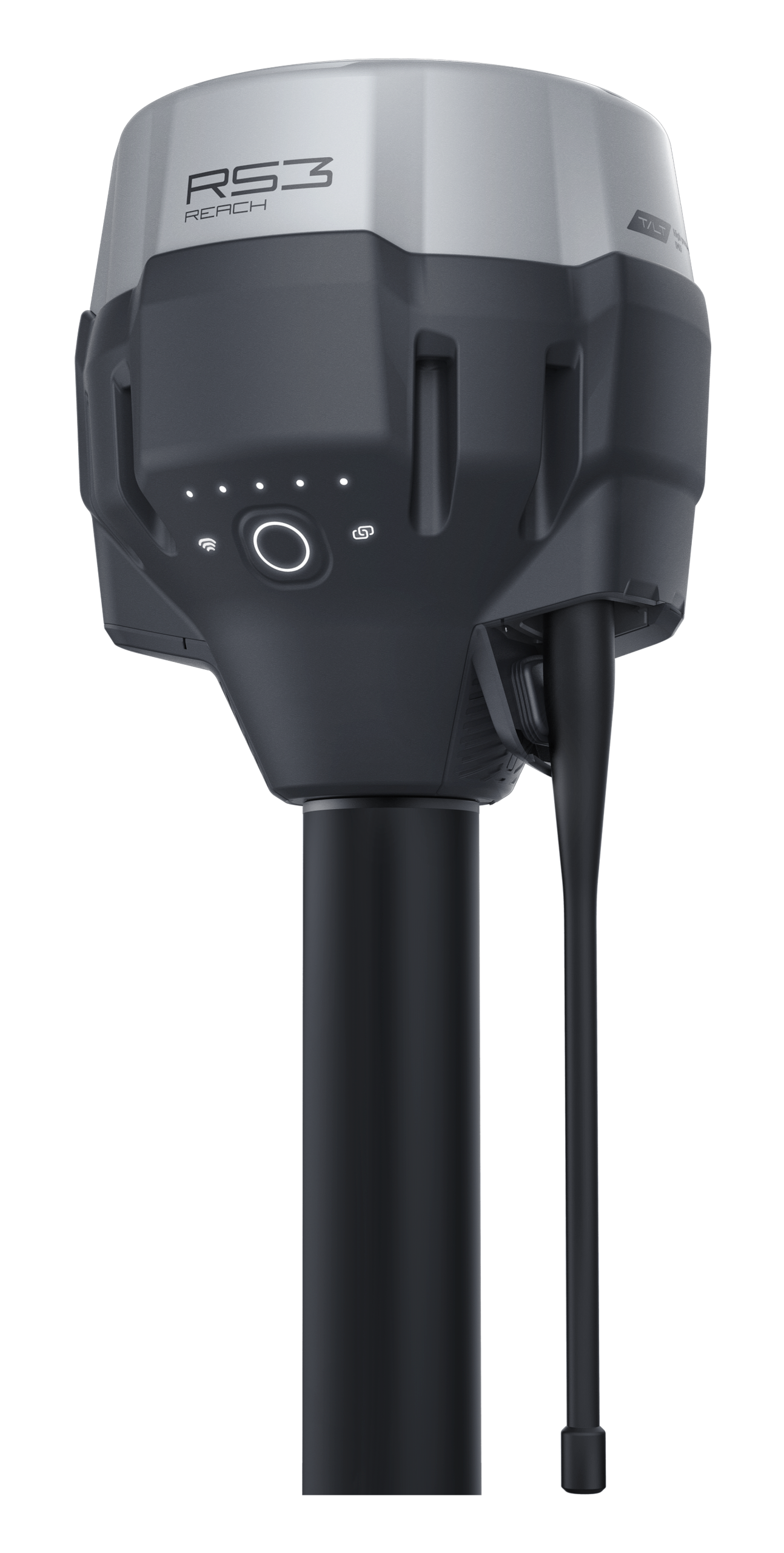

  • Radio antenna
  • USB Type-C cable















Specifications:

  • Mechanical

    Dimensions: 126 x 126 x 142  mm

    Weight: 950 g

    Operating tº: -20 to +65 ºC

    Ingress protection: IP67

  • Electrical

    Autonomy: 18 hrs as RTK rover with tilt, 22 hrs of logging

    Battery: Li-Ion 5200 mAh, 7.2 V, 37.44 Wh

    External power input: 7.2 V

    Charging: USB Type-C 5 V, 3 A

    Certification: FCC, CE

  • Positioning

    Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm

    PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Tilt compensation: RTK + 2 mm + 0.3 mm/°

    Convergence time: ~5 s typically

  • Connectivity

    LoRa radio

    Frequency range: 868/915 MHz

    Power: 0.1 W

    Distance: Up to 8 km

    UHF radio—receive only*

    Frequency range: 410 – 470 MHz

    Protocols: TRIMTALK 450S**

    Modulation type: GMSK

    LTE modem

    Regions: Global

    Bands: FDD-LTE: 1,2,3,4,5,7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38,40,41
    UMTS (WCDMA/FDD): 1,3,2,4,5,6, 8,19 Quad-band, 850/1900, 900/1800 MHz

    SIM card: Nano-SIM

    Wi-Fi: 802.11 b/g/n

    Bluetooth: 4.0/2.1 EDR

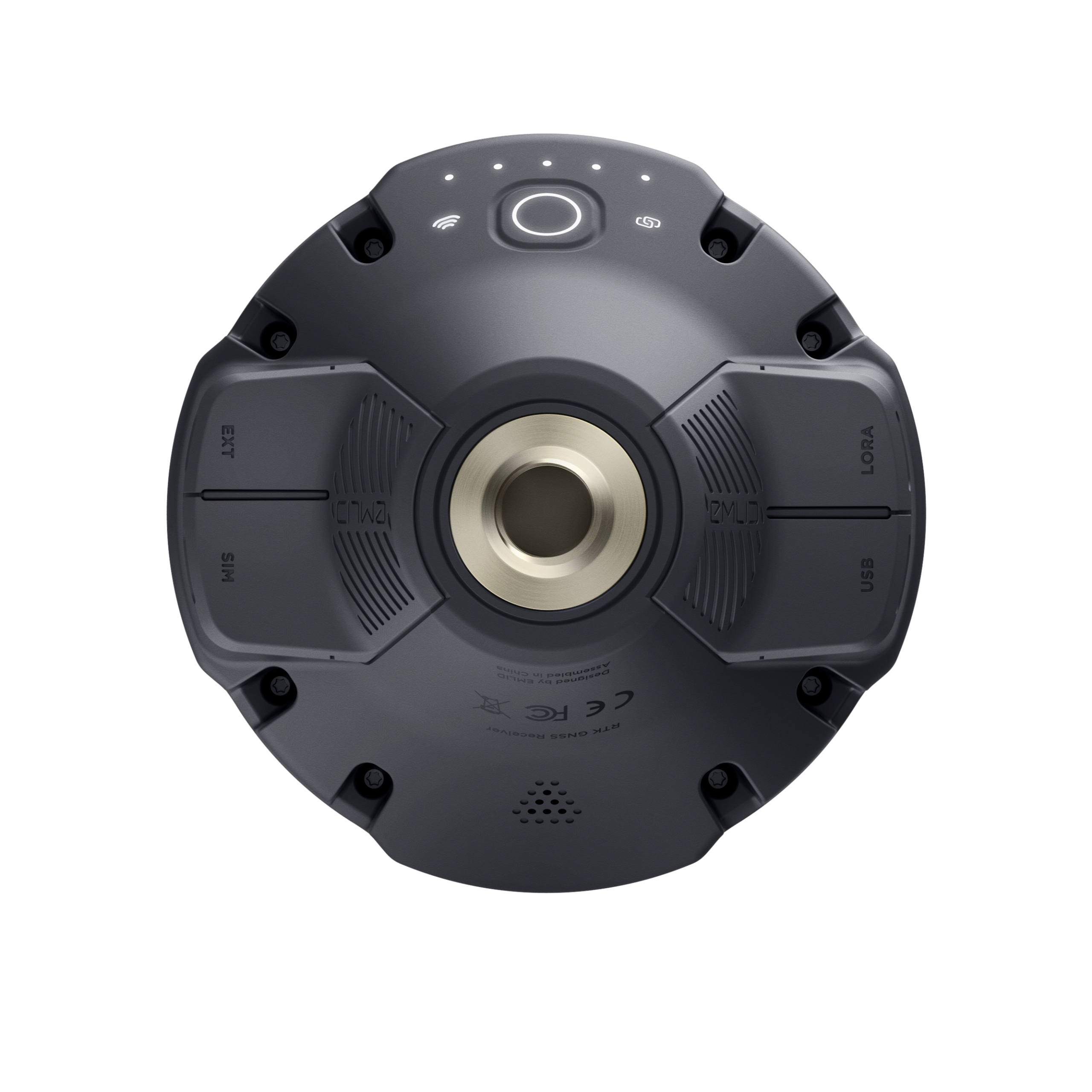

    Ports: RS-232, USB Type-C

    *Requires a 410-470 MHz antenna, sold separately.

    **TRIMTALK is a trademark of Trimble Inc.

  • Data protocols

    Corrections: NTRIP, RTCM3

    Position output: NMEA, LLH/XYZ

    Data logging: RINEX, NMEA, LLH/XYZ, UBX

    Internal storage: 16 GB

  • GNSS

    Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b

    Number of channels: 184

    Update rates: up to 10 Hz

    IMU: 6DOF
