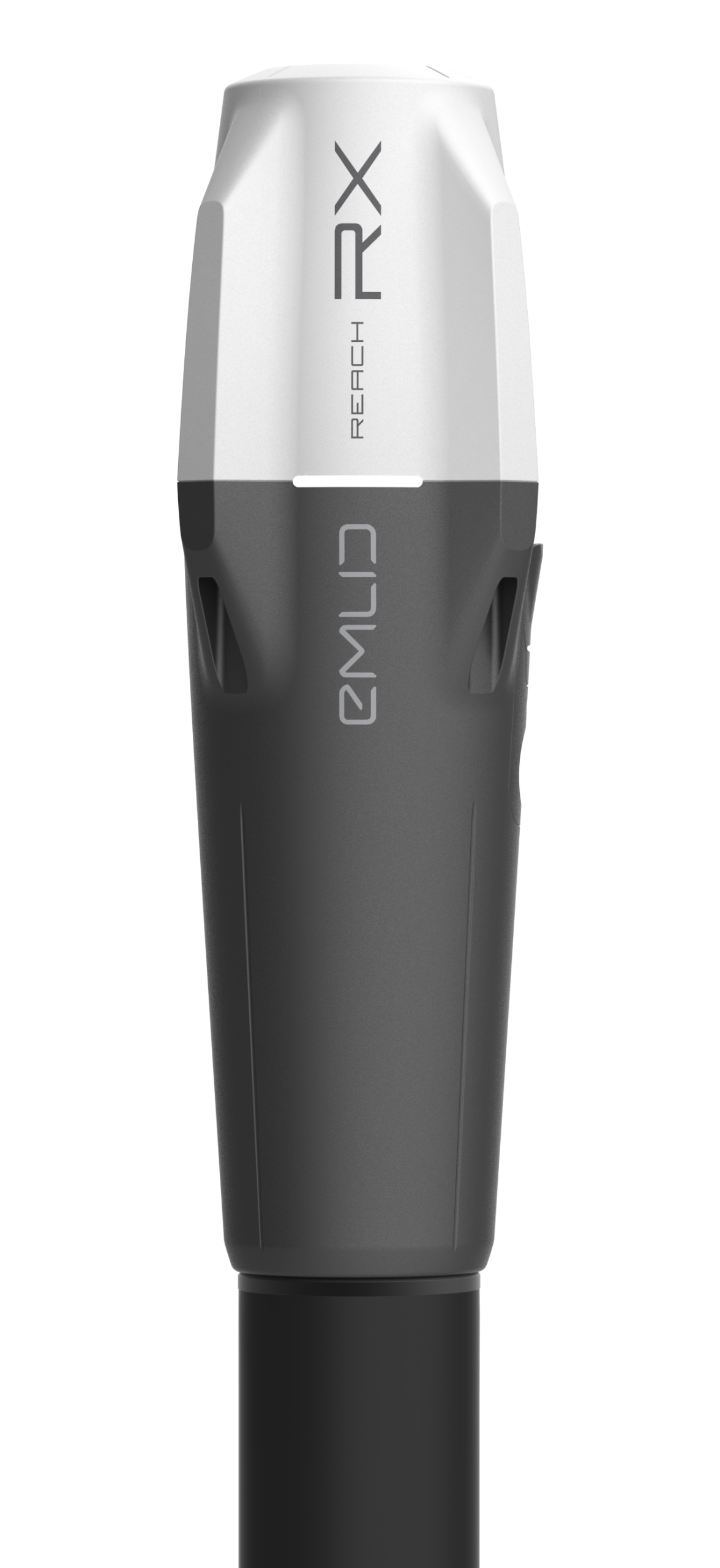

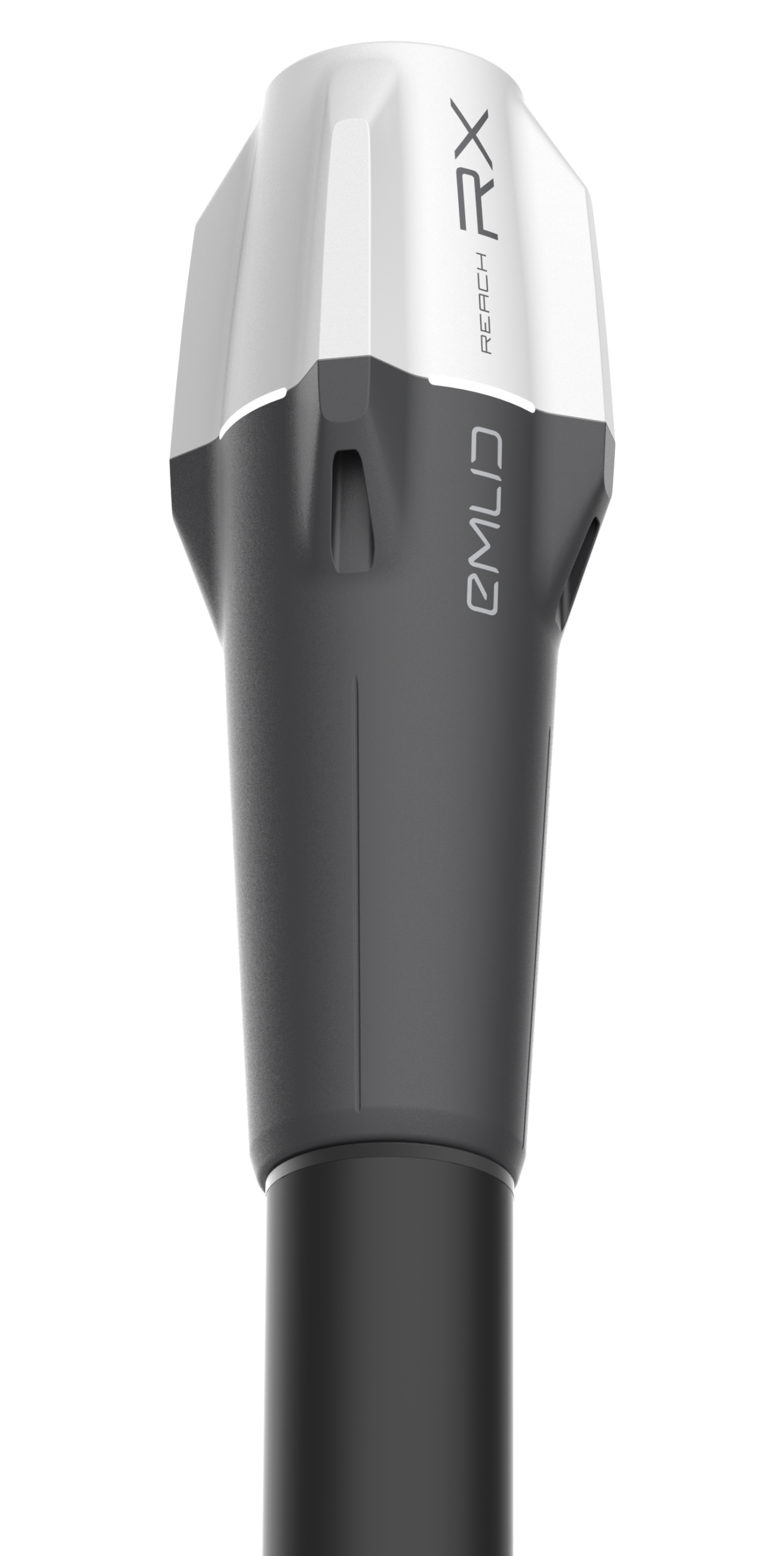

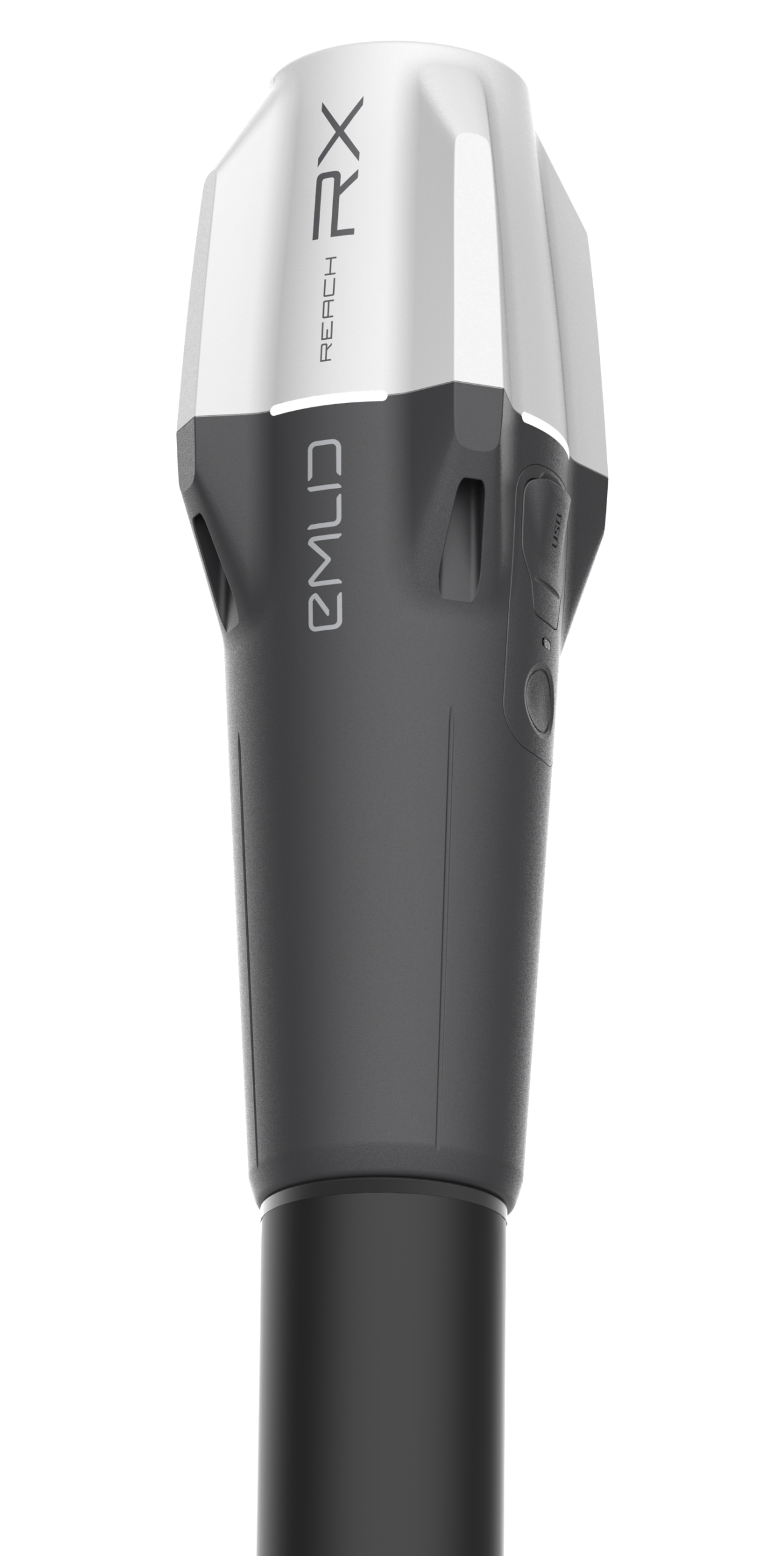

Emlid Reach RX

kr 20 990 eks. MVA

Lightweight and easy-to-use multi-band RTK GNSS receiver

Designed specifically for work with NTRIP corrections.
Comes with a mobile app.



Beskrivelse





Lightweight and easy-to-use multi-band RTK GNSS receiver

Designed specifically for work with NTRIP corrections.
Comes with a mobile app.









GNSS

GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b



250 g

Compact and lightweight



16 hrs

Li-Ion battery, USB Type-C charging



Communication interface

Bluetooth 4.2

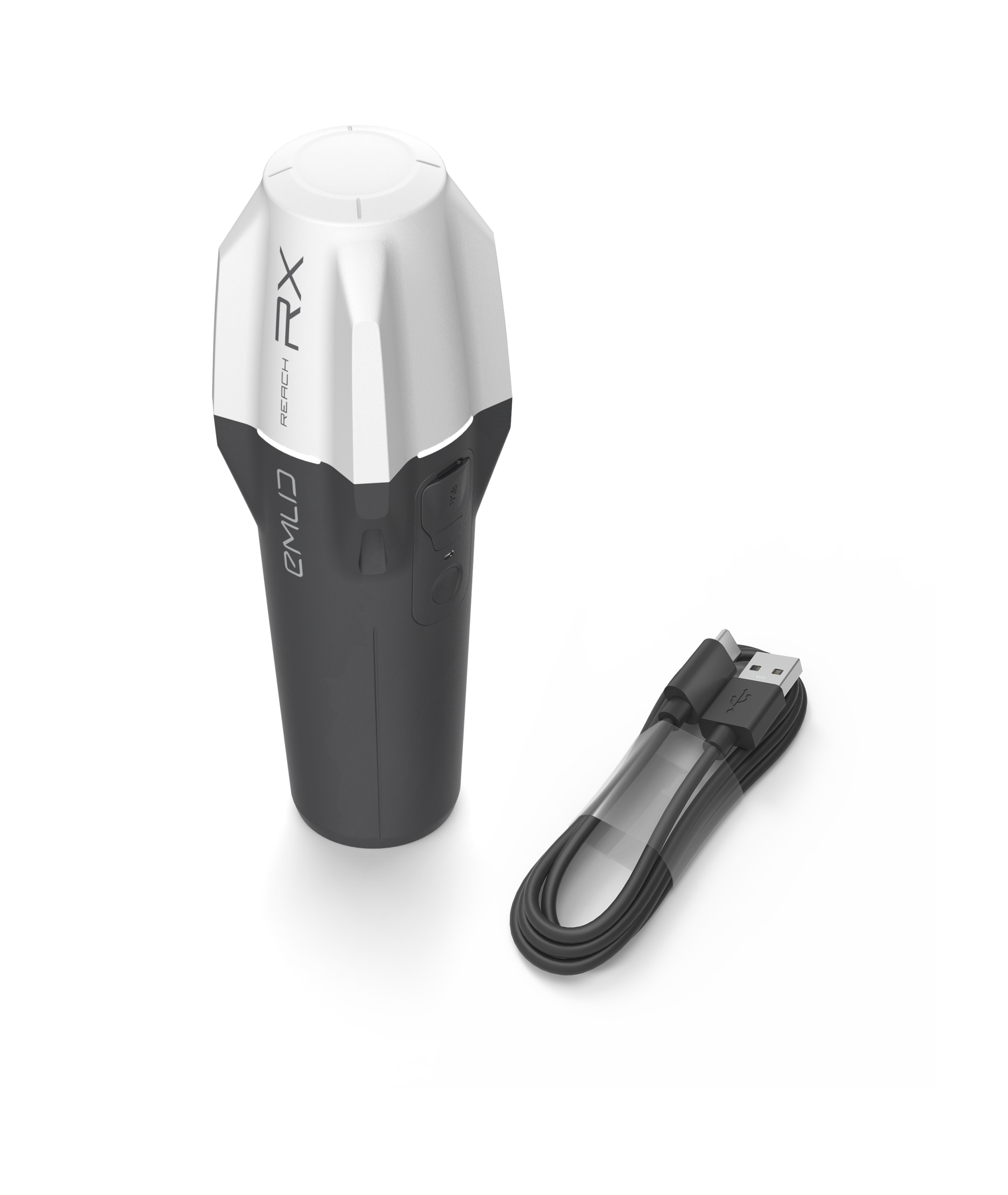

Package includes:

  • Reach RX
  • USB Type-C cable













Specifications:

  • Mechanical

    Dimensions: 172 x 51 x 51 mm

    Mount: 5/8”-11 UNC

    Weight: 250 g (8.81 oz)

    Operating tº: -20 to +65 ºC

    Ingress protection: IP68 (maximum depth of 1.5 meters up to 30 minutes)

  • Electrical

    Autonomy: Up to 16 hrs

    Battery: Li-Ion 5200 mAh, 3.6V, 18.72 Wh

    Charging: USB Type-C, 5V, 2A

    Certification: FCC, CE, IC

  • Positioning

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Convergence time: ~5 s typically

  • Connectivity

    Communication interface: Bluetooth 4.2

    Ports: USB Type-C

  • Data

    Input data format: RTCM3

    Input data protocol: NTRIP

    Position data format: NMEA

  • GNSS

    Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b

    Number of channels: 184

    Update rates: 5 Hz
